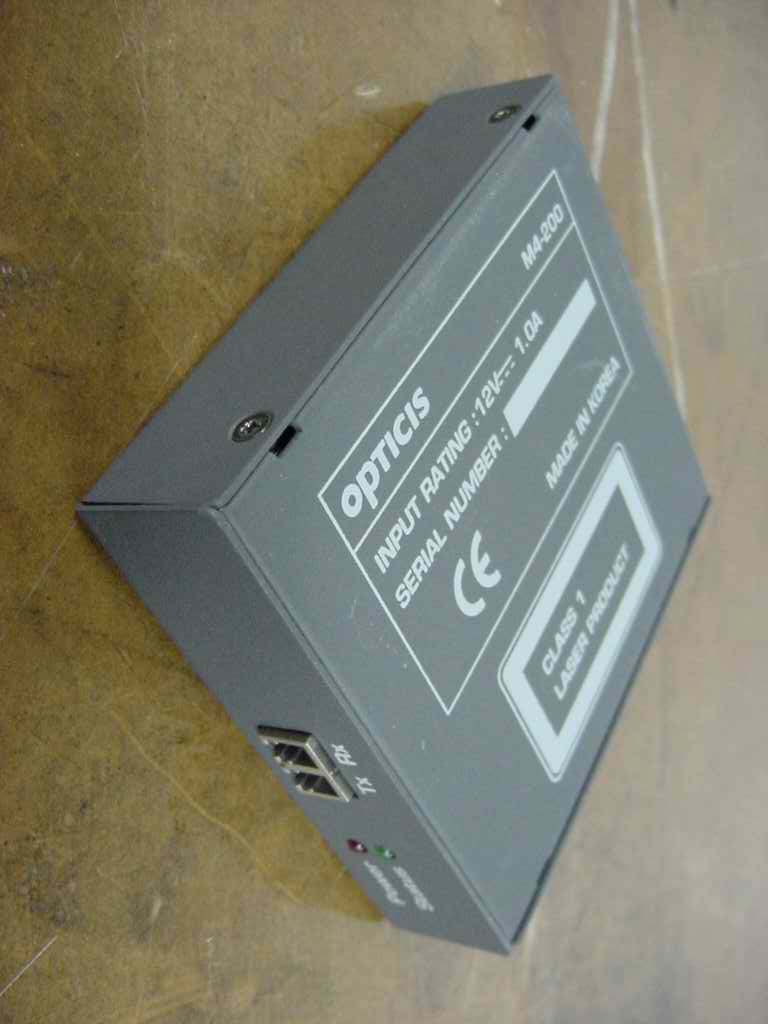

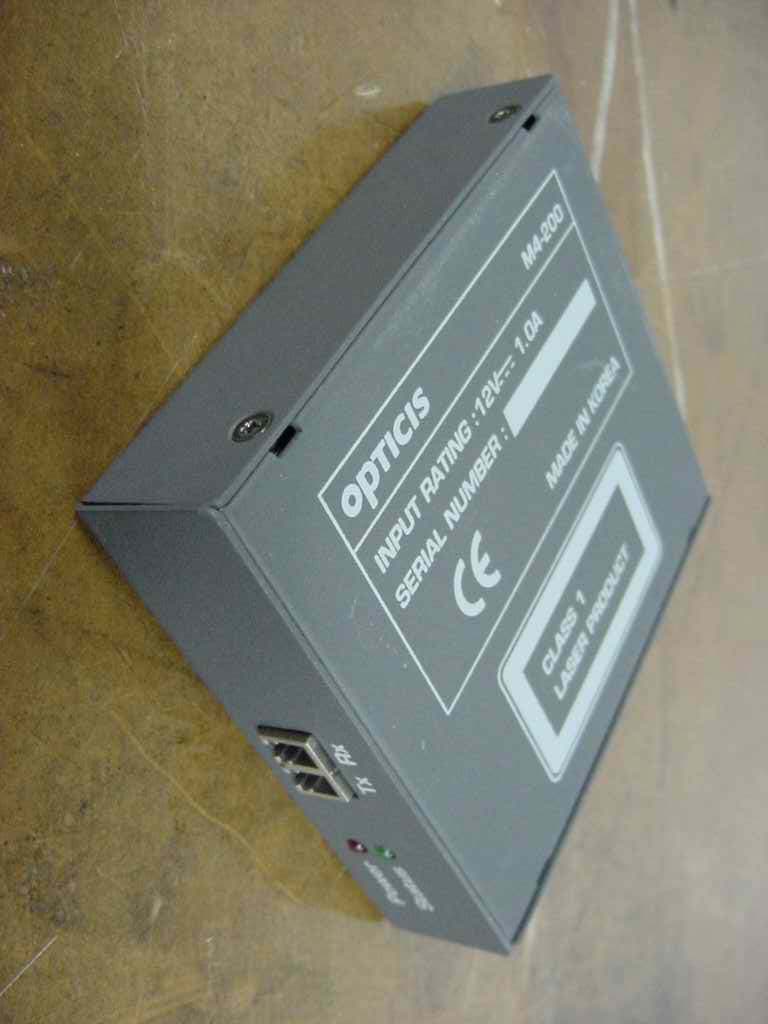

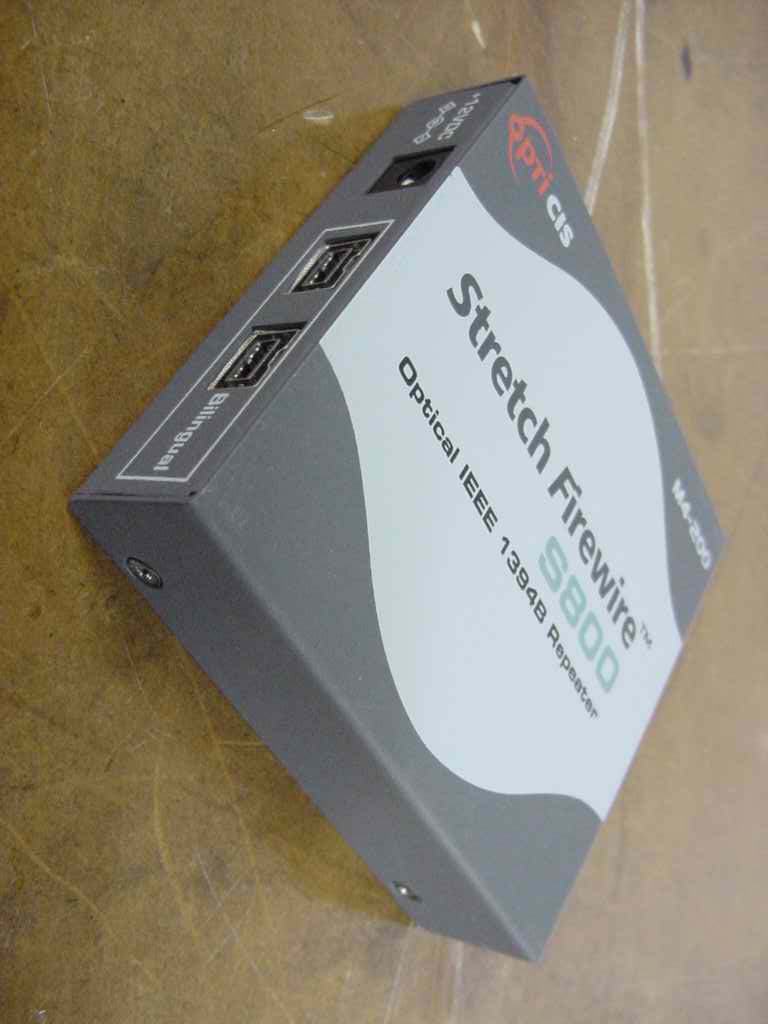

Figure 3 – Side View of M4-200 Repeater Step 8 Power up the host and peripheral equipment. At this point, there must be no external power supplies plugged into the M4-200 upstream or downstream boxes, Step 9 Observe the Power Light Emitting Diode on the side of the boxes. If the upstream box LED is illuminated, no external power supply is required . Likewise if the downstream box LED is illuminated, no external power supply is required . Step 10 If both Power LEDs are illuminated, th en the Firewire link is active. Proceed with the software bring-up on the host system. Ignore further steps Step 11 If one or both of the upstream/downstream Power LEDs are dark, then power down all equipment and plug in one or two Opticis power supplies. Step 12 Power up complete system. Both upstream/downstream LEDs should be illuminated. Proceed with host software bring-up. Do NOT plug in external power to the box if the PWR LED is on after the M4-200 repeater is connected to a live host or powered peripheral. 1-4 Installation (continued) Installation Important: Please use the installation procedure below. Improper, or no operation may result if the start-up sequence is not correctly followed. Step 1 Carefully unpack the contents of the shipping group. Step 2 Ensure no host or peripheral equipment is powered up. Step 3 The M4-200 Firewire repeater boxes are identical. Identify one as upstream (or host) and downstream (or peripheral). Step 4 Prepare a duplex LC patch cord fiber-optic cable (Multi-Mode Glass Optical Fiber with 62.5/125 μm or 50.0/125 μm core). Attach the two LC connector fiber cables first with no power applied to any system component as follows: Tx (Upstream) to Rx (Downstream) Rx (Upstream) to Tx (Downstream) Figure 2 – End View of M4-200 Repeater Step 5 Connect the upstream box to the host computer using a copper Firewire cable by plugging into the host computer Firewire card and the upstream box Firewire port (either one) Step 6 Connect the downstream box to the peripheral equipment in a similar manner. Step 7 If there are non-Opticis external power supplies to be attached, do so now. e.g. block power supplies for laptop Firewire PC cards, downstream appliances, etc. Do NOT attach the Opticis power supplies until instructed to do so. 1-3 Installation Product Specifications M4-200 Optical Firewire Repeater … Electrical Specifications „ Fully supports provisions of IEEE1394b-2002 (2 bilingual ports) „ Power supply: DC12~16V (max.500mA) „ Data rates: S100 (98.304 Mbps), S200 (196.608 Mbps), S400 (393.216 Mbps) and S800 (983.04 Mbps) … Optical Specifications „ IEEE1394b-2002 compliant „ Duplex LC type optical port supporting 62.5 μm, 50.0 μm Multi-mode Glass of Fiber „ Laser Class 1 Eye Safety compliant: 850nm VCSEL „ Data rates: S100 (122.44 Mbps), S200 (245.76 Mbps), S400 (491.52 Mbps), S800 (983.04 Mbps) … Mechanical Specifications „ Box dimensions: 101mm / 24mm / 91mm (W/H/D) „ Weight: 0.252 Kg … Environmental Specifications „ Operating temperature: 0°C to 70°C „ Storage temperature: - 40°C to 85°C „ Humidity: 5% to 95% AC/DC Power Adapter … Power Input: AC 100-240V, 50/60Hz 0.1A … Power Output: +12 V, 1.0A SMPS DC-power Adapter … Cord DC Jack: Core is 12 V and outer is GND. 1-6 Product Specifications Welcome! Congratulations on your purchase of the S tretch F irewire M4-200 Optical FireWire Repeater System. This manual contains information that will assist you in installing and operating the product. Product Description Shipping Group … M4-200 Optical Firewire Repeater: Two (2) units … 0.7 meter 1394b copper cables : Two (2) units 2pcs x Bilingual port(9pin) to DS port(6pin) for S400 or 2pcs x Bilingual port(9pin) to Bilingual port(9pin) for S800 … AC/DC power adapter: One (1) unit … User’s Manual … Quick Installation Note … Duplex LC Multi-Mode Optical Fiber Cable: Optional, can be provided by the user or by the reseller. Figure 1 – Firewire repeater system with optional fiber cables Troubleshooting The Power LEDs are not illuminated. Ensure that all AC and DC plugs and jacks used by external power supplies (both Opticis and others) are firmly connected. Ensure that power bars are live. No controller or driver for the peripheral device exists in the Operating System (OS) device manager. Reset the system. Disconnect and reconnect 1394(b) copper cables or DC power adapters. Check if the two fibers are properly connected. The Tx in one repeater goes to the Rx in the other and vice-versa. Remove the fiber cables and use a Firewire copper cable to connect the upstream and downstream boxes by plugging in to the unused bilingual ports. The OS device manager shows the Fire wire connection, but the Firewire peripheral does not work properly. Ensure that the correct software device driver is loaded on the processor platform. Direct connect the peripheral to the processor’s Firewire port to confirm operation. Software drivers are usually available from the Internet. Maintenance No special maintenance is required for the optical repeater boxes and power supplies. If not in use, insert the factory provided plug into the Tx/Rx fiber port. Ensure that the repeaters and power modules are stored or used in a benign environment free from liquid or dirt contamination. There are no user serviceable parts. Refer all service and repair issues to Opticis. Technical Support and Service For commercial or general product support, contact your reseller. For technical service, contact Opticis by email [email protected] or visit our website at www.opticis.com 1-5 Troubleshooting, Maintenance, Technical Support System Requirements for Setup … Hardware requirements „ You have to have a 1394(a/b) controller having a DS / bilingual port in your PC or Mac systems. „ No special requirements memory size, CPU speed and chipsets, if you’ve already properly installed your 1394 controllers. … Software requirements „ No special restrictions, if you’ve already properly installed your 1394 controller in your OS. „ Precau…

Text truncated - open the document above for the full version.

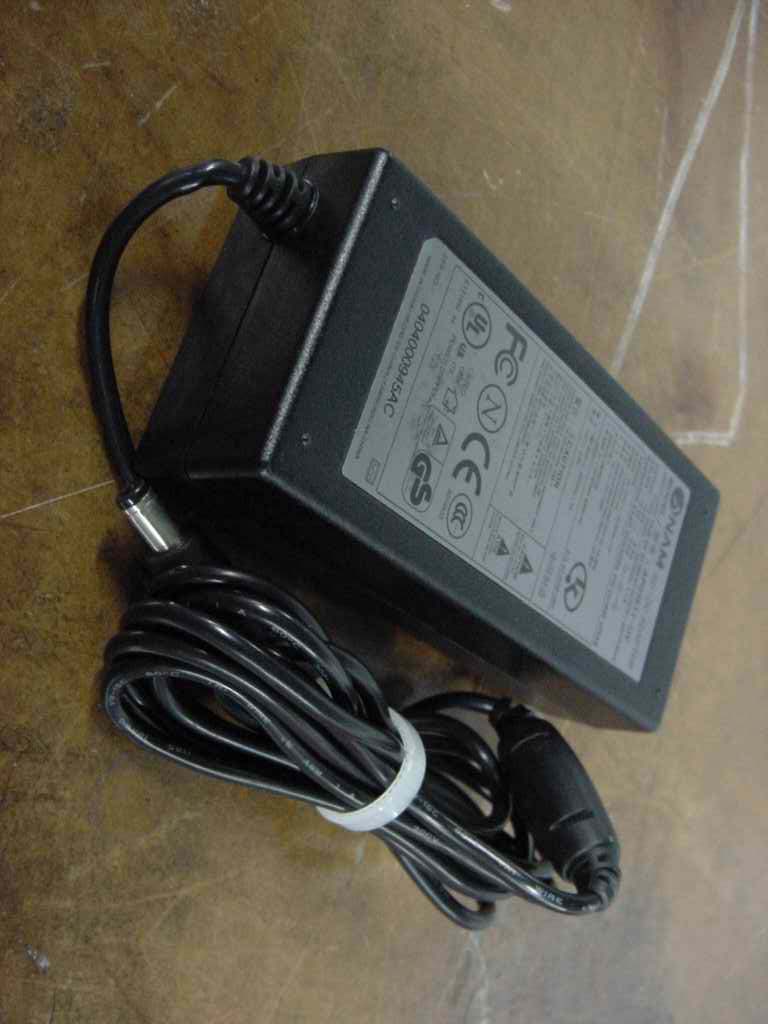

CONFIDENTIAL www.o p ticis.com Opticis M4-200 Circuit Block Diagram Optical module for 1394b signal (TRX) Switching Regulator (12V Æ 5V) Linear Regulator (5V Æ 3.3V) Status Decision 1.1394b connection 2. Power On LED PC SIDE Linear Regulator (5V Æ 1.8V) Optical cable 1394b Cable From 1394b Card 98.304MH CONFIDENTIAL www.o p ticis.com Opticis M4-200 Circ uit Block Diagram Optical module for 1394b signal (TRX) Switching Regulator (12V Æ 5V) AC to DC Adapter 12V 3A Out p ut Linear Regulator (5V Æ 3.3V) Status Decision 1.1394b signal detect 2. Power On LED Optical Cable DEVICE SIDE 1394b Cable From 1394b Card Linear Regulator (5V Æ 1.8V) 98.304MH

OPTICIS CO., LTD. #501, Bucksan Technopia, 434-6, Sangdaewon-Dong, Chungwon-Ku, Sungnam-City, Kyungki-Do, 462-120, Korea Tel: +82-31-737-8033, Fax: +82-31-737-8079 Power of Attorney Date: September 02, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ONETECH Corp., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ONETECH Corp., as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Mr. Jaehyun, Cho / Assistant Engineer OPTICIS CO., LTD. Tel: +82-31-737-8033 Fax: +82-31-737-8079 E-Mail: [email protected]

FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab.

FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : PPNBTH20050711 FCC ID

FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab.

Page 1 of 15 FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR FCC CLASS B CERTIFICATION Test Report No. : E058R-032 Applicant : OPTICIS CO., LTD. Address : #501, Bucksan Technopia, 434-6, Sangdaewon-Dong, Chungwon-Ku, Sungnam-City, Kyungki-Do, 462-120, Korea Manufacturer : OPTICIS CO., LTD. Address : #501, Bucksan Technopia, 434-6, Sangdaewon-Dong, Chungwon-Ku, Sungnam-City, Kyungki-Do, 462-120, Korea Type of Equipment : Optical 1394B Repeater Module (Class B Computing Device Peripheral) FCC ID : PPNBTH20050711 Model Name : M4-200 Serial number : N/A Total page of Report : 15 pages (including this page) Date of Incoming : June 02, 2005 Date of Issuing : August 20, 2003 SUMMARY The equipment complies with the requirements of FCC CFR 47 PART 15 SUBPART B, Class B. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Seung-Hyun, Nam / Project Engineer Gea-Won, Lee / Chief Engineer EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. Page 2 of 15 FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. CONTENTS Page 1. VERIFICATION OF COMPLIANCE .............................................................................................................................3 2. GENERAL INFORMATION............................................................................................................................................4 2.1 PRODUCT DESCRIPTION.................................................................................................................................................4 2.2 MODEL DIFFERENCES:..................................................................................................................................................4 2.3 RELATED SUBMITTAL(S) / GRANT(S)............................................................................................................................4 2.4 TEST SYSTEM DETAILS..................................................................................................................................................4 2.5 TEST METHODOLOGY....................................................................................................................................................5 2.6 TEST FACILITY...............................................................................................................................................................5 3. SYSTEM TEST CONFIGURATION...............................................................................................................................6 3.1 JUSTIFICATION...............................................................................................................................................................6 3.2 EUT OPERATING CONDITION.......................................................................................................................................6 3.3 CABLE DESCRIPTION.....................................................................................................................................................6 3.4 NOISE SUPPRESSION PARTS ON CABLE.........................................................................................................................7 3.5 EQUIPMENT MODIFICATIONS........................................................................................................................................7 3.6 CONFIGURATION OF TEST SYSTEM...............................................................................................................................7 4. PRELIMINARY TEST ......................................................................................................................................................8 4.1 AC POWER LINE CONDUCTED EMISSION TEST............................................................................................................8 4.2 RADIATED EMISSION TEST............................................................................................................................................8 5. FINAL RESULT OF MEASURMENT ............................................................................................................................9 5.1 CONDUCTED EMISSION TEST.........................................................................................................................................9 5.2 RADIATED EMISSION TEST..........................................................................................................................................13 6. FIELD STRENGTH CALCULATION ..........................................................................................................................14 7. LIST OF TEST EQUIPMENT........................................................................................................................................15 Page 3 of 15 FCC ID. : PPNBTH20050711 Report No. : E058R-032 It should not be reproduced…
