PQ4IPROA6MINIMobile Phone

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for complianc could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the FCC Warning Specific Absorption Rate (SAR) information SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value, in general, the closer you are to a wireless base station antenna, the lower the power output. Before a new model phone is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each phone are performed in positions and locations (e.g. at the ear and worn on the body)as required by the FCC. For body worn operation, this mobile phone has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 0.5cm from the body. interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment an d receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.

QA-FR-170-B HONG KONG IPRO TECHNOLOGY CO.,LIMITED ADD: 12/F 3 LOCKHART ROAD WANCHAI HK TEL: 0755-83829199 FAX: 0755-83828199 E-mail: [email protected] FCC Authorization Date: 2020-09-25 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , HONG KONG IPRO TECHNOLOGY CO.,LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature SAM HUANG Project VP

QA-FR-171-A HONG KONG IPRO TECHNOLOGY CO.,LIMITED ADD: 12/F 3 LOCKHART ROAD WANCHAI HK TEL: 0755-83829199 FAX: 0755-83828199 E-mail: [email protected] FCC Confidential Authorization Date: 2020-09-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: PQ4IPROA6MINI In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (HONG KONG IPRO TECHNOLOGY CO.,LIMITED) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: SAM HUANG Project VP

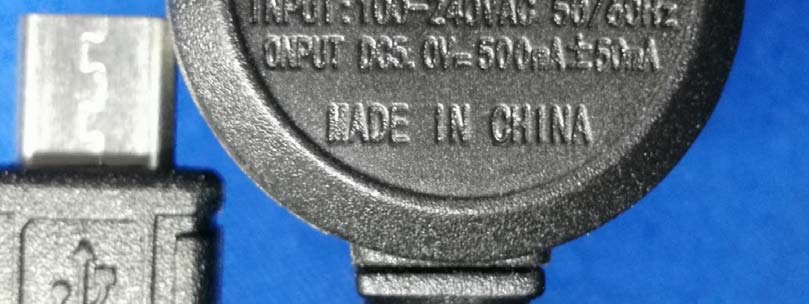

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS GSM Antenna Bluetooth Antenna

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: RDG200910001-20 SAR Plots Plot 1# Plot 1#: GSM 850_Head Left Cheek_ Mid DUT: Mobile Phone; Type: A6mini; Serial: RDG200910001-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.904 S/m; ε r = 40.942; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (41x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.698 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.20 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.740 W/kg SAR(1 g) = 0.597 W/kg; SAR(10 g) = 0.462 W/kg Maximum value of SAR (measured) = 0.692 W/kg 0 dB = 0.692 W/kg = -1.60 dBW/kg Report No.: RDG200910001-20 SAR Plots Plot 2# Plot 2#: GSM 850_ Head Left Tilt_ Mid DUT: Mobile Phone; Type: A6mini; Serial: RDG200910001-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.904 S/m; ε r = 40.942; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (41x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.321 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.61 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.363 W/kg SAR(1 g) = 0.291 W/kg; SAR(10 g) = 0.226 W/kg Maximum value of SAR (measured) = 0.337 W/kg 0 dB = 0.337 W/kg = -4.72 dBW/kg Report No.: RDG200910001-20 SAR Plots Plot 3# Plot 3#: GSM 850_ Head Right Cheek_ Mid DUT: Mobile Phone; Type: A6mini; Serial: RDG200910001-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.904 S/m; ε r = 40.942; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (41x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.625 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.80 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.688 W/kg SAR(1 g) = 0.556 W/kg; SAR(10 g) = 0.432 W/kg Maximum value of SAR (measured) = 0.645 W/kg 0 dB = 0.645 W/kg = -1.90 dBW/kg Report No.: RDG200910001-20 SAR Plots Plot 4# Plot 4#: GSM 850_Head Right Tilt_ Mid DUT: Mobile Phone; Type: A6mini; Serial: RDG200910001-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.904 S/m; ε r = 40.942; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (41x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.270 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.60 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.297 W/kg SAR(1 g) = 0.241 W/kg; SAR(10 g) = 0.190 W/kg Maximum value of SAR (measured) = 0.281 W/kg 0 dB = 0.281 W/kg = -5.51 dBW/kg Report No.: RDG200910001-20 SAR Plots Plot 5# Plot 5#: GSM 850_Body Wron Back_Mid DUT: Mobile Phone; Type: A6mini; Serial: RDG200910001-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.904 S/m; ε r = 40.942; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.806 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.17 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.25 W/kg SAR(1 g) = 0.666 W/kg; SAR(10 g) = 0.423 W/kg Maximum value of SAR (measured) = 0.672 W/kg 0 dB = 0.672 W/kg = -1.73 dBW/kg Report No.: RDG200910001-20 SAR Plots Plot 6# Plot 6#: GSM 850_Body Wron Front_Mid DUT: Mobile Phone; Type: A6mini; Serial: RDG200910001-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.904 S/m; ε r = 40.942; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2)…

Text truncated - open the document above for the full version.

Report No.: RDG200910001-20 Page 1 of 5 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 Report No.: RDG200910001-20 Page 2 of 5 Head Left Cheek Setup Photo Head Left Tilt Setup Photo Report No.: RDG200910001-20 Page 3 of 5 Head Right Cheek Setup Photo Head Right Tilt Setup Photo Report No.: RDG200910001-20 Page 4 of 5 Body (Worn) Back Setup Photo (5mm) Body (Worn) Front Setup Photo (5mm) 5 mm 5 mm Report No.: RDG200910001-20 Page 5 of 5 Body Bottom Setup Photo (5mm) 5mm

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For HONG KONG IPRO TECHNOLOGY CO.,LIMITED 12/F 3 LOCKHART ROAD WANCHAI HK FCC ID: PQ4IPROA6MINI Report Type: Original Report Product Type: Mobile Phone Report Number: RDG200910001-20 Report Date: 2020-09-28 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200910001-20 SAR Evaluation Report 2 of 39 Attestation of Test Results EUT Information EUT Description Mobile Phone Tested Model A6mini FCC ID PQ4IPROA6MINI Serial Number RDG200910001-SA-S1 Test Date 2020-09-12 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 0.64 1.6 1g Body SAR 1.48 PCS 1900 1g Head SAR 0.34 1g Body SAR 0.51 Simultaneous 1g Head SAR 0.72 1g Body SAR 1.56 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200910001-20 SAR Evaluation Report 3 of 39 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 17 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 20 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 20 CHEEK/TOUCH POSITION ........................................................................................................................................... 21 EAR/TILT POSITION ................................................................................................................................................... 21 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 22 TEST DISTANCE FOR SAR EVALUATION .................................................................................................................... 22 SAR EVALUATION PROCEDURE ................................................................................................................................. 23 CONDUCTED OUTPUT POWER MEASUREMENT ........................................................................…

Text truncated - open the document above for the full version.

FCC PART 22H, PART 24E MEASUREMENT AND TEST REPORT For HONG KONG IPRO TECHNOLOGY CO.,LIMITED 12/F 3 LOCKHART ROAD WANCHAI HK Report Type: Original Report Product Type: Mobile Phone Re port Number: RDG200910001-00C Re port Date: 2020-09-29 Reviewed B y: Ivan Cao Assistant Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:PQ4IPROA6MINI Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200910001-00C Page 2 of 29 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 JUSTIFICATION ............................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 CONFIGURATION OF TEST SETUP ................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 FCC §1.1310 & §2.1093- RF EXPOSURE .................................................................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST RESULT ............................................................................................................................................................. 10 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................ 11 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) - RF OUTPUT POWER ...................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH .............................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST PROCEDURE ...................................................................................................................................................... 18 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 18 TEST DATA .....................................................................................................................................................…

Text truncated - open the document above for the full version.
