PQ4IPROA7Smart Mobile Phone

1 Welcome! PLEASE READ THIS INFORMATION BEFORE USING THE PHONE TO MAKE A BETTER USE OF YOUR PHONE. WE ARE NOT RESPONSIBLE FOR ANY DAMAGE DUE TO YOUR MISUNDERSTANDING OF THIS INFORMATION AND MISACTTING. We are endeavoring to improve our products and services and we reserve all the rights to revise and change the description of this product and its software as well as this user’s manual without obligation to notify any person of such revisions and changes. This user’s manual is for your better use of this phone not an approval of any accessories. All the pictures in this manual are for reference only. There may be slight difference between the appearance of phone and keys and contents of display used in this manual and those of your phone. Please refer to your phone for actuality. Some features introduced in this manual are network or subscription-dependent features. Please contact your service provider Safety Information Read this information before using your mobile device otherwise may result in personal injury or your device not complying with local laws. 2 Battery: If a conductive material such touches the exposed terminal, short circuit may occur resulting in property damage, bodily injury or burn. To avoid risk of leaking electricity, take care when handling a charged battery particularly when placing it inside your pocket, purse or other container with metal objects. Keep your mobile device from water: Keep your mobile device dry. Use while driving Always obey the laws and regulations on the use of mobile devices in the area where you drive. Give full attention to driving and the road; use hand-free operation or earpiece if a call is needed. Aircraft Mobile device may cause harmful interference so turn off your mobile device before boarding an airplane. Blasting areas Always obey the related limits and regulations and do not use your mobile device in blasting areas. Turn off your mobile device in areas posted “turn off electronic devices”. Potentially explosive atmospheres Turn off your mobile device in the gas station and areas near fuel and chemical containers. Turn off your mobile device in areas posted “turn off electronic devices”. Medical devices Turn off your mobile device whenever instructed to do so by posted signs near some medical equipment. Mobile device may interfere with 3 pacemakers, hearing aids and some other medical transplanting equipment. Do not put your mobile device near pacemakers nor carry in the breast pocket. Accessories and battery Use the accessories, batteries and chargers approved by manufacturer. Use of batteries not approved by manufacturer may cause injury. Emergency calls Turn on your phone and keep it in service areas, dial emergency phone numbers and then press send key to make a call. When losing your phone To avoid any economy damage, please inform the Tele-communication Company or agencies to lock your SIM card when you lost your phone. When you inform the telecom company or agencies to lock your SIM card they need to know the IMEI No. of your phone, which you can find printed on the label on the back of your phone when taking off the battery. Please backup this number for future need For safety consideration, you can make preventative measures such as set PIN Code for your SIM card to prevent other persons using your SIM card without your permission. Keep away from children Keep the phone, battery and charger away from children to avoid any personal injury. Use and Care To care for this mobile device, keep it away from: Any kind of fluid 4 Keep the device away from water, rain, humidity, sweat or other moisture. Extreme heat or cold Avoid the temperature below -10 /14 or °C°C above 45 /113 .°C°C Microwave Don’t try to dry your phone in a microwave oven. Dust and dirt Don’t expose your phone to dust, dirt, sand, food or other inappropriate materials. Cleaning solutions Use only a dry soft cloth to clean your phone. Don’t use alcohol or other cleaning solutions. Ground Don’t drop your phone. 5 Chapter 0 - Skills Introduction 0.1 Finger gestures Tap When you want to type using the keyboard, select items onscreen such as application and settings icons, or press onscreen buttons, simply tap them with your finger. Press and hold To open the available options for an item (e.g. contact or link in a web page), simply press and hold the item. Swipe or slide To swipe or slide means to quickly drag your finger vertically or horizontally across the screen or optical trackball. Drag Press and hold your finger with some pressure before you start to drag. While dragging, do not release your finger until you have reached the target position. Flick Flicking the screen is similar to swiping, except that you need to swipe your finger in light, quicker strokes. This finger gesture is always in a vertical direction, such as when flicking the contacts or message list. Rotate For most screens, you can automatically change the screen orientation from portrait to landscape by turning the phone sideways. When entering text, you can turn the phone sideways to bring up a bigger keyboard. Refer to the Settings chapter for more details. Pinch For some applications, like Photos or the web browser, you can “pinch” the screen using 2 fingers (for example, thumb and index fingers) to zoom in or zoom out when viewing a picture or a web page. 0.2 The SIM Card 0.2.1 Installing the SIM card If you are given a SIM card to install, install it before setting up your phone. IMPORTANT: A SIM card is required to use cellular services when connecting to GSM networks and some CDMA networks. Your phone that has been activated on a CDMA wireless network may also use a SIM card for connecting to a GSM network, primarily for international roaming. Your phone is subject to your wireless service provider’s policies, which may include restrictions on switching service providers and roaming, even after 6 conclusion of any required minimum service contract. Contact your wireless service provider f…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 HONG KONG IPRO TECHNOLOGY CO.,LIMITED 2014/7/8 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ HONG KONG IPRO TECHNOLOGY CO.,LIMITED _____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description：Smart Mobile Phone FCC ID: PQ4IPROA7 Model: A7 We affirm that between SIEMIC, Inc. and ____ HONG KONG IPRO TECHNOLOGY CO.,LIMITED ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title: Sissy He/Manager Contact information / address: FLAT/RM A3, 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK,HONGKONG

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 HONG KONG IPRO TECHNOLOGY CO.,LIMITED 2014/7/8 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PQ4IPROA7 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title: Sissy He/Manager Contact information / address: FLAT/RM A3, 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK,HONGKONG

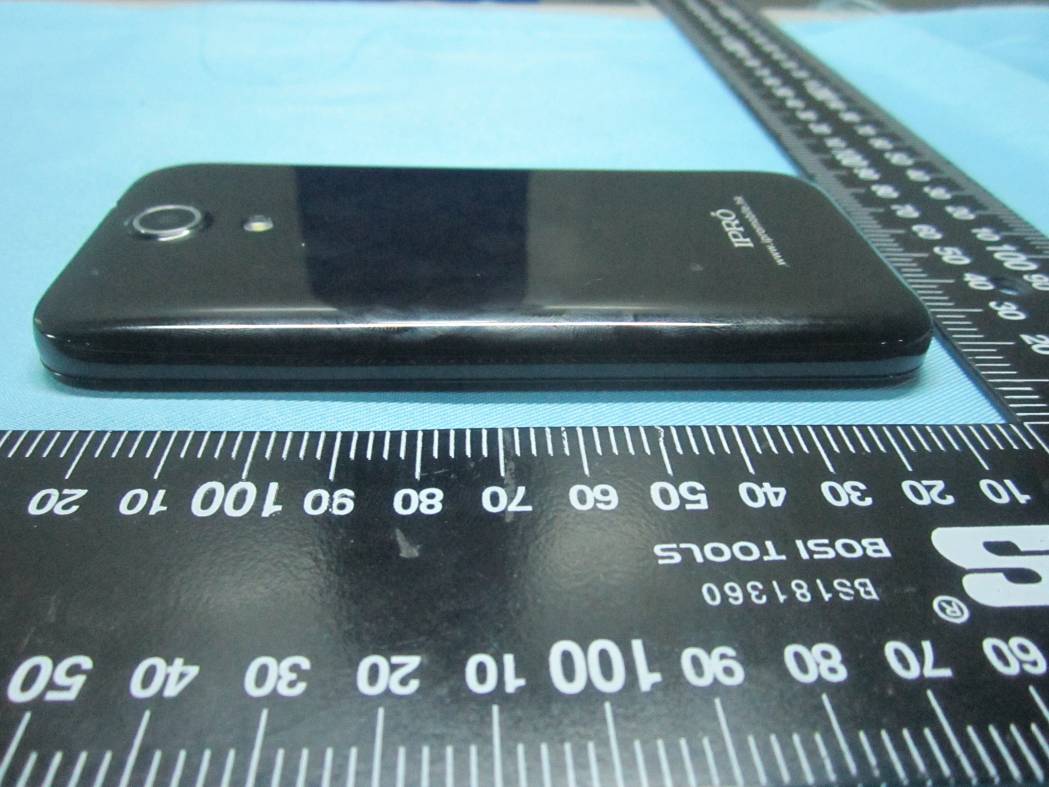

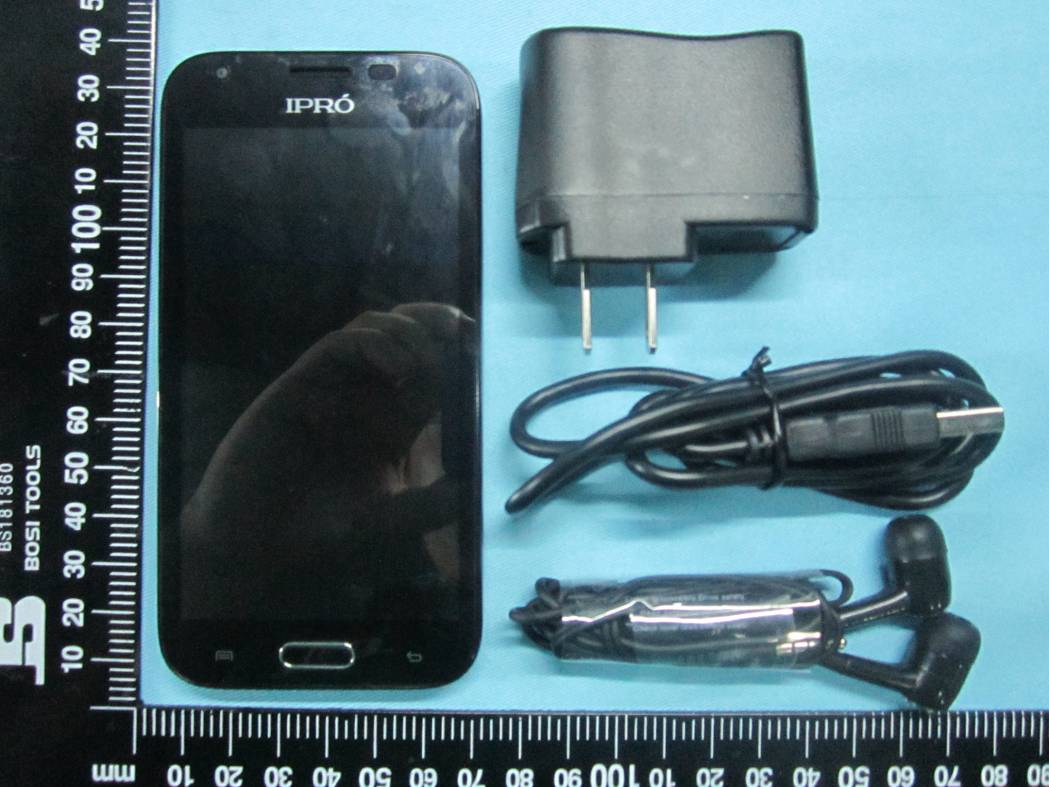

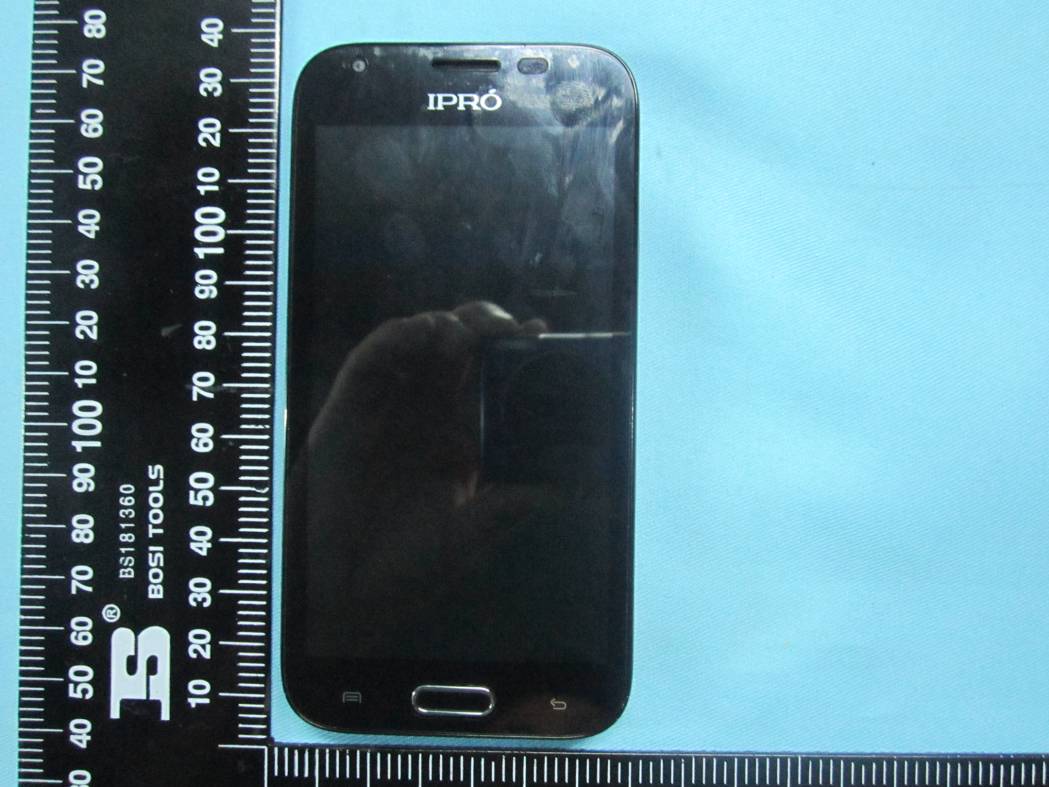

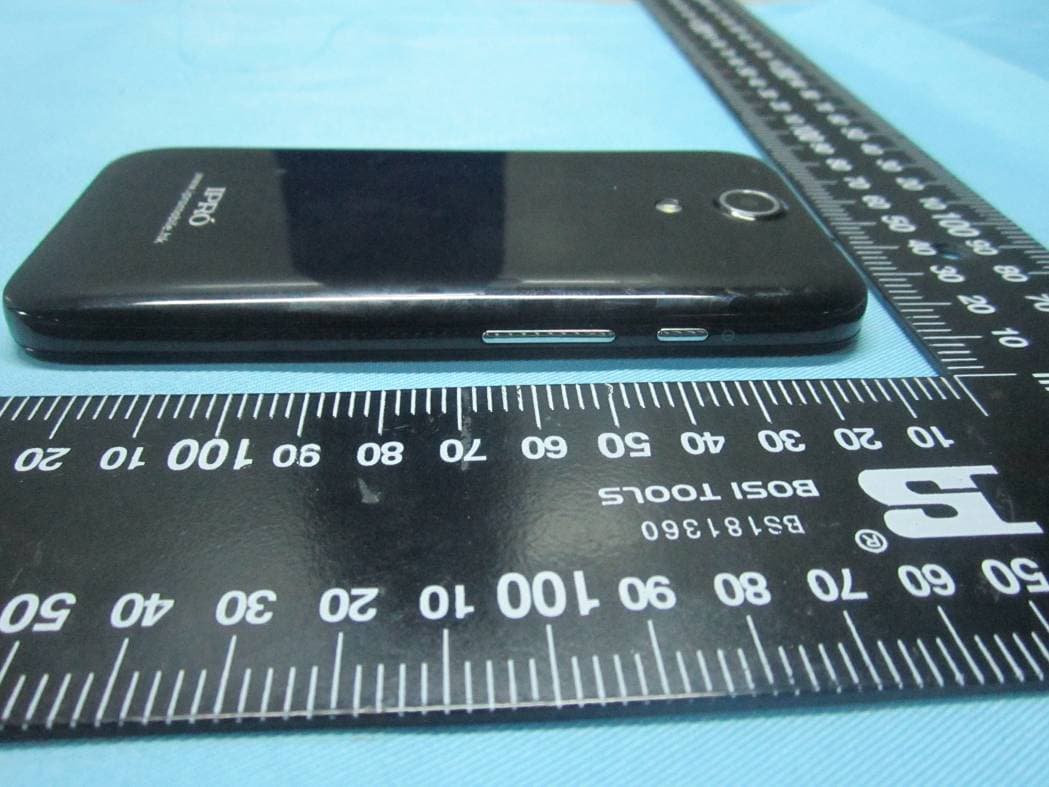

Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 19 of 37 www.siemic.com www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Adapter – Front View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 20 of 37 www.siemic.com www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 21 of 37 www.siemic.com www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 22 of 37 www.siemic.com www.siemic.com.cn EUT - Left View EUT - Right View

Label location

Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 23 of 37 www.siemic.com www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 24 of 37 www.siemic.com www.siemic.com.cn Battery - Top View Battery - Bottom View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 25 of 37 www.siemic.com www.siemic.com.cn LCD – Front View LCD – Rear View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 26 of 37 www.siemic.com www.siemic.com.cn Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 27 of 37 www.siemic.com www.siemic.com.cn Mainborad – Rear View Connection board -Front View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 28 of 37 www.siemic.com www.siemic.com.cn Connection board -Rear View BT/BLE/WIFI Antenna View Title: EMC Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14070279-FCC-E1 Issue Date: June 23, 2014 Page: 29 of 37 www.siemic.com www.siemic.com.cn GSM/PCS-Antenna

HONG KONG IPRO TECHNOLOGY CO.,LIMITED Smart Mobile Phone Model: A7 Serial Model: NA June 21st, 2014 Report No.: 14070279-FCC-H (This report supersedes NONE) This Test Report is Issued Under the Authority of: Chris You Test Engineer Alex Liu Technical Manager Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: SAR Test Report of Smart Mobile Phone Model : A7 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14070279-FCC-H Issue Date June 21st, 2014 Page 2 of 86 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China , Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: SAR Test Report of Smart Mobile Phone Model : A7 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14070279-FCC-H Issue Date June 21st, 2014 Page 3 of 86 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Smart Mobile Phone Model : A7 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14070279-FCC-H Issue Date June 21st, 2014 Page 4 of 86 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .............................................................................................................. 6 2 TECHNICAL DETAILS ................................................................................................................................................... 7 3 INTRODUCTION ........................................................................................................................................................... 8 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 9 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 20 6 SYSTEM AND LIQUID VALIDATION ............................................................................................................................ 21 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 29 8 TEST INSTRUMENT .................................................................................................................................................... 32 9 OUTPUT POWER VERIFICATION ................................................................................................................................ 33 10 SAR TEST RESULTS .................................................................................................................................................. 36 11 SAR MEASUREMENT REFERENCES .......................................................................................................................... 39 ANNEX A CALIBRATION REPORTS .................................................................................................................................. 52 ANNEX B SAR SYSTEM PHOTOGRAPHS .......................................................................................................................... 82 ANNEX C SETUP PHOTOGRAPHS .................................................................................................................................... 83 ANNEX D EUT PHOTOGRAPHS ........................................................................................................................................ 86 Title: SAR Test Report of Smart Mobile Phone Model : A7 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14070279-FCC-H Issue Date June 21st, 2014 Page 5 of 86 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Smart Mobile Phone Model : A7 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14070279-FCC-H Issue Date June 21st, 2014 Page 6 of 86 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the HONG KONG IPRO TECHNOLOGY CO.,LIMITED. Model: A7 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the C95.1, IEEE 1528, OET Bulletin 65 Supplement C , IEC62209-2, RSS-102 Issue 4 and Safety Code 6. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description Smart Mobile phone Model No A7 Input Power Li-ion Battery Model: A7 Charging Voltage:3.7V , 2000mAh Charge Cut-off Voltage: 4.2 V Maximum Conducted Output Power to Antenna Cellular 850(Class 4) : 33.74dBm PCS1900 (Class 1) :31.54dBm Highest Reported SAR Level(s) 0.48W/Kg 1g Head Tissue 0.45 W/Kg 1g Body Tissue Classification Per Stipulated Test Standard Mobile Device , Class B, No DTM/Hotspot Mode Multi-SIM Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time. Co-located …

Text truncated - open the document above for the full version.

HONG KONG IPRO TECHNOLOGY CO., LIMITED Smart Mobile Phone Main Model:A7 Serial Model: N/A June 23, 2014 Report No.: 14070279-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Hank Li Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14070279-FCC-R1 Issue Date: June 23, 2014 Page: 2 of 51 www.siemic.com www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen - China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14070279-FCC-R1 Issue Date: June 23, 2014 Page: 3 of 51 www.siemic.com www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14070279-FCC-R1 Issue Date: June 23, 2014 Page: 4 of 51 www.siemic.com www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 3. TEST SUMMARY .................................................................................................................................................... 8 4. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 32 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 35 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 47 ANNEX D.USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST .............................................. 50 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 51 Title: RF Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14070279-FCC-R1 Issue Date: June 23, 2014 Page: 5 of 51 www.siemic.com www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the HONG KONG IPRO TECHNOLOGY CO., LIMITED, Smart Mobile Phone and model: A7 against the current Stipulated Standards. The Smart Mobile Phone has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2013. EUT Information EUT Description : Smart Mobile Phone Main Model : A7 Serial Model N/A Antenna Gain : GSM850: 1 dBi PCS1900: 1dBi Bluetooth/BLE: 0dBi WIFI: 0 dBi Input Power : Battery: Model: A7 Spec: 3.7V 2000mAh Limited charger voltage: 4.2V Adapter: Model: NTR-S01 Input: AC 100-240V; 50/60Hz 150mA Output: DC 5.0V; 700mA Maximum Conducted AV Power to Antenna : GSM850: 33.74 dBm PCS1900: 31.43 dBm Maximum Radiated ERP/EIRP : GSM850: 25.38 dBm / ERP PCS1900:22.14 dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2013 Title: RF Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14070279-FCC-R1 Issue Date: June 23, 2014 Page: 6 of 51 www.siemic.com www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of Smart Mobile Phone with stipulated standard Applicant / Client HONG KONG IPRO TECHNOLOGY CO., LIMITED FLAT/RM A3, 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK, HONGKONG Manufacturer SHENZHEN ZHIKE COMMUNICATION CO., LTD 8th Floor, B Bldg. Dianzi Fuhua Jidi, Taojindi, Longsheng community, Longhua District, Shenzhen, China Laboratory performing the tests SIEMIC (Shenzhen - China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 14070279-FCC-R1 Date EUT received June 03, 2014 Standard applied FCC Part 22(H) & FCC Part 24(E): 2013 Dates of test June 11 to June 17, 2014 No of Units #1 Equipment Category PCE Trade Name IPRO RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.8 MHz 802.11b/g/n: 2412-2462 MH…

Text truncated - open the document above for the full version.

Title: RF Test Report for Smart Mobile Phone Main Model: A7 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14070279-FCC-R1 Issue Date: June 23, 2014 Page: 46 of 51 www.siemic.com www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
