PQ4IPROA7MINIMobile Phone

5m

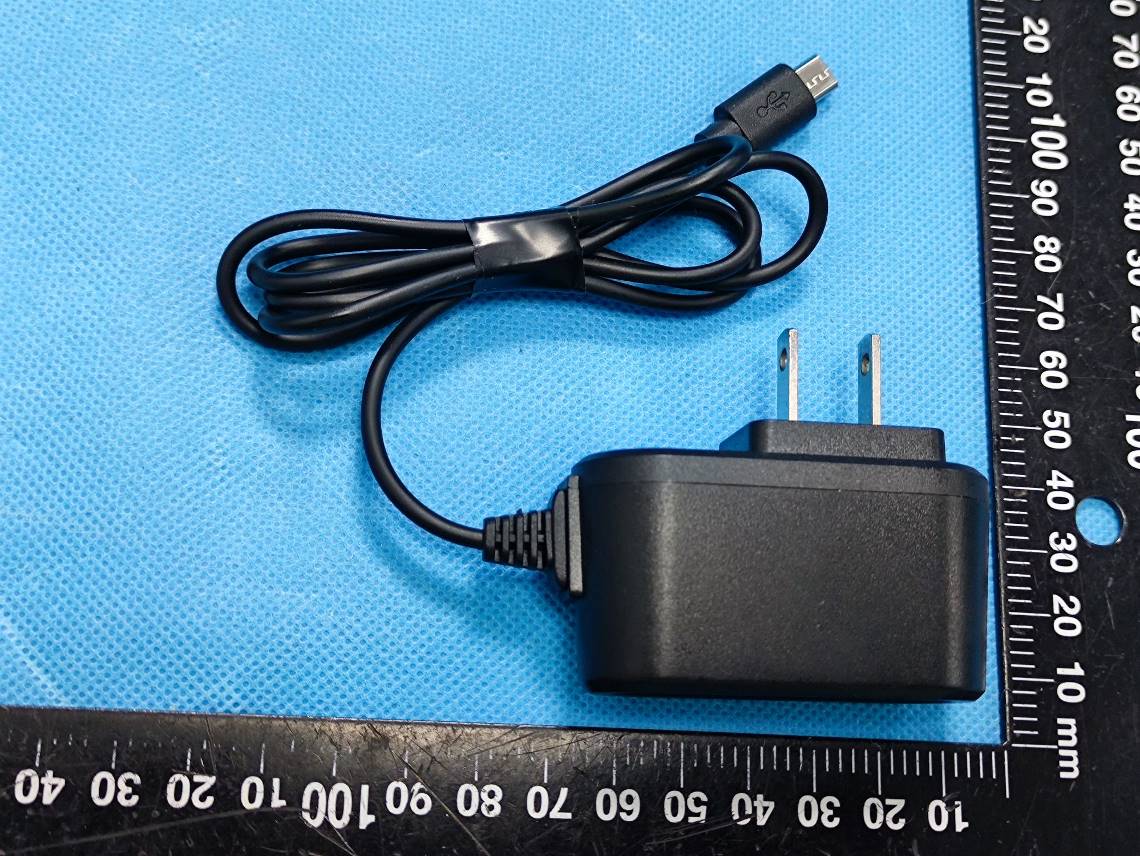

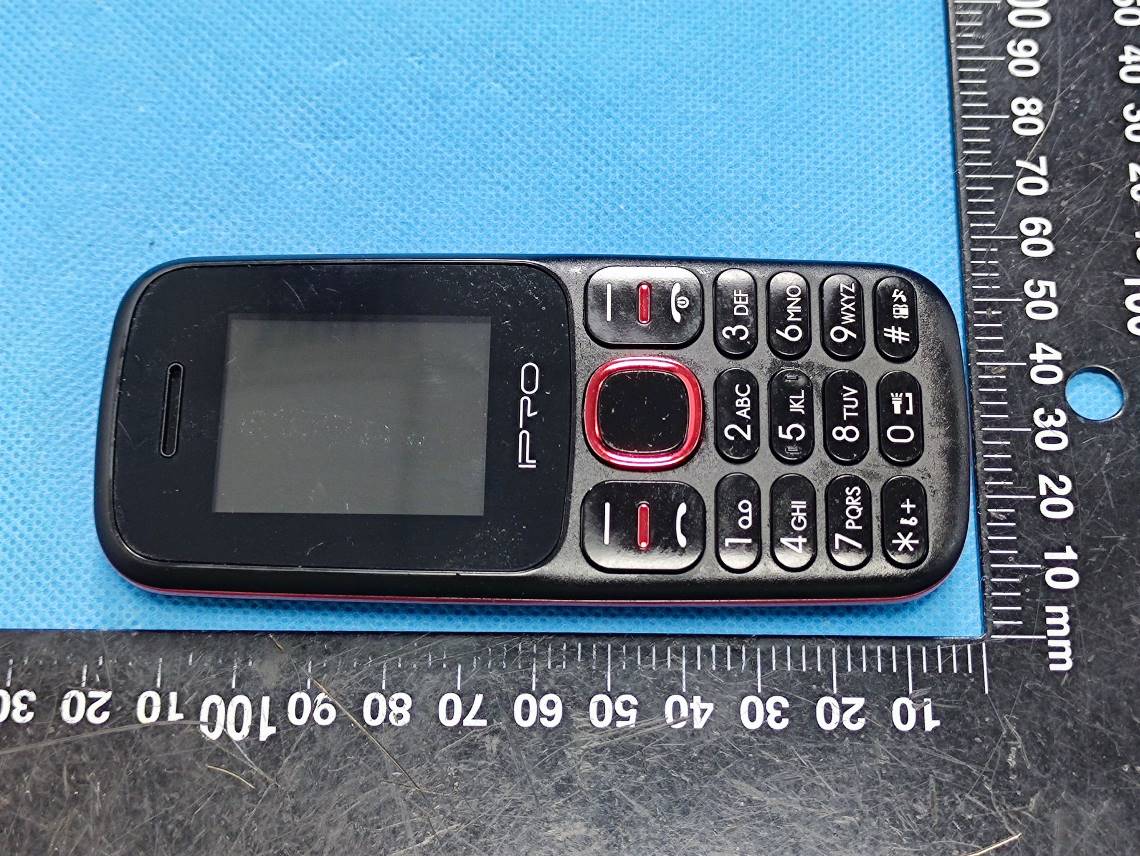

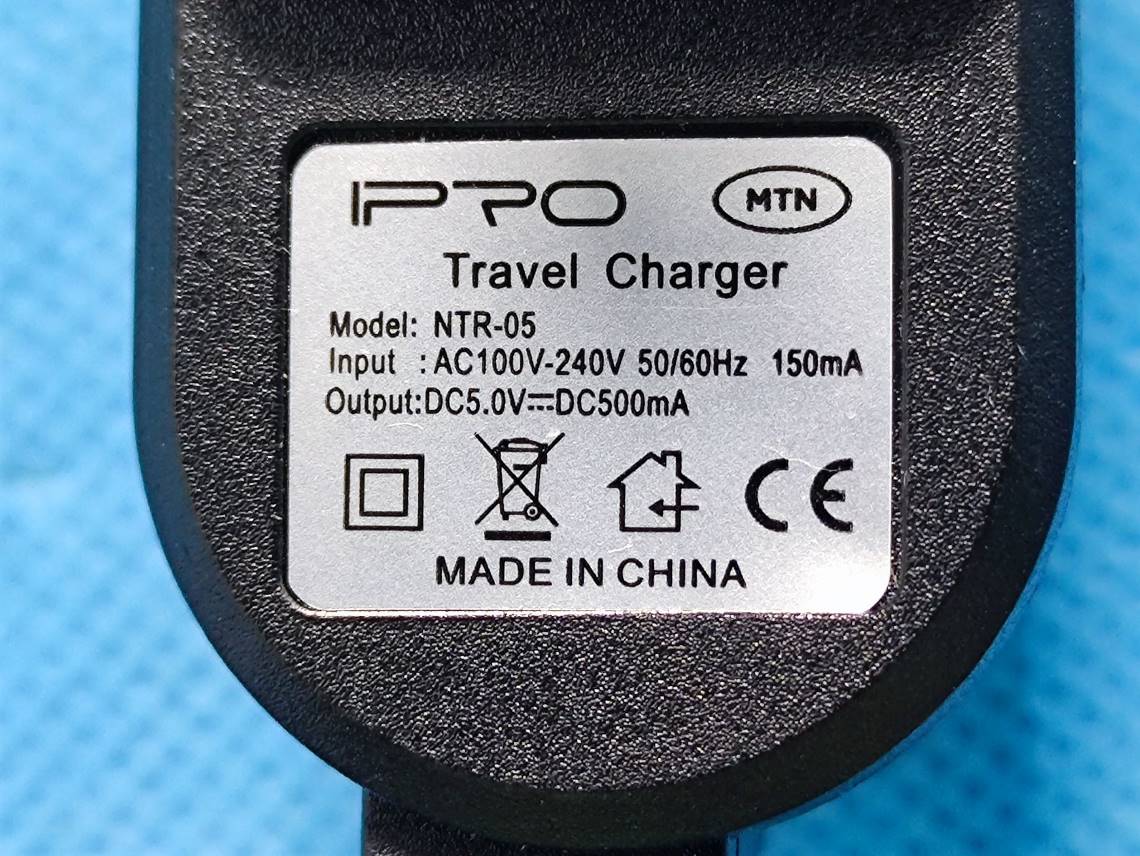

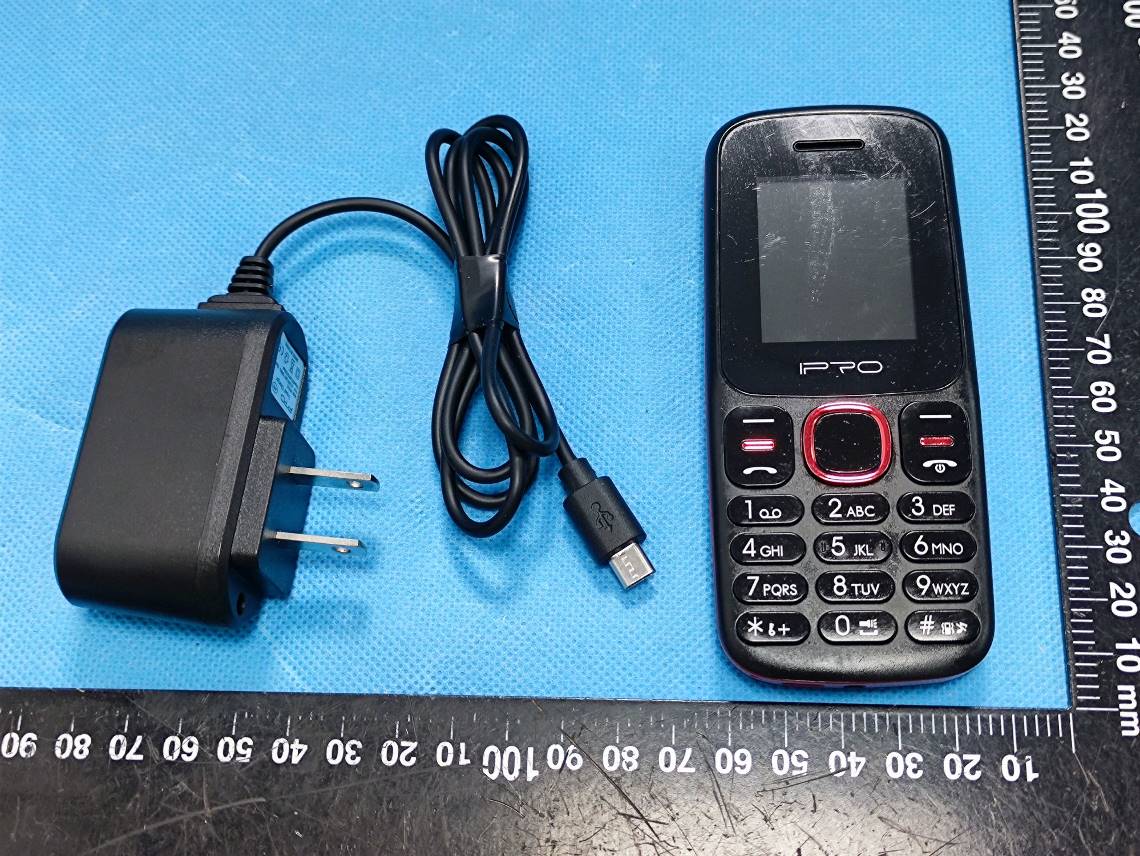

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS GSMAntenna Bluetooth Antenna

TEST REPORT Applicant: HONG KONG IPRO TECHNOLOGY CO.,LIMITED Address: 12/F., San Toi Building137-139 Connaught Road Central HK FCC ID: PQ4IPROA7MINI Product Name: Mobile Phone Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR22060002-00B Date Of Issue: 2022-08-06 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR22060002-00B Page 2 of 53 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR22060002-00B Page 3 of 53 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 6 1.2.2 Support Equipment List and Details .............................................................................................................. 6 1.2.3 Support Cable List and Details ...................................................................................................................... 6 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 6 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 8 2. SUMMARY OF TEST RESULTS ............................................................................................ 9 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 10 3.1.1 Applicable Standard ..................................................................................................................................... 10 3.1.2 EUT Setup.................................................................................................................................................... 11 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 11 3.1.4 Test Procedure ............................................................................................................................................. 12 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 12 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 13 3.2.1 Applicable Standard ..................................................................................................................................... 13 3.2.2 EUT Setup.................................................................................................................................................... 13 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 14 3.2.4 Test Procedure ............................................................................................................................................. 14 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.3 20 DB BANDWIDTH ............................................................................................................................. 1 5 3.3.1 Applicable Standard ..................................................................................................................................... 15 3.3.2 EUT Setup..................................................................................................................…

Text truncated - open the document above for the full version.

ShenzhenQianmuCommunicationTechnologyCo.,Ltd.  Antenna Specifications Model I318F client HONG KONG IPRO TECHNOLOGY CO.,LIMITED  SpecificationDescription   product content Specification customer material code GSMAntennashrapnel bluetoothantennaΦ0.8*25mm  changeresume serial number date Version Brief description of the changes 12022-05-16V1.0newproject 2 3 Suppliersampleconfirmation research and development structure audit determination PASS FAIL Customersampleconfirmation electronic structure project purchase quality audit Reasons for rejection or other considerations: 1、Electrical performance test report 1.1 Test items and equipment 1.2 GSM Passive Test Report VSWR parameter value frequency（MHZ） 824 960 1710 1990 RL 2.7 3.3 2.7 2.4 Return loss parameter value frequency（MHZ） 824 960 1710 1990 RL -6.5 -5.3 -6.5 -7.4 Test items equipment 1. Passive testing 1. VSWR parameter 2. Return loss parameter Network Analyzer: HP 8753D 3D Darkroom Antenna Test System（ETStest system，Network Analyzer，Tester） 2. Active test 1. transmit power 2. receive level 3. Receive sensitivity Tester ：Agilent E5515C 3D Darkroom Antenna Test System（ETStest system， Tester ） 2、Matching Circuit Description No changes have been made to the original matching circuit of your company。 3、testing report GSM900 DCS1800 Channel 1 62 124 512 698 885 TIS -102.19 -103.3 GSM850 PCS1900 Channel 128 190 251 512 661 810 TIS -102.12 -103.26 4、Antenna Gain: Frequency（MHz） Gain（dBi） 850（824MHz~894MHz） -0.16 900（880MHz~960MHz） -0.17 1800（1710MHz~1800MHz）0.36 1900（1850MHz~1990MHz）0.38 BT (2400MHz~2500MHz) 0.63 求是 价值 双赢 方向图方向图 求是 价值 双赢 方向图方向图 求是 价值 双赢 BT 方向图 BT 方向图 : 5、Environmental treatment Do it according to the prototype environment given by your company 6、Structural drawings

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
