PQ4IPROI324FMobile Phone

i324F USER’S MANUAL Page 1 Thank you for purchasing this mobile. For the best performance, we recommend that you read the manual carefully. P HONEDISPLAY ............................................................................ 3 C ONTACTS ...................................................................................... 4 C ALL LOGS ................................................................................... 5 T OOLS ...................................................................................... 7 M ULTIMEDIA ................................................................................. 9 M ESSAGES ............................................................................... 11 M Y FILES ................................................................................. 14 P ROFILES ................................................................................ 15 S ETTINGS ................................................................................ 17 G AMES .................................................................................... 21 E XTRA .................................................................................... 21 I NTERNET ................................................................................ 22 Page 2 PhoneDisplay 1.Torch 2.Receiver3.Screen 4.Left soft key 5.Dialkey6.Navigationkey 7.Right soft key 8.End/Powerkey9.OKkey 10.Camera 11.Backcover Page 3 Contacts You have 2 phonebooks in this mobile phone: SIM card and the mobile. The mobile can store 300 phone numbers and the SIM card’s capacity depends on its type. I In standby mode, enter a number, press the call key pieces to make a call, press the OK key to save ◆ If ‘To SIM 1/2’ is selected, users can edit name and number. ◆ If ‘To phone’ is selected, the user can edit the name, mobile number, image, ringtone, caller groups Into the phone book list, the list on the left displays a small icon indicates that the record exists SIM card or mobile phone, the right is the record of the name and number information. Standby mode, press the right soft key to enter into the address book or from the menu Into the address book, do the following: Page 4 [New]: Create a record to phone or SIM [Delete multiple]: Choose one or more records to delete [Delete phone]: Choose all contact to delete [Import/Export]: Copy/Import/Export records to T-Card or phone [Others] [Memory status]: Query the current SIM card and mobile phone storage capacity. Call logs You can view your recent call situation. [Missed calls]: Show all missed calls list, select a view after a missed call occurred the date and time, phone number and times. [Dialed calls] ： Show all dialed calls list, select a view after a dialed calls occurred in the date and time, phone number and times. [Received calls]: Show all answered the phone list, select a view after a phone that has the date and time of occurrence, Page 5 telephone number, frequency, [Rejected calls] Show all refused to answer the phone list, select a view after a missed call occurred the date and time, phone number and times. Press the OK softkey to enter the options menu can be more than the number of call records in the following: ◆ Details: View the current record date, time, type. ◆ Call: Call the current number. ◆ Save: You can save the current record to the phone or SIM card ◆ Write message: send the current record of SMS. ◆ Add to contacts: the number of the record the name added to the existing record which ◆ Add to blacklist: the current record to reject a call which ◆ Delete: Delete the currently selected record ◆ Delete all: Delete all call records ◆ Mark ： Mark to operation [Delete all]: Delete all call records Page 6 [Call times]: Last time zero starting time for last call statistics, a total of dialed calls, received calls, all calls total, all the time can also be zero. [GPRS counter]: Display the SIM card GPRS data. Tools [Calendar] Press the left soft key to access the calendar display interface, the first line shows the year, month, and the third line shows the week, the middle section shows the specific date of a month, the last line shows the right and left soft key in the message. Interface in the calendar, press the arrow keys on the date forward one week, press the arrow keys to move one week after the date, press the left arrow key date forward one day, press the right arrow keys to move the day after the date, select the date to a dark display [Add new schedule]: a new agenda [View schedule]: View the schedule one day save [All schedule]: View the schedule all day Page 7 [Clear tasks today]: Clear the calendar day [Clear all]: Empty all the schedules [Go to date]: Enter the dates you want to find, the cursor will jump to that date quickly [Weekly]: the week / month display calendar. [Recorder] [Start recording]: Start recording [Record file list]: The memory card inside the recording file list [Storage]: Set the locate of storage [File format]: Set the format of record file [Ebook] The EBook reader supports browsing the TXT format files, you can copy files from PC to the [EBook] folder in T-FLASH card. In the interface of EBook list, press the OK key to read these EBooks directly. In the EBook reading interface, press [Option] to access the appropriate options [Clock] This machine has three alarm times available for your Page 8 settings. Access any time, you can set its status to on / off, ring time, repeat mode, ring tones, alarm clock name, etc. [World clock] View the time of countries [Torch] Choose to open the torch Multimedia [Camera] The phone supports photo, so you can capture your favorite scenes anywhere. Photos will be saved in the phone comes with a file system, photographs as JPG format, you can phone provides photographs sent to a computer via USB connection to view, can also be set Image for the standby Note ： This function can work without driver under Windows XP by directly connecting your mobile to the computer [DV] Set th…

Text truncated - open the document above for the full version.

HONG KONG IPRO TECHNOLOGY CO.,LIMITED FLAT/RM A3, 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK, HONGKONG, China Tel: 00852-96669759 Fax: 00852- 21100996 FCC Confidential Authorization 09/22/2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: PQ4 IPROI324F In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (HONG KONG IPRO TECHNOLOGY CO.,LIMITED) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Sissy He Manager PQ4IPROI324F

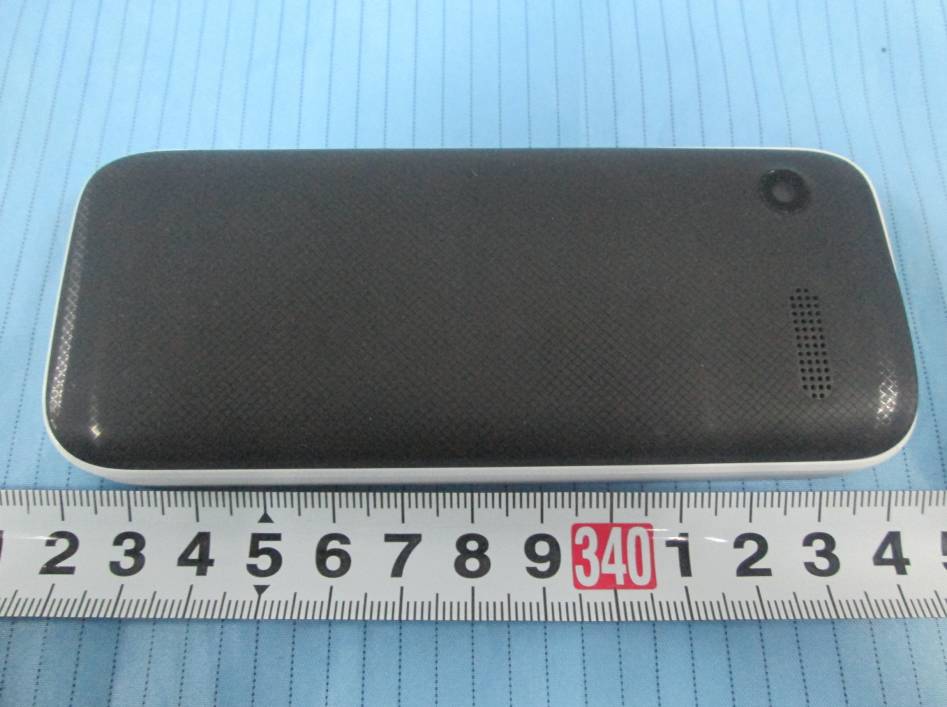

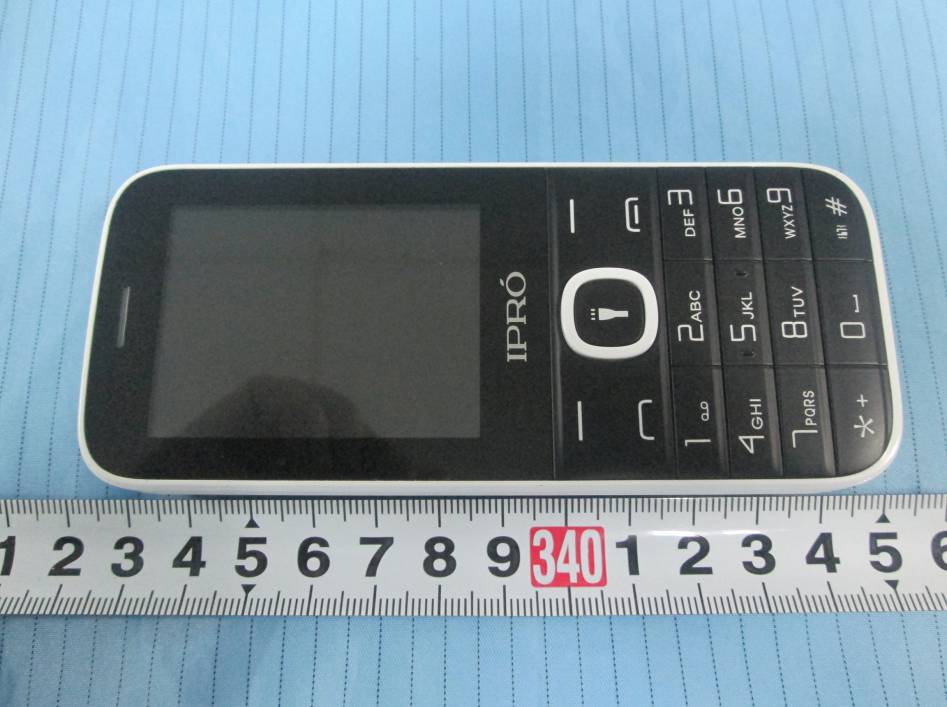

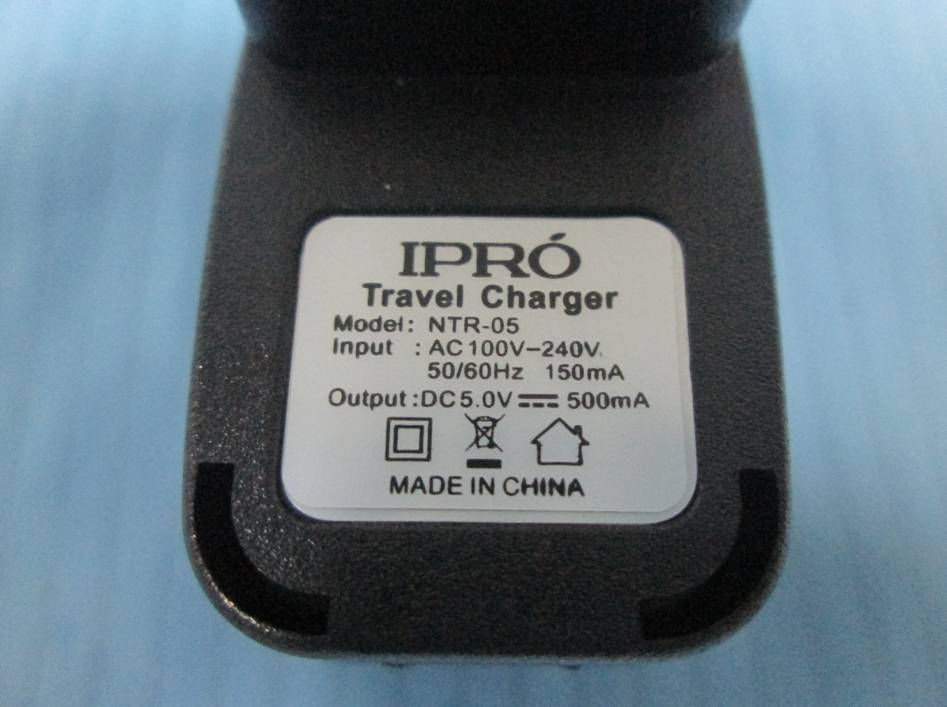

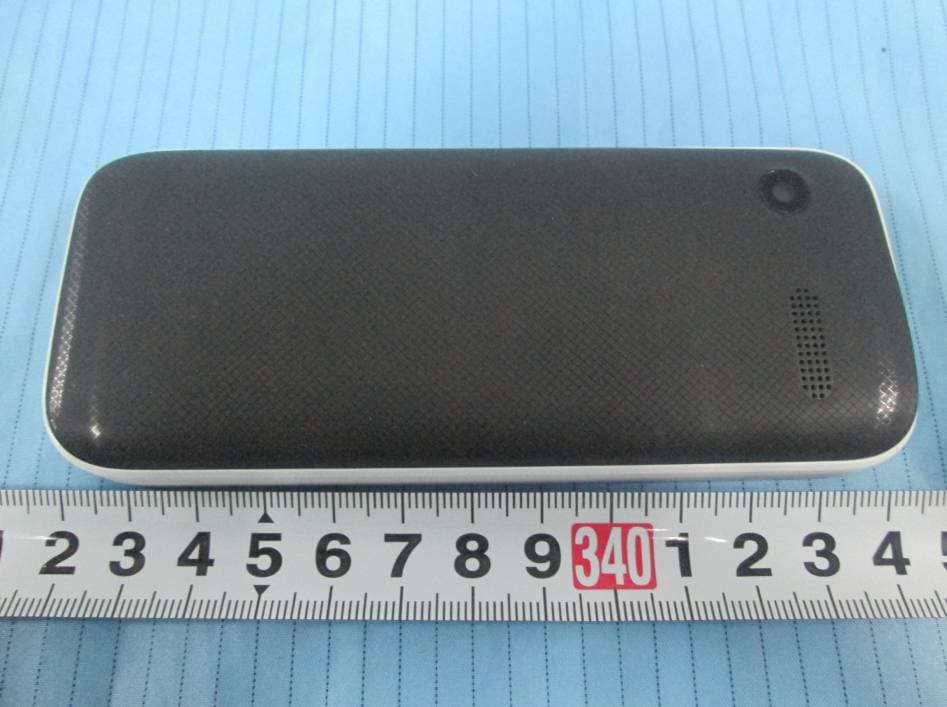

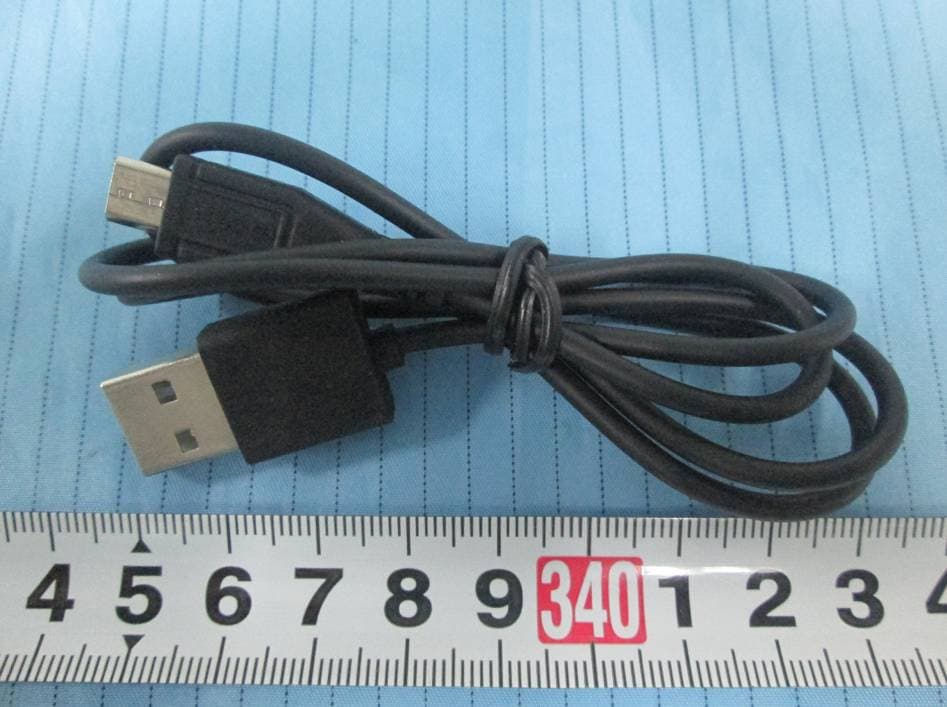

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Adapter View EUT – Adapter Label View EUT –USB Cable View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Cover off View 1 EUT –Cover off View 2 EUT –Cover off View 3 EUT –Cover off View 4 EUT –Cover off View 5 EUT –Antenna View 1 GSM Antenna EUT –Antenna View 2 EUT – Main Board Top View 1 BT Antenna EUT – Main Board Top View 2 EUT – Main Board Bottom View EUT – Main Board Bottom Shielding off View EUT – IC Chip View EUT –Battery Front View EUT –Battery Rear View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For HONG KONG IPRO TECHNOLOGY CO.,LIMITED FLAT/RM A3, 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK, HONGKONG, China FCC ID: PQ4IPROI324F Report Type: Original Report Product Type: Mobile Phone Test Engineer: Terry XiaHou Report Number: RSZ150915008-20 Report Date: 2015-09-24 Reviewed By: Bell Hu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ150915008-20 SAR Evaluation Report 2 of 82 Attestation of Test Results EUT Information Company Name HONG KONG IPRO TECHNOLOGY CO.,LIMITED EUT Description Mobile Phone FCC ID PQ4IPROI324F Model Number i324F Test Date 2015-09-21 Frequency Max. SAR Level(s) Reported Limit(W/Kg) GSM 850 0.936 W/kg 1g Head SAR 0.833 W/kg 1g Body SAR 1. 6 PCS 1900 0.451 W/kg 1g Head SAR 0.349 W/kg 1g Body SAR Simultaneous 1.150 W/kg 1g Head SAR 0.904 W/kg 1g Body SAR Applicable Standards ANSI / IEEE C95.1 : 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3 : 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2006 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures – Part1:Procedure to determine the specific absorption rate (SAR) for hand-held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz) IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximit y to the humanbody (frequencyrange of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v05r02. KDB 648474 D04 Handset SAR v01r02. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03 KDB 865664 D02 RF Exposure Reportin g v01r01 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ150915008-20 SAR Evaluation Report 3 of 82 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 17 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 17 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 18 LIQUID VERIFICATION ............................................................................................................................................... 18 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 21 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 22 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 30 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 30 CHEEK/TOUCH POSITION ........................................................................................................................................... 31 EAR/TILT POSITION ................................................................................................................................................... 31 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ...................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 22H, PART 24E TEST REPORT For HONG KONG IPRO TECHNOLOGY CO.,LIMITED FLAT/RM A3, 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK, HONGKONG, China FCC ID: PQ4IPROI324F Report Type: Original Report Product Type: Mobile Phone Test Engineer: Sewen Guo Re port Number: RSZ150915008-00C Re port Date: 2015-09-24 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150915008-00C FCC Part 22H/24E Page 2 of 27 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1307 & §2.1093 - RF EXPOSURE .................................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST RESULT ............................................................................................................................................................... 8 FCC §2.1047 - MODULATION CHARACTERISTIC .............................................................................................. 9 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) - RF OUTPUT POWER ...................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049, §22.917, §22.905 & §24.238 - BANDWIDTH .................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST PROCEDURE ...................................................................................................................................................... 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS ........................................................... 20 APPLICABLE STANDARD ..................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions Test View (Below 1 GHz) Radiated Emissions Test View (Above 1 GHz)
