PQ4IPROI7320GSM Mobile Phone

1 GSM Mobile Phone i7320 2 Content 1. The Basics 1. The Basics1. The Basics 1. The Basics ................................ ................................................................ .............................................................. ............................................................ .............................. 4 44 4 1.1 Introduction ......................................................................................................................... 4 1.2 Safety .................................................................................................................................. 4 1.3 General considerations ........................................................................................................ 4 1.4 Notes on use of mobile phones ........................................................................................... 5 1.5 Notes on batteries ................................................................................................................ 5 1.6 Notes on using the charger .................................................................................................. 6 1.7 Cleaning and maintenance .................................................................................................. 7 1.8 General precautions ............................................................................................................. 7 2. Before Using 2. Before Using2. Before Using 2. Before Using ................................ ................................................................ ............................................................ ........................................................ ............................ 7 77 7 2.1 Technical parameters ........................................................................................................... 7 2.2 SIM card .............................................................................................................................. 8 2.2.1 SIM Card insertion and removal ...................................................................................... 8 2.3 Battery ................................................................................................................................. 8 2.3.1 Battery charging ............................................................................................................... 8 2.4 Power .................................................................................................................................. 9 2.5 USB data cable to use ......................................................................................................... 9 2.6 T-flash card to install/ remove ............................................................................................. 9 3. Basic Instructions 3. Basic Instructions3. Basic Instructions 3. Basic Instructions ................................ ................................................................ ..................................................... .......................................... ..................... 10 1010 10 3.1 Keyboard introduction ...................................................................................................... 10 3.1.1 Basic keys ...................................................................................................................... 10 3.2 Phone function .................................................................................................................. 10 3.2.1 Make a call ..................................................................................................................... 10 3.2.2 Answer the call ............................................................................................................... 11 3.2.3 Reject calls ..................................................................................................................... 11 3.2.4 Call menu ....................................................................................................................... 11 3.3 Handsfree .......................................................................................................................... 12 4. 4. 4. 4. Menu Introduction Menu IntroductionMenu Introduction Menu Introduction ................................ ................................................................ ...................................................... ............................................ ...................... 12 1212 12 4.1 Call history ........................................................................................................................ 12 4.2 Calendar ............................................................................................................................ 12 4.3 Music ................................................................................................................................. 12 4.4 Settings .............................................................................................................................. 13 4.4.1 General ........................................................................................................... 13 4.4.2 Phone .............................................................................................................. 14 4.4.3 Connection ..................................................................................................... 14 4.5 Wap ................................................................................................................................... 15 4.6 Camera .............................................................................................................................. 15 4.7 Picture ............................................................................................................................... 15 4.8 King movie ...........................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2012-10-10 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____ HONGKONG IPRO TECHNOLOGY CO.,LIMITED ____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: GSM Mobile Phone model name: i7320 FCC ID: PQ4IPROI7320 We affirm that between SIEMIC and ____ HONGKONG IPRO TECHNOLOGY CO.,LIMITED __ _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Sissy / Manager Contact information / address : ROOM C1D,6/F,WING HING INDUSTRIAL BUILDING,14 HING YIP STREET, KWUN TONG, KOWLOON, HONG KONG.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2012-10-10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PQ4IPROI7320 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic - Tune up procedure - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Sissy / Manager Contact information / address : ROOM C1D,6/F,WING HING INDUSTRIAL BUILDING,14 HING YIP STREET, KWUN TONG, KOWLOON, HONG KONG.

Annex B. EUT External Photo Whole Package - Top View EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

Label Location

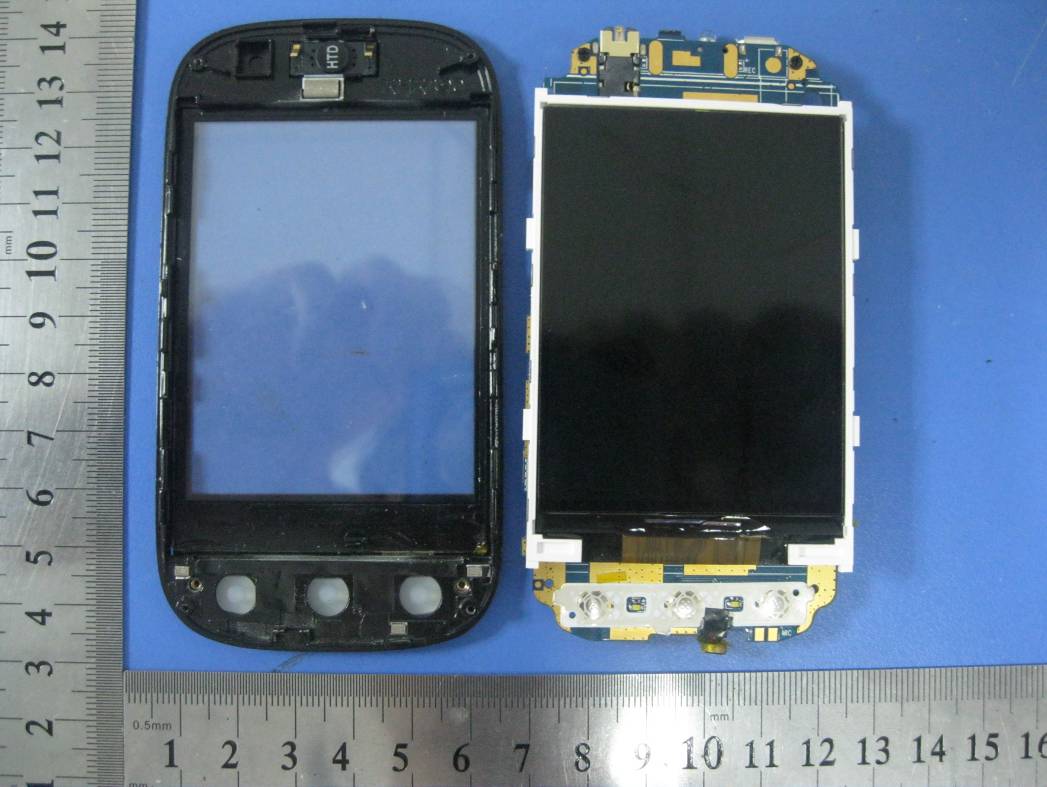

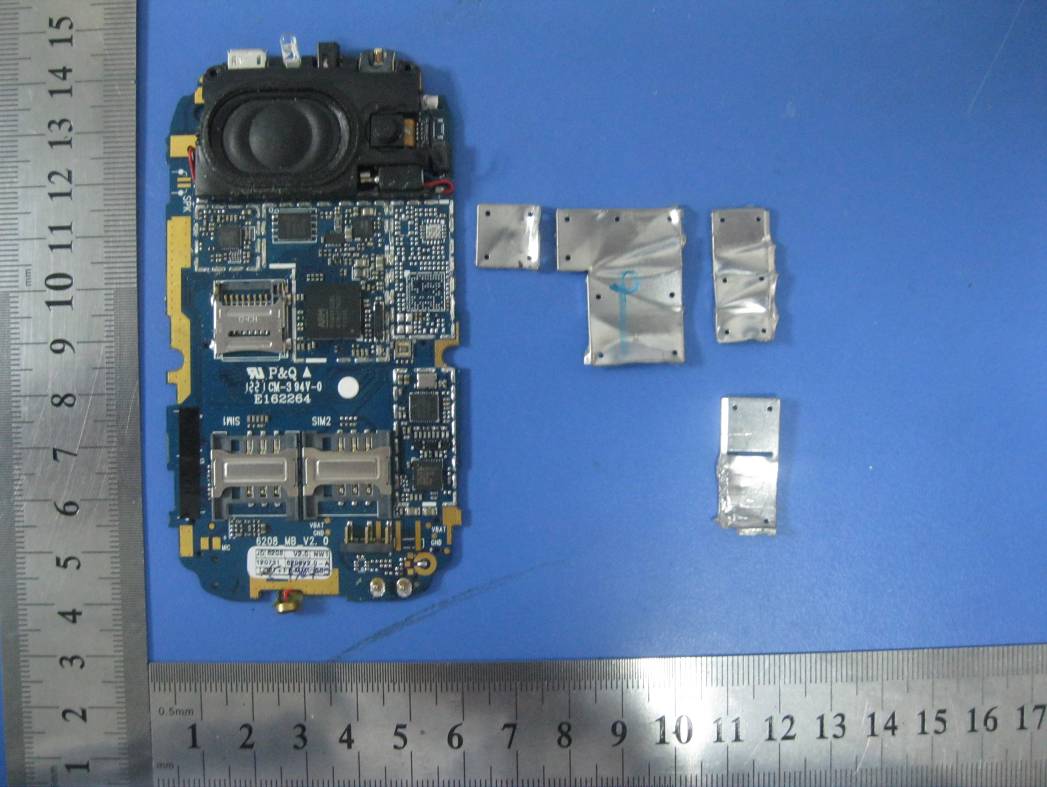

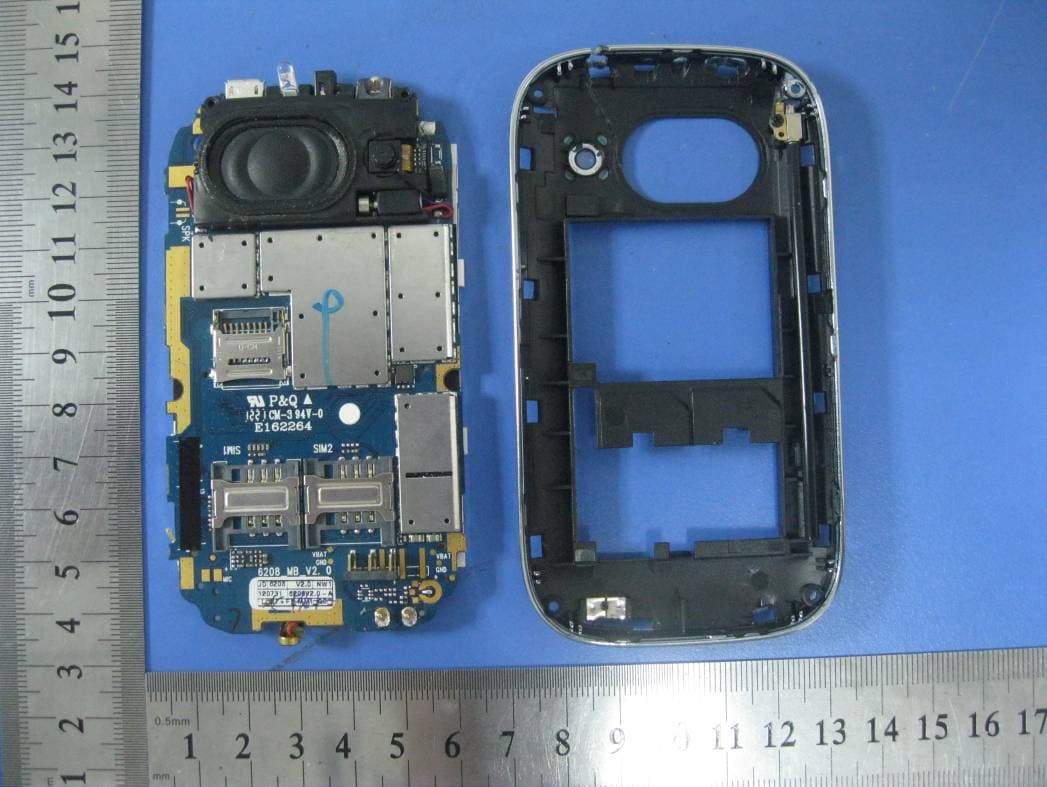

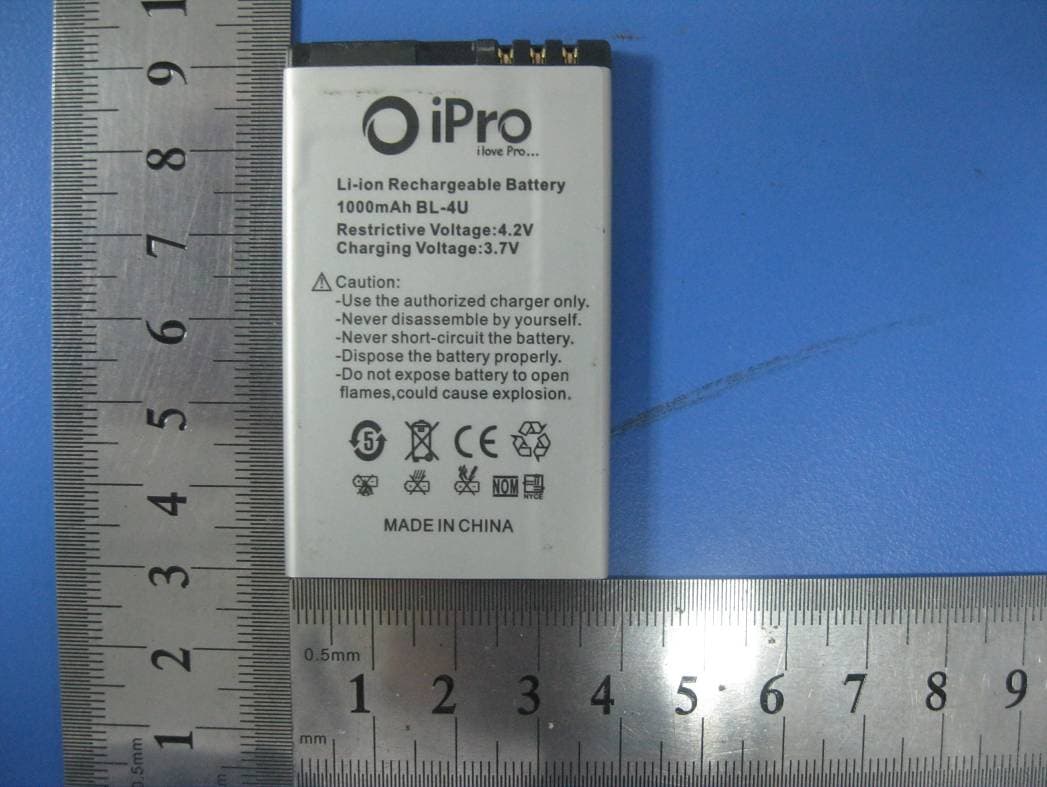

Annex B. EUT Internal Photo Cover Off - Top View Battery - Top View Battery - Bottom View LCD - Top View LCD - Bottom View Uncover - Top View Uncover - Bottom View Uncover without LCD - Top View Uncover Without Shielding - Top View GSM Antenna - Top View GSM Antenna Bluetooth Antenna - Top View Bluetooth Antenna

HONG KONG IPRO TECHNOLOGY CO., LIMITED GSM Mobile Phone Model: i7320 Serial Model: NA Oct 10 th , 2012 Report No.: 12070275-FCC-H (This report supersedes NONE) This Test Report is Issued Under the Authority of: Chris You Test Engineer Alex Liu Technical Manager Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: RF Test Report of GSM Mobile Phone Model : i7320 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 12070275-FCC-H Issue Date Oct 10th, 2012 Page 2 of 102 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB, NIST EMC,RF,Safety,Telecom Title: RF Test Report of GSM Mobile Phone Model : i7320 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 12070275-FCC-H Issue Date Oct 10th, 2012 Page 3 of 102 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of GSM Mobile Phone Model : i7320 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 12070275-FCC-H Issue Date Oct 10th, 2012 Page 4 of 102 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .............................................................................................................. 6 2 TECHNICAL DETAILS ................................................................................................................................................... 7 3 INTRODUCTION ........................................................................................................................................................... 8 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 9 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 20 6 SYSTEM AND LIQUID VALIDATION ............................................................................................................................ 21 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 28 8 OUTPUT POWER VERIFICATION ................................................................................................................................ 30 9 SAR TEST RESULTS .................................................................................................................................................. 32 10 SAR MEASUREMENT REFERENCES .......................................................................................................................... 35 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................................ 64 ANNEX B CALIBRATION REPORTS .................................................................................................................................. 65 ANNEX C SAR SYSTEM PHOTOGRAPHS .......................................................................................................................... 97 ANNEX D SETUP PHOTOGRAPHS .................................................................................................................................... 98 Title: RF Test Report of GSM Mobile Phone Model : i7320 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 12070275-FCC-H Issue Date Oct 10th, 2012 Page 5 of 102 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of GSM Mobile Phone Model : i7320 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 12070275-FCC-H Issue Date Oct 10th, 2012 Page 6 of 102 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the HONG KONG IPRO TECHNOLOGY CO., LIMITED. Model: i7320 against the current Stipulated Standards. The GSM Mobile Phone have demonstrated compliance with the C95.1, IEEE 1528, OET Bulletin 65 Supplement C , IEC62209-2, RSS-102 Issue 4 and Safety Code 6. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description : GSM Mobile Phone Model No : i7320 Input Power : Li-ion Battery Charging Voltage:3.7V 1000mAh Charge Cut-off Voltage: 4.2 V Maximum Output Power to Antenna : Cellular 850(Class 4) : 1.683W…

Text truncated - open the document above for the full version.

HONG KONG IPRO TECHNOLOGY CO.,LIMITED GSM Mobile Phone Model: i7320 October 08, 2012 Report No.: 12070275-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Eaton Wang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for GSM Mobile Phone Model: i7320 To: FCC Part 22(H) & FCC Part 24(E): 2012, ANSI/TIA-603-C-2004 Report No: 12070275-FCC-R1 Issue Date: October 08, 2012 Page: 2 of 41 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for GSM Mobile Phone Model: i7320 To: FCC Part 22(H) & FCC Part 24(E): 2012, ANSI/TIA-603-C-2004 Report No: 12070275-FCC-R1 Issue Date: October 08, 2012 Page: 3 of 41 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for GSM Mobile Phone Model: i7320 To: FCC Part 22(H) & FCC Part 24(E): 2012, ANSI/TIA-603-C-2004 Report No: 12070275-FCC-R1 Issue Date: October 08, 2012 Page: 4 of 41 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MODIFICATION ..................................................................................................................................................... 7 4. TEST SUMMARY .................................................................................................................................................... 8 5. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 33 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 36 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 37 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 40 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 41 Title: RF Test Report for GSM Mobile Phone Model: i7320 To: FCC Part 22(H) & FCC Part 24(E): 2012, ANSI/TIA-603-C-2004 Report No: 12070275-FCC-R1 Issue Date: October 08, 2012 Page: 5 of 41 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the HONG KONG IPRO TECHNOLOGY CO.,LIMITED, GSM Mobile Phone and model: i7320 against the current Stipulated Standards. The GSM Mobile Phone has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2012, ANSI/TIA-603-C-2004. EUT Information EUT Description : GSM Mobile Phone Main Model : i7320 Serial Model : N/A Antenna Gain : GSM850: 1 dBi PCS1900: 0.6 dBi Bluetooth: -2 dBi Input Power : Li-ion Rechargeable Battery Model: BL-4U Restrictive Voltage: 4.2V Charging Voltage: 3.7V Capacity: 1000mAh Maximum Conducted Peak Power to Antenna : GSM850: 32.25 dBm GSM850(GPRS) (Class 8): 32.30dBm PCS1900: 28.83 dBm PCS1900(GPRS) (Class 8): 29.84dBm Maximum Radiated ERP/EIRP : GSM850: 30.07 dBm / ERP PCS1900: 26.29 dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2012, ANSI/TIA-603-C-2004 Title: RF Test Report for GSM Mobile Phone Model: i7320 To: FCC Part 22(H) & FCC Part 24(E): 2012, ANSI/TIA-603-C-2004 Report No: 12070275-FCC-R1 Issue Date: October 08, 2012 Page: 6 of 41 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of GSM Mobile Phone with stipulated standard Applicant / Client HONG KONG IPRO TECHNOLOGY CO.,LIMITED ROOM C1D, 6/F, WING HING INDUSTRIAL BUILDING, 14 HING YIP STREET, KWUN TONG, KOWLOON, HONG KONG. Manufacturer SHENZHEN ZHIKE COMMUNICATION CO., LTD 1805,Tower A, Phase I, Tianan High-Tech Plaza, Futian District, Shenzhen, P.R.China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12070275-FCC-R1 Date EUT received Septe…

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz - Front View
