PQN14125TX4901RC Car

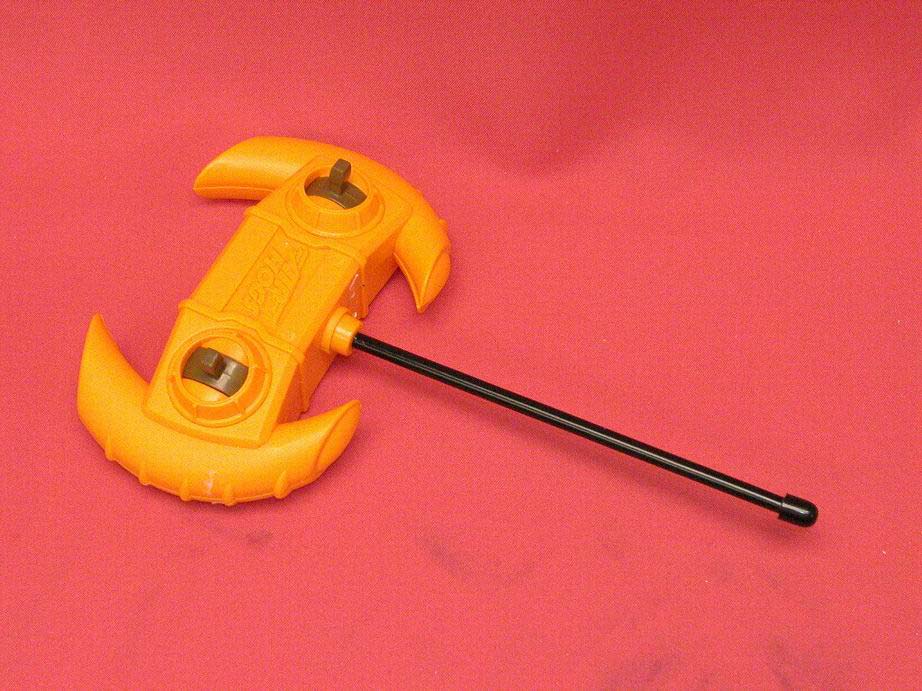

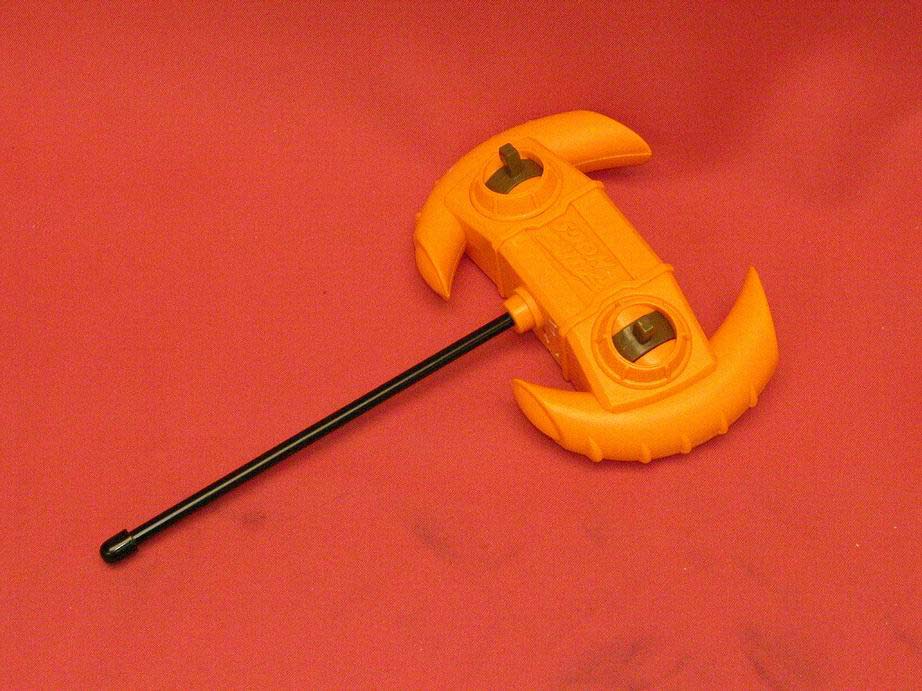

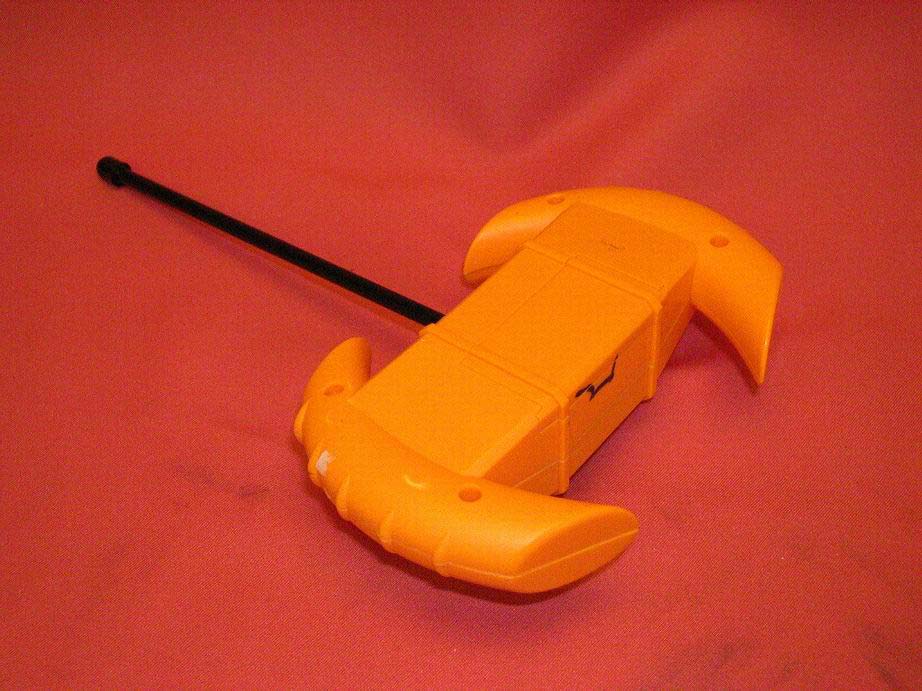

FCC ID: PQN14125TX4901 Ophoto1 Ophoto2 FCC ID: PQN14125TX4901 Ophoto3 Ophoto4

FCC ID: PQN14125TX4901 Iphoto1 Iphoto2 FCC ID: PQN14125TX4901 Iphoto3 Iphoto4

FCC ID: PQN14125TX4901 Technical Description : The brief circuit description is listed as follows : - Q1, XTAL and associated circuit act as 49.860 MHz Oscillator. - Q2 and associated circuit act as Modulator and Amplifier. - U1 and associated circuit act as Encoder. Antenna Used : A permanent spring wire antenna has been used.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 10-Jun-2005 Sheet of File: D:\SpinMaster Project\#14125 RC Wall Racer Car \14125 Outside Lab\14125 FCC_RSS210 Test\#14125_FCC .Ddb Drawn By: Right 1 NC 2 GND 3 BWD 4 FWD 5 Turbo 6 SC 7 Left 14 NC 13 OSCI 12 OSCO 11 PC 10 VDD 9 SO 8 U1TX2 E1ANT R11 ohm R2330 R3 1K R41K R5 1K R6 1K R7 110K R8 150k R9100 R10 100 R1110k R12100 BAT19V DC C1118p C2C203 C3C203 C427p C533p C6 27p C747p C8C103 C927p C1068p C1C104 X'TAL 49.860MHz ZD14V D11N4148 D21N4148 D3 1N4148 D41N4148 Q22SC1623 Q12SC1623 L3 1.35uH(+/-10%) L41.5uH L21uH L11uH SWSW SWSW #14126 Wall Racer - Transmitter (49.860MHz) Circuit Diagram Herald Metal & Plastic Works Ltd #14126 Wall Racer 3 SPIN MASTER M2 M1 SW1 SW3SW4 SW2

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : PQN14125TX4901 Spin Master Toys Far East Ltd. Application For Certification (FCC ID: PQN14125TX4901) Transmitter Sample Description : Zero Gravity RC Model : 14126 Asst. No. : 14125 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [12-8-2003] 0506945 WL/at June 6, 2005 INTERTEK TESTING SERVICES FCC ID: PQN14125TX4901 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PQN14125TX4901 ii MEASUREMENT/TECHNICAL REPORT Spin Master Toys Far East Ltd - MODEL: 14126 FCC ID: PQN14125TX4901 June 6, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-8- 2003 Edition] provision. Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: PQN14125TX4901 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation.................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: PQN14125TX4901 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: PQN14125TX4901 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PQN14125TX4901 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Car operating at 49.860 MHz which is controlled by a …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
