Appendix B1 Letter of Agency for FCC Certification Spin Master Toys Far East Ltd ******************************************************************************************************************** [May.9.2013] To whom it may concern, Letter of Agency I, an officer of SPIN MASTER TOYS FAR EAST LTD. do hereby authorize Intertek Testing Services (Mr. Ken Sit/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Signature] [Name] Andy Wong [Title] QA manager

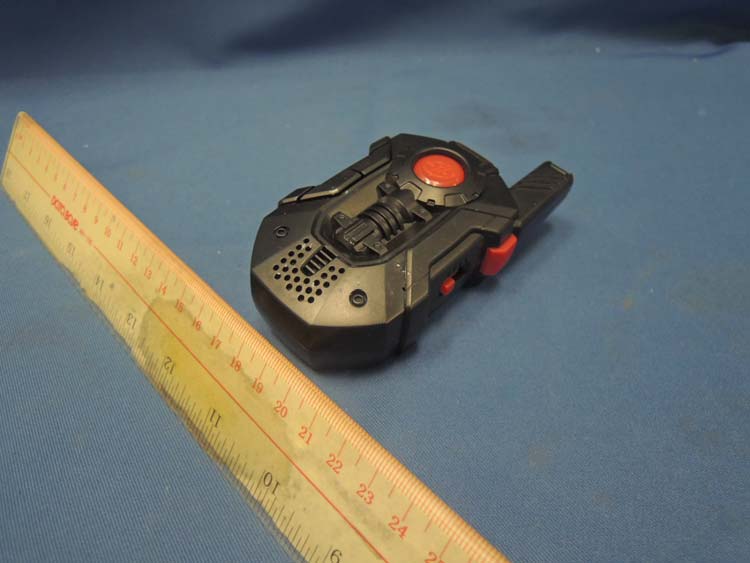

INTERTEK TESTING SERVICES External Photos FCC ID: PQN15211462 IC: 4438B-15211 external photos - 1 of 1 Job Number HK13051670 Job Number HK13051670

INTERTEK TESTING SERVICES Internal photos FCC ID: PQN15211462 IC: 4438B-15211 internal photos - 1 of 2 Assembly Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: PQN15211462 IC: 4438B-15211 internal photos - 2 of 2 Main PCB solder side Antenna

Report No.: 13060043HKG-001 Page 1 of 74 - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Specific Absorption Rate (SAR) Evaluation Report For Two Way Radio with FRS Model Number: 15211 Additional Model Number: 1029351, 1029352, 1029851, 6021820, 6021821, 6022188 Brand Name: Spin Master Toys FCC ID: PQN15211462 IC: 4438B-15211 Test Report: 13060043HKG-001 Date of Report: 15 July 2013 Prepared for Spin Master Toys Far East Ltd. Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Prepared and Checked by: Approved by: Chan Chun Foo, Bike Senior Lead Engineer Date: 15 July, 2013 Nip Ming Fung, Melvin Assistant Manager Date: 15 July, 2013 2349 Report No.: 13060043HKG-001 Page 2 of 74 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Information.............................................................................................. 3 2.0 Measurement System Description and Procedure ............................................... 6 3.0 Tissue Verification .............................................................................................. 14 4.0 SAR Measurement System Verification ............................................................. 16 5.0 SAR Evaluation .................................................................................................. 18 6.0 Test Instruments ................................................................................................ 25 7.0 Measurement Uncertainty .................................................................................. 26 8.0 E-Field Probe and 450 Dipole Antenna Calibration............................................ 28 9.0 References ......................................................................................................... 28 APPENDIX A - System Verification Data .................................................................. 29 APPENDIX B - SAR Evaluation Data ....................................................................... 31 APPENDIX C - E-Field Probe and 450MHz Dipole Antenna Calibration Data ......... 37 APPENDIX D - SAR Tissue Specification ................................................................ 73 APPENDIX E - SAR System Validation.................................................................... 74 Report No.: 13060043HKG-001 Page 3 of 74 - Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com 1.0 General information 1.1 Test Result Summary Applicant : Spin Master Toys Far East Ltd. Applicant Address : Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsmi Sha Tsui East, Kowloon, Hong Kong Model : 15211 Additional model : 1029351, 1029352, 1029851, 6021820, 6021821, 6022188 Brand Name : Spin Master Toys EUT Description : Two Way Radio with FRS Exposure Category : General Population/Uncontrolled Exposure Test Device : Production Unit Date of Sample Received : 17 June, 2013 Date of Test: : 25 June, 2013 to 26 June, 2013 Date of Report: : 15 July, 2013 Place of Testing : Intertek Testing Services Hong Kong 5/F Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Environmental Conidtions: : Temperature: +20 to 25°C Humidity: 30 to 70% Test Specification : ANSI/IEEE C95.1: 1992 IEEE Std 1528: 2003 IEEE Std 1528a: 2005 RSS-102 Issue 4: March 2010 FCC KDB Publication 447498 D01 v05r01 FCC KDB Publication 865664 D01 v01r01 FCC KDB Publication 865664 D02 v01r01 *Remark: The Model: 1029351, 1029352, 1029851, 6021820, 6021821 and 6022188 are the same as the Model: 15211 in hardware aspect. The difference in model number serves as marketing strategy and for cosmetic change only. The maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Highest Reported SAR (50% Duty Cycle) Band Operating Mode TX Frequency (MHz) 1 g Head 1g Body 462 MHz Voice 462.5625 – 462.6125 0.153 W/kg 0.466 W/kg This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment / general population exposure limits specified in ANSI/IEEE C95.1. Report No.: 13060043HKG-001 Page 4 of 74 - Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com 1.2 Description of Equipment under test (EUT) EUT Description : Two Way Radio with FRS Model : 15211 Additional model : 1029351, 1029352, 1029851, 6021820, 6021821, 6022188 Brand Name : Spin Master Toys FCC ID : PQN-15211462 IC : 4438…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front 25mm Separation Back 0mm Separation 25mm Separation

INTERTEK TESTING SERVICES Page 1 of 1 EUT Photo Figure 1 - front view Figure 2 - back view

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: PQN15211462 IC: 4438B-15211 bw - 1 of 1 CH2

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: PQN15211462 mlc - 1 of 1

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: PQN15211462 IC: 4438B-15211 emission - 1 of 1 CH2

INTERTEK TESTING SERVICES A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603C Audio Input Strength = 500mVrms FCC ID: PQN15211462 lpf - 1 of 1 60 log (F/3)

Code: FCC95a IC210a_FreqChar/Effective Date: 11 May 2010 Page 4 of 11 INTERTEK TESTING SERVICES Modulation Frequency Response -30.00-25.00-20.00-15.00-10.00 -5.00 0.00 100 600 1100 1600 2100 2600 3100 3600 4100 4600 Modulation Frequency (Hz) Audio Frequency Response FCC ID: PQN15211462 mfr - 1 of 1

- The test report only allows to be revised the retention period issued date unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Application For Certification Two Way Radio with FRS FCC ID: PQN15211462 For Spin Master Toys Far East Ltd IC: 4438B-15211 For Spin Master Toys 13051670HKG-001 MN/ cl July 2, 2013 INTERTEK TESTING SERVICES Test Report Number: 13051670HKG-001 FCC ID: PQN15211462 IC: 4438B-15211 Page 1 of 39 MEASUREMENT/TECHNICAL REPORT FCC Applicant : Spin Master Toys Far East Ltd. Trade Name/Model No : 15211 1029351, 1029352, 1029851 6021820, 6021821, 6022188 Date : July 2, 2013 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: 13051670HKG-001 FCC ID: PQN15211462 IC: 4438B-15211 Page 2 of 39 Table of Contents 1.0 General Description...................................................................................................................................4 1.1 Product Description..............................................................................................................4 1.2 Related Submittal(s) Grants................................................................................................5 1.3 Test Methodology.................................................................................................................5 1.4 Test Facility...........................................................................................................................5 2.0 System Test Configuration.................................................................................................7 2.1 Justification...........................................................................................................................7 2.2 EUT Exercising Software....................................................................................................8 2.3 Special Accessories.............................................................................................................8 2.4 Measurement Uncertainty...................................................................................................8 2.5 Equipment Modification.......................................................................................................8 2.6 Support Equipment..............................................................................................................8 3.0 RF Power Output (Section 2.1046(a), 95.639(d) / RSS-210 A6.1.4)........................10 4.0 Modulation Characteristics (Section 2.1047(a)(b), 95.637(a))....................................14 4.1 Modulation Frequency Response...................................................................................15 4.2 Modulation Limiting Characteristics...............................................................................17 4.3 Audio Low Pass Filter Response....................................................................................19 5.0 Occupied Bandwidth (Section 95.633(c) / RSS-210 A6.1.3)....................................22 6.0 Spurious Emission.............................................................................................................25 6.1 Power of Spurious Radiation (FCC Section 2.1053, 95.635(b) / RSS-210 A6.1.5).......................................................................................................................................26 7.0 Frequency Stability (Section 2.1055(a)(b)(d), 95.627(b) / RSS-210 A6.1.6)............31 7.1 Frequency Tolerance........................................................................................................32 7.2 Temperature Extreme Condition.....................................................................................34 7.3 Voltage Extreme Condition..............................................................................................36 8.0 Equipment List.....................................................................................................................38 INTERTEK TESTING SERVICES Test Report Number: 13051670HKG-001 FCC ID: PQN15211462 IC: 4438B-15211 Page 3 of 39 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES Test Report Number: 13051670HKG-001 FCC ID: PQN15211462 IC: 4438B-15211 Page 4 of 39 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Two Way Radio with FRS operating between 462.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: TX FCC ID: PQN15211462 IC: 4538B-15211 config photos (Radiated emission) - 1 of 2 Radiated Emission - TX Front View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: TX FCC ID: PQN15211462 IC: 4538B-15211 config photos (Radiated emission) - 2 of 2 Radiated Emission - TX Rear View
