PQN20418TX2G4ARH XSM HyprRacrsProAst

® 1.Open the battery door with a screwdriver (not included). 2.If used batteries are present, remove these batteries from the unit by pulling up on one end of each battery. 3.Install new batteries as shown in the polarity diagram (+/-) inside the battery compartment. 4.Replace battery door securely. 5.Check your local laws and regulations for correct recycling and/or battery disposal. INSTALLING/REPLACING THE BATTERIES HOW TO CHARGE YOUR HYPER ACTIVES™ USING THE REMOTE/CHARGER Battery Compartment Cover Battery Compartment 6 x 1.5V AA Alkaline Batteries • Remote/charger requires 6 x 1.5V AA alkaline batteries (not included). • Batteries are small objects. • Replacement of batteries must be done by adults. • Follow the polarity (+/-) diagram in the battery compartment. • Promptly remove dead batteries from the toy. • Dispose of used batteries properly. • Remove batteries for prolonged storage. • Only batteries of the same or equivalent type as recommended are to be used. • DO NOT incinerate used batteries. • DO NOT dispose of batteries in fire, as batteries may explode or leak. • DO NOT mix old and new batteries. • DO NOT mix different types of batteries, i.e.: alkaline/standard (carbon-zinc) or rechargeable batteries. • DO NOT use rechargeable batteries. • DO NOT recharge non- rechargeable batteries. • DO NOT short-circuit the supply terminals. • DO NOT store your car or controller near heat or in direct sunlight. BATTERY SAFETY INFORMATION 12 + YRS EXPERT O I CHG OFF ON CHG OFF ON 1.Turn vehicle OFF. 2.Turn remote/charger OFF. 3.Remove charge plug from storage base. 4.Remove charge cable from bottom storage groove. 5.Remove vehicle charge port cover. 6.Carefully insert the charge plug all the way into the vehicle’s charge port. 7.Set the remote/charger switch to CHG. 8.The red charging light will turn on and charging will begin when it starts to flash. After 30 to 50 minutes the charging will be complete and the red charge light and green power light will both start to flash. 9.When charging is complete, set the charge switch to OFF. 10.Remove charge plug from the vehicle charge port. 11.Replace vehicle charge port cover. 12.Store charge plug cable and charge plug in remote/ charger base. CHG OFF ON 1 5 9101112 678 234 Remote/Charger Forward/Reverse, Left/Right. 1.Turn vehicle ON. 2.Turn remote/charger ON. 3.Pulling the throttle trigger back moves the vehicle forward. Pushing the throttle trigger forward, brakes then reverses the vehicle. 4.To move the vehicle to the right turn the directional control to the right. 5.To move the vehicle to the left turn the directional control to the left. OI O I 4 5 1 CHG OFF ON 2 NOTE: 1.If the charge light and power light are flashing alternatively while charging, there may be a bad cable connection. Check that cable and plug are connected correctly and repeat charging steps 1 to 6. 2.The remote control will automatically shut off after idling for about 5 minutes. To reactivate turn off and on. 3.When the remote control is in either ONstatus or CHARGEstatus and the green power light is flashing, it means that the battery level is low and the batteries need to be replaced. Hyper Actives™ Contents: • 1 x Hyper Actives™ • 4 x Rubber All Terrain Tires • 4 x Rubber Foam Indoor Tires • 1 x Pistol Grip Remote/Charger • 1 x Instruction Guide Rollbar Interchangeable Rubber and Foam Tires for Various Terrains Rubber All Terrain Tires TM Charge Por t Charge Plug Directional Control Left/Right CHG/OFF/ON Switch Red Charge Light Green Power Light Trim Dial SLOW FAST Var iable Speed Dial Throttle Trigger Pull – Proportional Speed Push – Brake and Reverse INSTRUCTIONS 3 Forward Reverse Right Left Spin Master Ltd., 450 Front Street West, Toronto, ON M5V 1B6 Canada Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221, USA Spin Master Toys Far East Limited, Rm #1113, 11/F, Chinachem Golden Plaza, 77 Mody Rd., Tsimshatsui E., Kowloon, HK North American Consumer Information Phone: 1-800-622-8339 Email: [email protected] www.spinmaster.com Air Hogs ® , related trademarks & © 2011 Spin Master Ltd. All rights reserved. This product conforms to safety requirements of ASTM F-963 & CHPA. • Please retain this information for future reference. • Please remove all packaging materials before giving to children. • An adult should periodically check this toy to ensure no damage or hazards exist, if so, remove from use. • Children should be supervised during play. • Keep addresses and phone numbers for future reference. • The item inside this package may vary from the photographs and/or illustrations. MADE IN CHINA. 20043334, 20043335, 20049415, 20049426 REV 0 T20418_0001_20043334_NEN_IS_R1 TROUBLESHOOTING GUIDE Vehicle is slow or will not move. Vehicle does not drive in a straight line. My vehicle and/or remote is dirty. Vehicle is not responding or driving on it’s own. 1. Batteries in the controller need to be replaced if green power light is flashing. 2. Vehicle is out of range of controller. 3. There is hair or debris stuck in the wheels or wheel axles. 4. Batteries are installed incorrectly. 5. Improper surface for vehicle. 6. Remote not aimed at vehicle or objects interfering with signal. 7. Remote was inactive for 30 seconds or more and turned itself off to preserve your batteries. Vehicle requires wheel alignment. 1. Inappropriate driving surface. 2. Dirty hands. 1. Using another vehicle remote/ charger of the same frequency. 2. Infrared interference from another source. 1. Replace batteries in the remote with new, fresh batteries. 2. Move closer to the vehicle. 3. With the vehicle and remote turned off, have an adult carefully remove the hair or debris from the wheels or wheel axles. Remove debris by blowing gently on the wheel assembly area located on the bottom of the vehicle. 4. With the vehicle and remote turned off, have an adult check that the batteries are installed correctly in the remote. 5. Examples of poor play surfac…

Text truncated - open the document above for the full version.

 䆒䅵 :D\QH ࣪ޚᷛ $ 䰊↉ ᷛ䆄 ㄀ᓴ ݅ᓴ ᅵḌ 9HUVLRQ ᮹ᳳ  ޚᡍ )LUVW8QLRQ 7;EORFNFKDUW Power  Circuit Signal  MPU Transmitting  Circuit Input  Circuit Charge  Circuit MCU (U2) 2.4GHz RF Module (M1) Charging Circuit (Q1,Q2,Q3) Voltage Regulato r (U1) 9V power source 2407-2472MHz 12MHz CrystalOscillator for RFmodule(Y1) (M1 - WT24C02) EM198810 Datasheet INTEGRATED CIRCUIT Elan Design This spec is subject to change without any notice 5 / 18 24.Dec.2006 2. Block diagram ANT 2.4GHZ GFSK Transmitter 2.4GHZ GFSK Receiver Clock Recov. Oscillator / Buffer Analog PLL (APLL) RF Synthesizer TX Data Low Dropout Voltage Reg. TR Switch Data Framing Buffer and Logic Digital State Machine and Register Block SPI_SS SPI_CLK SPI_MISOSPI_MOSI FIFO_FLAG PKT_FLAGRESET_nRXCLK BRCLK XTALO XTALI Vdd_io LDO_Vdd LDO_Vout Vdd freq. control CLK +1.8V RF Vdd SPI Bus - Fig. 1 –

Spin Master Toys Far East Limited

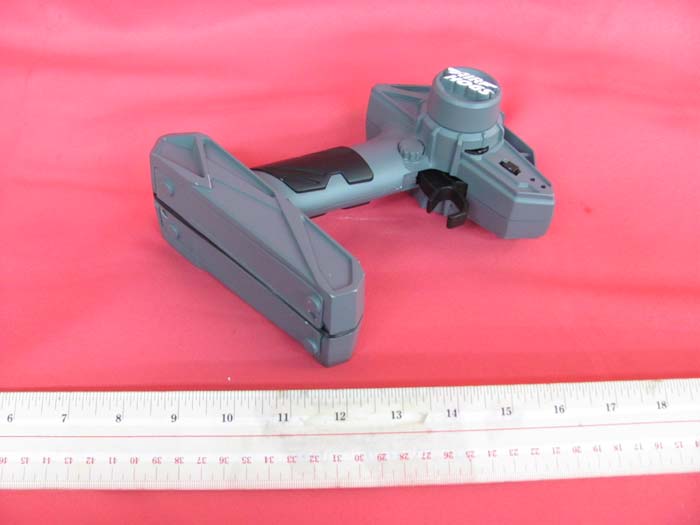

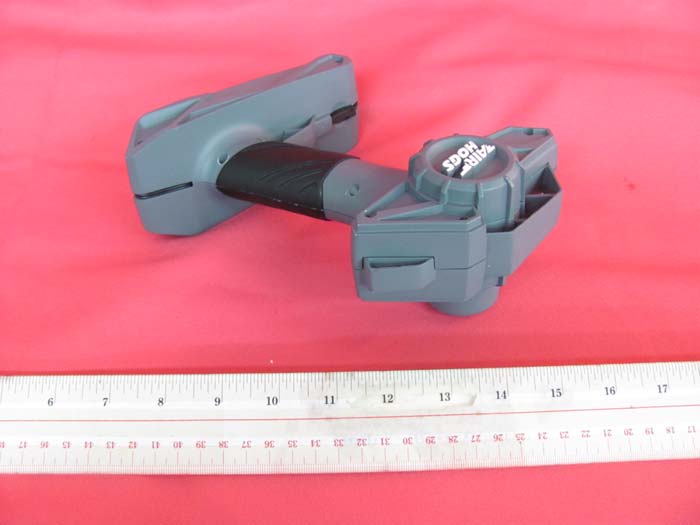

INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (External) INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (External)

Engraving of TX (Label Size).JPG (1024x768x16M jpeg)

INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (Internal) INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (Internal) INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (Internal) INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (Internal) INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (Internal) INTERTEK TESTING SERVICE Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 Equipment Photographs Model: 20418TX (Internal)

Technical Description: The brief circuit description is listed as follows: - U1 and associated circuit act as Voltage Regulator - U2 and associated circuit act as MCU - Q1, Q3, Q4 and associated circuit act as charging circuit. - M1 acts as 2.4GHz RF module Antenna Used: Internal, Integral antenna Below is the frequency table of the product. Total 33 channels have been used. Channel Operating frequency (MHz) 1 2407 2 2411 3 2414 4 2416 5 2417 6 2420 7 2423 8 2425 9 2427 10 2429 11 2431 12 2433 13 2435 14 2437 15 2439 16 2440 17 2441 18 2443 19 2445 20 2447 21 2449 22 2451 23 2453 24 2455 25 2457 26 2459 27 2461 28 2464 29 2467 30 2468 31 2470 32 2471 33 2472 WAILLY 2.4GHZ RF Module Datasheet Wailly Technology Ltd. Unit 503-505,Fook Hong Industrial Building, 19 Sheung Yuet Road,Kowloon Bay,Kowloon,Hong Kong. TEL: (852) 2756 4500 FAX: (852) 2624 8510 DATA SHEET WT24C02V01 2.4 GHz ISM Band RF Transceiver Module Production Specification This spec is subject to change http://www.wailly.net !" This spec is subject to change without any notice 1 !" WAILLY 2.4GHZ RF Module Datasheet This spec is subject to change CONTENTS 1. Description 2. Key features 3. Applications 4. Electrical characteristics 5. Module PCB drawing and I/O pin assignment 6. Digital base band interface and control 7. Application Circuit without any notice 2 WAILLY 2.4GHZ RF Module Datasheet 2.4 GHZ ISM BAND RF TRANSCEIVER MODULE 1. Description The WT24C02V01 is a 2.4GHz ISM band RF transceiver module consists of EM198810 transceiver. In normal applications,WT24C02V01 module is connected to a low cost microcontroller . The on-chip framer processes and stores the RF data in the background, unloading this critical timing function from the MCU. This lo wers MCU speed requirements, expedites product development time, and frees the MCU for implementin g additional product features. This module has high transmission data rate; low current consumption and simple control interface is easy to apply to the wireless products. 2. Key Features: - Combines 2.4 GHz GFSK RF transceiver with 8-bit data framer function - Simple microcontroller interface – 4 wires for SPI, plus 3 wires for RST/buffer control - Each transmit, receive buffer is 64 bytes deep - Long packets are possible if buffers are read/written before overflow/underflow occurs - Always 1Mbps over-the-air symbol rate, regardless of MCU speed or architecture - Preamble can be 1 to 8 bytes - Supports 1, 2, 3, or 4 word address (up to 64 bits) - Various Payload data formats to eliminate DC offset, enhance receive clock recovery and BER - Supports Forward Error Correction (FEC): none, 1/3 - Supports 16-bit CRC - Power management for minimizing current consumption - FCC certified for unlicensed operation 3. Applications - Wireless devices that need quick time-to-market - Wireless mouse, keyboard, joystick - Wireless data communication - Wireless security and access control - Home and factory automation - Toys - Telemetry - Industrial sensors - Battery powered wireless devices !" This spec is subject to change without any notice 3 WAILLY 2.4GHZ RF Module Datasheet 4.Electrical Characteristics 4.1 Absolute maximum rating Rating Parameter Symbol Min. Typ. Max. Unit Operating Temp. TOP -20 +70 °C Storage Temp. TSTORAGE -30 +80 °C VDD_IO Supply Voltage VDDIO_MAX +3.7 VDC VDD Supply Voltage VDD_MAX +2.5 VDC Applied Voltages to Other Pins VOTHER -0.3 +3.7 VDC - Table 1 - 4.2 Characteristics The following specifications are guaranteed for TA=25°C, unless otherwise noted: Specification Parameter Symbol Min. Typ. Max. Unit Test Condition and Notes Current Consumption Current Consumption - TX IDD_TX 29 mA Current Consumption - RX IDD_RX 27 mA Current Consumption – DEEP IDLE IDD_D_IDLE 1.9 mA RF Synthesizer and VCO: OFF Current Consumption – SLEEP IDD_SLP 15 uA Digital Inputs Logic input high VIH 0.8VDD _io VDD_io V Logic input low VIL 0 0.8 V Digital Outputs Logic output high VOH 0.8VDD _io VDD_io V Logic output low VOL 0.4 V Overall Transceiver Operating Frequency Range F_OP 2400 2482 MHz Receive Section: @ BER≦0.1% Receiver sensitivity -83 dBm Conductive measurement. Maximum useable signal -20 dBm Transmit Section: Reg. 9, bits 15-8 set to 00000000 RF Output Power PAV +0 dBm Conductive measurement. - Table 2 - !" This spec is subject to change without any notice 4 WAILLY 2.4GHZ RF Module Datasheet 5. Module Drawing and I/O Pin Assignment 5.1 PCB drawing * PCB size: 29 x 17 x 1.0 mm (bottom) (top) 5.2 I/O Pin function Pin Name Description 1 VDD Power supply voltage +3.3V. 2 SPI_MISO Data output for the SPI bus. 3 RESET_n When RESET_n is low,most of the chip shuts down to conserve power. When raised high, RESET_n is used to turn on the chip, restoring all registers to their default value. 4 SPI_CLK Clock line for the SPI bus. 5 SPI_MOSI Data input for the SPI bus. 6 SPI_SS Enable line for the SPI bus. Active low. 7 NC 8 PKT_FLAG Transmit/Receive packet process flag. 9 GND Ground connection. - Table 3 - !" This spec is subject to change without any notice 5 WAILLY 2.4GHZ RF Module Datasheet 6. Digital base band interface and control 6.1 SPI Command Format The SPI interface is used to program the module via the 4 pins SPI_CLK, SPI_SS, SPI_MOSI and SPI_MISO. The SPI_MOSI and SPI_CLK pins are used to load data into an internal shift register. The SPI_MOSI and SPI_CLK pins are use to send data to microcontroller. Format 1 CKPHA = 0: SPI_CLK A0A1A2A3A4A5A6 D15D8D9D10D11D12D13D14 D15D8D9D10D11D12D13D14 D7D0D1D2D3D4D5D6 D7D0D1D2D3D4D5D6R/W S7S0S1S2S3S4S5S6 D7 D6 D5D0D1D2D3D4 D7 D6 D5D0D1…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA S1Option switch 12 P1 Charge port D2 IN4001 D1IN4148 LED1 Green LED2Red S1 Right S2 Left Q58050D Q4 3904 Q28550D Q32SA928A Q1 3906 R1 4R7 1/2W R15100K 1% R11 1R 1/2W R18300R R6 1K R7 2K2 R1710K R8TBD 1% R9 10K R4 300K 1% R5 47K R20 10K R13 100K 1% J3 10K R32R2 J2 TBD J4 10K R1010R R12 4.7K R19300R R16 47K 1% C80.1uF C50.1uF C7 0.1uF C40.1uF C6 10uF C347uF CH PWM 9.0V BATTERY VDD P52 P51 VBAT Company Name:Item No.:Drawing By Version:Approval: 1.0 First Union Toys Factory 20418 TX Wayne J10 R2100K R1410K 1.0AFUSE fuse solder on negative battery terminal ON OFF CHG P55 VDD P54 Vin 1 GND 2 Vout 3 U1LC1207 3.0V C247uF VR1 F-10K B10K-B0 5K C1 0.1uF P50 VBAT VDD P66 P53 VDD Test Mode P70 Brake Pwm Option Chargering current :140mA+/-20mA Cutoff voltage:4.2+/-0.05V H:20%L:30% GND PKT-FLAG FIFO-FLAG SPI-SS SPI-MOSI SPI-CLK RESET-N SPI-MISO VDD ANT WT24C02 M12.4G Module P52/ADC2 1 P53/ADC3 2 P54/tcc/vref 3 reset 4 VSS 5 P60/INT 6 P61/TCCA 7 P62/TCCB 8 P62/TCCC 9 P64/CO 10 P65/CIN+ 11 P66/CIN- 12 P67/IR OUT 13 VDD 14 P70/OSCO 15 P55/OSCI 16 P50/ADC0 17 P51/ADC1 18 P57 19 P56 20 U2EM78P259ND20 P52P53P54 SPI_MISO RESET_N SPI_CLK SPI_MOSI SPI_SS PKG_FLAG P66 CH_PWM P70P55P50P51 C9 0.1uF VDD C100.1uF VDD ANTAntenna SPI_MISO RESET_N SPI_CLK SPI_MOSI SPI_SS PKG_FLAG C110.1uF VDD EM198810 Datasheet INTEGRATED CIRCUIT Elan Design This spec is subject to change without any notice 15 / 18 24.Dec.2006 6. Application Circuit Typical Application C2 2.2uF C6 12pF C4 10nF 43 21 Y1 12 MHz xtal C7 12pF R1 680k C3 100nF R22.2k C5 100nF C1 100nF +1.8V * Quartz crystal 5.0x3.2 mm TXC P/N: 7B12000028 Note: Different crystals or layout changes may require different R/C values. 2 1 A1 Printed "F" antenna +1.8V +1.8V +1.8V clk. out. +3.3V GND MCU interface Power SPI_CLK SPI_SS FIFO_FLAG PKT_FLAG (optional) XTALO 31 XTALI 32 LDO_VOUT 27 LDO_TUNE 28 SPI_CLK 22 VDD_IO 25 VDD 2 GND 4 ANT 5 NC 3 RESET_n 23 SPI_MISO 24 VDD 18 NC 8 VDD 6 NC 7 GND 19 FIFO_FLAG 17 SPI_SS 20 VDD 10 NC 13 VDD 9 NC 12 NC 11 SPI_MOSI 21 RXCLK 16 VDD 30 Die 33 PKT_FLAG 15 BRCLK 14 LDO_VDD 26 VDD 1 EM198810 GND 29 U1 +1.8V SPI_MOSI SPI_MISO RESET_n C8 100nF Note 1 Note 1: Jumper CKPHA pin 28 t0 +1.8V or GND to set SPI clock phase as desired. Z=50 ohm Simple, low-power (0dBm) 2.4GHz RF Transceiver with Framing and Data buffers - Figure 6 - BOM list Comment Description Designator Quantity Footprint 10pF Capacitor C8 1 SMD-0603 12pF Capacitor C9 1 SMD-0603 10nF Capacitor C6 1 SMD-0603 100nF Capacitor C1 C3 C5 C7 4 SMD-0603 2.2uF Capacitor C2 1 SMD-0603 0 ohm Resistor R4 1 SMD-0603 2.2k Resistor R2 1 SMD-0603 680k Resistor R1 1 SMD-0603 12MHz Crystal Y1 1 OSC 5x3.2 EM198810 IC U1 1 QFN 32 5x5 CON1x14 Connector P1 1 HDR1x14 - Table 7 -

INTERTEK TESTING SERVICES Report No.: HK11010976-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Average Factor Plot - Pursuant to FCC Part 15 Section 15._249_ Requirement INTERTEK TESTING SERVICES Report No.: HK11010976-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Average Factor Plot - Pursuant to FCC Part 15 Section 15._249_ Requirement

INTERTEK TESTING SERVICES Report No.: HK11010976-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot - Pursuant to FCC Part 15 Section 15._249_ Requirement OATS = 98.0 dBuV/m Field strength (Peak) =98.0 – 45.99 dBuV/m =52.01 dBuV/m (Average Limit: 54 dBuV/m) OATS = 98.1 dBuV/m Field strength (Peak) =98.1 – 47.08 dBuV/m =51.02 dBuV/m (Average Limit: 54 dBuV/m)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11010976-1 Spin Master Toys Far East Limited Application For Certification (Original Grant) (FCC ID: PQN20418TX2G4) Transceiver Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Assistant Engineer Chan Chi Hung, Terry Assistant Supervisor Date: April 08, 2011 INTERTEK TESTING SERVICES Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 i GENERAL INFORMATION SPIN MASTER TOYS FAR EAST LIMITED MODEL: 20418TX FCC ID: PQN20418TX2G4 Grantee: Spin Master Toys Far East Limited Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Allen Yang Tel: (86) 0769-81080068-1119 Fax: (86) 0769-81080061 e-mail: [email protected] Manufacturer: Wynnewood Toys Industrial (ShenZhen) Co. Ltd. Manufacturer Address: Guan Guang Road, Guanlan, Baoan District, Shenzhen, 518110, China Brand Name: Spin Master Ltd. Model: 20418TX Additional Model: 1021952/6017216, 1022066/6017292, 1019434/6015879, 1019435/6015880, 1020412/6015880 Type of EUT: Transceiver Description of EUT: ARH XSM HyprRacrsProAst Serial Number: N/A FCC ID : PQN20418TX2G4 Date of Sample Submitted: January 24, 2011 Date of Test: January 27, 2011 Report No.: HK11010976-1 Report Date: April 08, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 ii SUMMARY OF TEST RESULT SPIN MASTER TOYS FAR EAST LIMITED MODEL: 20418TX FCC ID: PQN20418TX2G4 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11010976-1 FCC ID: PQN20418TX2G4 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty...........................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11010976-1 FCC ID: PQN20418TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 20418TX INTERTEK TESTING SERVICE Report No: HK11010976-1 FCC ID: PQN20418TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 20418TX
