PQN20426RX2G4ARH XSM AirHogs Hyperactives 5

Battery requirement for Controller: / Caractéristiques de la batterie de la radiocommande : / Especificaciones de las baterías del control: Power Supply: / Alimentation : / Alimentación: Rating: DC 4.5 V, 0.45 W / Puissance nominale : 4,5 V CC, 0,45 W / Potencia: 4,5 V CC, 0,45 W Batteries: 3 x 1.5 V AAA/LR03/AM4 / Piles : 3 piles 1,5 V AAA/LR03/AM4 / Batería: 3 pilas de formato AAA/LR03/AM4 de 1,5 V Requires 3 x 1.5 V AAA/LR03/AM4 size batteries (not included) / Fonctionne avec 3 piles AAA/LR03/AM4 1,5 V (non fournies) / Requiere 3 pilas de 1,5 V y formato AAA/LR03/AM4 (no incluidas) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Cet appareil est conforme à l’article 15 de la réglementation de la FCC. Son utilisation est soumise aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles, et 2) cet appareil doit tolérer toutes les interférences reçues, y compris celles pouvant entraîner un fonctionnement indésirable. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre toute interférence nuisible avec les communications radios. Cet équipement génère, utilise et peut émettre de l’énergie de fréquence radio. S’il n’est pas installé et utilisé selon le mode d’emploi, il peut causer des interférences nuisibles aux communications radios. Cependant, selon l’installation, des interférences peuvent être constatées. Si ce jouet cause des interférences à la réception radio ou télévisée (ce qui est vérifiable en l’éteignant, puis en le rallumant tout en écoutant s’il y a des interférences), suivre une ou plusieurs des recommandations suivantes : • Réorienter ou déplacer l’antenne réceptrice • Augmenter la distance entre le jouet et la radio ou la télévision • Consulter le revendeur ou demander l’aide d’un technicien radio/T.V. expérimenté. REMARQUE : tout changement, réglage ou modification de cet appareil, incluant mais ne se limitant pas au remplacement de tout composant du transmetteur (cristal, semi-conducteur, etc.), pourrait constituer une violation de l’article 15 et/ou 95 de la règlementation de la FCC, et doit être expressément approuvé par Spin Master Ltd., sous peine d’entraîner l’annulation du droit de l’utilisateur d’exploiter l’équipement. EDeclaración de la FCC: Este aparato cumple con el artículo 15 de las normas de la FCC. El funcionamiento está sujeto a las dos siguientes condiciones: 1) Este aparato no debe causar interferencias perjudiciales, y 2) Este aparato debe aceptar cualquier interferencia recibida, incluidas las que podrían causar un funcionamiento no deseado. Este equipo se sometió a las pruebas debidas y se comprobó que cumple con los requisitos específicos para aparatos digitales de clase B en conformidad con el artículo 15 de las normas de la FCC. Estos requisitos están diseñados para proporcionar protección razonable contra interferencias perjudiciales en las comunicaciones por radio. Este juguete genera, utiliza y puede emitir energía de radiofrecuencia. Si no se instala y se utiliza de acuerdo con la guía de instrucciones, puede causar interferencias en las comunicaciones por radio. Sin embargo, en función de la instalación, pueden ocurrir interferencias. Si este juguete ocasiona interferencias perjudiciales en la recepción radio o televisiva (lo cual se puede comprobar encendiendo y apagando el juguete mientras se escucha la interferencia), seguir una o varias de las siguientes recomendaciones: • Volver a orientar o ubicar la antena receptora. • Aumentar la distancia entre el juguete y la radio o el televisor. • Consultar al distribuidor o a un técnico especializado en radio y televisión. NOTA: Los cambios, ajustes o modificaciones realizados sobre este aparato, incluidos pero no limitados al cambio de cualquier componente del transmisor (emisor de cristal, semiconductor, etc.) podrían constituir una violación del artículo 15 y/o 95 de las normas de la FCC y deberían ser expresamente aprobados por Spin Master Ltd., de lo contrario quedaría inválida la autoridad del usuario para usar el equipo. CONTENTS / CONTENU / CONTENIDO Powered 5th Wheel / 5e roue motrice / Quinta rueda activa Power Switch OFF/ON / Interrupteur OFF/ON / Interruptor de encendido/apagado (OFF/ON) HOW TO INSTALL BATTERIES / INSTALLATION DES PILES / INSTALACIÓN DE LAS PILAS…

Text truncated - open the document above for the full version.

SR1N001F Version 1.0e Syntronix Corporation. - 2 - 1.3 Bloc Diagram 2.4 GHz GFSK Transmitter 2.4 GHz GFSK Receiver RF Synthesizer Analog PLL (APLL) Oscillator/Buffer Exposed Pad RSSI Clk Rx Data Tx Data Digital State Machine and Register Bank Data Framing Buffer and Logic CRC, FEC and Data- Whitening Logic Auto. ACK and Auto. Retry Logic 4 5 ANTb ANT 1 2 3 6 7 9 24 18 16 15 14 13 19 12 11 10 17 22 23 SPI_SS SPI_CLK SPI_MISO SPI_MOSI CKPHA FIFO_FLAG PKT_FLAG RST_n/BnPWR BRCLK XTALO XTALI VSS VDD VDD_IO Power Connection Ground Connection Freq. Control 2 2 T R Balanced RF in/out 8 MONIpMONIn TP_VTUNE 21 20 Power ConnectionPower Connection LDO_OUTLDO_IN Figure 1-1 SR1N001F Block Diagram (QFN24 Package)

Nov 2011 Appendix B Letter of Agency Please retype this information ON YOUR COMPANY LETTERHEAD , sign and date the document. "I, an officer of (Company Name) do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20__ By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

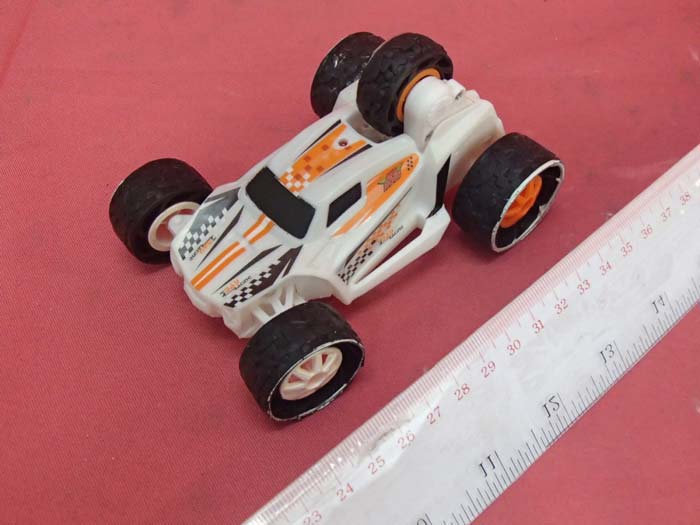

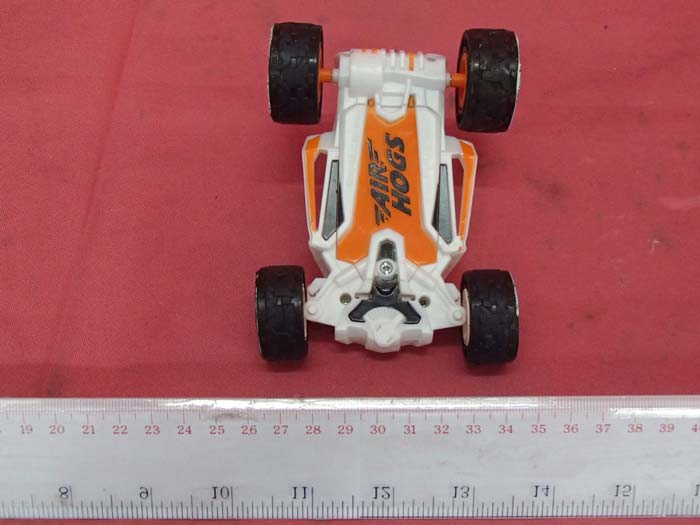

INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model : 20426RX (External) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model : 20426RX (External)

Legal line engraving (scale 1:1) 10mm 5mm 3.8mm 2mm 0 I 1.5V AAA / LR03 1.5V AAA / LR03 1.5V AAA / LR03 open ©2012 SML, CHINA, #20426 OUVRIR FCC ID:PQN20426RX2G4 CAN ICES-3(B) /NMB-3(B) I C : 4 4 3 8 B - 2 0 4 2 6 R X 2mm 2mm Model : 20426RX

INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal) INTERTEK TESTING SERVICE Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 Equipment Photographs Model: 20426RX (Internal)

Technical Description: The brief circuit description is listed as follows: Module 1 act as 2.4GHz RF transceiver module - U4 (SR1N001F) is 2.4GHz radio transceiver - Y1 (12MHz) crystal providing clock for U3 U1 acts as 3.0 V power regulator U2 act as 5.0V power step-up U3 act as decoder and speed control Q1, Q2, Q9 and Q10 act as motor driver FW / BW Q3, Q4, Q11 and Q12 act as motor driver L / R Antenna Used: An internal, integral antenna has been used. Antenna Gain: 0dBi Production tolerance: -7dBm (Minimum) to -6dBm (Maximum) 2.4GHz Digital wireless module (channel table) ChannelFrequency 12.404GHz 22.405GHz 32.406GHz 42.407GHz 52.408GHz 62.409GHz 72.410GHz 82.411GHz 92.412GHz 102.413GHz 112.414GHz 122.415GHz 132.416GHz 142.417GHz 152.418GHz 162.419GHz 172.420GHz 182.421GHz 192.422GHz 202.423GHz 212.424GHz 222.425GHz 232.426GHz 242.427GHz 252.428GHz 262.429GHz 272.430GHz 282.431GHz 292.432GHz 302.433GHz 312.434GHz 322.435GHz 332.436GHz 342.437GHz 352.438GHz 362.439GHz 372.440GHz 382.441GHz 392.442GHz 402.443GHz 412.444GHz 422.445GHz 432.446GHz 442.447GHz 452.448GHz 462.449GHz 472.450GHz 482.451GHz 492.452GHz ChannelFrequency 502.453GHz 512.454GHz 522.455GHz 532.456GHz 542.457GHz 552.458GHz 562.459GHz 572.460GHz 582.461GHz 592.462GHz 602.463GHz 612.464GHz 622.465GHz 632.466GHz 642.467GHz 652.468GHz 662.469GHz 672.470GHz 682.471GHz 692.472GHz 702.473GHz 712.474GHz 722.475GHz 732.476GHz 742.477GHz 752.478GHz 762.479GHz Electrical specification Item Parameters Min Typ MaxUnit Condition 1 Supply 1.1 Supply voltage 1.63.6 V 2 Current Consumption 2.1 sleep mode 2.69 uA 1.8 2.2Rx states 18 mA 2.3Tx states mA 3 Transmitter Part 3.1 25 3.2 Frequency range 2402 2480 MHz Output power -20 0 dBm WAILLY 2.4GHz RF Module Datasheet 1 -16 RF characteristic:  2.4Ghz ISM Band, Multi-channels.  Up to 1M bps data rate.  TX: Up to 4 dBm output power  RX: -92 dBm sensitivity.  GFSK modulation  64 bytes FIFO  RSSI indicator  No Need External SAW Filter  Open field distance(Antenna in meander type, 1 meter from ground, BER < 0.1%): 4 21.7 WT24S00V03 0 dBm/30 m, 4 dBm/45 m 2 Module Dimension Drawing (Top view) Module Dimension Drawing (Top view) Module Dimension Drawing ( B otton view) 3 Wailly Technology Ltd. Unit 503-505,Fook Hong Industrial Building, 19 Sheung Yuet Road,Kowloon Bay,Kowloon,Hong Kong. TEL: (852) 2756 4500 FAX: (852) 2624 8510 http://www.wailly.net Pin Configuration Pin Symbol Function 1 2 3 4 5 6 7 8 RF module supply voltage GND Ground Serial configuration interface, chip select SPI Data Input Serial configuration interface, data input/output Application: RESET_ N SPI slave Select input SPI Clock input SPI Data Output Application:  Remote control  Wireless keyboard/mice  Home application  Toys/Game control Packet TX / RX flag Serial configuration interface, data input/output 3V3ADJ SPI_SS SPI_CLK SPI_MOSI SPI_MISO PKT_FLAG Reset input,active Low SR1N001F Version 1.0e Syntronix Corporation. 1 SR1N001F Product Datasheet Rev 1.0e © 2012 Syntronix Corporation SR1N001F Version 1.0e Syntronix Corporation. 2 Revision History Version Date Description 0.9a 2011/05/30 Modify chapter “10.Reference Design” figure. 2011/06/01 Modify chapter “3.Electrical Characteristic” Table2: TX High typical value and notes & TX Low notes. 2011/06/02 Modify chapter “7.Register” REG09 bit4-3 description & REG17 bit15-9 description. 2011/06/15 Modify chapter “7.Register” REG2A bit7-0 description. 2011/06/23 Modify chapter “7.Register” REG28 description. Modify “8.4 FIFO Pointer Clear” description. Original “FIFO write pointer must be cleared”  Modified “FIFO write & read pointer must be cleared” Modify chapter “7.Register” REG20 description. Modify chapter “7.Register” REG2A description. Original “reg0x29”  Modified “reg29”. 2011/07/07 Modify chapter “7.Register” REG20 description. Modify “8.4 FIFO Pointer Clear” description. 2011/08/24 Modify chapter “7.Register” REG09 bit15-13 description. 1.0a 2011/12/01 chapter1, figure 1 add LDO_OUT chapter4, add LDO_OUT,LDO_IN, update all relative diagram chapter7, add REG1B Description chapter 10, change reference design Product name change to SR1n001F 1.0b 2011/12/13 chapter 3, RF output power under 0dBm, reg0x09 setting fix to 0x8570 1.0c 2011/12/15 Figure and Table number. Chapter 5.1, 5.2 and 8.12 refer information. 1.0d 2011/12/16 7.2.12. REG20 SYNCWORD_LEN define change. 1.0e 2012/04/12 Revise chapter 10 reference design Notice 1. All information included in this document is subject to change without any prior notice. Before purchasing please contact to Syntronix Corporation for the latest product information. 2. Exporting the products or technology described in this product should comply with export control laws and regulations. User should not use Syntronix Corporation products for any application relating to which may cause loss of human life, bodily injury or severe property damage. Such application including, but not limit to: military instruments, medical instruments, atomic energy control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments, all types of safety devices, and other applications intended to support or sustain life. 3. User should follow the specified range described in this document, especially maximum rating, operating supply voltage range and temperature range. Syntronix Corporation shall have no liability for malfunctions or damages arising out of the use of Syntronix Corporation products beyond such specified ranges. SR1N001F Version 1.0e Syntronix Corporation. i List of Content 1. OVERVIEW ....................................................................................................................... - 1 - 1.1 KEY FEATURES .............................................................................................. - 1 - 1.2 APPLICATION ................................................................................................ - 1 - 1.3 BLOC D…

Text truncated - open the document above for the full version.

Analysis Report Report No.: HK13020061-2 The Equipment under test (EUT) is a portable 2.4GHz RF transceiver (Car) of a RC Car system which operating at 2404MHz to 2479MHz with 1 MHz channel spacing. The EUT is powered by 3 x 1.5V AAA batteries. The EUT has an ON/OFF switch. The RC car can be controlled to moving forward, backward, turning left and right direction by the corresponding controller. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Production tolerance: -7dBm (Minimum) to -6dBm (Maximum) According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was -6dBm in frequency 2.4GHz, thus; Maximum radiated power (EIRP) is 0.251mW (i.e. -6dBm), thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.251mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.479) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

SR1N001F

INTERTEK TESTING SERVICES Report No.: HK13020061-2 (Car) Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) A PS Att 15 dB * Ref -5 dBm 2 MHz/Center 2.4 GHzSpan 20 MHz * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms AC 1 PK MAXH -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -25.63 dBm 2.404400000 GHz 1 Delta 1 [T1 ] -38.29 dB -4.640000000 MHz A PS AC Att 15 dB * * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 msRef -5 dBm Center 2.4835 GHzSpan20MHz2MHz/ 1 PK MAXH -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -31.75 dBm 2.478700000 GHz 1 Delta 1 [T1 ] -41.90 dB 5.200000000 MHz Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass)

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK13020061-3 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) (FCC ID: PQN20426RX2G4) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: April 10, 2013 INTERTEK TESTING SERVICES Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 i GENERAL INFORMATION Spin Master Toys Far East Ltd. MODEL: 20426RX FCC ID: PQN20426RX2G4 Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 86-769-81080068-1123 Fax: 86-769-81080061 e-mail: [email protected] Manufacturer: Pacific Industries Ltd. Manufacturer Address: Unit E, 17/F., CDW Building, 388 Csatle Peak Road, Tsuen Wan, N.T. 852 Hong Kong Brand Name: Spin Master Ltd. Model: 20426RX Additional Model: 6221558, 1029011 Phantom No.: 20057923/20057924 Type of EUT: Transceiver Description of EUT: ARH XSM AirHogs Hyperactives 5 Serial Number: N/A FCC ID : PQN20426RX2G4 Date of Sample Submitted: February 01, 2013 Date of Test: February 01, 2013 to February 27, 2013 Report No.: HK13020061-3 Report Date: April 10, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 ii SUMMARY OF TEST RESULT Spin Master Toys Far East Ltd. MODEL: 20426RX FCC ID: PQN20426RX2G4 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK13020061-3 FCC ID: PQN20426RX2G4 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 8 5.0 Product Labelling................................................................................................ 8 6.0 Technical Specifications ..................................................................................... 8 7.0 Instruction Manual .................................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK13020061-3 FCC ID: PQN20426RX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 20426RX Radiated Emission 20426RX HK13020061-3 A5 B… INTERTEK TESTING SERVICE Report No: HK13020061-3 FCC ID: PQN20426RX2G4 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 20426RX Radiated Emission 20426RX HK13020061-3 A… B5
