PQN24109TX2701Wiggle RC Car

Wiggle RC Car 27.145MHz Tx Block Diagram
          27.145MHz Oscillator RF Mixer & Amplifier Antenna

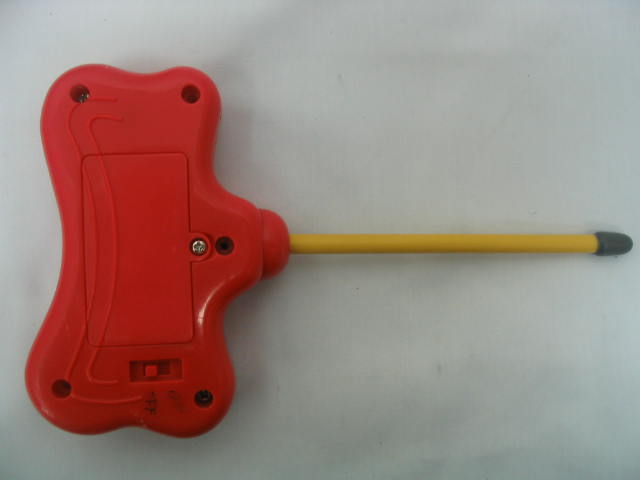

Operation Description Wiggle RC Car The Wiggle RC Car is powered by 9V battery for Transmitter. For the transmitter, there are two-control key in the front of the transmitter. When the forward control button pressed once, it will transmit a radio frequency for receiver going forward and music come out. When the backward control button pressed once, it will transmit a radio frequency for receiver going backward and music come out. Refer to the transmitter circuit design, the circuit description is listed as below:
 Y1, Q2 and associate circuit act as oscillator.
Q1 and associate circuit act as RF mixer & amplifier.
 Q3 and associate circuit act as 1kHz generator.
 Q4 and associate circuit act as 250Hz generator.

27MTX.sch-1 - Wed Jun 18 21:55:42 2003 PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE009060-1 Date : 2004 June 30 Client : Spin Master Toys Far East Limited Room 1113, 11 th Floor, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Wiggle RC Car of Model No. 24109. Rating : 1 x 9 V size battery No. of sample(s) : Two(2) sets *** Date Received : 2004 June 04. Test Period : 2004 June 04 ñ 2004 June 25. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PQN24109TX2701 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE009060-1 Date : 2004 June 30 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PQN24109TX2701 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE009060-1 Date : 2004 June 30 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Wiggle RC Car operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 9 V battery. There are two buttons in the front of EUT. When the forward button pressed once, it will transmit a radio signal to receiver going forward and music come out. When the backward button pressed once, it will transmit a radio signal to receiver going backward and music come out. The brief circuit description is listed as follows : - Y1, Q2 and associated circuit act as oscillator - Q1 and associated circuit act as RF mixer & amplifier - Q3 and associated circuit act as 1 kHz Generator - Q4 and associated circuit act as 250 Hz Generator 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : PQN24109TX2701 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE009060-1 Date : 2004 June 30 1.3 Location of the test site Radiated emissions measurements are investi…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AE009060-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AE009060-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AE009060-1 Duty Cycle 2
