PQN43004RX49SHUARH Cars RC (1:24)

SAFETY TIPS: • NEVER drive Shu Todoroki on the street. That’s for real cars! • Drive Shu Todoroki on flat, hard and clean surfaces. • Avoid collisions with walls and other hard surfaces. • Always turn your controller OFF before picking up Shu Todoroki. • Keep fingers, hair and loose clothing away from wheels and tires while Shu Todoroki is turned ON. • Always make sure Shu Todoroki and his controller are turned OFF when not in use. • Let Shu Todoroki rest for 5 minutes after every 15 minutes of play. Some adult assembly required. SHU TODOROKI MOVING EYES INSTRUCTIONS 4 + YEARS 1.Open the battery door with a screwdriver (not included). 2.If used batteries are present, remove these batteries from the unit by pulling up on one end of each battery. DO NOT remove or install batteries using sharp or metal tools. 3.Install new batteries as shown in the polarity diagram (+/-) inside the battery compartment. 4.Replace battery door securely. 5.Check your local laws and regulations for correct recycling and/or battery disposal. INSTALLING/REPLACING THE BATTERIES USING THE CONTROLLER Battery Compartment Cover Battery Compartment 3 x AA 1.5V Alkaline Batteries 3 x AAA 1.5V Alkaline Batteries • Vehicle requires 3 x 1.5V AA alkaline batteries and controller requires 3 x 1.5V AAA alkaline batteries (included). • Batteries are small objects. • Replacement of batteries must be done by adults. • Follow the polarity (+/-) diagram in the battery compartment. • Promptly remove dead batteries from the toy. • Dispose of used batteries properly. • Remove batteries for prolonged storage. • Only batteries of the same or equivalent type as recommended are to be used. • DO NOT incinerate used batteries. • DO NOT dispose of batteries in fire, as batteries may explode or leak. • DO NOT mix old and new batteries. • DO NOT mix different types of batteries, i.e.: alkaline/ standard (carbon-zinc) or rechargeable batteries. • DO NOT use rechargeable batteries. • DO NOT recharge non-rechargeable batteries. • DO NOT short-circuit the supply terminals. • DO NOT store your car or controller near heat or in direct sunlight. BATTERY SAFETY INFORMATION Shu Todoroki Controller Moving Eyes Off/On Switch Antenna Power Indicator Left/Right Turn Forward/Reverse Drive Forward/ Reverse The LEFT stick controls the vehicle’s Forward and Reverse driving. NOTE:Keep your controller antenna pointing up. Left/Right Turn To move the vehicle left or right, move the left stick forward and the right stick left or right. Turn Vehicle ON OI IO Turn Controller ON ® CHOKING HAZARD WARNING: Not for Children under 3 years. Small parts. CAUTION: When playing outdoors, play only in well lit, dry, safe environments and under adult supervision. Contents: • 1 x Shu Todoroki • 1 x Remote Control • 3 x 1.5V AA Alkaline Batteries • 3 x 1.5V AAA Alkaline Batteries • 1 x Instruction Guide W HEEL ALIGNMENT 1.If the vehicle turns to the left, move the wheel alignment lever to the right until the vehicle drives straight. 2.If the vehicle turns to the right, move the wheel alignment lever to the left until the vehicle drives straight. NOTE:As the wheels turn left or right, Shu Todoroki also looks left or right! When finished playing, be sure to turn the controller and vehicle OFF! Turn Vehicle OFF OI IO Turn Controller OFF 1 2 Wheel Alignment Lever This product complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. Because this toy generates, uses, and can radiate radio frequency energy, there can be no guarantee that interference will not occur. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. NOTE:Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. CANADIAN Class B statement: This class B digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations. RSS-310 Statement: This device complies with Industry Canada Iicence-exempt RSS standard(s). Carrier frequency: 49.860 MHz, Field strength: 79.1 dBuV/m at 3 m. TROUBLESHOOTING GUIDE Vehicle is slow or will not move. Vehicle does not drive in a straight line. Vehicle is damp or wet. My vehicle and/or controller is dirty. Vehicle is not responding or driving on its’ own. 1. Batteries in the vehicle and/or controller need to be replaced. 2. Vehicle is out of range of controller. 3. There is hair or debris stuck in the wheels or wheel axles. 4. Batteries are installed incorrectly. 5. Improper surface for vehicle. Vehicle requires wheel alignment. Inappropriate driving surface/ conditions. 1. Inappropriate driving surface. 2. Dirty hands. 1. Using another vehicle controller of the same frequency. 2. Radio Interference from another source. 1. Replace batteries in the vehicle and/or controller with new, fresh batteries. 2. Move closer to the vehicle. 3. With the vehicle and controller turned off, have an a…

Text truncated - open the document above for the full version.

PRE-AMPLIFIER 1:24 CARS 2 SHUMAIN ( 49.860MHZ ) RECEIVER DECODER IC U1 RACING DRIVER Q4,Q5,Q10,Q11,Q12,Q13 STEERING DRIVER Q2,Q3,Q6,Q7,Q9,Q14 RX-49.860MHZ 1:24 CARS 2 SHU43004 2010-08-10 WMC CSB ZCQ DWG-EB-SM011R-00-RM Q1 A B CD 1 2 3 4 6 5 A B CD 1 2 3 4 6 5 TATKEI ELECTRONIC IND. CO.,LTD. FM-RD-20A Rev.Size Date:Model No: Model Name: DWG.No. Title:Drawn: Checked: Approved: PA G E :DOC.No: 49.860 MHz

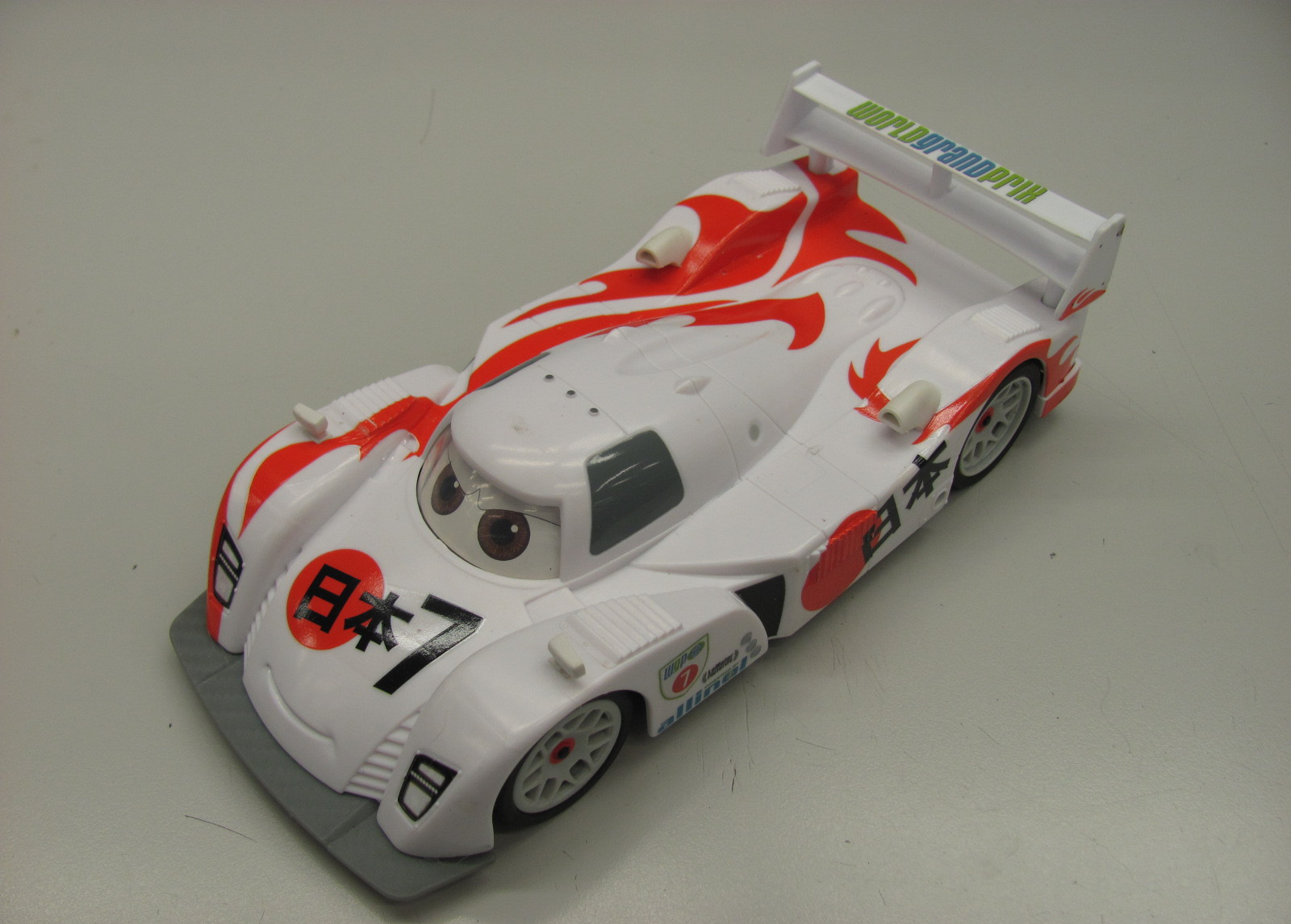

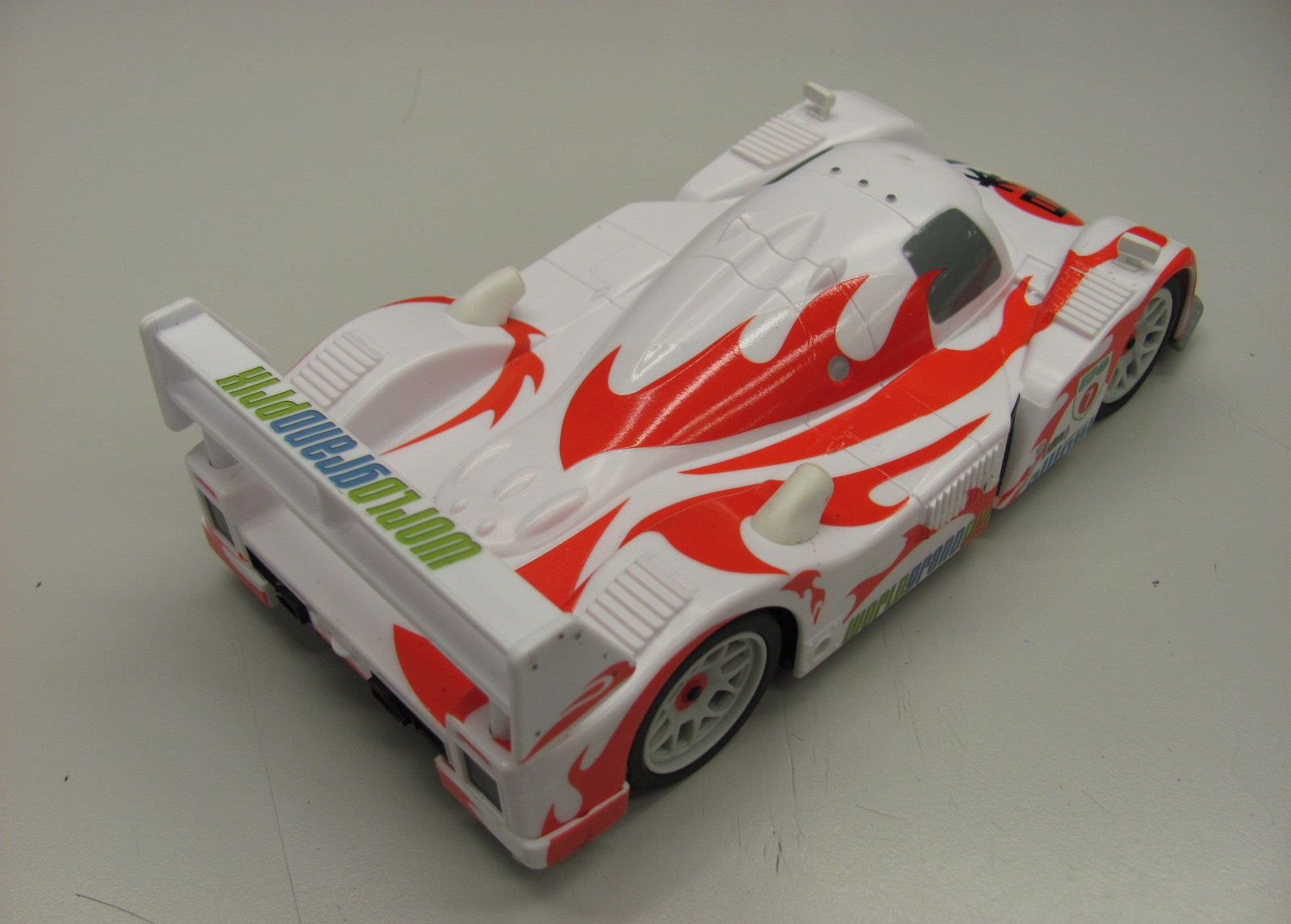

INTERTEK TESTING SERVICE Report No.: HK11080909-1 FCC ID: PQN43004RX49SHU Equipment Photographs Model : 43004 (External) INTERTEK TESTING SERVICE Report No.: HK11080909-1 FCC ID: PQN43004RX49SHU Equipment Photographs Model : 43004 (External)

FCC ID:PQN43004RX49SHU This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Spin Master Ltd. Model : 43004Canada 310 55mmX25mm Label Size Letter Height 0.8mm Letter Height 1.0mm

INTERTEK TESTING SERVICE Report No.: HK11080909-1 FCC ID: PQN43004TX49SHU Equipment Photographs Model: 43004 (Internal) INTERTEK TESTING SERVICE Report No.: HK11080909-1 FCC ID: PQN43004TX49SHU Equipment Photographs Model: 43004 (Internal) INTERTEK TESTING SERVICE Report No.: HK11080909-1 FCC ID: PQN43004TX49SHU Equipment Photographs Model: 43004 (Internal) INTERTEK TESTING SERVICE Report No.: HK11080909-1 FCC ID: PQN43004TX49SHU Equipment Photographs Model: 43004 (Internal)

General Circuit Description  1.0 Product Description (Receiver) The Equipment Under Test (EUT) is a Super-regenerative Receiver for a remote controlled Toy operating at 49.860 MHz. The EUT is powered by 3*1.5V "AA" batteries. The EUT can be controlled in four moving directions (forward/backward and left/right turn). The brief circuit description is listed as follows: -Q1 and associated circuit act as a RF amplifier. -Q2,Q3,Q6,Q7,Q9,Q14 and associated circuit act as a steering motor driver. -Q4,Q5,Q10,Q11,Q12,Q13 and associated circuit act as a racing motor driver. -U1 and associated circuit act as decode IC. 2.0 Product Description (Transmitter) The Equipment Under Test (EUT) is a transmitter for toy operating at 49.860 MHz, which is controlled by a crystal and powered by 3*1.5V "AAA" batteries. There are four switches: Forward and Backward, turn left, turn right  The brief circuit description is listed as follows:  -Q2, Y1 and associated circuit act as oscillator -Q1 and associated circuit act as modulator. -U1 and associated circuit act as encoder IC.

IN5817 5pF 150K 2.2K 222 30PF 2.2K 137K 3K 103 8050 2.2M 2.2M 470PF 0.1uF 0.1uF 2.2K 0.1uF 3.9K 10pF 30pF 2.7uH 680R 332 223 AA*2 AA*1 100K 100K 3904 3904 100R 470R 100K 1K 470R 100K 1K VPD 100R VPD VPD 1K 1K ATS302R 0.3uH 0.1uF ST3A02P ST3A02P ST3A01N ST3A01N 100uH 103 0R 3904 8050 3904 8050 8550 8550 680R 680R 0R 105 380 SW-1P2T12F43 1uH 1 ANT1 M1 D1 C3 R5 R9 C8C6 R8 R4 R1 C18 Q8 R10 R7 C12 C13 C7 R3 C1 R2 C5 C4 L1 R6 C9 C10 M2 BT1 BT R14 R13 Q10 Q11 R17 R21 R23 R20R22 R24 R19 R18 R16 R15 VDD 13 R 6 V1I 14 V2I 16 TUR 12 OSCO 5 V1O 15 V2O 1 OSCI 4 GND 2 SI 3 L 7 F 11 B 10 LX 8 MOD 9 U1 1 2 T1 C15 G 3 S 1 D 2 Q4 G 3 S 1 D 2 Q5 G 3 S 1 D 2 Q12 G 3 S 1 D 2 Q13 12 C2 470uF L4 C14 J2 Q3 Q14 Q2 Q9 Q7 Q6 R12 R11 J5 C11 Q1 1 1 3 3 2 2 S1 4 4 5 5 L2 PE LEFT RIGHT BACK BACK FORWARD FORWARD VDD RX-49.86MHZ 1:23 CARS 2 SHU wmc JOHN zcq A4 A/0 2011.08.10 OF DWG-EB-SM011R-00-RM OE11938A 43004 + - A BCD 1 2 3 4 6 5 A B CD 1 2 3 4 6 5 TATKEI ELECTRONIC IND. CO.,LTD. FM-RD-20A Rev.Size Date:Model No: Model Name: DWG.No. Title:Drawn: Checked: Approved: PAGE: DOC.No: + - + C20 0.1uF PTC1 LP60-075 200uHL2 49.860MHz

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11080909-1 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) (FCC ID: PQN43004RX49SHU) Superregenerative Receiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: September 02, 2011 INTERTEK TESTING SERVICES Report No.: HK11080909-1 FCC ID: PQN43004RX49SHU i GENERAL INFORMATION Spin Master Toys Far East Ltd. BRAND NAME: Spin Master Ltd., MODEL: 43004 FCC ID: PQN43004RX49SHU Grantee: Spin Master Toys Far East Ltd. Grantee Address: 1113, 11 th Floor, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Andy Wong Tel: 86-0769-81080068 Fax: 86-0769-81080061 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: Spin Master Ltd. Model: 43004 Additional Model: 1021500, 6014908, 1021980, 1022538, 6017233, 1022540, 1022579, 6014908, 1022580, 1023412, 1023413 Type of EUT: Superregenerative Receiver Description of EUT: ARH Cars RC (1:24) Serial Number: N/A FCC ID: PQN43004RX49SHU Date of Sample Submitted: August 17, 2011 Date of Test: August 22, 2011 Report No.: HK11080909-1 Report Date: September 02, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11080909-1 FCC ID: PQN43004RX49SHU ii SUMMARY OF TEST RESULT Spin Master Toys Far East Ltd. BRAND NAME: Spin Master Ltd., MODEL: 43004 FCC ID: PQN43004RX49SHU TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver Radiated Emissions 15.109 / RSS-310 3.1 Pass Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11080909-1 FCC ID: PQN43004RX49SHU iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual ..................................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK11080909-1 FCC ID: PQN43003RX49SHU Code: FCC15C_f / Effective Date: 24 Jun 2011 Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 109 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK11080909-1 FCC ID: PQN43004RX49SHU Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 43004 INTERTEK TESTING SERVICE Report No: HK11080909-1 FCC ID: PQN43004RX49SHU Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 43004
