PQN43004TX27MHZARH Cars II (1:24)

Contents: • 1 x R/C Lightning McQueen™ • 1 x Remote Control • 3 x 1.5V AA Alkaline Batteries • 3 x 1.5V AAA Alkaline Batteries • 1 x Instruction Guide SAFETY TIPS: • NEVER drive Lightning McQueen™ on the street. That’s for real cars! • Drive Lightning McQueen™ on flat, hard and clean surfaces. • Avoid collisions with walls and other hard surfaces. • Always turn your controller OFF before picking up Lightning McQueen™. • Keep fingers, hair and loose clothing away from wheels and tires while Lightning McQueen™ is turned ON. • Always make sure Lightning McQueen™ and his controller are turned OFF when not in use. • Let Lightning McQueen™ rest for 5 minutes after every 15 minutes of play. R/C LIGHTNING MCQUEEN™ MOVING EYES INSTRUCTIONS 4 + YEARS 1.Open the battery door with a screwdriver (not included). 2.If used batteries are present, remove these batteries from the unit by pulling up on one end of each battery. 3.Install new batteries as shown in the polarity diagram (+/-) inside the battery compartment. 4.Replace battery door securely. 5.Check your local laws and regulations for correct recycling and/or battery disposal. INSTALLING/REPLACING THE BATTERIES USING THE CONTROLLER Battery Compartment Cover Battery Compartment 3 x AA 1.5V Alkaline Batteries 3 x AAA 1.5V Alkaline Batteries • Vehicle requires 3 x 1.5V AA alkaline batteries and con- troller requires 3 x 1.5V AAA alkaline batteries (included). • Batteries are small objects. • Replacement of batteries must be done by adults. • Follow the polarity (+/-) diagram in the battery compartment. • Promptly remove dead batteries from the toy. • Dispose of used batteries properly. • Remove batteries for prolonged storage. • Only batteries of the same or equivalent type as recommended are to be used. • DO NOT incinerate used batteries. • DO NOT dispose of batteries in fire, as batteries may explode or leak. • DO NOT mix old and new batteries. • DO NOT mix different types of batteries, i.e.: alkaline/ standard (carbon-zinc) or rechargeable batteries. • DO NOT use rechargeable batteries. • DO NOT recharge non-rechargeable batteries. • DO NOT short-circuit the supply terminals. • DO NOT store your car or controller near heat or in direct sunlight. BATTERY SAFETY INFORMATION R/C Lightning McQueen™ Controller Moving Eyes Off/On Switch Antenna Power Indicator Left/Right Turn Forward/Reverse Drive Forward/ Reverse The LEFT stick controls the vehicles’ Forward and Reverse driving. NOTE:Keep your controller antenna pointing up. Left/Right Turn To move the vehicle left or right, move the left stick forward and the right stick left or right. Turn Vehicle ON IO IO Turn Controller ON ® CHOKING HAZARD WARNING: Not for Children under 3 years. Small parts. CAUTION: When playing outdoors, play only in well lit, dry, safe environments and under adult supervision. Contains 3AA/3AAA 1.5v batteries • Batteries must be recycled or disposed of properly. • If at any time in the future you should need to dispose of this product please note that Waste Electrical Products should NOT be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive). Warning: Choking Hazard – Small Parts. TM Hereby, Spin Master Ltd., declares that this CARS2 R/C Lightning McQueen™ is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. <http://www.airhogs.com> © Disney/Pixar. Air Hogs ® , related trademarks & © 2011 Spin Master Ltd. All rights reserved. This product conforms to safety requirements of ASTM F963, EN71 & CHPA. • Please retain this information for future reference. • Please remove all packaging materials before giving to children. • An adult should periodically check this toy to ensure no damage or hazards exist, if so, remove from use. • Children should be supervised during play. • Keep addresses and phone numbers for future reference. • The item inside this package may vary from the photographs and/or illustrations. MADE IN CHINA. 20038707 GTL English REV 0 T43004_0001_20038707_GTL_IS_R1 SPIN MASTER LTD., 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA Customer Care: 1-800-622-8339 Fax: 416-364-8005 Email: [email protected] Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221, USA Spin Master Toys Far East Limited, Rm #1113, 11/F, Chinachem Golden Plaza, 77 Mody Rd., Tsimshatsui E., Kowloon, HK Imported by: SPIN MASTER INTERNATIONAL, S.A.R.L., 16 AVENUE PASTEUR, L-2310, LUXEMBOURG www.spinmaster.com W HEEL ALIGNMENT 1.If the vehicle turns to the left, move the wheel alignment lever to the right until the vehicle drives straight. 2.If the vehicle turns to the right, move the wheel alignment lever to the left until the vehicle drives straight. NOTE:As the wheels turn left or right, Lightning McQueen™ also looks left or right! When finished playing, be sure to turn the controller and vehicle OFF! Turn Vehicle OFF IO IO Turn Controller OFF 1 2 Wheel Alignment Lever This product complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for Class B digital de- vices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. Because this toy generates, uses, and can radiate radio frequency energy, there can be no guarantee that interference will not occur. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while list…

Text truncated - open the document above for the full version.

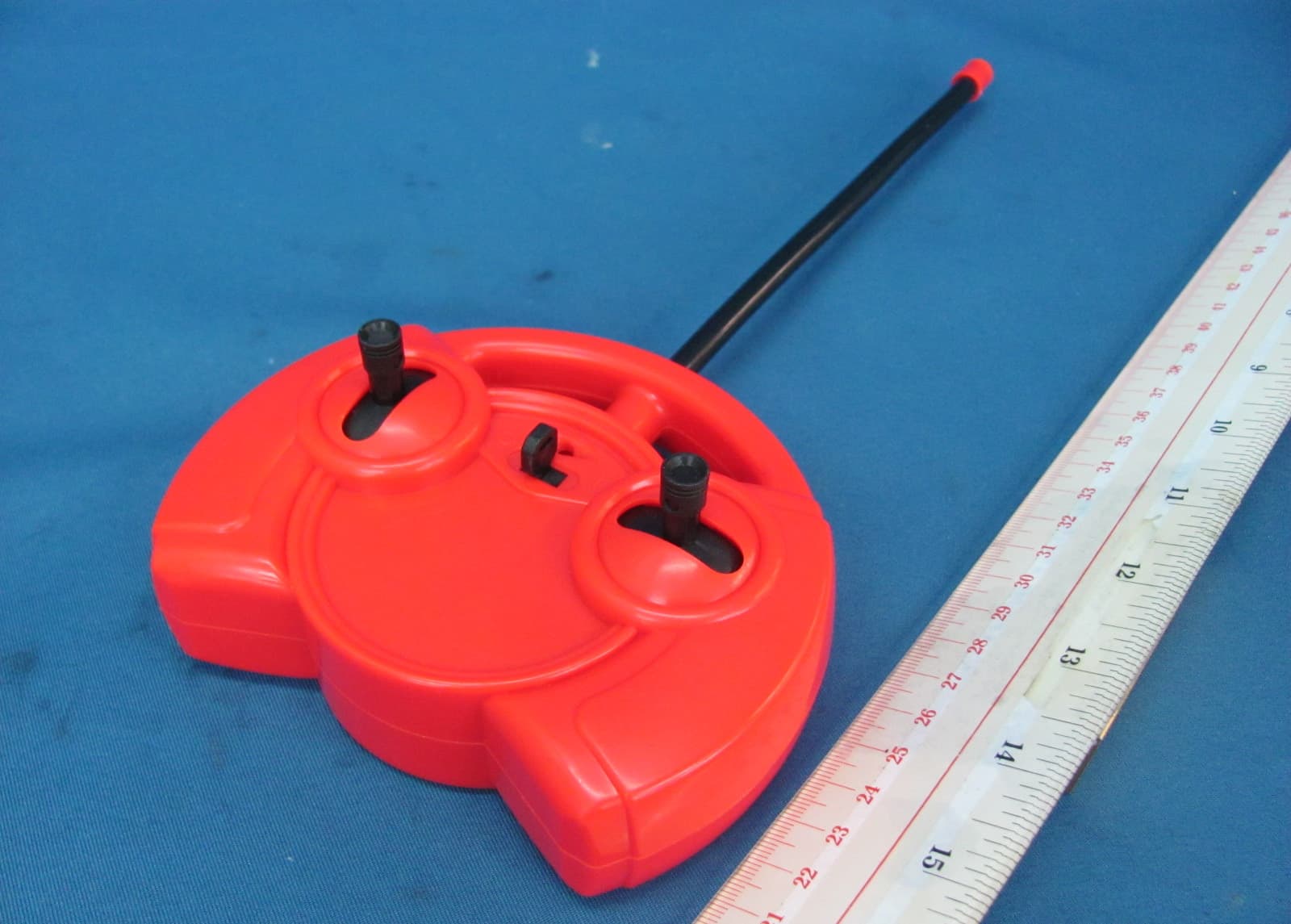

INTERTEK TESTING SERVICE Report No.: HK10120988-1 FCC ID: PQN43004TX27MHZ Equipment Photographs Model : 43004 (External)

27MHz TX FCC ID:PQN43004TX27MHZ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 25mmX55mm FCC ID:PQN43004TX27MHZ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Spin Master Ltd. Model : 43004 Canada 310 25mmX55mm

INTERTEK TESTING SERVICE Report No.: HK10120988-1 FCC ID: PQN43003TX27MHZ Equipment Photographs Model : 43004 (Internal) INTERTEK TESTING SERVICE Report No.: HK10120988-1 FCC ID: PQN43003TX27MHZ Equipment Photographs Model : 43004 (Internal) Equipment Photographs INTERTEK TESTING SERVICE Report No.: HK10120988-1 FCC ID: PQN43003TX27MHZ Model : 43004 (Internal)

The Equipment Under Test (EUT) is a transmitter for toy operating at 27.145 MHz, which is controlled by a crystal and powered by 3*1.5V "AAA" size batteries. There are five switches: Power, Forward and Backward, turn left, turn right. The brief circuit description is listed as follows: -Q2, Y1 and associated circuit act as oscillator -Q1 and associated circuit act as modulator. -U1 and associated circuit act as encoder IC.

1.5uH 2369 2SC1623 4pF 200K 510K 330R 8.2K 223 104 12pF 47pF 100pF 47pF 100pF 22pF 1K ATS302T GND VCC GND 10R 2.2R VCC VDD 223pF AA*3 27.145MHZ 2.2uH 2.2uH Forward Reverse Left Right 0R0R 0R SW-1P2T 0R 0R 0R 0R 1A RED 1 3 L4 1 ANT 1 32 Q1 1 32 Q2 LED1 C1 R2 R3 R6 R5 C2 C10 C9 C4 C6 C3 C8 C7 R4 RIGHT 1 TEST 2 BACKWARD 4 FORWARD 5 GND 3 TURBO 6 SC 7 SO 8 VCC 9 PC 10 OSCO 11 OSCI 12 NC 13 LEFT 14 U1 R1 R7 C5 BT1 1 2 Y1 L2 L3 K1K2K3K4 1 2 C11100uF JP1JP2 JP3 13 2 SW1 JP4 JP5 JP6 JP7 FUSE1 LEFT LEFT RIGHT RIGHT REVERSE REVERSE FORWARD FORWARD SO SO VDD TURBO 1:24 CARS 2 A4A0 2010-12-24 43004 TX-27.145MHZ wmc csb zcq OE11858A DWG-EB-SM009T-01-RM OF ABCD 1 2 3 4 5 6 ABCD 1 2 3 4 5 6 TATKEI ELECTRONIC IND. CO.,LTD. FM-RD-20A Rev.Size Date:Model No:Model Name:DWG.No. Title:Drawn: Checked: Approved: PAGE:DOC.No: +

INTERTEK TESTING SERVICES Report No.:HK10120988-1 Sample No.:1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10120988-1 Spin Master Toys Far East Limited Application For Certification (Original Grant) (FCC ID: PQN43004TX27MHZ) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Engineer Chan Chi Hung, Terry Assistant Supervisor Date: January 17, 2011 INTERTEK TESTING SERVICES Report No.: HK10120988-1 FCC ID: PQN43004TX27MHZ i GENERAL INFORMATION SPIN MASTER TOYS FAR EAST LIMITED MODEL: 43004 FCC ID: PQN43004TX27MHZ Grantee: Spin Master Toys Far East Limited Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (86) 0769-81080068 Fax: (86) 0769-82207100 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: Spin Master Ltd. Model: 43004 Additional Model: 1017670, 6014908, 1017672, 1020560, 1021978, 1021979, 1021980, 6016384, 1021688, 6017057, 6017233 Type of EUT: Transmitter Description of EUT: ARH Cars II (1:24) Serial Number: N/A FCC ID: PQN43004TX27MHZ Date of Sample Submitted: December 29, 2010 Date of Test: January 5, 2011 Report No.: HK10120988-1 Report Date: January 17, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10120988-1 FCC ID: PQN43004TX27MHZ ii SUMMARY OF TEST RESULT SPIN MASTER TOYS FAR EAST LIMITED MODEL: 43004 FCC ID: PQN43004TX27MHZ TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10120988-1 FCC ID: PQN43004TX27MHZ iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description .................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK10120988-1 FCC ID: PQN43004TX27MHZ Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 43004 INTERTEK TESTING SERVICE Report No: HK10120988-1 FCC ID: PQN43004TX27MHZ Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 43004
