PQN44164TX27195RC Helicopter

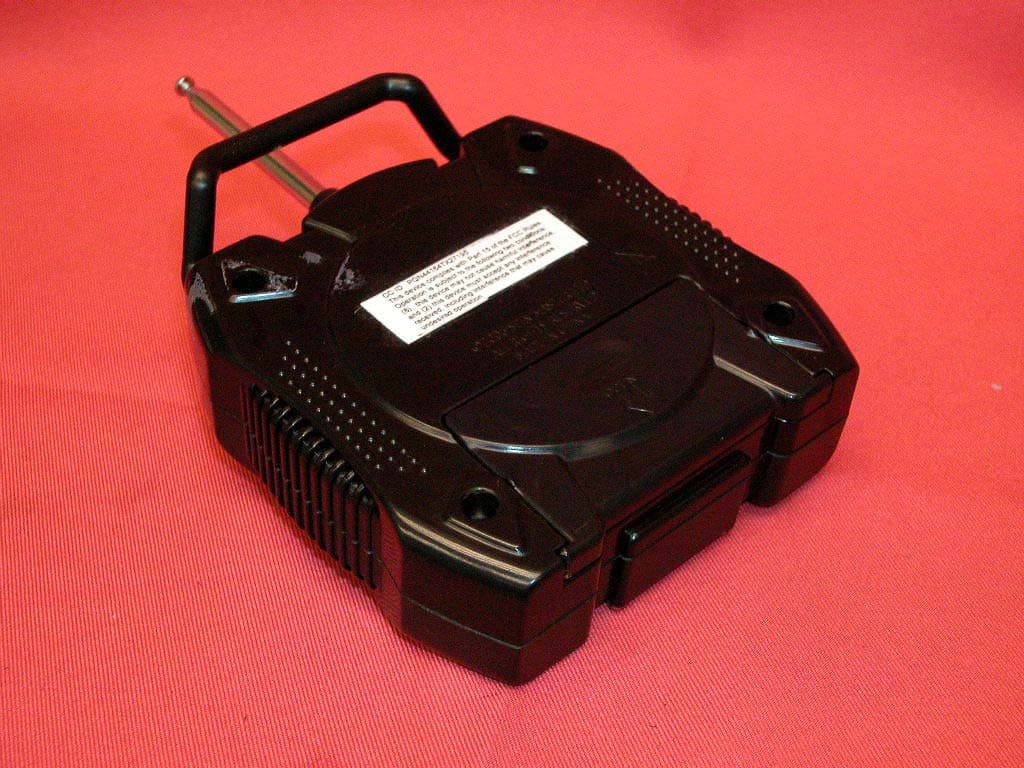

FCC ID: PQN44146TX27195 Ophoto1 Ophoto2 FCC ID: PQN44146TX27195 Ophoto3 Ophoto4

FCC ID: PQN44146TX27195 Iphoto1 Iphoto2 FCC ID: PQN44146TX27195 Iphoto3 Iphoto4 FCC ID: PQN44146TX27195 Iphoto5 Iphoto6 FCC ID: PQN44146TX27195 Iphoto7 Iphoto8 FCC ID: PQN44146TX27195 Iphoto9 Iphoto10 FCC ID: PQN44146TX27195 Iphoto11

FCC ID: PQN44164TX27195 Technical Description : The brief circuit description is listed as follows : - Y1, Q3 and associated circuit act as 13.5975 MHz Oscillator. - Q2, L4 and associated circuit act as Frequency Doubler (27.195 MHz). - U1 acts as Encoder and MCU. - U2 acts as Voltage Regulator. - DC1 and associated circuit act as FSK Modulator. - Q5, Q6 and associated circuit act as RF ON/OFF Circuit. - Q4 and associated circuit act as Noise Filter. - Q1 and associated circuit act as RF Amplifier. - L1, L2, C1 and C2 act as Low Pass Filter. - VR1, FORWARD, BACKWARD, LEFT and RIGHT act as Control Keys. Antenna Used : An extendable antenna has been used.

1 2 3 4 5 6 7 8 ABCD 8 7 6 5 4 3 2 1 D CBA Issue Date: Spin Master Toys Far East Limited Title Rev. Size A3 Drawn: 29 Apr 2006 7b DWG NO Sheet of 1 1 APP'D: Air Hogs R/C Helix Micro Helicopter ANT P0.1 1 P2.0 2 P2.1 3 P5.6/XOUT 4 XIN 5 VSS 6 P4.4/AIN4 7 P4.3/AIN3 8 P4.0/AIN0 11 VDD 12 P0.3/RST/VPP 13 P5.4/BZ0/PWM0 14 P5.3/BZ1/PWM1 15 P5.1 16 P5.0 17 P0.0 18 P4.2/AIN2 9 P4.1/AIN1 10 U1SN8A2715H L14.7uH L34.7uH C1150PF C2150PF C333PF C40.1uF C50.1uF C647PF C747PF C915PF C1068PF C11 390PF C141NF C1522nF C1820PF C1920PF C20 0.1uF C210.1uF C22 NC C1647uF C25100uF R110Ω R227KΩ R527Ω R6220KΩ R7 330Ω R8100KΩ R1022KΩ R939KΩ R111MΩ R1322KΩ R162.2KΩ R1510Ω R3010Ω R192MΩ R18 2.7MΩ R22 100KΩ R21470Ω R2910Ω R202.2KΩ Q1 9014 Q2 9014 Q3 9014 Q63904 Q53906 Y1 DC1MV2105 VR1 10KΩ Y2 3.58MHZ LEDRed Vin 1 VSS 2 Vout 3 U2 XC62FP4502PR S1-1 OFF DC 9V UP Left Forward L4129-209 L2129-207 R1710KΩ C292.2nF C282.2nF C312.2nF R24100Ω C2322uF S1-2 ON ON L64.7uH C1222nF C1322nF R1210KΩ C240.1uF Backward Right DOWN Q4 3904 C260.1uF C171uF R3100Ω R25 100KΩ R26 100KΩ R27100KΩR28100KΩ OFF C80.1uF C300.1uF R410Ω L54.7uH R2310Ω D1LL4148 R14100Ω R3110Ω C320.1uF C340.1uF R3210Ω C2747uF TP1 TP3 TP2 TP4 C33 NC R3310Ω R34 NC 13.5975MHz C35 NC Note : NC=No Connection 44208 Asst No. 44164 27.195Mhz TX Schematic 27.195MHz 2 T 1 T 3 T1 T

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : PQN44164TX27195 Spin Master Toys Far East Ltd. Application For Certification (FCC ID: PQN44164TX27195) Transmitter Sample Description : Air Hogs R/C Helix Micro Helicopter Model : 44208 Asst. No. : 44164 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0608878 TL/at June 6, 2006 INTERTEK TESTING SERVICES FCC ID: PQN44164TX27195 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PQN44164TX27195 ii MEASUREMENT/TECHNICAL REPORT Spin Master Toys Far East Ltd. - MODEL: 44208 FCC ID: PQN44164TX27195 June 6, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: PQN44164TX27195 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 16 5.0 Product Labelling .................................................................................................. 18 6.0 Technical Specifications....................................................................................... 20 7.0 Instruction Manual ................................................................................................ 22 8.0 Miscellaneous Information................................................................................... 24 8.1 Measured Bandwidth......................................................................................... 25 8.2 Emission Test Procedures ................................................................................ 26 8.2 Emission Test Procedures (Cont’d).................................................................... 27 INTERTEK TESTING SERVICES FCC ID: PQN44164TX27195 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: PQN44164TX27195 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PQN44164TX27195 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC helicopter operating at 27.195 MHz which is controlled by crystal. The EUT is powered by a 9V battery. The EUT has an ON/OFF switch and two control sticks. After switched ON the EUT, the left control stick is used to control the RC helicopter to rise and down. The righ…

Text truncated - open the document above for the full version.

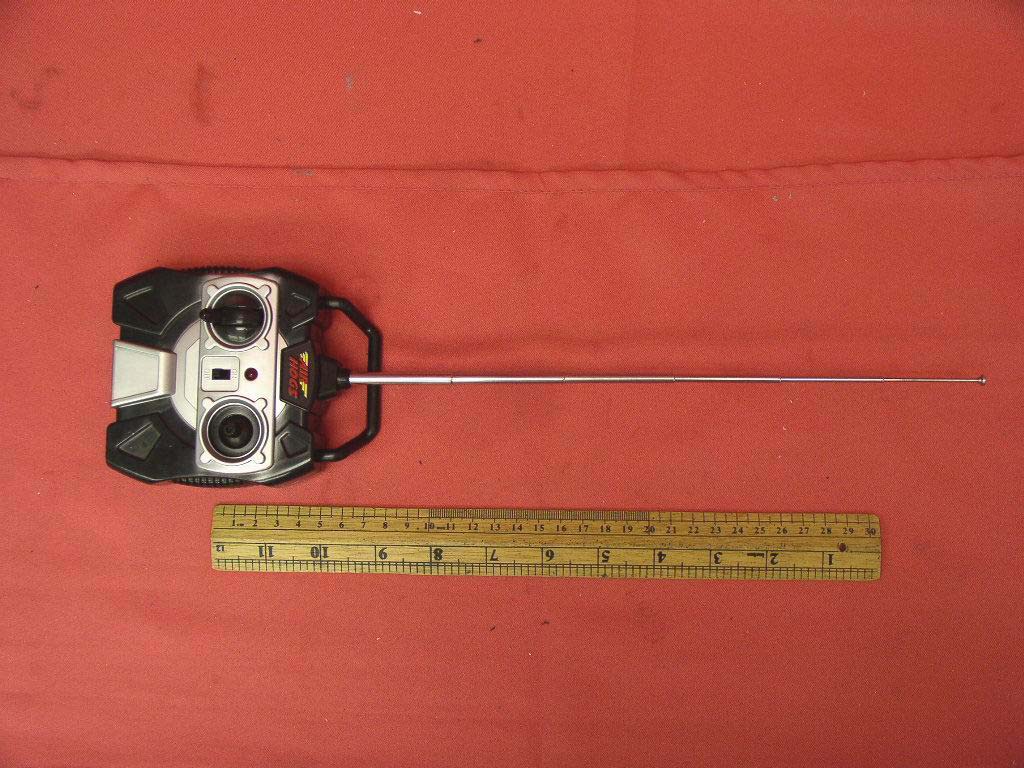

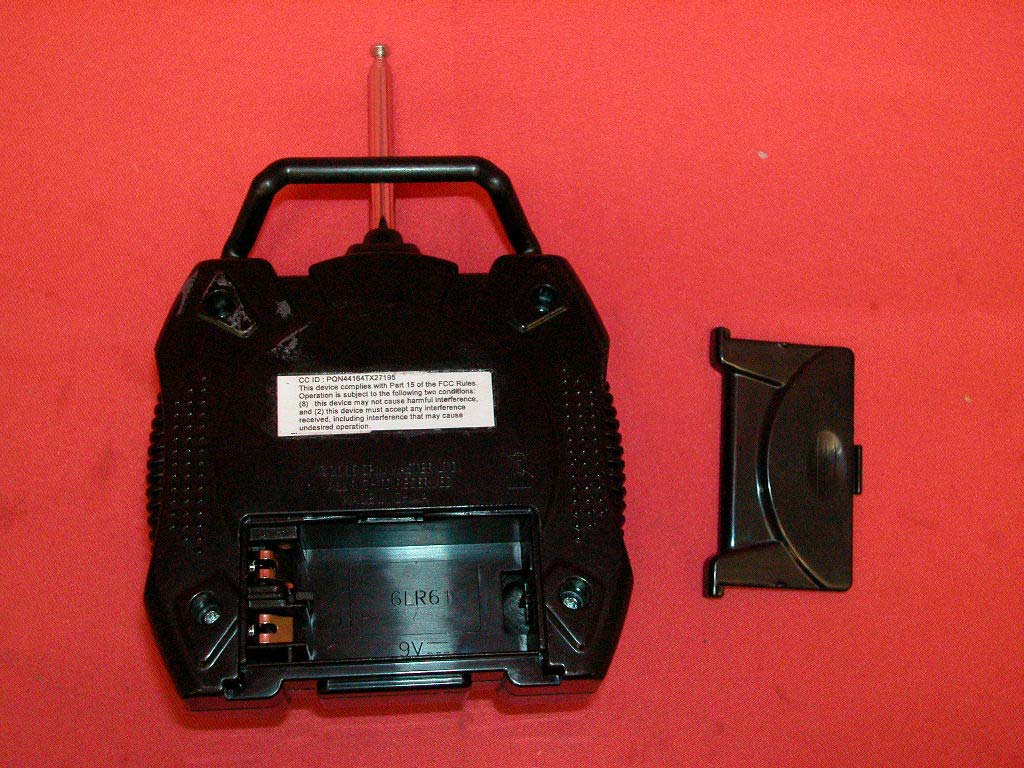

INTERTEK TESTING SERVICES Front View Back View
