PQN44299TX27145ARH Rolling Fury

TM ® CONTENTS LIST AND PARTS IDENTIFICATION Do not touch the running propeller! Do not play above someone’s head! Adult supervision is required! CHOKING HAZARD WARNING: Not for Children under 3 years. Small parts. DANGER! DO NOT PUNCTURE THE STYROFOAM! THE BATTERY WILL BE DAMAGED. HOW TO INSTALL YOUR BATTERIES HOW TO CHARGE YOUR ROLLING FURY™ BATTERY INSTALLATION – CONTROLLER/CHARGER PLAYGROUND AND WEATHER SELECTION TROUBLESHOOTING Propeller won’t move. The jet turns around and descends after taking off. Jet won’t take off or climb. Jet climbs dramatically, stalls and drops. The jet does not react, or reacts poorly to operation by controller/charger. Loss of control. PROBLEM - ON/OFF Switch is OFF. - Weak Battery. - Trimmer is not tuned properly. - Jet doesn’t run to the wind before taking off. - Weak power. - Flying at the wrong elevator angle or speed. - Weak power. - Elevator is pulled back for too long. - High-frequency interference occurred near to high-voltage lines, transformers and some types of building. - Another radio-controlled R/C Jet using the same frequency and channel is operating near your jet. CAUSE - Set switch to ON. - Re-charge the battery pack. - Adjust the trimmer - Let the jet run to the wind before taking off. - Re-charge the battery pack. - Play for more skills, such as tuning the Throttle Trimmer for precise power control or stroke (not hold) the left control lever on controller/charger. - Re-charge the battery pack. - Pulse or shorten amount of elevator use. - Avoid these if possible, or choose another place to operate the jet. - Move to another location where there is no interference from another device. - Ensure the antenna is fully extended. The jet flies up to 50 m (164’) in an open area. SOLUTION For further questions and problems, please visit our website www.airhogs.com. Spin Master Ltd., 450 Front Street West, Toronto, ON M5V 1B6 Canada Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221, USA Spin Master Toys Far East Limited. Rm #1113, 11/F, Chinachem Golden Plaza, 77 Mody Rd., Tsimshatsui E., Kowloon, HK Spin Master Toys UK Ltd., Meadowbank, Furlong Road, Bourne End, Bucks, SL8 5AJ, United Kingdom Spin Master France - 36 rue de Silly - 92100 Boulogne Billancourt - France North American Consumer Information Phone: 1-800-622-8339 www.spinmaster.com TM and © 2007 Spin Master Ltd. Air Hogs ® is a registered trademark of Spin Master Ltd. All rights reserved. Conforms to product safety standards ASTM F963 regulatory requirements. Products and colours may vary. Please retain this information for future reference. Patent Pending. MADE IN CHINA. #20009880, #20009897 NTL English REV 0 T44299_0001 20009880_NTL_IS_R2 TM Problems flying? Do not return your Air Hogs ® to the store. Call the Air Hogs ® flight training centre at 1-800 -622- 8339 Make sure the power switch is in the OFF position. 1. Use a screwdriver to loosen the screw (counterclockwise) on the battery case. (pic.1) 2. Put 6 AA size batteries in the battery compartment as per the polarity shown inside. (pic.2) 3. Tighten the screw clockwise. BATTERY CHARGING Turn the power OFF for both jet and controller/charger. 1. Connect the plug on the controller/charger to the socket on the jet. (pic.3) 2. Set the CHG/OFF/ON selector to CHG position. The green LED will light up. (pic.4) 3. The green LED will turn off when the battery is fully charged. 4. The charging times may vary as to the battery status because your charger has intelligent charging control. OUTDOORS 1. It’s better to fly on a sunny day, and in a calm wind or slight breeze. WARNING: Because of the jets light weight, it may be blown away in a strong wind. 2. We suggest you play in a grassy area to protect your plane when it lands on the ground. 3. Do not fly your plane when it is raining, snowing, or near high power cables. FLYING YOUR JET FLYING YOUR JET Cont’d FLYING TIPS REPLACING THE PROPELLERS Safety Precautions: Battery requirement for Controller/Charger: Power Supply : Rating : DC 9 V, 3.6 W Batteries : 6 x 1.5 V “AA”/LR6/AM3 Requires 6 x 1.5 V “AA” size batteries (not included) Battery requirement for Rolling Fury™: Power Supply : Rating : DC 3.7 V, 3.8 W Batteries : 1 x 3.7 V Li-Poly Rechargeable Battery Pack Requires 1 x 3.7 V Li-Poly Rechargeable Battery Pack (included) Your jet is equipped with a Li-Poly battery, please also pay attention to the following cautions for safety use: - Do not dispose of the battery in fire. - Do not use or leave the battery near a heat source such as fire or heater. - Do not strike or throw the battery against a hard surface. - Do not immerse the battery in water, and keep the battery in a cool dry environment. - When recharging, only use the battery charger specifically for that purpose. - Do not over-discharge the battery. - Do not connect the battery to an electrical outlet. - Do not directly solder the battery and pierce the battery with a nail or other sharp object. - Do not transport or store the battery together with metal objects such as necklaces, hairpins etc. - Do not disassemble or alter the battery. - Charge the battery every 6 months. - Turn off your equipment power switch after use. - As for a used battery, please recycle after covering the battery terminals with insulation tape or inserting it to an individual poly-bag. Battery Cautions: - Non-rechargeable batteries are not to be recharged - Rechargeable batteries are to be removed from the toy before being charged (controller/charger only). - Rechargeable batteries are only to be charged by an adult - Different types of batteries or new and used batteries are not to be mixed (controller/charger only). - Only batteries of the same or equivalent type as recommended are to be used. - Batteries are to be inserted with correct polarity. - Exhausted batteries are to be removed from the toy (controller/charger only). - The supply terminals are not to be short-circuited. Care and Maintenance: - Always remo…

Text truncated - open the document above for the full version.

Si lverlit Confidential SW4&S1-S4

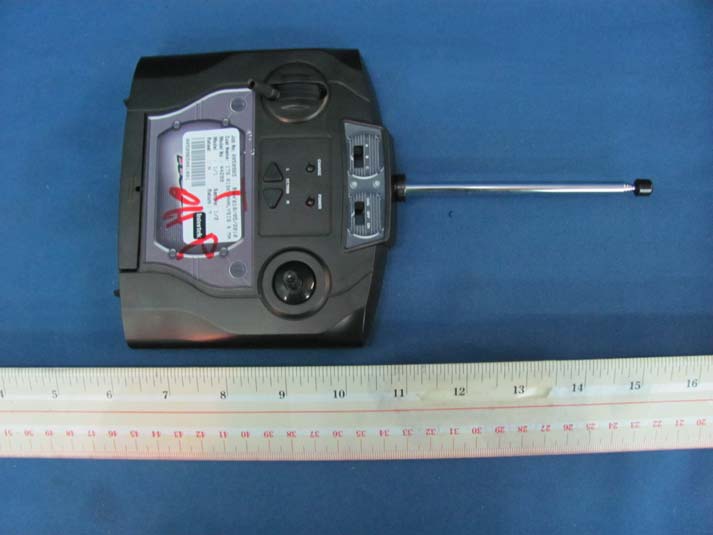

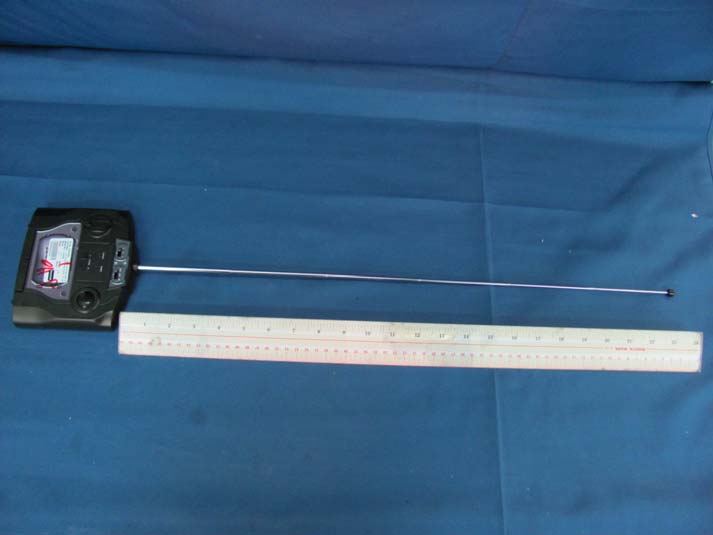

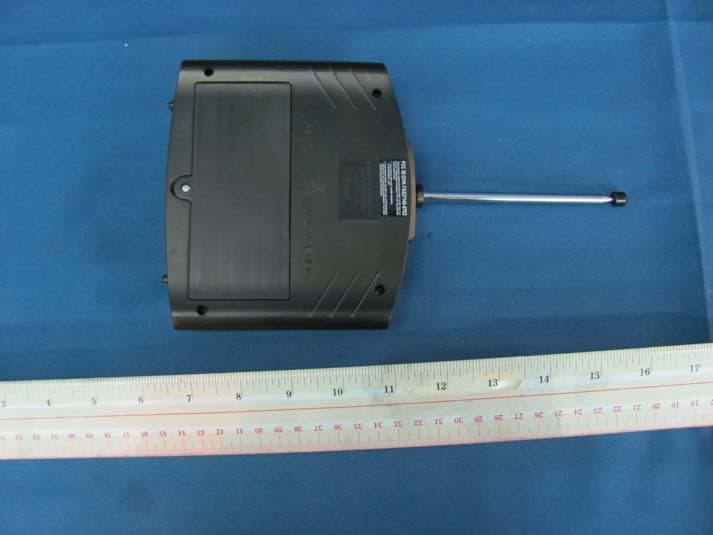

FCC ID: PQN44299TX27145 Ophoto1 Ophoto2 FCC ID: PQN44299TX27145 Ophoto3 Ophoto4

27MHz TX FCC ID:PQN44299TX27145 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:PQN44299TX27145 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Size 40mmX13mm

FCC ID: PQN44299TX27145 Iphoto1 Iphoto2 FCC ID: PQN44299TX27145 Iphoto3 Iphoto4 FCC ID: PQN44299TX27145 Iphoto5 Iphoto6

FCC ID: PQN44299TX27145 Technical Description : The brief circuit description is listed as follows : - U1 and associated circuit act as Encoder - X1, Q5 and associated circuit act as 27.145MHz Oscillator, signal frequency - Q2, Q3 and associated circuit act as RF Modulator and Amplifier - SW4&S1- S4 and associated circuit act as Control stick - SW3 and associated circuit act as channel ID selection - U3, U2, Z1, Z2 & Q4, Q7 and associated circuit act as voltage regulator Antenna Used : Telescope-type antenna with unique antenna connector.

S i l v e r l i t C o n f i d e n t i a l

INTERTEK TESTING SERVICES Report No.:HK10050964-1 Sample No.:1/2 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10050964-1 Spin Master Toys Far East Limited Application For Certification (Original Grant) (FCC ID: PQN44299TX27145) Transmitter Prepared and Checked by: Approved by: Signed On File Cheung Hung Ngai, Mark Lead Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: June 4, 2010 INTERTEK TESTING SERVICES Report No.: HK10050964-1 FCC ID: PQN44299TX27145 i GENERAL INFORMATION Spin Master Toys Far East Limited MODEL: 44299 FCC ID: PQN44299TX27145 Grantee: Spin Master Toys Far East Limited Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Richard Pang Tel: (852) 23013822 Fax: (852) 23011820 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 44299 Additional Model: 1008532, 6009395 Type of EUT: Transmitter Description of EUT: ARH Rolling Fury Serial Number: N/A FCC ID: PQN44299TX27145 Date of Sample Submitted: May 18, 2010 Date of Test: May 29, 2010 Report No.: HK10050964-1 Report Date: June 4, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10050964-1 FCC ID: PQN44299TX27145 ii SUMMARY OF TEST RESULT Spin Master Toys Far East Limited MODEL: 44299 FCC ID: PQN44299TX27145 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10050964-1 FCC ID: PQN44299TX27145 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results .............................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View RADIATED Model No.:44299(1008532/6009395) Job No.: HK10050964-1 A † B ; RADIATED Model No.:44299(1008532/6009395) Job No.: HK10050964-1 A ; B †
