PQN44338TX2G4ARH RDC Fury Jump Jet Date Code 50319ASL

0/I FURY JUMP JET CONTROLLER / RADIOCOMMANDE a WARNING: CHOKING HAZARD – Small parts. Not for children under 3 years. a ATTENTION ! RISQUE D’ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de 3 ans. CAUTION: HAIR ENTANGLEMENT — Tie back and cover hair and secure loose clothing prior to play. ! MISE EN GARDE : LES CHEVEUX PEUVENT SE COINCER — Attacher les cheveux et les couvrir, et maintenir les vêtements amples à l'écart du jouet. ! DUAL FLIGHT MODES: HELI AND PLANE DEUX MODES : HELICOPTÈRE ET AVION 8+ CONTENTS / CONTENU / CONTENIDO YRS ANS Skill NIVEAU Environment ENVIRONNEMENT CONTENTS: CONTenu : En cas de problème de fonctionnement de ce produit Air Hogs ® , appeler le numéro gratuit suivant : 1-800-622-8339, ou nous contacter par e-mail à [email protected] REMARQUE : Toujours utiliser des piles neuves de première qualité. If you are having difficulty operating your new Air Hogs®, call us toll-free at: 1-800-622-8339, or email us at: [email protected] NOTE: Always use fresh, premium quality batteries. DO NOT RETURN TO THE STORE. NE PAS RETOURNER AU DISTRIBUTEUR. x 1 x 1x 1 AIRHOGS.COM OUTDOOR EXTÉRIEUR INTERMEDIATE INTERMÉDIAIRE TM R/C AIR VEHICLE JOUET VOLANT RADIOCOMMANDÉ DIRECTION LEVER (LEFT/RIGHT) / LEVIER DE DIRECTION (GAUCHE/DROITE) ANTI-SPIN ADJUSTER / AJUSTEUR DE ROTATION TRANSFORM BUTTON / BOUTON DE TRANSFORMATION POWER LIGHT / VOYANT D’ALIMENTATION CHARGING PLUG STORAGE / COMPARTIMENT DE LA PRISE DE CHARGE POWER SWITCH / INTERRUPTEUR D'ALIMENTATION THROTTLE LEVER (UP/DOWN) / LEVIER D’ACCÉLÉRATION (HAUT/BAS) Developed by Développé par DUAL FLIGHT MODES DEUX MODES DE VOL TRANSFORMING WINGS AILES TRANSFORMABLES POWER SWITCH / INTERRUPTEUR D'ALIMENTATION 1 eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre toute interférence nuisible avec les communications radio. Cet équipement génère, utilise et peut émettre de l’énergie de fréquence radio. S’il n’est pas installé et utilisé selon le mode d’emploi, il peut causer des interférences nuisibles aux communications radio. Cependant, il n'existe aucune garantie contre ces interférences dans le cas où l'installation ne serait pas conforme. Si ce jouet cause des interférences à la réception radio ou télévisée (ce qui est vérifiable en l’éteignant, puis en le rallumant tout en écoutant s’il y a des interférences), suivre une ou plusieurs des recommandations suivantes : • Réorienter ou déplacer l’antenne réceptrice • Augmenter la distance entre le jouet et la radio ou la télévision • Consulter le revendeur ou demander l’aide d’un technicien radio/T.V. expérimenté. REMARQUE : tout changement, réglage ou modification de cet appareil, incluant mais ne se limitant pas au remplacement de tout composant du transmetteur (cristal, semi-conducteur, etc.), pourrait constituer une violation de l’article 15 et/ou 95 de la règlementation de la FCC, et doit être expressément approuvé par Spin Master Ltd., sous peine d’entraîner l’annulation du droit de l’utilisateur d’exploiter l’équipement. This device complies with Industry Canada Licence-exempt RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. / Le présent appareil est conforme au CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. TM a WARNING: IF ROTOR(S) BECOME DAMAGED OR BROKEN, DO NOT FLY. FLYING WITH BROKEN ROTOR(S) MAY CAUSE DAMAGE OR LEAD TO INJURY. a ATTENTION ! NE PAS UTILISER LE JOUET SI L'UNE DES HÉLICES EST ABÎMÉE …

Text truncated - open the document above for the full version.

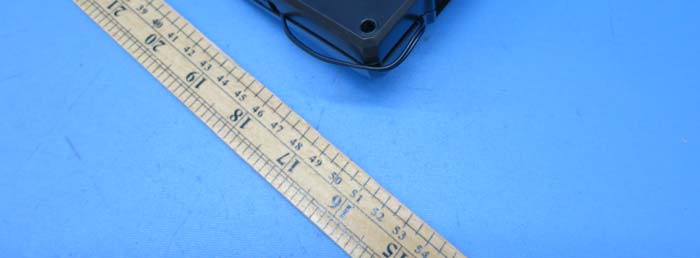

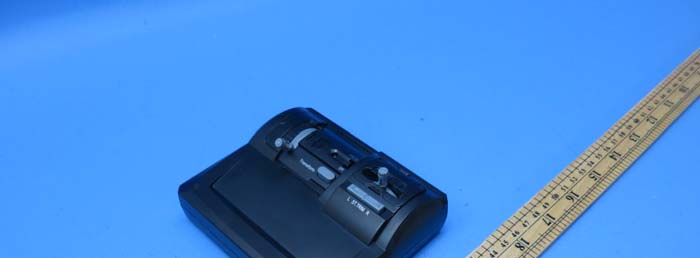

INTERTEK TESTING SERVICE Report No.: 15040303HKG-001 Equipment Photographs Model : 44338TX (External) FCC ID: PQN44338TX2G4

INTERTEK TESTING SERVICE Report No.: 15040303HKG-001 Equipment Photographs Model : 44338TX (Internal) FCC ID: PQN44338TX2G4 INTERTEK TESTING SERVICE Report No.: 15040303HKG-001 Equipment Photographs Model : 44338TX (Internal) FCC ID: PQN44338TX2G4 INTERTEK TESTING SERVICE Report No.: 15040303HKG-001 Equipment Photographs Model : 44338TX (Internal) FCC ID: PQN44338TX2G4 INTERTEK TESTING SERVICE Report No.: 15040303HKG-001 Equipment Photographs Model : 44338TX (Internal) FCC ID: PQN44338TX2G4 INTERTEK TESTING SERVICE Report No.: 15040303HKG-001 Equipment Photographs Model : 44338TX (Internal) FCC ID: PQN44338TX2G4 INTERTEK TESTING SERVICE Report No.: 15040303HKG-001 FCC ID: PQN44338TX2G4 Equipment Photographs Model : 44338TX (Internal)

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Controller Unit) for a RC helicopter operating at 2402 to 2477.5MHz with 0.5MHz channel spacing. The EUT is powered by 4 X 1.5V AA batteries. After switch on the EUT and paired with plane, the plane can be controlled to fly forward, backward, turning left/right direction and transform by the controller. Also, the EUT has charging cable to charge the internal battery inside the Plane Unit. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 95.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 98.8dBμV/ m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 2.276mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =2.276mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.4775) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040303HKG-001 i FCC ID: PQN44338TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: AIR Hogs Model: 44338 Type of EUT: Transceiver Description of EUT: ARH RDC Fury Jump Jet (Date Code: 50319ASL) Serial Number: N/A FCC ID: PQN44338TX2G4 Date of Sample Submitted: April 08, 2015 Date of Test: April 08, 2015 to April 27, 2015 Report No.: 15040303HKG-001 Report Date: April 29, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040303HKG-001 ii FCC ID: PQN44338TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040303HKG-001 iii FCC ID: PQN44338TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................8 5.0 Product Labelling .............................................................................................8 6.0 Technical Specifications .................................................................................8 7.0 Instruction Manual ...........................................................................................8 8.0 Miscellaneous Information ..............................................................................9 8.1 Radiated Emission on the Bandedge..............................................................9 8.2 Discussion of Pulse Desensitization .............................................................10 8.3 Calculation of Average Factor.......................................................................10 8.4 Emissions Test Procedures ..........................................................................12 9.0 Equipment List ...............................................................................................15 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15040303HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44338TX FCC ID: PQN44338TX2G4 INTERTEK TESTING SERVICE Report No: 15040303HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44338TX FCC ID: PQN44338TX2G4
