PQN44395TX27145ARH Osprey Full Tilt

® TM CONTENTS LIST AND PARTS IDENTIFICATION BECOMING FAMILIAR WITH YOUR CONTROLLER/CHARGER AH Osprey™ Controller/ Charger 1 x Antenna 2 x Rear Wheels AH OSPREY™ Propeller/Rotor Horizontal Tail Wing Front Tilt-Wing for Heli Mode or Plane Mode Flybar Rear Wheels Front Wheels CONTROLLER/CHARGER HOW TO INSTALL YOUR BATTERIES HOW TO CHARGE YOUR OSPREY™ Altitude Stick (UP/DOWN)/ Speed Control BATTERY INSTALLATION – CONTROLLER/CHARGER Things to remember: pic.1pic.1pic.2pic.2 1. Turn controller/charger off and lift up the cover. Take out the charging wire. TROUBLESHOOTING cont’d... The Osprey™ is not reacting to the controller/charger. Osprey™ is losing control. Osprey™ is not holding a charge. Osprey™ will not lift off the ground. Osprey™ only turns in one direction. Suddenly stops and drops while flying. PROBLEM Osprey™ may not be turned ON. There may be another device around using the same frequency. Osprey™ may be too far away from the controller/charger. Osprey™ might be turned ON during charging. Controller/charger is low on battery power. Osprey™ may not be fully charged. Osprey™ is not trimmed correctly. NOTE: Osprey™ only moves forward and sideways. Weak power. Osprey™ may be out of range of controller/charger. NOTE: Maximum range of controller/charger from Osprey™ is approximately 30 metres (100 feet). CAUSE Turn Osprey™ ON. Avoid these if possible, or choose another place to operate the Osprey™. Move closer to the Osprey™ with the controller/charger. Turn OFF the Osprey™ so that it is not flashing. Replace batteries in the controller/charger. Charge Osprey™ fully until green light turns off. Refer to the TRIMMING section in the instruction sheet. Re-charge Osprey™ or check battery power in controller/charger. Move closer to the Osprey™ with the controller/charger. SOLUTION Spin Master Ltd., 450 Front Street West, Toronto, ON M5V 1B6 Canada Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221, USA Spin Master Toys Far East Limited. Rm #1113, 11/F, Chinachem Golden Plaza, 77 Mody Rd., Tsimshatsui E., Kowloon, HK North American Consumer Information Phone: 1-800-622-8339 Email: [email protected] www.spinmaster.com Air Hogs ® , related trademarks & © 2010 Spin Master Ltd. All rights reserved. This product CONFORMS¬TO¬SAFETY¬REQUIREMENTS¬OF¬!34-¬&¬¬#(0!¬s¬0LEASE¬RETAIN¬THIS¬INFORMATION¬FOR¬ FUTURE¬REFERENCE¬s¬0LEASE¬REMOVE¬ALL¬PACKAGING¬MATERIALS¬BEFORE¬GIVING¬TO¬CHILDREN¬s¬!N¬ADULT¬ should periodically check this toy to ensure no damage or hazards exist, if so, remove from USE¬s¬#HILDREN¬SHOULD¬BE¬SUPERVISED¬DURING¬PLAY¬s¬+EEP¬ADDRESSES¬AND¬PHONE¬NUMBERS¬ FOR¬FUTURE¬REFERENCE¬s¬4HE¬ITEM¬INSIDE¬THIS¬PACKAGE¬MAY¬VARY¬FROM¬THE¬PHOTOGRAPHS¬ ANDOR¬ILLUSTRATIONS¬$ESIGNED¬AND¬%NGINEERED¬BY¬3ILVERLIT¬4OYS¬-!$%¬).¬#().! 20029902, 20041455 NBL English REV 0 T44395_0001_20029902_NBL_IS_R1 OFF/ CHG ON OFF/ CHG ON Instruction Guide CHOKING HAZARD WARNING: Not for Children under 3 years. Small parts. DANGER! NEVER INSERT ANY SHARP OBJECTS, PINS OR SCREWS INTO THE HELICOPTER AS THIS MAY PUNCTURE THE INTERNAL BATTERY! Do not touch the running propeller! Do not play above someone’s head! Adult supervision is required! CAUTION: For further questions and problems, please visit our website www.airhogs.com. Battery requirement for Controller/charger: Power Supply : Rating : DC 12 V, 0,45 W Batteries : 8 x 1.5 V "AA"/LR6/AM3 Requires 8 x 1.5 V "AA" size batteries (not included) Battery requirement for Osprey™: Power Supply : Rating : DC 3.7 V, 1,8 W Batteries : 1 x 3.7 V Li-Poly Rechargeable Battery Pack Requires 1 x 3.7 V Li-Poly Rechargeable Battery Pack (included) BATTERY SAFETY INFORMATION: - Requires 8 x 1.5-V AA alkaline batteries (not included). - Batteries are small objects. - Replacement of batteries must be done by adults. - Follow the polarity (+/-) diagram in the battery compartment. - Promptly remove dead batteries from the toy. - Dispose of used batteries properly. - Remove batteries for prolonged storage - DO NOT incinerate used batteries. - DO NOT dispose of batteries in fire, as batteries may explode or leak. - DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard). - DO NOT use rechargeable batteries. - DO NOT recharge non-rechargeable batteries. - DO NOT short-circuit the supply terminals. Care and Maintenance: - Always remove batteries from the toy when it is not being used for a long period of time. (controller/charger only) - Wipe the toy gently with a clean damp cloth. - Keep the toy away from direct heat. - Do not submerge the toy in water. This can damage the electronic assemblies. Note: - Parental guidance is recommended when installing or replacing batteries. - Under the environment with electrostatic discharge, the toy may malfunction and require user to reset the toy. Special Note to Adults: - Regularly examine for damage to the plug, enclosure and other parts. In the event of any damage, the toy must not be used with the controller/charger until the damage has been repaired. - This toy is not intended for children under 3 years old. - This toy must only be used with the recommended controller/charger. - Do not try to charge other batteries with controller/charger. Safety Precautions: - Keep hands, hair and loose clothing away from the rotors when power switch is turned ON. - Turn off controller/charger and Osprey™ when not in use - Remove battery from controller/charger when not in use. - Parental guidance is recommended for the flight. - Keep your Osprey™ in your sight so that you can supervise it all the time. - New alkaline batteries are recommended for use in controller/charger to obtain maximum performance. - Users should keep strict accordance with the instruction manual while operation the product. - Your controller/charger is tailor-made for the Li-Poly rechargeable battery used in your Osprey™. Do not use it to charge any battery other than that in the Osprey™. This product complies with …

Text truncated - open the document above for the full version.

S i l v e r l i t C o n f i d e n t i a l

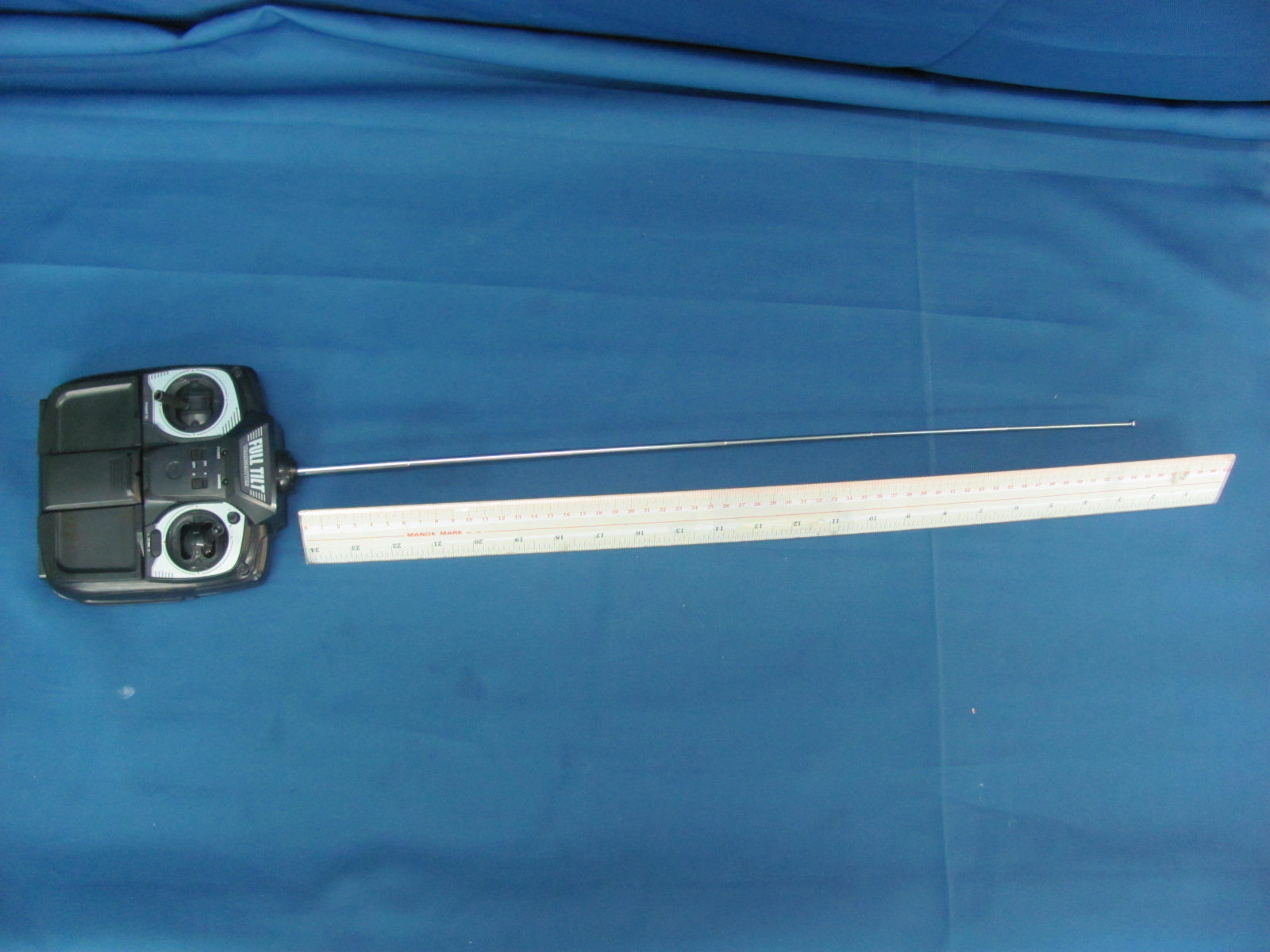

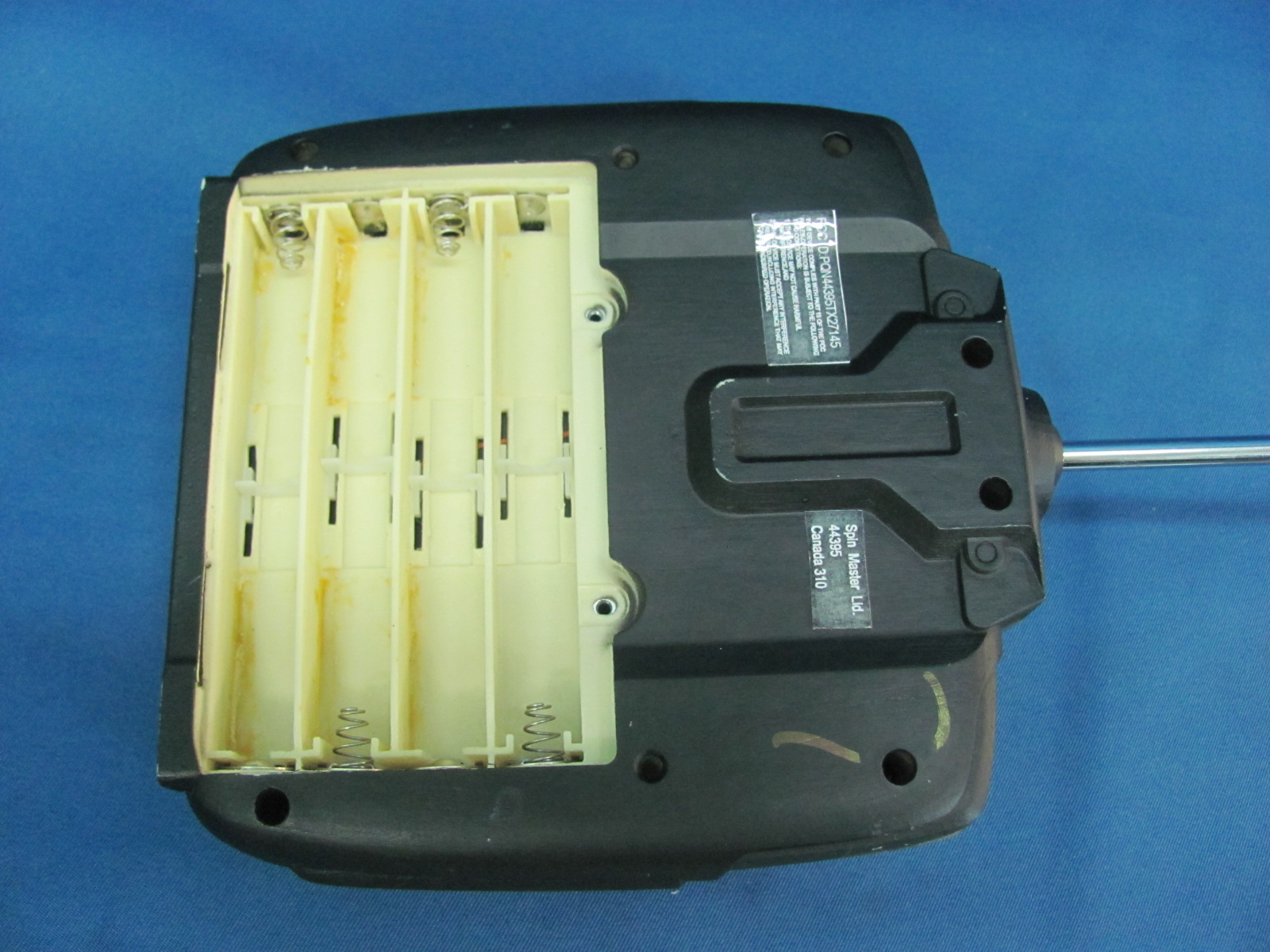

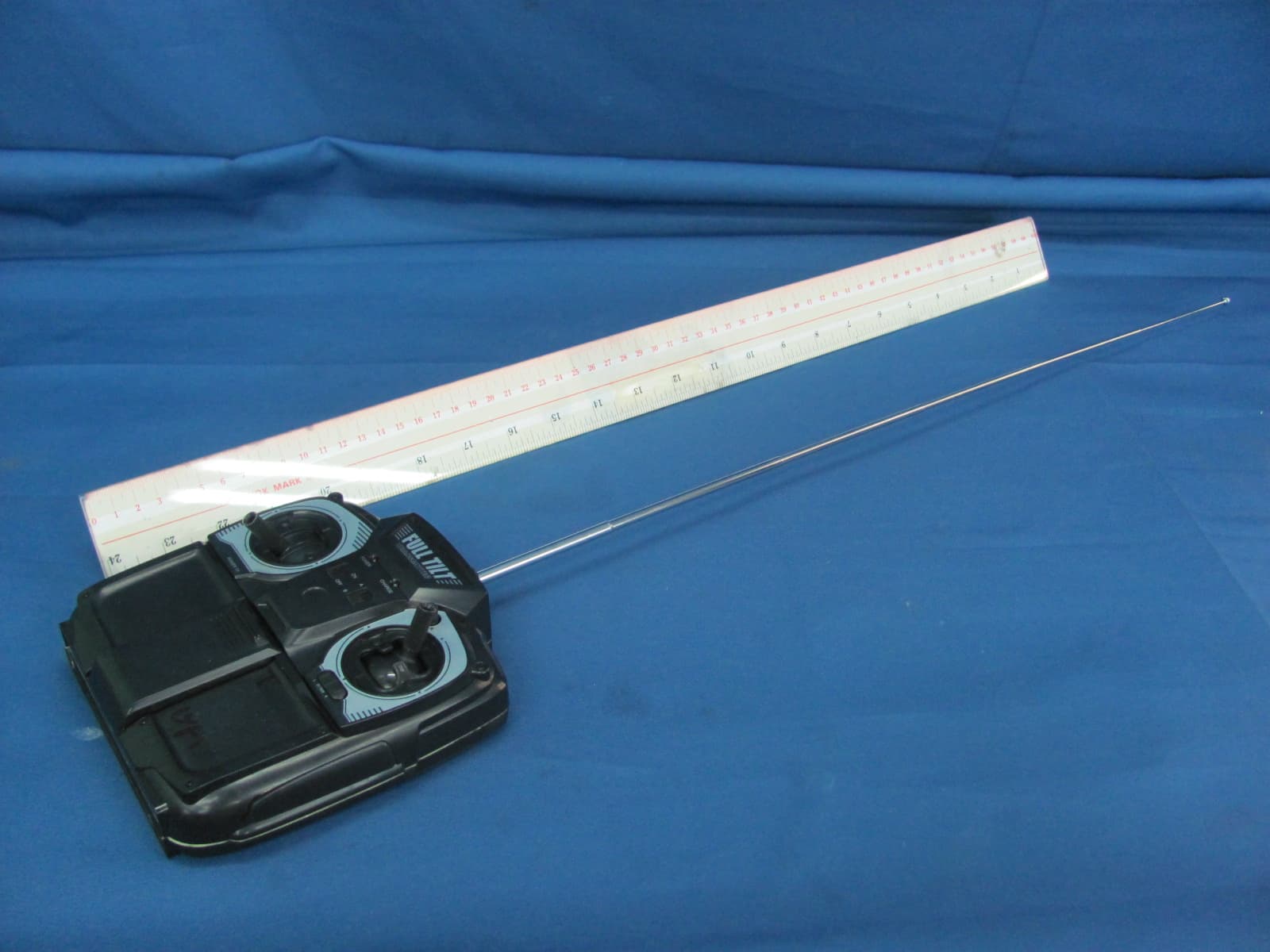

INTERTEK TESTING SERVICE Report No.: HK10050909-1 FCC ID: PQN44395TX27145 Equipment Photographs Model : 44395 (External) INTERTEK TESTING SERVICE Report No.: HK10050909-1 FCC ID: PQN44395TX27145 Equipment Photographs Model : 44395 (External)

27MHz TX FCC ID:PQN44395TX27145 This device complies with Part 15 of the FCC Rules. FCC ID:PQN44395TX27145 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Size : 40mmx13mm

INTERTEK TESTING SERVICE Report No.: HK10050909-1 FCC ID: PQN44395TX27145 Equipment Photographs Model : 44395 (Internal) INTERTEK TESTING SERVICE Report No.: HK10050909-1 FCC ID: PQN44395TX27145 Equipment Photographs Model : 44395 (Internal) INTERTEK TESTING SERVICE Report No.: HK10050909-1 FCC ID: PQN44395TX27145 Equipment Photographs Model : 44395 (Internal)

Technical Description : The brief circuit description is listed as follows : - U1 and associated circuit act as Encoder. - U2 and associated circuit act as Voltage regulator and Charging circuit. - Y1,Q3 and associated circuit act as 27.145MHz Oscillator - Q4 and associated circuit act as Buffer Amplifier - Q 5 and associated circuit act as Modulator & Amplifier - K1 and associated circuit act as Channel Selection - VR1-4 and associated circuit act as Control Stick. Antenna Used : External,Telescope-type antenna with unique antenna connector.

INTERTEK TESTING SERVICES Report No.:HK10050909-1 Sample No.:2/2 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.:HK10050909-1 Sample No.:2/2 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10050909-1 Spin Master Toys Far East Limited Application For Certification (FCC ID: PQN44395TX27145) Transmitter Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Assistant Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: July 26, 2010 INTERTEK TESTING SERVICES Report No.: HK10050909-1 FCC ID: PQN44395TX27145 i GENERAL INFORMATION Spin Master Toys Far East Limited MODEL: 44395 FCC ID: PQN44395TX27145 Grantee: Spin Master Toys Far East Limited Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (852) 23013822 Fax: (852) 23011820 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 44395 Additional Model: 1015472, 6013895, 1016838 and 6014451 Type of EUT: Transmitter Description of EUT: ARH Osprey Full Tilt Serial Number: N/A FCC ID: PQN44395TX27145 Date of Sample Submitted: May 18, 2010 Date of Test: May 23, 2010 Report No.: HK10050909-1 Report Date: July 26, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10050909-1 FCC ID: PQN44395TX27145 ii SUMMARY OF TEST RESULT Spin Master Toys Far East Limited MODEL: 44395 FCC ID: PQN44395TX27145 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10050909-1 FCC ID: PQN44395TX27145 iii Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ............................................................................................1 1.2 Related Submittal(s) Grants ...............................................................................1 1.3 Test Methodology...............................................................................................1 1.4 Test Facility ........................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification ........................................................................................................2 2.2 EUT Exercising Software ...................................................................................2 2.3 Special Accessories ...........................................................................................2 2.4 Equipment Modification ......................................................................................2 2.5 Measurement Uncertainty ..................................................................................2 2.6 Support Equipment List and Description ............................................................3 3.0 Emission Results .......................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK10050909-1 FCC ID: PQN44395TX27145 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44395 INTERTEK TESTING SERVICE Report No: HK10050909-1 FCC ID: PQN44395TX27145 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44395
