Model: 44 422 TX Block diagram RF Amplifier ANT BATTERY Encoding Circuit CRYSTAL OSC 49.860 MHz FOR /BACK LEFT/RIGHT In t erfa c e Circuit CHARGING Circuit FCC ID: PQN44 422 TX 49 MHZ 49.860 MHz 3 VDC ( Q 1 ) (Y1) (U 1 ) (Q3,Q4,Q6,D2) ( K1 , K2 ) (VR1) (Q5, R9, R10) (Q 2 )

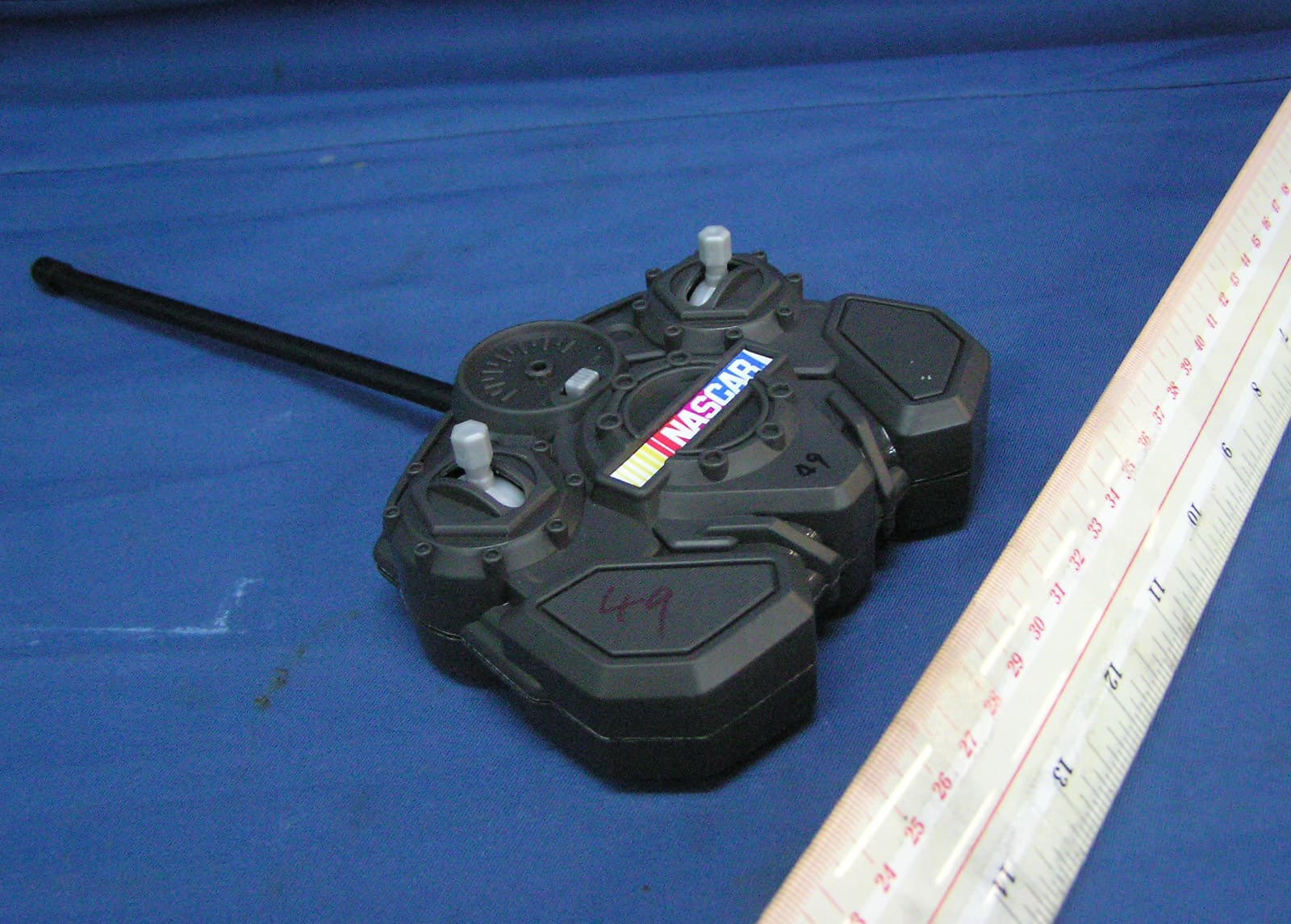

INTERTEK TESTING SERVICE Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ Equipment Photographs Model : 44422 (External)

27MHz A 27MHz A 27MHz B Pad paint white color Pad painted white color for For 27MHz FCC ID: PQN44422TX27MHZ For 49MHz FCC ID: PQN44422TX49MHZ 49MHz A 49MHz B Pad paint white color for date code For 44422

INTERTEK TESTING SERVICE Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ Equipment Photographs Model: 44422 (Internal) INTERTEK TESTING SERVICE Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ Equipment Photographs Model: 44422 (Internal) INTERTEK TESTING SERVICE Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ Equipment Photographs Model: 44422 (Internal)

FCC ID: PQN44422TX49MHZ Model: 44422 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls a receiver to move forward, backward, left and right. The Transmitter is powered by 3 X 1.5V "AA" batteries. The circuit of the transmitter comprises of, 1. Encoding IC (U1) with left/right control switches (K1, K2), forward backward control lever (VR1). 2. 49.860MHz Crystal Oscillator (Y1). 3. RF modulator (Q2). 4. RF amplifier (Q1) Antenna Type: external, integral and non-detachable antenna. Modulation Type: Pulse Modulation 49.860MHz (single channel)

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 20-Sep-2011 Sheet of File: F:\44422\new\44422 TX 49M schemati c Firstunion VDD VCC SW1 1P2T BT1AA*2 ANT1 VCC 49.860 MHz R6 100R Y1 49.860MHZ R5200K C50.02uF L42.2uH C1433pFNPO L36.5T C13100pFNPO C1233pFNPO L21uH 0410 C150.02uF Q1 9018H C1047pFNPO R210R R715K C9 33pF NPO C722pFNPO Q22SC1623L L11uH 0410 R110R K2 Right K1 Left VR1 F10K B10K-b0 10K For/Back C4 0.33uF C247uF* C10.1uF C30.1uF VDD R4100R F1 500mA LED13mm Red S1Jumper S2Jumper P65P64 VDD P60 A Channel Channel B Channel P64 P65 11 1 0 P50 P67 P66 VDD P65/OSCI P64/OSCO P63/RST P62/TCC P61 P60/INT VSS P53 P52 P51 U1EM78P173S P65P64 P60 R310K TX 49M

INTERTEK TESTING SERVICES Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235(b) Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11090668-1 Spin Master Toys Far East Limited Application For Certification (Original Grant) (FCC ID: PQN44422TX49MHZ) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: October 13, 2011 INTERTEK TESTING SERVICES Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ i GENERAL INFORMATION Spin Master Toys Far East Limited BRAND NAME: Spin Master Ltd, MODEL: 44422 FCC ID: PQN44422TX49MHZ Grantee: Spin Master Toys Far East Limited Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Allen Yang Tel: N/A Fax: N/A e-mail: alleny/[email protected] Manufacturer: First Union Toys Co., Ltd Manufacturer Address: Gong Lian Industrial Estate, Wan Jiang, Dong Guan City, China. Brand Name: Spin Master Ltd Model: 44422 Additional Model: 1021361/6016876, 1023913/6018296, 1023915/6018296, 1023996/6018354, 1023999/6018357, 1024001/6018360 Type of EUT: Transmitter Description of EUT: NASCAR 1/24TH RF (44422) AHN RDC NASCAR 1:24th RF Ast GTL 4pk M01(1021361/6016876), AHN RDC NASCAR1:24thScl Ast GTL 2pk M01A(1023913/6018296), AHN RDC NASCAR1:24thScl Ast GTL 2pk M01B(1023915/6018296), AHN RDC NASCAR1:24DaleJRsRFAst GTL4pkM01(1023996/6018354), AHN RDC NASCAR1:24th Jimmy RF GTL 4pkSLD(1023999/6018357), AHN RDC NASCAR1:24th Tony RF GTL 4pkSLD(1024001/6018360) Serial Number: N/A FCC ID: PQN44422TX49MHZ Date of Sample Submitted: September 19, 2011 Date of Test: September 21, 2011 Report No.: HK11090668-1 Report Date: October 13, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ ii SUMMARY OF TEST RESULT Spin Master Toys Far East Limited BRAND NAME: Spin Master Ltd, MODEL: 44422 FCC ID: PQN44422TX49MHZ TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11090668-1 FCC ID: PQN44422TX49MHZ iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories .............................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11090668-1 FCC ID: PQN44422TX49MHZ Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 44422 INTERTEK TESTING SERVICE Report No: HK11090668-1 FCC ID: PQN44422TX49MHZ Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 44422
