PQN44425TX2G4HAWK EYE BLUE SKY

TM ® TM 1 23 CONTENTS LIST AND PARTS IDENTIFICATION BECOMING FAMILIAR WITH YOUR CONTROLLER/CHARGER CONTROLLER/CHARGER Function Indicator Direction Stick (LEFT/RIGHT) Signal Emitter Power Indicator Tail Wing Propeller Camera USB Port USB female socket Power Switch (ON/OFF/CHG) Propeller Main Wing Trimmer Knob USB Cable Storage Power Switch (ON/OFF/CHG) Throttle stick (UP/DOWN) INSTRUCTION GUIDE Instruction GuideCustom USB Cable2 Spare Propellers HAWK EYE™ BLUE SKY™ DANGER! NEVER INSERT ANY SHARP OBJECTS, PINS OR SCREWS INTO THE PLANE AS THIS MAY PUNCTURE THE INTERNAL BATTERY! Hawk Eye™ Blue Sky™ Controller HOW TO INSTALL YOUR BATTERIES TAKING VIDEOS OR PICTURES 1. Open the battery door with a screwdriver (pic.1). 2. If used batteries are present, remove these batteries from the unit by pulling up on one end of each battery. 3. Install new batteries as shown in the polarity diagram (+/-) inside the battery compartment (pic.2). 4. Replace battery door securely (pic.3). • Turn on your Hawk Eye™ Blue Sky™ plane and wait for a successful pairing. The red indicator will flash to show it’s searching for the controller. Turn on your controller and wait for a successful pairing. The green indicator will flash to show it’s searching for the plane. After a successful pairing, the green indicator on the controller will turn solid green and the red indicator on the plane will turn solid red. You are now able to take videos or photos, whether you’re on the ground or in the air. • To take a picture, press the picture button (right) (pic.1). The Hawk Eye™ Blue Sky™ will automatically adjust focus, ISO setting and shutter speed to take your image. This takes about 1.5 seconds, during which time the red indicator will light up on the controller (pic 2). Release the picture button and the red indicator turns off, now you are ready to take your next picture. NOTE: If the picture button is pressed while a video is recording, the video is stopped and a picture is taken. You can start the video recording again by pressing the video button. • To take videos, press the video button (left) once (pic.3). The red indicator on controller will turn solid red indicating that video is recording (pic.2). To stop video recording, press the video button again. The red indicator on controller will turn off. NOTE: Do not turn off the plane while the red light is on for video recording or else the video cannot be saved. • For best picture quality try to keep the plane flying straight and steady. • Video quality is also best during straight flight. Keep turns to a minimum. • Please respect the privacy of others. Refrain from taking videos and/or photos of other people without proper consent. • DO NOT fly too close to any obstacles or buildings for taking videos or pictures. Obstacles nearby may affect the airflow and the control of the plane. DO NOT fly the plane farther than 100 ft when taking videos. The plane will be out of range and drop off too far. It may be difficult to find. The green indicator on controller will be flashing when the plane is too far away. Please keep an eye on the indicator during flight, and move forward to fly it back when you see it flashing. pic.1 pic.3 INDICATION LIGHTS For further questions and problems, please visit our website www.airhogs.com. Battery requirement for Controller: Power Supply : Rating : DC 9 V, 0.45 W Requires 6 x 1.5 V AA size batteries (not included) BATTERY SAFETY INFORMATION: - Requires 6 x 1.5 V AA alkaline batteries (not included). - Batteries are small objects. - Replacement of batteries must be done by adults. - Follow the polarity (+/-) diagram in the battery compartment. - Promptly remove dead batteries from the toy. - Dispose of used batteries properly. - Remove batteries for prolonged storage - Only batteries of the same or equivalent type as recommended are to be used. - DO NOT incinerate used batteries. - DO NOT dispose of batteries in fire, as batteries may explode or leak. - DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard). - DO NOT use rechargeable batteries. - DO NOT recharge non-rechargeable batteries. - DO NOT short-circuit the supply terminals. Care and Maintenance: - Always remove batteries from the toy when it is not being used for a long period of time (controller only). - Wipe the toy gently with a clean damp cloth. - Keep the toy away from direct heat. - Do not submerge the toy in water. This can damage the electronic assemblies. - Always keep plane and controller in a box away from dirt and humidity when not being used. Special Note to Adults: - Regularly examine for damage to the plug, enclosure and other parts. In the event of any damage, the toy must not be used with the controller until the damage has been repaired. - This toy is not intended for children under 3 years old. - This toy must only be used with the recommended controller. - Do not try to charge other batteries with the controller. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate…

Text truncated - open the document above for the full version.

Applicant : Model No.: Issue date : ANT 2401-2465MHz MCU PA89A 9.0V(AA x 6) Charging circuit (U2) Product Name : 10-Jun-11 Voltage Regulator (U3) 44425 Button(S1 - S4),steering trim,throttle(VR1, VR2) Spinmaster Toys LimitedHawk Eye Blue Sky USB socket Block Diagram of Controller 2.4G RF MODULE (CWDP105-GO) LNA PA Modulator DEMOD SPI & Signal Control SPI & Signal Control 2.4GHz RF Module

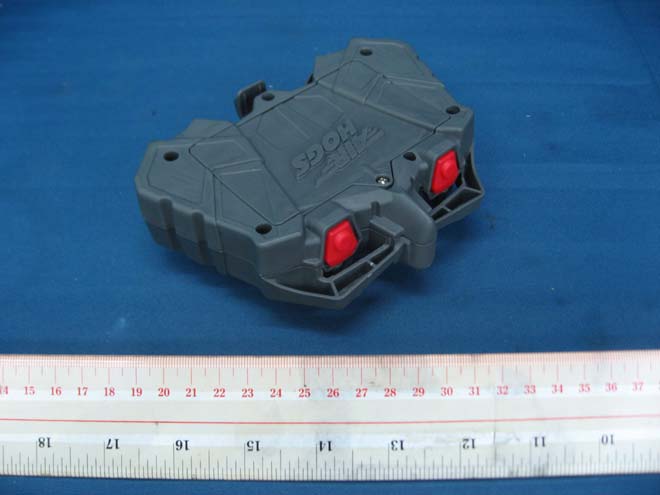

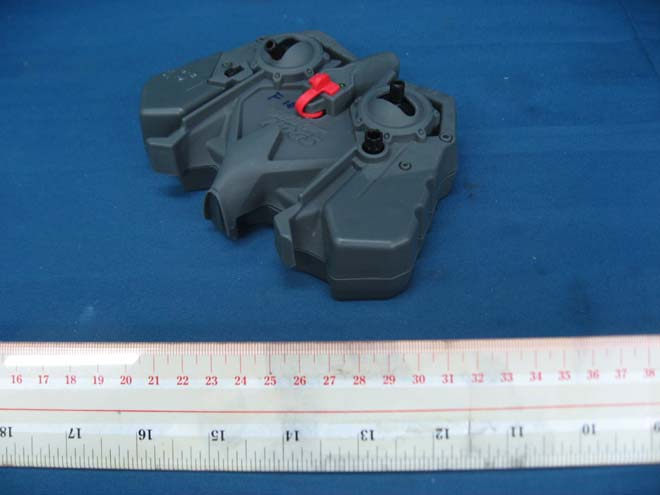

INTERTEK TESTING SERVICE Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 Equipment Photographs Model: 44425 (External) INTERTEK TESTING SERVICE Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 Equipment Photographs Model: 44425 (External)

Label size: 19.50 x 13.44 mm

INTERTEK TESTING SERVICE Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 Equipment Photographs Model: 44425 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 Equipment Photographs Model: 44425 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 Equipment Photographs Model: 44425 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 Equipment Photographs Model: 44425 (Internal)

Technical Description: The brief circuit description is listed as follows: - U1 and associated circuit act as MCU. - U3 and associated circuit act as Voltage Regulator. - U2 and associated circuit act as Charging Circuit. - COM1 and associated circuit act as 2.4GHz RF Module. - Y1 and associated circuit act as the clock frequency of RF Module. - S1 - S4, VR1 & VR2 and associated circuit act as button, steering trim and throttle. Antenna Used: Internal, Integral antenna is used. Channel Separation: The sample supplied operated on 129channels, nominally at 2401MHz - 2465MHz. The channel is separated by 0.0005GHz channel spacing.

A7105 Preliminary 2.4G FSK/GFSK Transceiver Jan. 2009, Version 0.3 (PRELIMINARY) 1AMIC Communication Corporation Document Title A7105 Data Sheet, 2.4GHz FSK/GFSK Transceiver with 500Kbps data rate Revision History Rev. No.HistoryIssue DateRemark 0.0Initial issue.Dec 27 th , 2007Preliminary 0.1Modified specification and add section for TX power settingFeb 20 th , 2008Preliminary 0.2Add top marking info., reflow profile, Carry tape & reel dimensions Oct. 9 th , 2008Preliminary 0.3Modify description of state machine and FIFO mode Rename IRQS1/IRQS2 to GIO1S/GIO2S Rename GPIO1/GPIO2 to GIO1/GIO2 Add Easy FIFO mode, Segment FIFO mode Delete thermal sensor function / external voltage measurement Delete TWWS function Add State diagram of quick/normal/power saving FIFO mode Add State diagram of Direct mode Rename Master Clock F CSCK to F MCLK Modify data rate support from 1K~500K to 2K ~ 500K Jan. 7 th , 2009Preliminary Important Notice: AMICCOM reserves the right to make changes to its products or to discontinue any integrated circuit product or service without notice. AMICCOM integrated circuit products are not designed, intended, authorized, or warranted to be suitable for use in life-support applications, devices or systems or other critical applications. Use of AMICCOM products in such applications is understood to be fully at the risk of the customer. A7105 Preliminary 2.4G FSK/GFSK Transceiver Jan. 2009, Version 0.3 (PRELIMINARY) 2AMIC Communication Corporation Table of Contents 1. General Description....................................................................................................................................................... 5 2. Typical Applications ....................................................................................................................................................... 5 3. Feature ......................................................................................................................................................................... 5 4. Pin Configurations ......................................................................................................................................................... 6 5. Pin Description (I: input; O: output, I/O: input or output)................................................................................................... 6 6. Chip Block Diagram....................................................................................................................................................... 7 7. Absolute Maximum Ratings............................................................................................................................................ 8 8. Electrical Specification................................................................................................................................................... 8 9. Control Register ...........................................................................................................................................................10 9.1 Control register table............................................................................................................................................10 9.2 Control register description ..................................................................................................................................12 9.2.1 Mode Register (Address: 00h)..................................................................................................................12 9.2.2 Mode Control Register (Address: 01h)......................................................................................................12 9.2.3 Calibration Control Register (Address: 02h)..............................................................................................13 9.2.4 FIFO Register I (Address: 03h).................................................................................................................13 9.2.5 FIFO Register II (Address: 04h)................................................................................................................13 9.2.6 FIFO DATA Register (Address: 05h) .........................................................................................................13 9.2.7 ID DATA Register (Address: 06h)................................................................................................................14 9.2.8 RC OSC Register I (Address: 07h) .............................................................................................................14 9.2.9 RC OSC Register II (Address: 08h).............................................................................................................14 9.2.10 RC OSC Register III (Address: 09h)..........................................................................................................14 9.2.11 CKO Pin Control Register (Address: 0Ah) .................................................................................................14 9.2.12 GIO1 Pin Control Register I (Address: 0Bh)...............................................................................................15 9.2.13 GIO2 Pin Control Register II (Address: 0Ch) .............................................................................................15 9.2.14 Clock Register (Address: 0Dh)..................................................................................................................16 9.2.15 Data Rate Register (Address: 0Eh) ...........................................................................................................17 9.2.16 PLL Register I (Address: 0Fh)...................................................................................................................17 9.2.17 PLL Register II (Address: 10h)..................................................................................................................17 9.2.18 PLL Register III (Addre…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2011/6/10Sheet of File:D:\L羅宇宙\..\44425-sch.SchDocDrawn By: PA6 1 PA7 2 PA2 3 PA3. 4 VSS 5 REST 6 PC0 7 PC1 8 PB0 9 PB1 10 PB2 11 PB3 12 PB4 13 PB5 14 PB6 15 PB7 16 PC2 17 PC6 18 PC7 19 VDD 20 PA0 21 PA1 22 PA4 23 PA5 24 U1 PA89A SS24 1 1 2 3 3 5 5 2 4 4 6 6 7 7 8 8 SW1 2P3T SS23D01 1 2 3 4 COM2 USB 180Degree BST VIN SW GNDFB NC CE NC U2 LC2316 SOP8 F1 Fuse 1A/250V Axial 10uH 1A Axial L1 Inductor Iron Dot 1K R10 0.1uF C8 VinVout GND U3 LC1207 3.3 SOT-89 D5 1N5817 D1 Diode 1N4148 D4 GreenLED D3 RedLED. 100R R5 100R R6 BT1 Battery S1 RIGHT S2 LEFT S3 Video S4 Photo 10uF C11 10K VR1 10K VR2 1 2 3 4 5 6 7 8 COM1 2.4G RF Module VDD VDD 0.1uF C10 SCS SCK SDIO GIOI SCS SDIO SCK GIOI PA6 PA7PA4 PA5 PC0 PC1 PB0 PB1 PB2 TP4PB4 PB5 PB6 PB7 TP1 TP2 TP3 10K R2 0.1uF C1 GND GND VDD VDD 0.1uF C2 GND 47K R1 PB1 GND GNDGND 10R R7 9V Battery ON OFF CHARGE GND Q2 2N3906 100K R9 VDD 1K R11 P B 0 GND GND 0.1uF C6 0.1uF C7 PA7 PA6 10K R19 10K R20 10K R21 10K R22 VDD GND VDD P C 0 P C 1 PB4 PB5 PB6 PB7 F-10K B10K-D0 10nF C4 47uF/25V C3 GND 300K R17 100K R18 GND 0.1uF C12 PA5 9V Battery P B 2 9.1K 1% R4 3K 1% R8 0R R3 GND 22uF/25V C5 GND GND PA4 9V Battery GND 22uF C9 GND GND VDD D2 Diode 1N4148 U S B S o c k e t 0.1uF CVR* 0.1R/0.25W 1% R13* 0.1uF C5* 0.1uF C3* 0.1uF C11* GND WS #9579 WS V01 Update:Add C3*,C5*,C11*,CVR* (0.1uF)20/5/2011 Axial Axial Axial Axial 0805 0805 PDF created with pdfFactory Pro trial version www.pdffactory.com

INTERTEK TESTING SERVICES Report No.: HK11060677-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Average Factor Plot – Pursuant to FCC Part 15 Section 15.249 Requirement INTERTEK TESTING SERVICES Report No.: HK11060677-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Average Factor Plot – Pursuant to FCC Part 15 Section 15.249 Requirement INTERTEK TESTING SERVICES Report No.: HK11060677-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Average Factor Plot – Pursuant to FCC Part 15 Section 15.249 Requirement

INTERTEK TESTING SERVICES Report No.: HK11060677-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15.249 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11060677-1 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) (FCC ID: PQN44425TX2G4) Transceiver Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Engineer Chan Chi Hung, Terry Assistant Supervisor Date: August 02, 2011 INTERTEK TESTING SERVICES Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 i GENERAL INFORMATION Spin Master Toys Far East Ltd. MODEL: 44425 FCC ID: PQN44425TX2G4 Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Hanson Zhou Tel: 86-769-81080068 Fax: N/A e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Brand Name: Spin Master Ltd. Model: 44425 Additional Model: 1021705, 1021706, 1022264, 1022495, 1021816, 6017072, 6017073, 6017106 Type of EUT: Transceiver Description of EUT: HAWK EYE BLUE SKY Serial Number: N/A FCC ID: PQN44425TX2G4 Date of Sample Submitted: June 13, 2011 Date of Test: June 23, 2011 Report No.: HK11060677-1 Report Date: August 02, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 ii SUMMARY OF TEST RESULT Spin Master Toys Far East Ltd. MODEL: 44425 FCC ID: PQN44425TX2G4 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11060677-1 FCC ID: PQN44425TX2G4 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11060677-1 FCC ID: PQN44425TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 44425 INTERTEK TESTING SERVICE Report No: HK11060677-1 FCC ID: PQN44425TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 44425
