PQN44438M04RX2G4ARH RDC Helix X4 Stunt Quad Copter

eContains 1 x 3.7V LiPo battery pack and 8 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V et 8 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. HELIX x4 STUNT Spin Master International SARL, hereby declares that this Helix X4 Stunt™ is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity can be requested through [email protected] or SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Par la présente, Spin Master International SARL déclare que ce jouet Helix X4 Stunt™ respecte les principales exigences ainsi que les dispositions pertinentes de la Directive 1999/5/EC. Une copie de la déclaration de conformité est disponible sur demande à l’adresse suivante : [email protected] ou SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Battery requirement for Helix X4 Stunt™ / Caractéristiques du bloc-piles de l’Helix X4 Stunt™ Power Supply / Alimentation : Rating: DC 3.7 V, 350 mAh / Puissance nominale : 3,7 V CC, 350 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack / Piles : 1 bloc-piles rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) / Requiert 1 bloc-piles rechargeable LiPo de 3,7 V (inclus) Battery requirement for Controller / Caractéristiques des piles de la radiocommande Power Supply / Alimentation : Rating: DC 12 V, 0.45 W / Puissance nominale : 12 V CC, 0,45 W Batteries: 8 x 1.5 V AA/LR6/AM3 / Piles : 8 piles 1,5 V AA/LR6/AM3 Requires 8 x 1.5 V AA size batteries (included) / Fonctionne avec 8 piles AA 1,5 V (incluses) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection…

Text truncated - open the document above for the full version.

44438(M04) RX 3 Block Diagram LNA RX Fiter GFSK Demodulator PA GFSK Modulator TX DAC RX FIFO TX FIFO Baseband Protocol Stack SPI Register MISO MOSI CSN SCK IRQ CE Baseband RF Receiver RF Transmitter ANT1 ANT2 RF Synthesiser Power Managerment XC1 XC2 VSS VDD IREF DVDD VDD_PA Figure 1 XN297 Block Diagram http://www.panchip.com 权 版 ©2014 启电 磐微子

Dec 2013 Letter of Agency Please retype this information , sign and date the document. "I, an officer of (Spin Master Toys Far East Ltd.) do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 30 day Mar of 2015 By Signature Andy Wong Printed Name Senior QA manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the

INTERTEK TESTING SERVICE Report No.: 15030676HKG-003 Equipment Photographs Model : 44438M04RX (External) FCC ID: PQN44438M04RX2G4

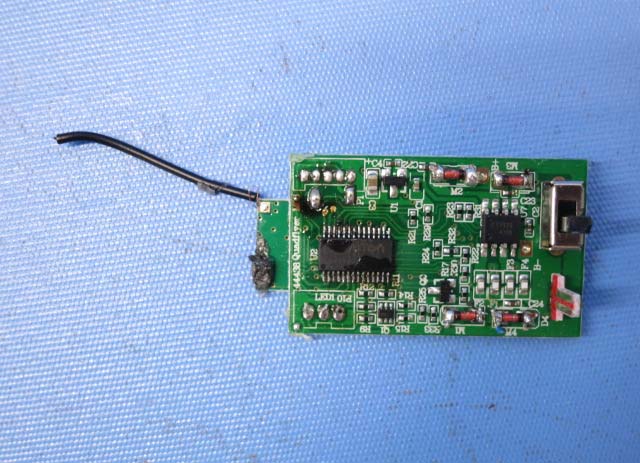

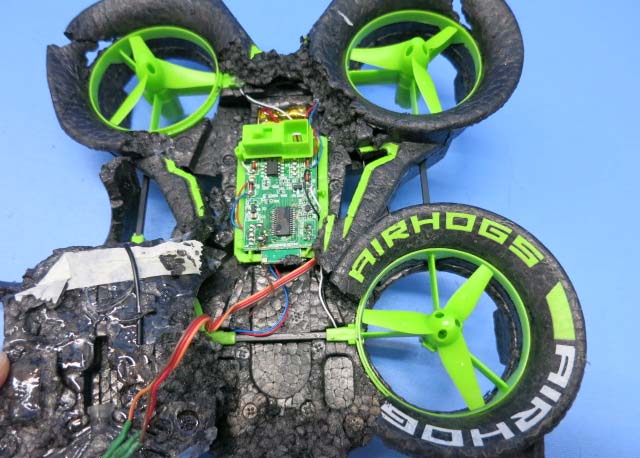

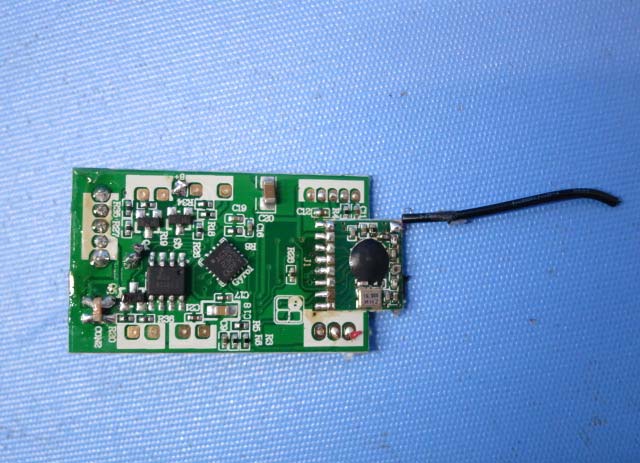

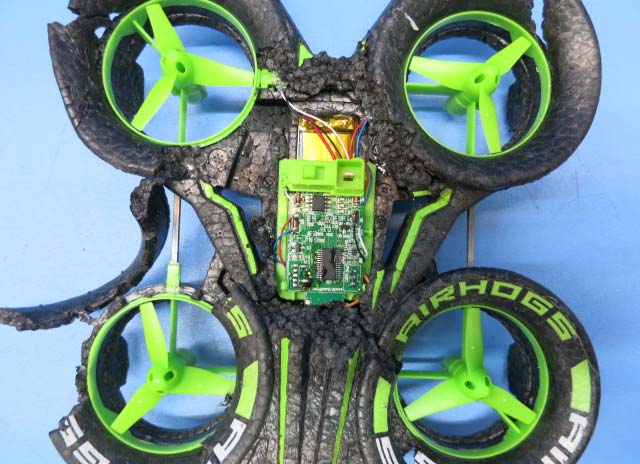

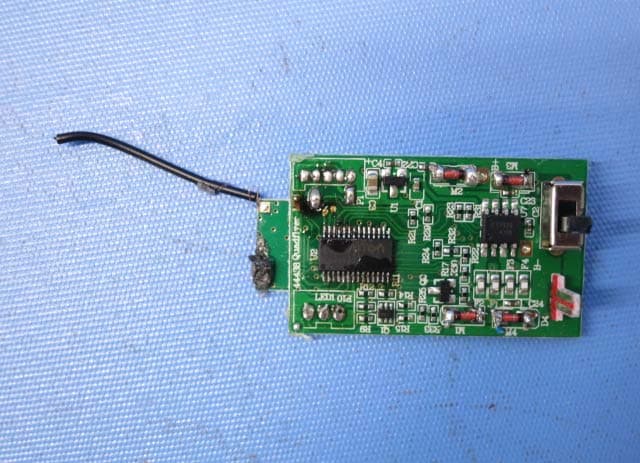

INTERTEK TESTING SERVICE Report No.: 15030676HKG-003 Equipment Photographs Model : 44438M04RX (Internal) FCC ID: PQN44438M04RX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-003 Equipment Photographs Model : 44438M04RX (Internal) FCC ID: PQN44438M04RX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-003 Equipment Photographs Model : 44438M04RX (Internal) FCC ID: PQN44438M04RX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-003 Equipment Photographs Model : 44438M04RX (Internal) FCC ID: PQN44438M04RX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-003 Equipment Photographs Model : 44438M04RX (Internal) FCC ID: PQN44438M04RX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-003 Equipment Photographs Model : 44438M04RX (Internal) FCC ID: PQN44438M04RX2G4

Technical Description The brief circuit description is listed as below: 1) U1 acts as Voltage Regulator (LC1206 SOT-23 3.0). 2) U2 acts as 2.4GHz RF transceiver module (XN297). 3) U3 acts as MCU (N79E855A). 4) Y1 is 16MHz crystal oscillator providing clock for U2. 5) M1, M2, M3 and M4 act as Motor Driver. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 89.6 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a portable 2.4GHz Transceiver (Helicopter Unit) for a RC helicopter operating at 2412, 2433, 2442 and 2460MHz. The EUT is powered by 1 X 3.7V rechargeable battery (Li-Poly). After switch on the EUT and paired with controller, the EUT can be controlled to fly forward, backward, turning left/right direction and rolling by the corresponding controller. To charge the internal battery in the helicopter, plug the charging connector from the controller into the charging jack on the helicopter for starting the charge process. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 89.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 92.6dBμV/ m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.546mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.546mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.5 6 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 55 66 77 88 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Model NO. 44438 Helix X4 M04 (F15) RX R01 Owen Lu 2014-11-12 1 1 R25300R R2910K C23 0.1uF - + M1 C30.1uF C24.7uF/10V VBAT Vi Vo GND U1 LC1206SOT-23 3.0 C40.1uF SW1 1P2T SS-12D02-G6 VDD PTC 550 PCM BT1 3.7V_LiPo_350mAH R9300R R10 220R R111K R121K R1347K R1447K Dual Transistor R33 10K R810K C1810nF C21470nF C19100nF C2010uF R21100K R35.1KR6 6.8K C110.1uF R51K Tantalum Cap. 1206 C2222uF/10V 12 CON1Charge port D1 1N4148 VDD_IO 1 SCL/SPC 2 SDA/SDI/SDO 3 SDO/SA0 4 CS 5 DRDY/INT2 6 INT 7 RES 8 RES 9 RES 10 RES 11 RES 12 GND 13 PLLFILT 14 RES 15 VDD 16 Gyro1 L3GD20 3mm M3ARG9UW3B Optional Only Required on L3G4200D SOT-363 VIN Q1B Q1A P2.0/IC2 1 P2.1 2 P0.0/PWM3 3 P1.7/PWM2 4 P1.6/PWM1 5 RST 6 VSS 7 P3.1/XTAL1 8 P3.0/XTAL2 9 P1.4 10 P1.3/SDA 11 P1.2/SCL 12 P2.2/MOSI2 13 P2.3/MISO2 14 P2.4/SS2 15 P2.5/SPICLK2 16 P1.1/RXD 17 P1.0/TXD 18 P0.7/ADC6 19 P0.6/ADC5 20 VDD 21 P0.5/ADC4 22 P0.4/ADC3 23 P0.3/ADC2 24 P0.2/ADC1 25 P0.1/PWM0 26 P2.6/TXD2 27 P2.7/RXD2 28 U3N79E855A P2.0P2.1 PWM3 VDD P2.2P2.3 P2.4P2.5P0.6 VDD PWM0 P0.2P0.3P0.4P0.5 P2.6P2.7 RESET XN297 Module Q22N3906 R26300R R3010K C240.1uF - + M2 R34 10K R22100K D2 1N4148 Q32N3906 R27300R R3110K C250.1uF - + M3 R35 10K R23100K D3 1N4148 Q42N3906 R28300R R3210K C260.1uF - + M4 R36 10K R24100K D4 1N4148 Q52N3906 12345 P1ISP RESETICPCLK VDD ICPDAT PWM1PWM2 PWM0 PWM1 PWM2 PWM3 P0.2 P0.3 P0.4 P0.5 P1.4 P3.1 P2.5P2.2P2.3P2.4 VDD P1.0 R150 R160 R447KC12104 VIN C13104 P0.7 F1F0603CP1500V032T-UT 1.5A F2F0603CP1500V032T-UT F3F0603CP1500V032T-UT F4F0603CP1500V032T-UT VBAT ICPCLKICPDAT VIN 1.5A 1.5A 1.5A R181K R191K R201K R171K P0.6 U5BCT9926 U4ACT9926 U5ACT9926 U4BCT9926 P3.1 3 2 1 LED1 Dual Color RED+GREEN P1.4 CWDP23-B6A 3mm VDD VDDPA IRQ C91.5pF(2P) C1636pF L24.7nH C11uF R7 1M C81nF C101.2pF(4PF) C1736pF L11.5nH L3 8.2nH C144.7pF FGND FGND FGND FGND 4x4 QFN XN297 Module Matching Network Components: 1 1 3 3 2 Y1 16M RF_3.3V C72.2u FGND FGND FGND FGND FGND FGND FGND R1 22K VDD R2 10 FGND 12345678 J1XN297 MISOMOSISCKCSN CE P2.1 P2.0 VDD P0.7 IRQ P2.3P2.2P2.5 CE 1 CSN 2 SCLK 3 MISO 4 MOSI 5 IRQ 6 VDD3 7 VSS1 8 XT1 9 XT2 10 VDD_PA 11 ANTP 12 ANTN 13 VSS2 14 VDD2 15 IREF 16 VSS3 17 VDD1 18 DVDD 19 VSS4 20 U2 XN297 C152.2uFF FGND C5 10uF C6 22uF

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-003 i FCC ID: PQN44438M04RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: AIR Hogs Model: 44438M04 Type of EUT: Transceiver Description of EUT: ARH RDC Helix X4 Stunt QuadCopter Serial Number: N/A FCC ID: PQN44438M04RX2G4 Date of Sample Submitted: March 17, 2015 Date of Test: March 17, 2015 to March 31, 2015 Report No.: 15030676HKG-003 Report Date: April 07, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-003 ii FCC ID: PQN44438M04RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-003 iii FCC ID: PQN44438M04RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................8 5.0 Product Labelling .............................................................................................8 6.0 Technical Specifications .................................................................................8 7.0 Instruction Manual ...........................................................................................8 8.0 Miscellaneous Information ..............................................................................9 8.1 Radiated Emission on the Bandedge..............................................................9 8.2 Discussion of Pulse Desensitization .............................................................10 8.3 Calculation of Average Factor.......................................................................10 8.4 Emissions Test Procedures ..........................................................................12 9.0 Equipment List ...............................................................................................15 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-003 1 FCC ID: PQN44438M04RX2G4 …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15030676HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44438M04RX FCC ID: PQN44438M04RX2G4 INTERTEK TESTING SERVICE Report No: 15030676HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44438M04RX FCC ID: PQN44438M04RX2G4
