PQN44438M04TX2G4ARH RDC Helix X4 Stunt Quad Copter

eContains 1 x 3.7V LiPo battery pack and 8 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V et 8 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. HELIX x4 STUNT Spin Master International SARL, hereby declares that this Helix X4 Stunt™ is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity can be requested through [email protected] or SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Par la présente, Spin Master International SARL déclare que ce jouet Helix X4 Stunt™ respecte les principales exigences ainsi que les dispositions pertinentes de la Directive 1999/5/EC. Une copie de la déclaration de conformité est disponible sur demande à l’adresse suivante : [email protected] ou SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Battery requirement for Helix X4 Stunt™ / Caractéristiques du bloc-piles de l’Helix X4 Stunt™ Power Supply / Alimentation : Rating: DC 3.7 V, 350 mAh / Puissance nominale : 3,7 V CC, 350 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack / Piles : 1 bloc-piles rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) / Requiert 1 bloc-piles rechargeable LiPo de 3,7 V (inclus) Battery requirement for Controller / Caractéristiques des piles de la radiocommande Power Supply / Alimentation : Rating: DC 12 V, 0.45 W / Puissance nominale : 12 V CC, 0,45 W Batteries: 8 x 1.5 V AA/LR6/AM3 / Piles : 8 piles 1,5 V AA/LR6/AM3 Requires 8 x 1.5 V AA size batteries (included) / Fonctionne avec 8 piles AA 1,5 V (incluses) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection…

Text truncated - open the document above for the full version.

4 4438 M04 Quad Flyer TX Block Digram MCU clock 16MHz 2412-2460MHz 3 Block Diagram LNA RX Fiter GFSK Demodulator PA GFSK Modulator TX DAC RX FIFO TX FIFO Baseband Protocol Stack SPI Register MISO MOSI CSN SCK IRQ CE Baseband RF Receiver RF Transmitter ANT1 ANT2 RF Synthesiser Power Managerment XC1 XC2 VSS VDD IREF DVDD VDD_PA Figure 1 XN297 Block Diagram http://www.panchip.com 权 版 ©2014 启电 磐微子

Dec 2013 Letter of Agency Please retype this information , sign and date the document. "I, an officer of (Spin Master Toys Far East Ltd.) do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 30 day Mar of 2015 By Signature Andy Wong Printed Name Senior QA manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the

INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (External) FCC ID: PQN44438M04TX2G4

FCC ID:PQN44438M04TX2G4 FCC ID:PQN44438M04TX2G4 FCC ID:PQN44438TX2G4 1.52 24.9 Standard Scale 100% Standard Scale 200% 0.6 a a 1.22 a 1.5 a 0.8 a 1.2 a h Height h shall be greator of 0.3a or 1mm 10.702 7.42 1.5V LR6 AA SIZE 34.4 32.4 30 10.3 5.35 2.6 Font: Arial Unit :MM 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE ©SPIN MASTER L TD ALL RIGHTS RESERVED. MADE IN CHINA ITEM: 44438 SPIN MASTER L TD., 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA. SPIN MASTER INTERNATIONAL, S.A.R.L., 16 AVENUE PASTEUR, L-2310, LUXEMBOURG 2.1 37.8 23.7 2.1 1 1.2 2.1 1 1.9 28.3 34.7 Standard Scale 200% 7.5 10.501 2.6 56.8 5.25.2 IC:4438B-44438M04TX SPIN MASTER L TD. MODEL:44438 M04TX CAN ICES-3(B)/NMB-3(B) 2.1 1.5 27 25.5 ©SPIN MASTER L TD ALL RIGHTS RESERVED. MADE IN CHINA ITEM: 44438 SPIN MASTER L TD., 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA. SPIN MASTER INTERNATIONAL, S.A.R.L., 16 AVENUE PASTEUR, L-2310, LUXEMBOURG IC:4438B-44438M04TX SPIN MASTER L TD. MODEL:44438M04TX CAN ICES-3(B)/NMB-3(B) MISE EN GARDE:L'INST ALLATION DES PILES DOIT ÊRE EFFECTUÉE PAR UN ADULTE. CAUTION:T O BE INSTALLED BY ADULT ONLY MISE EN GARDE: L'INST ALLATION DES PILES DOIT ÊRE EFFECTUÉE PAR UN ADULTE. 2.1 1 1.4 5 33.3 CAUTION: T O BE INSTALLED BY ADULT ONLY 2.1 7.9 5 33.3

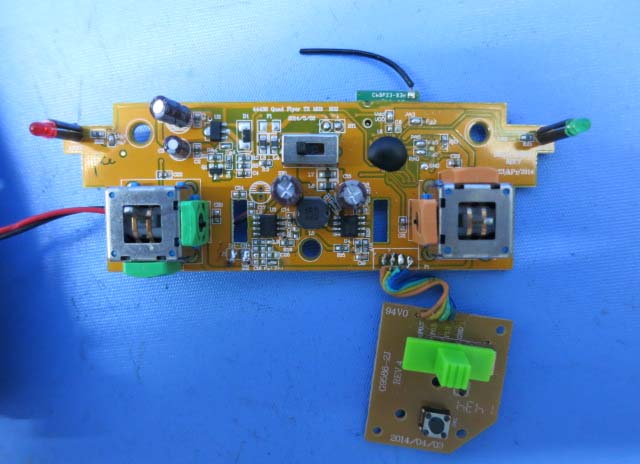

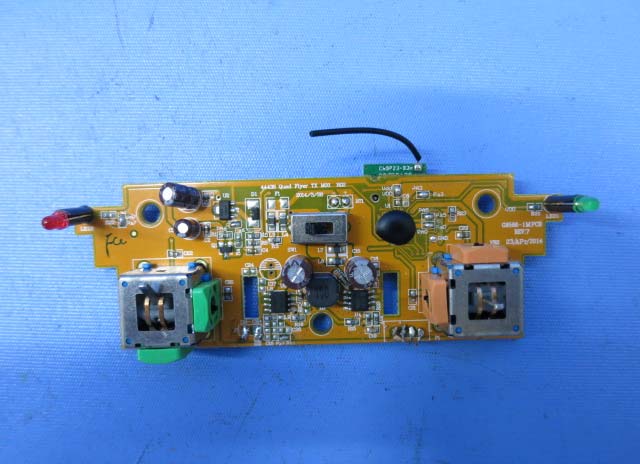

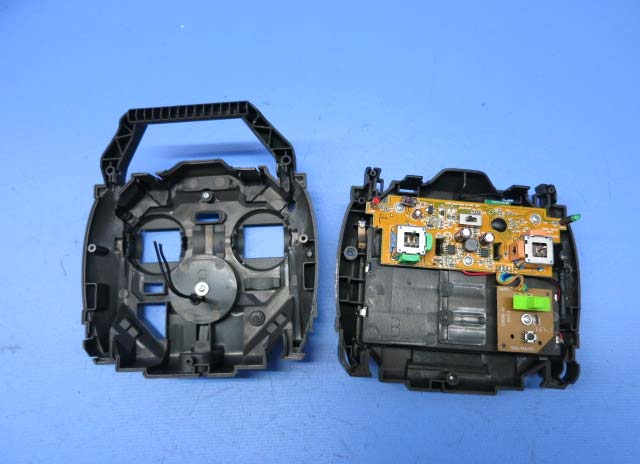

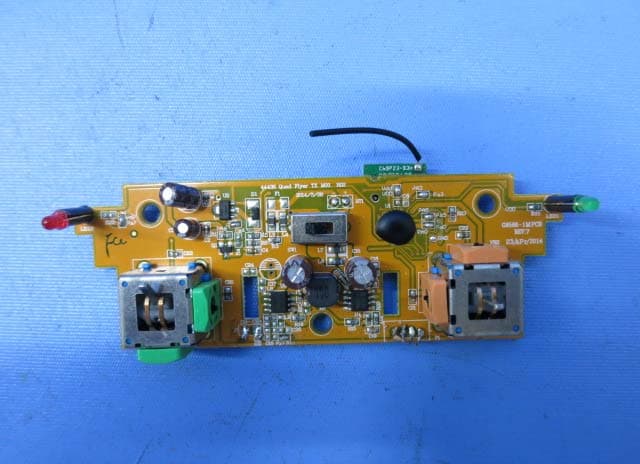

INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (Internal) FCC ID: PQN44438M04TX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (Internal) FCC ID: PQN44438M04TX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (Internal) FCC ID: PQN44438M04TX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (Internal) FCC ID: PQN44438M04TX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (Internal) FCC ID: PQN44438M04TX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (Internal) FCC ID: PQN44438M04TX2G4 INTERTEK TESTING SERVICE Report No.: 15030676HKG-001 Equipment Photographs Model : 44438M04TX (Internal) FCC ID: PQN44438M04TX2G4

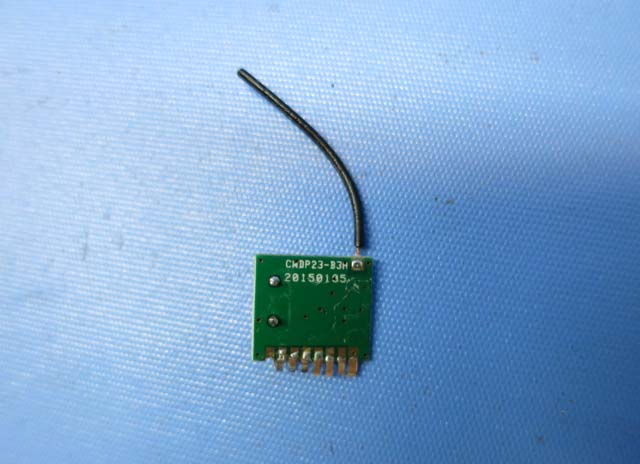

Technical Description The brief circuit description is listed as below: 1) U1 acts as MCU (PMC234). 2) U2 acts as Voltage Regulator (LC1218). 3) U3 (PE6069) and U4 (ETA1483) act as current control. 4) M1 acts as 2.4GHz RF transceiver module (XN297). 5) Y1 is 16MHz crystal oscillator providing clock for M1. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 96.3dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a portable 2.4GHz Transceiver (Controller Unit) for a RC helicopter operating at 2412, 2424, 2442 and 2460MHz. The EUT is powered by 8 X 1.5V AA batteries. After switch on the EUT and paired with helicopter, the helicopter can be controlled to fly forward, backward, turning left/ right direction and rolling by the controller. Also, the EUT has a charging circuitry, the corresponding receiver can be charged by this controller. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 96.3dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 99.3dBμV/ m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 2.553mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =2.553mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.5 6 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Model NO. A4 1 1 R01 Owen Lu 2014-11-27 PA1 220uFC15 0.1uFC16 R20 91K 1% 100uF/16V C13 390K 1% TBDR15 L5 15uH 1.5A 0.1uFC14 VBAT 12 J1 Charger 5.0V Charger unit PA4 R161.4K 1% R1410K BST 1 IN 2 SW 3 GND 4 FB 5 COMP 6 EN 7 SS 8 U4 ETA1483 C11 10nF C193.3nF R175.6KC12 0.1uF R18NCR19NC C18NC CD75 TEMP 1 PROG 2 GND 3 VCC 4 BAT 5 STDBY 6 CHRG 7 CE 8 U3 PE6069 PA5 L3 SZ2012K60/TF L4 SZ2012K60/TF C2 104 C322uF C5 0.1uF R2 510K 1% R5*274K 1% (TBD) C40.1uF 16VC1 100uF BT1AA X 8 R310R PA3 VBAT Vin GND Vout U2 LC1218 SOT89 3.3V D1 1N5817 F1T1.0A Q1 3906 R1 10K R41K VDD PA6 ONOFF 5 137 6 248 SW12P3T ON BasicPro PA0 PC2 1 PC1 2 PC0/CIN3- 3 PB0/AD0/INT1/CO 4 PB1/AD1/Vref 5 PB2/AD2 6 GND 7 PA0/INT0/COM0 13 PA5/RESET# 14 PA1/PWM/COM1 15 PA2/PWM/COM2 16 PA3/AD8/PWM/COM3 17 VDD 18 PA6/X2 19 PB3/AD3 8 PB4/AD4 9 PB5/AD5 10 PB6/AD6 11 PB7/AD7 12 PA7/X1 20 PA4/AD9/CIN2- 21 PC5/CIN+ 22 PC4 23 PC3 24 U1 PMC234 PA1PA2PA3PA5PA6PA7 PB0PB1PB2PB3PB4PB5PB7 PA0 VDD C60.1uF PA4 PC0PC1 PC5PC4PC3 PB5 PB7 GREENLED2 R22330R REDLED1 R21330R PA7PA2 VDDVDD RVDD PB3 FB LR 104C21C23 104 PB2 J16-F-B10K-506-LL 321456 VR2 RVDD PB1 Throttle Rotate 104C20C22 104 PB0 J16-DF-B10K1-606-B10K2-600-LL 321456 VR1Throttle/Rotate SW3 Tact switch 1 234 SW2 SS-13E05-VG4 PB4 Stunt Excute Stunt mode RVDD 1234 P1 PB4PB5PB7 PC2 C17NC Programming pin list: PA0 、 PA3 、 PA4 、 PA5 、 PA6 、 PA7 、 VDD 、 GND 。 MaxCurrent :700MA+/-30MA SS- 23D06-G L1SZ2012K60/TFL2SZ2012K60/TF 12345678 M1 XN297 IRQ MISOMOSISCKCSN CE PC3 PC0 PC1PC4 PC5 VDD PC3 PC5 PC4PC1PC0 CWDP23-B3A 44438 Helix X4 M04 (F15) TX

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-001 i FCC ID: PQN44438M04TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: AIR Hogs Model: 44438M04 Type of EUT: Transceiver Description of EUT: ARH RDC Helix X4 Stunt QuadCopter Serial Number: N/A FCC ID: PQN44438M04TX2G4 Date of Sample Submitted: March 17, 2015 Date of Test: March 17, 2015 to March 31, 2015 Report No.: 15030676HKG-001 Report Date: April 07, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-001 ii FCC ID: PQN44438M04TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-001 iii FCC ID: PQN44438M04TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................8 5.0 Product Labelling .............................................................................................8 6.0 Technical Specifications .................................................................................8 7.0 Instruction Manual ...........................................................................................8 8.0 Miscellaneous Information ..............................................................................9 8.1 Radiated Emission on the Bandedge..............................................................9 8.2 Discussion of Pulse Desensitization .............................................................10 8.3 Calculation of Average Factor.......................................................................10 8.4 Emissions Test Procedures ..........................................................................12 9.0 Equipment List ...............................................................................................15 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15030676HKG-001 1 FCC ID: PQN44438M04TX2G4 …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15030676HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44438M04TX FCC ID: PQN44438M04TX2G4 INTERTEK TESTING SERVICE Report No: 15030676HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44438M04TX FCC ID: PQN44438M04TX2G4
