PQN44452RX2G4ARH RDC Sky Stunt Ast

eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Cet appareil est conforme à l’article 15 de la réglementation de la FCC. Son utilisation est soumise aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles, et 2) cet appareil doit tolérer toutes les interférences reçues, y compris celles pouvant entraîner un fonctionnement indésirable. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre toute interférence nuisible avec les communications radio. Cet équipement génère, utilise et peut émettre de l’énergie de fréquence radio. S’il n’est pas installé et utilisé selon le mode d’emploi, il peut causer des interférences nuisibles aux communications radio. Cependant, selon l’installation, des interférences peuvent être constatées. Si ce jouet cause des interférences à la réception radio ou télévisée (ce qui est vérifiable en l’éteignant, puis en le rallumant tout en écoutant s’il y a des interférences), suivre une ou plusieurs des recommandations suivantes : • Réorienter ou déplacer l’antenne réceptrice • Augmenter la distance entre le jouet et la radio ou la télévision •Consulter le revendeur ou demander l’aide d’un technicien radio/T.V. expérimenté. REMARQUE : tout changement, réglage ou toute modification de cet appareil, incluant mais ne se limitant pas au remplacement de tout composant du transmetteur (cristal, semi-conducteur, etc.), pourrait constituer une violation de l’article 15 et/ou 95 de la règlementation de la FCC, et doit être expressément approuvé par Spin Master Ltd., sous peine d’entraîner l’annulation du droit de l’utilisateur d’exploiter l’équipement. eContains 1 x 3.7V LiPo battery pack. Requires 8 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V. Fonctionne avec 8 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d'enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d’un produit similaire neuf. Pour plus d’informations, contactez votre commune. ePRODUCT BATTERY REMOVAL INSTRUCTIONS: Internal battery is factory installed, product disassembly and battery removal must be performed by an adult. Do not use any tools for disassembly. Pulling, tearing, and deforming of the product during disassembly, while necessary, should be as limited as possible. Do not compress the product at any time. Ensure product i…

Text truncated - open the document above for the full version.

44452-M03# Sky Stunt 2.4G RX BLOCK DIAGRAM 2.4G MODULE MCU ANT Motor 1 CHARGE BATTERY LEFT/GIGHT Coil 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2014-11-7Sheet of File:E:\\XN297\CWDP23-B3A-Diagram.SchDocDrawn By: Interface XN297 12 16MHz Antenna P0E?01 P0Y?01 P0Y?02 P0E?01 P0Y?01 P0Y?02 3 Block Diagram LNA RX Fiter GFSK Demodulator PA GFSK Modulator TX DAC RX FIFO TX FIFO Baseband Protocol Stack SPI Register MISO MOSI CSN SCK IRQ CE Baseband RF Receiver RF Transmitter ANT1 ANT2 RF Synthesiser Power Managerment XC1 XC2 VSS VDD IREF DVDD VDD_PA Figure 1 XN297 Block Diagram http://www.panchip.com 权 版 ©2014 启电 磐微子

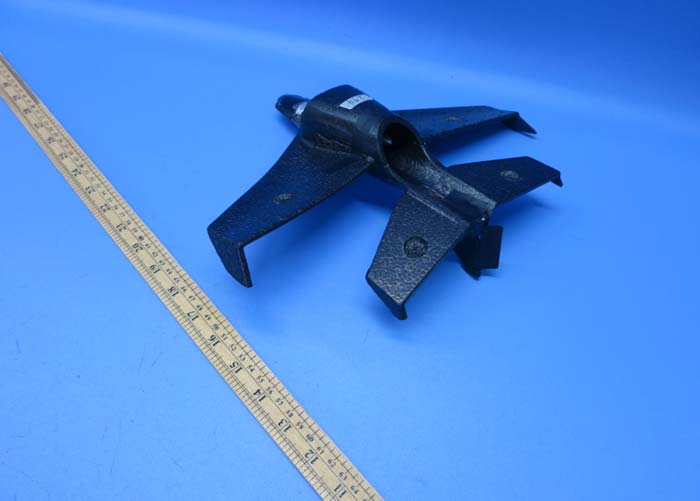

INTERTEK TESTING SERVICE Report No.: HK14101167-003 Equipment Photographs Model : 44452 (FCC) 44452RX (IC) (External) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4

INTERTEK TESTING SERVICE Report No.: HK14101167-003 Equipment Photographs Model : 44452 (FCC) 44452RX (IC) (Internal) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4 INTERTEK TESTING SERVICE Report No.: HK14101167-003 Equipment Photographs Model : 44452 (FCC) 44452RX (IC) (Internal) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4 INTERTEK TESTING SERVICE Report No.: HK14101167-003 Equipment Photographs Model : 44452 (FCC) 44452RX (IC) (Internal) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4 INTERTEK TESTING SERVICE Report No.: HK14101167-003 Equipment Photographs Model : 44452 (FCC) 44452RX (IC) (Internal) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4 INTERTEK TESTING SERVICE Report No.: HK14101167-003 Equipment Photographs Model : 44452 (FCC) 44452RX (IC) (Internal) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4 INTERTEK TESTING SERVICE Report No.: HK14101167-003 Equipment Photographs Model : 44452 (FCC) 44452RX (IC) (Internal) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4

Technical Description The brief circuit description is listed as below: 1) U3 acts as 2.4GHz RF Module (CWDP23). 2) U2 acts as MCU (PMC232). 3) U1 acts as Voltage Regulator (LC1206). 4) Y1 and act as Crystal for U3. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 91.5 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz transceiver for a RC Plane. The EUT is powered by a 3.7V rechargeable battery pack. The operating frequency of the EUT is 2408MHz, 2424MHz, 2442MHz and 2460MHz. After pairing with the controller, the plane can be controlled to fly forward, upward/downward, turn left/right directions and any motions. Also, the corresponding controller has a charging circuitry, the EUT can be charged by the controller. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 91.5 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 94.5dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.846mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.846mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.56 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 28-Oct-2014 Sheet of File: E:\44452 M03\44452M03 PCB\ 开开 \44452M03.DDB Drawn By: PCM BT1 3.7V_LiPo_250mAH PTC LP-CW550 12 CHG SW1 MK-22D10-G4 VDD BAT+ Vin GND Vout U1LC1206 3.0V 12345678 CON1 CWDP23-B3A 2.4G PC0PC5 PA4PA7PA6 VDD CECSNSCKMOSIMISOIRQ C7 104 A -+ M1 PA3 D1 IN4148 BAT+ PC0 1 PB0 2 PB1 3 PB2 4 GND 5 PB3 6 PA0 7 PA5 8 PA3 9 VDD 10 PA6 11 PA7 12 PA4 13 PC5 14 U2 PMC232-S14 PA4PA7PA6 PC0 PC5 PA3 PB3PB0PB1PB2 VDD 44452M03 (2.4G) 44452M03 PB1 150K150K 150K150K 390K390K 390K390K R1 R2 / / Stunt time table PA0 R4100K Q28050D R8100K R910K PB0 Q38050D R31KR71K L1Coil 48 OHM L2 Coil 48 OHM Left Right VDD PB3PB2 R5100R R6100K C410uF C222uF C1104 C3104 C5104 R1150KR2390K C6104 Q4CT8124 Q1MMBT3906 3S4S5S6S real time R10100R C9104C8104 C10104 C11104

lntertek Valued Quality. Dellvend, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accrsdlt€d thls laboratory (HOKLAS 005 - TEST) under HOKLAS for spocmc lsboratory acl¡vitjes as listod ln tho HOKLAS dkectory of accfsd¡t€d laboratories. TEST REPORT Report No.: 141 01 I 67HKG-003 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) (FCC lD: PQN4,1452RX2G4) Transceiver Prepared and Checked by: Wong Kwok Yeung, Kenneth Lead Engineer lnlslok'e slandard Tems End Cond¡l¡ons en bo obl€¡nod al our Thls ßport ehall nol bo reprcduaod, oxæpl ln full. Thls report ¡s for lhe exclueivo use ot lnlerlek's Cl¡onl snd i! prov¡dod pureuent to lho agroemônt bet\Æ€n lntelok snd ils Cl¡onl, lnlorlek's respons¡b¡l¡ty and liability sr€ limitod to the lom! and @ndlt¡ons of lhe agroem€nt lnterlok aesums no ligbility to sny parly, olher lhân to lhs Cliont ¡n 8cærdânæ with lho agrsomônl, for sny loss, oxponro or damgge o@sioned by lhe ure of lh¡s repori Only lho Cliont ir aulhorizod to p€mlt @pylng or dielribut¡on of this ßporl and lhon only ¡n its ontirety Any use of lhe lntslok nÊm or one ot llr mrka for lhe sale or advertisomnt of tÀe tostod malorial, producl or 8oryiæ must frot be approvod ¡n triüng by lnl€rlek Tho obeeryât¡ons and lost relulls ln thls roport ârc rclovsnt only to tho smple lorlod, This r€port by lteolf does not lmply lhst tho material, producl, of !êry¡æ ¡q or hsr €vgr b€gn under En lnleiek serllfql¡on progmm. lntertek Testing Serv¡ces Hong Kong Ltd. ZF., Gament Centrô, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Wobslte: www.hk.lntertek-€tls€mko.com Approved by: SupervisorDate: December 17,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101167HKG-003 i FCC ID: PQN44452RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (86)0769-81080068 Fax: (86)0769-82207100 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: N/A Model: 44452 Additional Model: 1031457, 1031458, 6019618, 6019657 Type of EUT: Transceiver Description of EUT: ARH RDC Sky Stunt Ast Serial Number: N/A FCC ID: PQN44452RX2G4 Date of Sample Submitted: October 31, 2014 Date of Test: October 31, 2014 to November 21, 2014 Report No.: 14101167HKG-003 Report Date: December 17, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101167HKG-003 ii FCC ID: PQN44452RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Restricted bands of operation 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101167HKG-003 iii FCC ID: PQN44452RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 2 2.0 System Test Configuration ................................................................................... 3 2.1 Justification.......................................................................................................... 3 2.2 EUT Exercising Software..................................................................................... 3 2.3 Special Accessories ............................................................................................ 3 2.4 Measurement Uncertainty.................................................................................... 3 2.5 Support Equipment L…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK14101167-003 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44452 (FCC) 44452RX (IC) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4 INTERTEK TESTING SERVICE Report No: HK14101167-003 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44452 (FCC) 44452RX (IC) FCC ID: PQN44452RX2G4 IC: 4438B-44452RX2G4
