PQN44452TX2G4ARH RDC Sky Stunt Ast

eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Cet appareil est conforme à l’article 15 de la réglementation de la FCC. Son utilisation est soumise aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles, et 2) cet appareil doit tolérer toutes les interférences reçues, y compris celles pouvant entraîner un fonctionnement indésirable. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre toute interférence nuisible avec les communications radio. Cet équipement génère, utilise et peut émettre de l’énergie de fréquence radio. S’il n’est pas installé et utilisé selon le mode d’emploi, il peut causer des interférences nuisibles aux communications radio. Cependant, selon l’installation, des interférences peuvent être constatées. Si ce jouet cause des interférences à la réception radio ou télévisée (ce qui est vérifiable en l’éteignant, puis en le rallumant tout en écoutant s’il y a des interférences), suivre une ou plusieurs des recommandations suivantes : • Réorienter ou déplacer l’antenne réceptrice • Augmenter la distance entre le jouet et la radio ou la télévision •Consulter le revendeur ou demander l’aide d’un technicien radio/T.V. expérimenté. REMARQUE : tout changement, réglage ou toute modification de cet appareil, incluant mais ne se limitant pas au remplacement de tout composant du transmetteur (cristal, semi-conducteur, etc.), pourrait constituer une violation de l’article 15 et/ou 95 de la règlementation de la FCC, et doit être expressément approuvé par Spin Master Ltd., sous peine d’entraîner l’annulation du droit de l’utilisateur d’exploiter l’équipement. eContains 1 x 3.7V LiPo battery pack. Requires 8 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V. Fonctionne avec 8 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d'enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d’un produit similaire neuf. Pour plus d’informations, contactez votre commune. ePRODUCT BATTERY REMOVAL INSTRUCTIONS: Internal battery is factory installed, product disassembly and battery removal must be performed by an adult. Do not use any tools for disassembly. Pulling, tearing, and deforming of the product during disassembly, while necessary, should be as limited as possible. Do not compress the product at any time. Ensure product i…

Text truncated - open the document above for the full version.

44452-M03# Sky Stunt 2.4G TX BLOCK DIAGRAM ANT BATTERY 2.4G MODUIE MCU STEERING TRIM THROTTLE Latch Circuit CHARGE CIRCUIT LEFT/RIGHT 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2014-11-7Sheet of File:E:\\XN297\CWDP23-B3A-Diagram.SchDocDrawn By: Interface XN297 12 16MHz Antenna P0E?01 P0Y?01 P0Y?02 P0E?01 P0Y?01 P0Y?02 3 Block Diagram LNA RX Fiter GFSK Demodulator PA GFSK Modulator TX DAC RX FIFO TX FIFO Baseband Protocol Stack SPI Register MISO MOSI CSN SCK IRQ CE Baseband RF Receiver RF Transmitter ANT1 ANT2 RF Synthesiser Power Managerment XC1 XC2 VSS VDD IREF DVDD VDD_PA Figure 1 XN297 Block Diagram http://www.panchip.com 权 版 ©2014 启电 磐微子

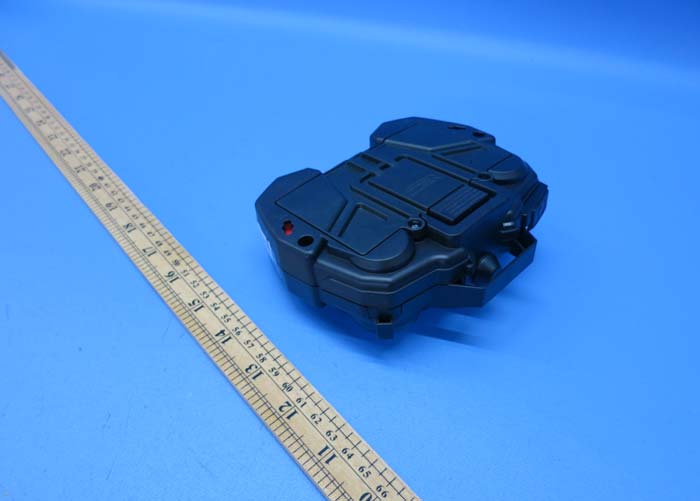

INTERTEK TESTING SERVICE Report: 14101167HKG-001 FCC ID: PQN44452TX2G4 Equipment Photographs Model: 44452 (FCC) 44452TX (IC) (External) IC:4438B-44452TX2G4

INTERTEK TESTING SERVICE Report: 14101167HKG-001 Equipment Photographs Model: 44452 (FCC) 44452TX (IC) (Internal) FCC ID: PQN44452TX2G4 IC:4438B-44452TX2G4 INTERTEK TESTING SERVICE Report: 14101167HKG-001 Equipment Photographs Model: 44452 (FCC) 44452TX (IC) (Internal) FCC ID: PQN44452TX2G4 IC:4438B-44452TX2G4 INTERTEK TESTING SERVICE Report: 14101167HKG-001 Equipment Photographs Model: 44452 (FCC) 44452TX (IC) (Internal) FCC ID: PQN44452TX2G4 IC:4438B-44452TX2G4 INTERTEK TESTING SERVICE Report: 14101167HKG-001 Equipment Photographs Model: 44452 (FCC) 44452TX (IC) (Internal) FCC ID: PQN44452TX2G4 IC:4438B-44452TX2G4

Technical Description The brief circuit description is listed as below: 1) U5 acts as 2.4GHz RF Module (CWDP23). 2) U1 acts as MCU (PMC232). 3) U4 acts as Switching Regulator (ETA1483). 4) U2 & U3 act as Charging Circuit. 5) Y1 and act as Crystal for U5. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 95.0 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Controller) for a RC Plane. The EUT is powered by DC12.0V (8X1.5V AA batteries). The operating frequency is 2408MHz, 2424MHz, 2442MHz and 2460MHz. After pairing with plane, the plane can be controlled to fly forward, upward/downward, turn left/right directions and any motions. Also, the EUT has a charging circuitry, the corresponding plane can be charged by the EUT. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 95.0 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 98.0dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.893mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =1.893mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.56 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 14-Oct-2014 Sheet of File: E:\44452 M03\44452M03 PCB\ 第第第第第 0922\ 重重 44452M03 TX & RX 已已 第第 .DDB Drawn By: VR1 CR10K B5K 60 度 VR2SR085L 10K C8 104 C9104 PB0 PB2 Throttle Steering Trim VDD Q1 3906 R81K R547K PA6 R61K LED1 M3AG2VDO R71K LED2M3AR2PDO PA0 PA2 VDD S1 LEFT S2 RIGHT PB1PB6 12345678 CON1 CWDP23-B 2.4G PC0PC1PC4PC5 PA4 VDD CECSNSCKMOSIMISOIRQ BT1 AA x 8 R2 510K +/-1% R3 169K +/-1% C3104 C5 104 C4104 C1 22uF PB3 VDD BAT+ ON & CHARGE D1 1IN4148 R1 10R C2 100uF FUSE11.0A T2 0805 600R OFF SW1 SS22H06G4 Vin GND Vout U2LC1218 3.3V PC1 1 PC0 2 PB0 3 PB1 4 PB2 5 GND 6 PB3 7 PB4 8 PB5 9 PB6 10 PA0 11 RESET 12 PA2 13 PA3 14 VDD 15 PA6 16 PA7 17 PA4 18 PC5 19 PC4 20 U1PMC232-S20 PC1PC0 PB0PB1PB2PB3PB4PB5PB6 PA0PA2PA3 PA6 PC5PC4 PA4 C6104 R4 10K C7 104 VDD Remark: Fuse should be solder on negative battery t eminal 12 CHG PB5 VCCPROG BAT GND CHRG U3PE6065 VDD R1247K R112.4K BST 1 IN 2 SW 3 GND 4 FB 5 COMP 6 EN 7 SS 8 U4ETA1483 C13104 C12 100uF L1 10uH 1.5A R10 390K +/-1% R15 82K +/-1% R145.6K PA3 C173.3nF C11104 C10104 T10805 600R BAT+ C16104 C15 100uF Remark: 1.Charge current: 500mA+/-30mA. 2.Cut OFF voltage: 4.2+/-0.05V 44452-M03 (2.4G) 44452-M03 S3 Stunt PB4

lntertek Valued Quallty. Dellvered, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accrôdited thls laboratory (HOKLAS 005 - TEST) undor HOKLAS for spec¡fic lsboratory âc'tlvitlos as llsl.ed ln tho HOKLAS direclory ofaccrsdlted laboratoriss. TEST REPORT Report No.: I 41 0l I 67HKG-001 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) (FCC lD: PQN44452TX2G4| Transceiver Prepared and Checked by: Lead Engineer Date: December 17,2014 lnlerlek'E slåndard Têm8 and Condilions qn be obtalned ât ourrebe¡lo hltp/w ¡ntertok.@rn/loml. ThiE rcport shall not be r€producsd, êxcopl in full, Thi¡ report ls for lhe sxclusive ues of lnlertok's Cllent and ls provldod pursuant to lho agro€ment b€tmsn lnterlek and its Cli€nl. lnlsrtek'8 responribilily end l¡sbil¡ty sr€ lim¡tod lo lho tems and @ndiüone of lhe agrc€m€nt, lnterlok aslumos no l¡¡bìllty to sny prrty, olher t¡an lo lho Cl¡onl in a@rdanæ with tÀo ågreemonl, tor eny loo3, oxp€nEo or damage oøeioned by ûìe urs of ûì¡s reporl. only tho cl¡onl lr aulhoriz€d lo pomlt @py¡ng or dl8tribution ol lh¡s report and then only ln ¡ls onlirely. Any ulo of lhe lnlodok nsm or ono ol ils marks for the ssle or advert¡ssment of lho leslod msterisl, producl or serylæ must l¡r8l bs spprcvod in wiùng by lnl€riok, The obsory€tion8 and lost rcrulls ¡n lhls rsport aro ßlevant only lo the sEmplo losl€d. Thls rcporl by itrol does not ¡mply thEt tho malerial, producl, or reryl@ i! or har evsr boen undsran lnleñok @rl¡fiætion progEm. Approved by: Chan Chi Hung, Intertek Testlng Services Hong Kong Ltd. zF., Garmênt Contrê, 576 Caslle Peak Road, Kowloon, Hong Kong. Tol: (852) 2173 8888 Fax: (852) 2785 5487 Wsbslts: t¡wvw.hk.lntortok-etls€ Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101167HKG-001 i FCC ID: PQN44452TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (86)0769-81080068 Fax: (86)0769-82207100 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: N/A Model: 44452 Additional Model: 1031457, 1031458, 6019618, 6019657 Type of EUT: Transceiver Description of EUT: ARH RDC Sky Stunt Ast Serial Number: N/A FCC ID: PQN44452TX2G4 Date of Sample Submitted: October 31, 2014 Date of Test: October 31, 2014 to November 21, 2014 Report No.: 14101167HKG-001 Report Date: December 17, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101167HKG-001 ii FCC ID: PQN44452TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Restricted bands of operation 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101167HKG-001 iii FCC ID: PQN44452TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 2 2.0 System Test Configuration ................................................................................... 3 2.1 Justification.......................................................................................................... 3 2.2 EUT Exercising Software..................................................................................... 3 2.3 Special Accessories ............................................................................................ 3 2.4 Measurement Uncertainty.................................................................................... 3 2.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14101167HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 44452 (FCC) 44452TX (IC) FCC ID: PQN44452TX2G4 IC: 4438B-44452TX2G4 INTERTEK TESTING SERVICE Report No: 14101167HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 44452 (FCC) 44452TX (IC) FCC ID: PQN44452TX2G4 IC: 4438B-44452TX2G4
