PQN44497RX2G4ARH RDC Helix Vedio Drone

eContains 1 x 3.7V LiPo battery pack and 3 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V et 3 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. HELIX video drone Spin Master International SARL, hereby declares that this Helix Video Drone™ is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity can be requested through [email protected] or SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Par la présente, Spin Master International SARL déclare que ce jouet Helix Video Drone™ respecte les principales exigences ainsi que les dispositions pertinentes de la Directive 1999/5/EC. Une copie de la déclaration de conformité est disponible sur demande à l’adresse suivante : [email protected] ou SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Battery requirement for HELIX VIDEO DRONE™ / Alimentation de l'Helix VIDEO DRONE™ Power Supply / Alimentation : Rating: DC 3.7 V, 450 mAh / Puissance nominale : 3,7 V CC, 450 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack / Piles : 1 bloc-piles rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) / Requiert 1 bloc-piles rechargeable LiPo de 3,7 V (inclus) Battery requirement for Controller / Alimentation de la radiocommande Power Supply / Alimentation : Rating: DC 4.5 V, 0.45 W / Puissance nominale : 4.5 V CC, 0,45 W Batteries: 3 x 1.5 V AA/LR6/AM3 / Piles : 3 piles 1,5 V AA/LR6/AM3 Requires 3 x 1.5 V AA size batteries (not included) / Fonctionne avec 3 piles AA 1,5 V (non fournies) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raison…

Text truncated - open the document above for the full version.

RX Unit MCU 2.4G RF R eceiver Power ( LIPO 3.7V) Motor Driver Motor Motor Protection Charging Unit Camera Module USB (5V) 2412-2460MHz clock 16MHz 3 Block Diagram LNA RX Fiter GFSK Demodulator PA GFSK Modulator TX DAC RX FIFO TX FIFO Baseband Protocol Stack SPI Register MISO MOSI CSN SCK IRQ CE Baseband RF Receiver RF Transmitter ANT1 ANT2 RF Synthesiser Power Managerment XC1 XC2 VSS VDD IREF DVDD VDD_PA Figure 1 XN297 Block Diagram http://www.panchip.com 权 版 ©2014 启电 磐微子

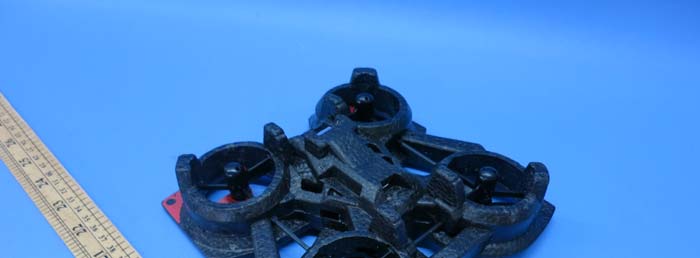

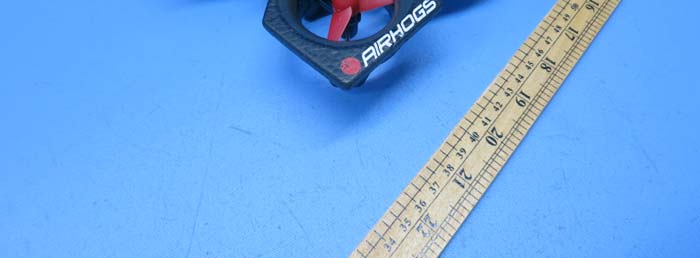

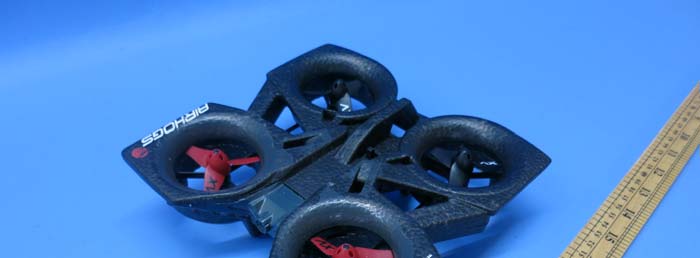

INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (External) FCC ID: PQN44497RX2G4

INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (Internal) FCC ID: PQN44497RX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (Internal) FCC ID: PQN44497RX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (Internal) FCC ID: PQN44497RX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (Internal) FCC ID: PQN44497RX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (Internal) FCC ID: PQN44497RX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (Internal) FCC ID: PQN44497RX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-003 Equipment Photographs Model : 44497RX (Internal) FCC ID: PQN44497RX2G4

Technical Description The brief circuit description is listed as below: 1) U1 acts as Voltage Regulator (LC1206SOT-23 3.3). 2) U2 acts as 2.4GHz RF transceiver module (XN297). 3) U3 acts as step-up DC-DC converter (LC3030). 4) U4 acts as charging unit (PE6065). 5) U5 acts as camera module (STM32F031K4U6 UFQFN 32). 6) U6 acts as Motion Tracking Device (MPU-6880). 7) Y1 is 16MHz crystal oscillator providing clock for U2. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 93.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Helicopter Unit) for a RC helicopter operating at 2412MHz ~ 2460MHz. The Helicopter Unit is operating at 2433MHz after paired with the Controller Unit. The EUT is powered by 1 X 3.7V rechargeable battery (Li-Poly). The EUT equipped with a camera for photo shooting and video recording and save the data to the micro- USB. After switch on the EUT and paired with controller, the EUT can be controlled to fly forward, backward and turning left/right direction by the corresponding controller. Using an USB charging cable can charge the internal battery in the helicopter via PC. Also, Using an USB cable can transfer the data, ie. Photo and vedio from the helicopter to PC. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 93.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: B ased on the Maximum allowed field strength of production tolerance was 96.2 dBμV/ m at 3m in frequency 2.4GHz, thus; Th e EIRP = [(FS*D) ^2*1000 / 30] = 1.251mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; C o nducted Power =1.251mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.56 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 55 66 77 88 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Cannot open file D:\Owen Lu\Project\2013\New spinmaster Model NO. Camera Quad flyer RX R05 Owen Lu 2014-11-18 1 1 R22300R C220.1uF - + M1 VBAT Vi Vo GND U1 LC1206SOT-23 3.3 C60.1uF VDD PTC 550 PCM BT1 3.7V_LiPo_450mAH R14300R R15 200R R161K R171K R1947K R2047K Dual Transistor R26 20K R45.1KR86.8K C140.1uF R71K C2122uF/1206 D4 1N4148 3mm M3ARG9UW3B 3 2 1 LED1 Dual Color RED+GREEN SOT-363 Q3B Q3A VDDPA IRQ C41.5pF(2P) C1536pF L34.7nH C11uF R9 1M C31nF C111.2pF(4PF) C1636pF L21.5nH L4 8.2nH C124.7pF FGND FGND FGND FGND 4x4 QFN XN297 Module Matching Network Components: 1 1 3 3 2 Y1 16M RF_3.3V C22.2u FGND FGND FGND FGND FGND FGND FGND R23300R C230.1uF - + M2 R27 20K D5 1N4148 R24300R C240.1uF - + M3 R28 20K D6 1N4148 R25300R C250.1uF - + M4 R29 20K D7 1N4148 R1 22K VDD R2 10 FGND 12345 P2ISP SWDCLK VDD SWDIO 12345678 J1XN297 MISOMOSISCKCSN CE VDD M1 M2 M3 M4 PA3 PA6 VIN 1206 VBAT C7 22U C8 47UF C5 104 L127uH C10104 CEEXT GND OUT NC U3 LC3030 D31N5817/SOD323 R1047K V_USB V_USB 1234 P1Micro USB V+DMDPV- VUSB_TO_MAIN VCC_5V_TO_DV Camera Module R51K R310K V_USB USB_DET CHARGE MODE NORMAL MODE S1 2P2T D1 1N5817/SOD323 D2 1N5817/SOD323 VBAT VCC_5V_USB GND VCC_5V VCC_5V VIDEOPHOTO U7BCT9926 U7ACT9926 U8BCT9926 U8ACT9926 IRQ BAT_DET VIN Q1 CT03A01 Card full/Error Card full/Error CE 1 CSN 2 SCLK 3 MISO 4 MOSI 5 IRQ 6 VDD3 7 VSS1 8 XT1 9 XT2 10 VDD_PA 11 ANTP 12 ANTN 13 VSS2 14 VDD2 15 IREF 16 VSS3 17 VDD1 18 DVDD 19 VSS4 20 U2 XN297 C132.2uFF FGND CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U4 PE6065 R12 3.3K 1% TBD MAX:350MA Q23904 1234567 JP1 Camera LED R211K R18220 Q43904 LED2 White LED VCC_5V M1M3M2M4 SPI1_CLK SPI1_MISO SPI1_MOSI RF_CSN RF_CE LED1LED2 VDD C17104 VDD C19104 R1310K C18104 VDD R11 0 PA6 RF_IRQ PA3 PA4 PA5 NRST R610K C26 100nF C201uF VDD VDD C27 103 NC 1 NC 2 NC 3 NC 4 AUX_CL 7 VDDIO 8 AD0/SDO 9 REGOUT 10 VDD 13 NC 14 NC 15 NC 16 NC 5 NC 6 FSYNC 11 INT 12 NC 17 GND 18 RESV 19 CPOUT 20 AUX_DA 21 nCS 22 SOL/SCLK 23 SDA/SDI 24 U6MPU-6880 INT LED1 LED2 USB_DET CH_DET CH_DET BAT_DET MISO MOSI SPI1_MOSI SPI1_MISOSPI1_CLKRF_CSNRF_CE Gyro_nCSSPI1_CLKSPI1_MOSI SPI1_MISO Gyro_nCS C9 22UF VDD 1 PF0/OSC_IN 2 PF1/OSC_OUT 3 NRST 4 VDDA 5 PA0 6 PA1 7 PA2 8 PA3 9 PA4 10 PA5 11 PA6 12 PA7 13 PB0 14 PB1 15 PB2 16 VDD 17 PA8 18 PA9 19 PA10 20 PA11 21 PA12 22 PA13 23 PA14 24 PA15 25 PB3 26 PB4 27 PB5 28 PB6 29 PB7 30 BOOT0 31 PB8 32 U5 STM32F031K4U6 UFQFN 32(16KB flash) TP2RES SWDCLK SWDIO NRST RF_IRQ TP1RES 0.033R 1/8W R38 R30430K C280.1uF R311K PA4 12060.033R 1/8W R40 R34430K C300.1uF R351K PA5 12060.033R 1/8W R39 R32430K C290.1uF R331K 12060.033R 1/8W R41 R36430K C310.1uF R371K For programming M3BCLSWO-1 Tan. Cap Tan. Cap Tan. Cap VIDEOPHOTO VCC_5V_TO_DVVUSB_TO_MAIN

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15031419HKG-003 i FCC ID: PQN44497RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A,11/F,Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon,Hong Kong Brand Name: AIR Hogs Model: 44497 Type of EUT: Transceiver Description of EUT: ARH RDC Helix Video Drone Serial Number: N/A FCC ID: PQN44497RX2G4 Date of Sample Submitted: March 31, 2015 Date of Test: March 31, 2015 to April 24, 2015 Report No.: 15031419HKG-003 Report Date: April 27, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15031419HKG-003 ii FCC ID: PQN44497RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandedge Requirement 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15031419HKG-003 iii FCC ID: PQN44497RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 2.5 Support Equipment List and Description.............................................................. 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications ...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.1 Radiated Emission on the Bandedge................................................................... 9 8.2 Discussion of Pulse Desensitization .................................................................. 10 8.3 Calculation of Average Factor............................................................................ 10 8.4 Emissions Test Procedures ............................................................................... 12 9.0 Equipment List .................................................................................................... 15 Issuing Laboratory: Intertek Testing Services Hong Kong L…
