PQN44497TX2G4ARH RDC Helix Vedio Drone

eContains 1 x 3.7V LiPo battery pack and 3 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V et 3 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. HELIX video drone Spin Master International SARL, hereby declares that this Helix Video Drone™ is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity can be requested through [email protected] or SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Par la présente, Spin Master International SARL déclare que ce jouet Helix Video Drone™ respecte les principales exigences ainsi que les dispositions pertinentes de la Directive 1999/5/EC. Une copie de la déclaration de conformité est disponible sur demande à l’adresse suivante : [email protected] ou SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Battery requirement for HELIX VIDEO DRONE™ / Alimentation de l'Helix VIDEO DRONE™ Power Supply / Alimentation : Rating: DC 3.7 V, 450 mAh / Puissance nominale : 3,7 V CC, 450 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack / Piles : 1 bloc-piles rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) / Requiert 1 bloc-piles rechargeable LiPo de 3,7 V (inclus) Battery requirement for Controller / Alimentation de la radiocommande Power Supply / Alimentation : Rating: DC 4.5 V, 0.45 W / Puissance nominale : 4.5 V CC, 0,45 W Batteries: 3 x 1.5 V AA/LR6/AM3 / Piles : 3 piles 1,5 V AA/LR6/AM3 Requires 3 x 1.5 V AA size batteries (not included) / Fonctionne avec 3 piles AA 1,5 V (non fournies) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raison…

Text truncated - open the document above for the full version.

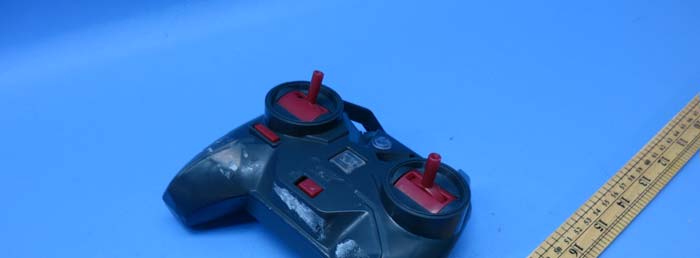

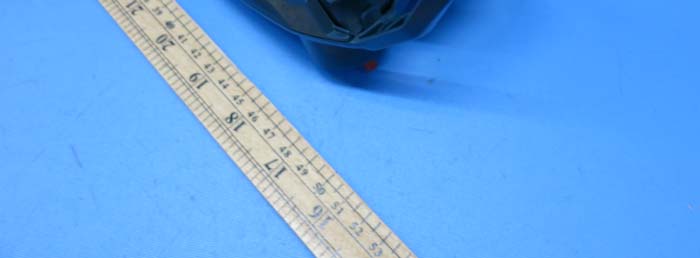

INTERTEK TESTING SERVICE Report No.: 15031419HKG-001 Equipment Photographs Model : 44497TX (External) FCC ID: PQN44497TX2G4

INTERTEK TESTING SERVICE Report No.: 15031419HKG-001 Equipment Photographs Model : 44497TX (Internal) FCC ID: PQN44497TX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-001 Equipment Photographs Model : 44497TX (Internal) FCC ID: PQN44497TX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-001 Equipment Photographs Model : 44497TX (Internal) FCC ID: PQN44497TX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-001 Equipment Photographs Model : 44497TX (Internal) FCC ID: PQN44497TX2G4 INTERTEK TESTING SERVICE Report No.: 15031419HKG-001 Equipment Photographs Model : 44497TX (Internal) FCC ID: PQN44497TX2G4

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Controller Unit) for a RC helicopter operating at 2412, 2424, 2442 and 2460MHz. The EUT is powered by 3 X 1.5V AA batteries. After switch on the EUT and paired with helicopter, the helicopter can be controlled to fly forward, backward and turning left/right direction by the controller. Also, the EUT has a button to control the Helicopter Unit for photo shooting and video recording. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 94.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.8dBμV/ m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.808mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =1.808mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.56 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Model NO. A4 1 1 R06 Owen Lu 2015-2-13 Camera Quad TX _ST version C3 104 C422uF C1 0.1uF R2 510K 1% R4200K 1% C50.1uF 16VC2 100uF BT1AA X 3 PA3 Vin GND Vout U2 L C1206 3.0V D1 1N5817 F11A 3.6*10MM Q1 3906 R1 10K R31K VDD PA6 PA1PA2PA3PA6PA7 PB0PB1PB2PB3PB4PB5PB7 PA0 VDD C60.1uF PA4 PC0PC1 PC5PC4PC3 R8330RR7330R PA7PA2 VDD RVDD PB3 FB LR 104C8C10 104 PB2 J16-F-B10K-506-LL 321456 VR2 RVDD PB1 Throttle Rotate 104C7C9 104 PB0 J16-DF-B10K1-606-B10K2-600-LL 321456 VR1T hrottle/Rotate SW8 Rubber Key PB4 Video Start/Stop RVDD SW5 Photo PC2 PC2PB6 PA0 Novice/Advance 2 31 SW7 SS-12F44-G4 3 2 1 LED2 Dual Color RED+GREEN SW2TrimF SW6TrimB SW9TrimL SW10TrimR R5100R VBAT ON SW1PB-22E60L OFF RubberKey Video Photo 12345678 M1 X N297 IRQ MISOMOSISCKCSN CE PC3 PC0 PC1PC4 PC5 VDD PC3 PC5 PC4PC1PC0 CWDP23-B3A PA1 PowerLED1M3AG4HDO R6470R VDD PC6 PC7 PD0 PD1 TactSW T actSW TactSW TactSW BZ1 Buzzer 12mm Q23904 R10330R VBAT PB5 PC2 2 PC1 3 PC0/CIN3- 4 PB0/AD0/INT1/CO 5 PB1/AD1/Vref 6 PB2/AD2 7 GND 8 PA0/INT0/COM0 16 PA5/RESET# 17 PA1/PWM/COM1 18 PA2/PWM/COM2 19 PA3/AD8/PWM/COM3 20 VDD 21 PA6/X2 22 PB3/AD3 9 PB4/AD4 10 PB5/AD5 1 1 PB6 /AD6 1 2 PB7 /AD7 1 3 PA7 /X1 23 PA4/ AD9 /C IN2- 24 PC 5/ CIN+ 25 PC 4 26 PC 3 27 PC6 1 PC 7 28 PD1 1 4 PD0 15 U1P MC 23 4-28 D2 1N5 81 7 R94 7R SW3Tri mYaw- SW4T ri mYa w+ PB6 PB 7 Optional PD0 PD1 M3ARG9UW 3B *T BD PC6 PC7 PMC234 U1

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15031419HKG-001 i FCC ID: PQN44497TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A,11/F,Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon,Hong Kong Brand Name: AIR Hogs Model: 44497 Type of EUT: Transceiver Description of EUT: ARH RDC Helix Video Drone Serial Number: N/A FCC ID: PQN44497TX2G4 Date of Sample Submitted: March 31, 2015 Date of Test: March 31, 2015 to April 24, 2015 Report No.: 15031419HKG-001 Report Date: April 27, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15031419HKG-001 ii FCC ID: PQN44497TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandedge Requirement 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15031419HKG-001 iii FCC ID: PQN44497TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 2.5 Support Equipment List and Description.............................................................. 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications ...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.1 Radiated Emission on the Bandedge................................................................... 9 8.2 Discussion of Pulse Desensitization .................................................................. 10 8.3 Calculation of Average Factor............................................................................ 10 8.4 Emissions Test Procedures ............................................................................... 12 9.0 Equipment List .................................................................................................... 15 Issuing Laboratory: Intertek Testing Services Hong Kong L…
