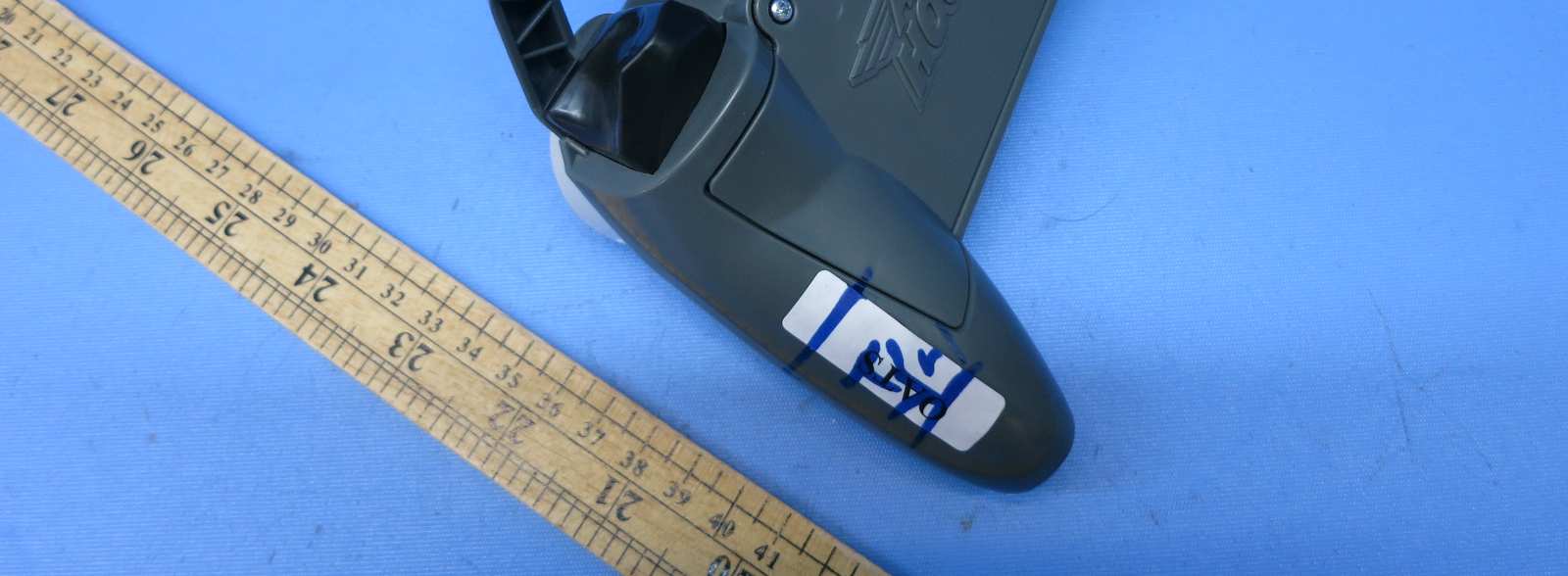

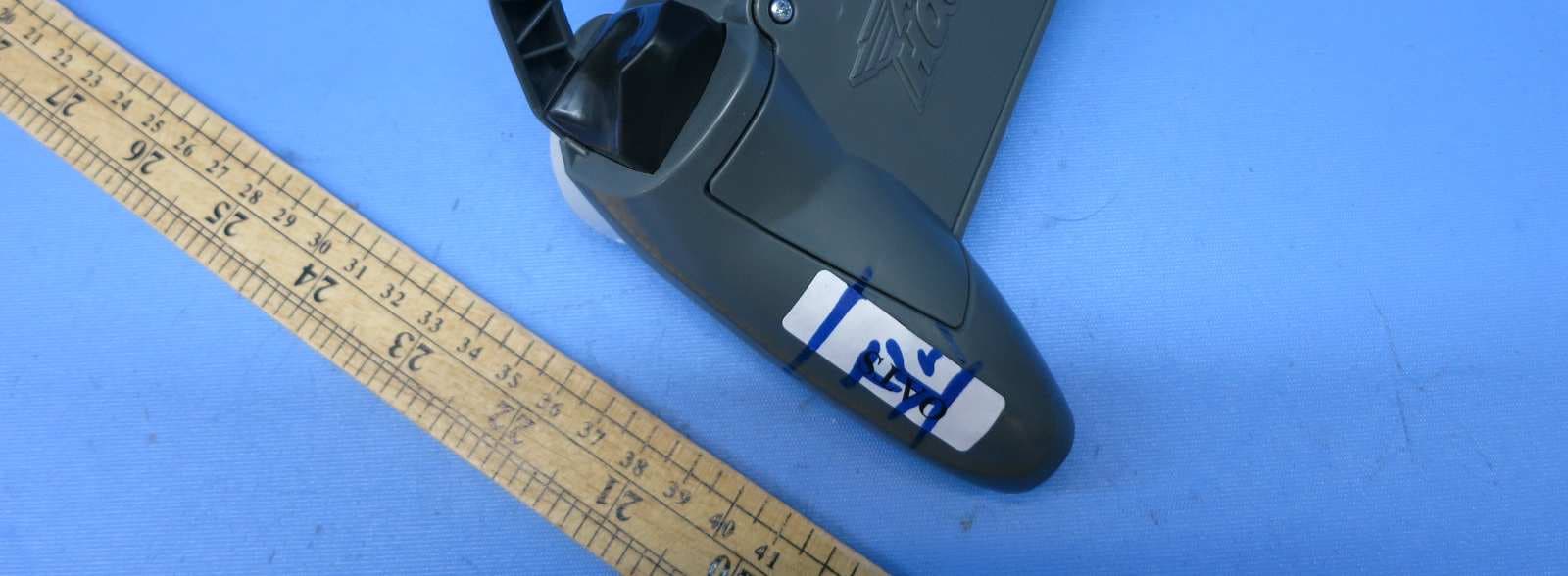

INTERTEK TESTING SERVICE Report No.: 15040305HKG-001 FCC ID: PQN44527TX2G4 Equipment Photographs Model: 44527 (External)

Tx IC: 4438B‐44527TX2G4 FCC ID: PQN44527TX2G4 Size :50mmX45mm Size :22mmX5mm Size :22mmX5mm Model: 44527TX

INTERTEK TESTING SERVICE Report No.: 15040305HKG-001 FCC ID: PQN44527TX2G4 Equipment Photographs Model: 44527 (Internal) INTERTEK TESTING SERVICE Report No.: 15040305HKG-001 FCC ID: PQN44527TX2G4 Equipment Photographs Model: 44527 (Internal) INTERTEK TESTING SERVICE Report No.: 15040305HKG-001 FCC ID: PQN44527TX2G4 Equipment Photographs Model: 44527 (Internal) INTERTEK TESTING SERVICE Report No.: 15040305HKG-001 FCC ID: PQN44527TX2G4 Equipment Photographs Model: 44527 (Internal) INTERTEK TESTING SERVICE Report No.: 15040305HKG-001 FCC ID: PQN44527TX2G4 Equipment Photographs Model: 44527 (Internal)

Analysis Report Report No.: 15040305HKG-001 The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Controller Unit) for a RC helicopter operating at 2411MHz to 2465MHz. The EUT is powered by 6 X 1.5V AA batteries. After switch on the EUT and paired with helicopter, the helicopter can be controlled to fly forward, backward and turning left/right direction by the controller. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 93.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +3dB / - 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 96.1dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.222mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 1.222mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.465) mW = 9.55 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040305HKG-001R1 i FCC ID: PQN44527TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: AIR Hogs Model: 44527 Type of EUT: Transceiver Description of EUT: ARH RDC Star War X-Wing Fighter Serial Number: N/A FCC ID: PQN44527TX2G4 Date of Sample Submitted: April 08, 2015 Date of Test: April 08, 2015 to May 08, 2015 Report No.: 15040305HKG-001R1 Report Date: June 24, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040305HKG-001R1 ii FCC ID: PQN44527TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040305HKG-001R1 iii FCC ID: PQN44527TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................2 2.0 System Test Configuration ..............................................................................3 2.1 Justification.....................................................................................................3 2.2 EUT Exercising Software................................................................................3 2.3 Special Accessories .......................................................................................3 2.4 Measurement Uncertainty...............................................................................3 2.5 Support Equipment List and Description.........................................................3 3.0 Emission Results .............................................................................................4 3.1 Field Strength Calculation...............................................................................4 3.2 Radiated Emission Configuration Photograph ................................................5 3.3 Radiated Emission Data .................................................................................5 4.0 Equipment Photographs ..................................................................................9 5.0 Product Labelling .............................................................................................9 6.0 Technical Specifications .................................................................................9 7.0 Instruction Manual ...........................................................................................9 8.0 Miscellaneous Information ............................................................................10 8.1 Radiated Emission on the Bandedge............................................................10 8.2 Discussion of Pulse Desensitization .............................................................11 8.3 Calculation of Average Factor.......................................................................11 8.4 Emissions Test Procedures ..........................................................................14 9.0 Equipment List ...............................................................................................17 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS d…
