PQN44529TX2G4ARH RDC Star Wars Millennium Falcon Quad

eContains 1 x 3.7V LiPo battery pack and 6 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V et 6 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. Millenium FaLcon QUAD Spin Master International SARL, hereby declares that this Millennium Falcon™ Quad is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity can be requested through [email protected] or SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Par la présente, Spin Master International SARL déclare que ce jouet Millennium Falcon™ Quad respecte les principales exigences ainsi que les dispositions pertinentes de la Directive 1999/5/EC. Une copie de la déclaration de conformité est disponible sur demande à l’adresse suivante : [email protected] ou SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Battery requirement Caractéristiques du bloc-piles Power Supply / Alimentation : Rating: DC 3.7 V, 450 mAh / Puissance nominale : 3,7 V CC, 450 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack / Piles : 1 bloc-piles rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) / Requiert 1 bloc-piles rechargeable LiPo de 3,7 V (inclus) Battery requirement for Controller / Caractéristiques des piles de la radiocommande Power Supply / Alimentation : Rating: DC 12 V, 0.45 W / Puissance nominale : 12 V CC, 0,45 W Batteries: 6 x 1.5 V AA/LR6/AM3 / Piles : 6 piles 1,5 V AA/LR6/AM3 Requires 6 x 1.5 V AA size batteries (included) / Fonctionne avec 6 piles AA 1,5 V (incluses) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre …

Text truncated - open the document above for the full version.

TX Unit Power 1 (AA*6=9V MCU 2.4G RF Transmit ter Power 2 (USB=5V) Power managem ent Key/VR input Charging Unit LIPO Voice chip Speaker 3 Block Diagram LNA RX Fiter GFSK Demodulator PA GFSK Modulator TX DAC RX FIFO TX FIFO Baseband Protocol Stack SPI Register MISO MOSI CSN SCK IRQ CE Baseband RF Receiver RF Transmitter ANT1 ANT2 RF Synthesiser Power Managerment XC1 XC2 VSS VDD IREF DVDD VDD_PA Figure 1 XN297 Block Diagram http://www.panchip.com 权 版 ©2014 启电 磐微子

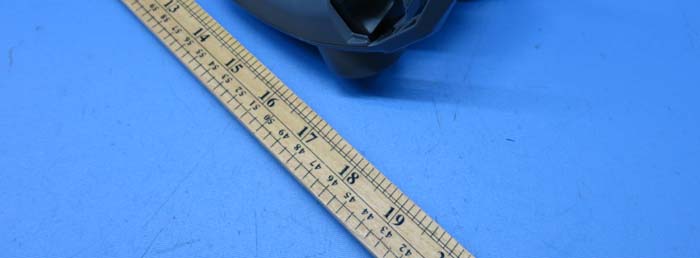

INTERTEK TESTING SERVICE Report No.: 15040001HKG-001 Equipment Photographs Model : 44529TX (External) FCC ID: PQN44529TX2G4

1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE Standard Scale 200% Standard Scale 100% 10.702 7.42 Standard Scale 200% 0.6 a a1.22 a1.5 a 0.8 a 1.2 a h Height h shall be greator of 0.3a or 1mm Standard Scale 100% 10.702 7.42 Standard Scale 200% Standard Scale 200% 0.6 a a1.22 a1.5 a 0.8 a 1.2 a h Height h shall be greator of 0.3a or 1mm 52.5 8.0 11.2 14.5 11.6 20.26 1.53 7.76 1.5V LR6 AA SIZE 34.4 32.4 30 10.3 5.35 2.6 Font: Arial Unit :MM FCC ID :PQN44438M04RX2G4 CAN ICES-3 (B)/NMB-3(B) IC:44438B-44529RX MODEL:44529RX Spin Master Ltd. 1.78 23.3 13.6 1.8 29 18 2.6 51.35 8.08.0 54.5 6 3.25 Tampo Plate Art Work MISE EN GARDE:L'INSTALLATION DES PILES DOIT ÊRE EFFECTUÉE PAR UN ADULTE. CAUTION: TO BE INSTALLED BY ADULT ONLY MISE EN GARDE:L'INSTALLATION DES PILES DOIT ÊRE EFFECTUÉE PAR UN ADULTE. CAUTION: TO BE INSTALLED BY ADULT ONLY 1.75 4.3 69 2.2 7.75 29.5 © SML ALL RIGHTS RESERVED. MADE IN CHINA © SML ALL RIGHTS RESERVED. MADE IN CHINA SPIN MASTER LTD., 450 FRONT STREET WEST, TORONTO, ONM5V 1B6 CANADA.SPIN MASTER INTERNATIONAL,S.A.R.L., 16 AVENUE PASTEUR,L-2310, LUXEMBOURG SPIN MASTER LTD., 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA. SPIN MASTER INTERNATIONAL, S.A.R.L., 16 AVENUE PASTEUR, L-2310, LUXEMBOURG © 2015 LFL LLC & ™ 44529 2.2 4.832 23.7 © 2015 LFL LLC & ™ 44529 7.5 10.501 FCC ID:PQN44529TX2G4 CAN ICES-3 ( B ) /NMB-3 ( B ) IC:4438B-44529TX MODEL:44529TX SPIN MASTER LTD. FCC ID:PQN44529TX2G4 CAN ICES-3 ( B ) /NMB-3 ( B ) IC:4438B-44529TX MODEL:44529TX SPIN MASTER LTD.

INTERTEK TESTING SERVICE Report No.: 15040001HKG-001 Equipment Photographs Model : 44529TX (Internal) FCC ID: PQN44529TX2G4 INTERTEK TESTING SERVICE Report No.: 15040001HKG-001 Equipment Photographs Model : 44529TX (Internal) FCC ID: PQN44529TX2G4 INTERTEK TESTING SERVICE Report No.: 15040001HKG-001 Equipment Photographs Model : 44529TX (Internal) FCC ID: PQN44529TX2G4 INTERTEK TESTING SERVICE Report No.: 15040001HKG-001 Equipment Photographs Model : 44529TX (Internal) FCC ID: PQN44529TX2G4 INTERTEK TESTING SERVICE Report No.: 15040001HKG-001 Equipment Photographs Model : 44529TX (Internal) FCC ID: PQN44529TX2G4 INTERTEK TESTING SERVICE Report No.: 15040001HKG-001 Equipment Photographs Model : 44529TX (Internal) FCC ID: PQN44529TX2G4

Technical Description The brief circuit description is listed as below: 1) U1 acts as MCU (PMC234-28). 2) U2 acts as Voltage Regulator (LC1218SOT89 3.3V). 3) U4 acts as charging unit (PE6065). 4) U5 acts as DC-to-DC step-down switching regulator (ETA1483). 5) M1 acts as 2.4GHz RF transceiver module (XN297). 6) Y1 acts as 16MHz crystal oscillator providing clock for M1. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 93.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Controller Unit) for a RC helicopter operating at 2412, 2424, 2442 and 2460MHz. The EUT is powered by 6 X 1.5V AA batteries. After switch on the EUT and paired with helicopter, the helicopter can be controlled to fly forward, backward, turning left/right direction by the controller. While controlling the helicopter, the controller will produce some sound effects. Also, the EUT has a charging circuitry, the corresponding receiver can be charged by this controller. After paired with the helicopter, the helicopter will transmit a 2433MHz signal. The EUT will keep transmitting 2412, 2424, 2442 and 2460MHz after received this signal from helicopter. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 93.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 96.9dBμV/ m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.469mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =1.469mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.56 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Model NO. A4 1 1 R06 Owen Lu 2/9/2015 Star Wars Millennium Falcon Quad TX (Smart TX) PA1 220uFC13 0.1uFC14 R18 91K 1% 100uF/16V C11 390K 1% TBD R13 L5 15uH 1.5A 0.1uFC12 Charger unit PA4 BST 1 IN 2 SW 3 GND 4 FB 5 COMP 6 EN 7 SS 8 U5 ETA1483 C9 10nF C153.3nF R145.6KC10 0.1uF CD54 PB6 L1 SZ2012K60/TF L2 SZ2012K60/TF C3 104 C422uF C1 0.1uF C50.1uF 16VC2 100uF BT1AA X 6 VBAT Vin GND Vout U2 LC1218 SOT89 3.3V F1T1.0A Q1 3906 R1 10K R31K VDD PA6 ONOFF PA1PA2PA3 Reset PA6PA7 PB0PB1PB2PB3 PA0 VDD C60.1uF PA4 PC0PC1 PC5PC4PC3 R22330RR20330R PA7PA2 VDD RVDD PB3 FB LR 104C17C19 104 PB2 321456 VR2 RVDD PB1 Throttle Rotate 104C16C18 104 PB0 321456 VR1Throttle/Rotate RVDD PC2 Programming pin list: PA0 、 PA3 、 PA4 、 PA5 、 PA6 、 PA7 、 VDD 、 GND 。 MaxCurrent :500MA+/-30MA L4 SZ2012K60/TF L3 SZ2012K60/TF 44529 PC2 Power LED2 M3AG4HDO R21470R VDD dual color 12345 J1 Micro USB Socket D1 1N5817 D21N5817 R7100K VBAT VUSB D3 1N5817 9V D41N5817 Q33904 R84.7K C70.1uF R10100K Reset R610K C80.1uF 12345678 M1 XN297 IRQ MISOMOSISCKCSN CE PC3 PC0 PC1PC4 PC5 VDD PC3PC5 PC4 PC1PC0 CWDP23-B3A SW1PB-22E60L R510R PA3 R4 *274K 1% (TBD) R2 510K 1% 12 J2 Charger R1747K CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U4 PE6065 R152.7K 1% TBD 3 2 1 LED1 Dual Color RED+GREEN R9100K 5V 3.6*10MM F20.75A PB6 J16-F-B10K-506-LL J16-DF-B10K1-606-B10K2-600-LL SPK1 27mm*9mm 16R R194.7K R12 47K M3ARG9HW1B Q5 3904 Q23904 PB5 PB5 VDD PA0 Spk ON/OFF 2 31 SW7 SS-12D02 VDD1 10 VDD 14 PA0 9 PA1 8 PA2 7 PA3 6 GND1 5 GND2 11 PWM1 12 PWM2 13 PB0 4 PB1 3 PB2/IR 2 PB3 1 U6 GTN4B_125B PC2 2 PC1 3 PC0/CIN3- 4 PB0/AD0/INT1/CO 5 PB1/AD1/Vref 6 PB2/AD2 7 GND 8 PA0/INT0/COM0 16 PA5/RESET# 17 PA1/PWM/COM1 18 PA2/PWM/COM2 19 PA3/AD8/PWM/COM3 20 VDD 21 PA6/X2 22 PB3/AD3 9 PB4/AD4 10 PB5/AD5 11 PB6/AD6 12 PB7/AD7 13 PA7/X1 23 PA4/AD9/CIN2- 24 PC5/CIN+ 25 PC4 26 PC3 27 PC6 1 PC7 28 PD1 14 PD0 15 U1 PMC234-28 SW3Left Key SW4Right Key PD1 PD0 PD1 PD0 1 1 2 2 3 3 4 4 DD CC BB AA SCK MOSI VDDPA CSN IRQ CE MISO +3.3V C7 2.2pF C11 22pF L1 5.6nH C1 33nF R51M C4 820nF C3 0.5PF C12 22pF L3 4.7nH L2 10nH C6 1.2PF CSN 2 MOSI 4 MISO 5 IRQ 6 VDD 7 VSS 8 XTALP 9 XTALN 10 IREF 16 VDD 15 VSS 14 RFN 13 RFP 12 VDDPA 11 CE 1 VSS 20 CDVDD 19 VDD 18 VSS 17 SCK 3 U1 XN297 1 1 2 2 3 3 4 4 X1 16M Hz R1 22K GGND GGND GGNDGGND GGND GGND GGND GGND GGND GGND E1 Antenna P0C101 P0C102 P0C301 P0C302 P0C401 P0C402 P0C601 P0C602 P0C701 P0C702 P0C1101 P0C1102 P0C1201 P0C1202 P0E101 P0L101 P0L102 P0L201 P0L202 P0L301 P0L302 P0R101 P0R102 P0R501 P0R502 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U109 P0U1010 P0U1011 P0U1012 P0U1013 P0U1014 P0U1015 P0U1016 P0U1017 P0U1018 P0U1019 P0U1020 P0X101 P0X102 P0X103 P0X104 P0C401 P0U107 P0U1015 P0U1018 N0+303V P0U101 N0CE P0U102 N0CSN P0C102 P0C302 P0C402 P0C602 P0C1102 P0C1202 P0R101 P0U108 P0U1014 P0U1017 P0U1020 P0U1021 P0X102 P0X104 P0U106 N0IRQ P0U105 N0MISO P0U104 N0MOSI P0C101 P0U1019 P0C301 P0E101 P0L301 P0C701 P0L302 P0C702 P0L102 P0U1013 P0C1101 P0R501 P0U109 P0X101 P0C1201 P0R502 P0U1010 P0X103 P0L101 P0L202 P0U1012 P0R102 P0U1016 P0U103 N0SCK P0C601 P0L201 P0U1011 N0VDDPA N0+303V P0C401 P0U107 P0U1015 P0U1018 N0CE P0U101 N0CSN P0U102 P0C102 P0C302 P0C402 P0C602 P0C1102 P0C1202 P0R101 P0U108 P0U1014 P0U1017 P0U1020 P0U1021 P0X102 P0X104 N0IRQ P0U106 N0MISO P0U105 N0MOSI P0U104 P0C101 P0U1019 P0C301 P0E101 P0L301 P0C701 P0L302 P0C702 P0L102 P0U1013 P0C1101 P0R501 P0U109 P0X101 P0C1201 P0R502 P0U1010 P0X103 P0L101 P0L202 P0U1012 P0R102 P0U1016 N0SCK P0U103 N0VDDPA P0C601 P0L201 P0U1011 2412-2460MHz

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040001HKG-001 i FCC ID: PQN44529TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: AIR Hogs Model: 44529TX Type of EUT: Transceiver Description of EUT: ARH RDC Star Wars Millennium Falcon Quad Serial Number: N/A FCC ID: PQN44529TX2G4 Date of Sample Submitted: April 01, 2015 Date of Test: April 01, 2015 to April 24, 2015 Report No.: 15040001HKG-001 Report Date: April 27, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040001HKG-001 ii FCC ID: PQN44529TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040001HKG-001 iii FCC ID: PQN44529TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................8 5.0 Product Labelling .............................................................................................8 6.0 Technical Specifications .................................................................................8 7.0 Instruction Manual ...........................................................................................8 8.0 Miscellaneous Information ..............................................................................9 8.1 Radiated Emission on the Bandedge..............................................................9 8.2 Discussion of Pulse Desensitization .............................................................10 8.3 Calculation of Average Factor.......................................................................10 8.4 Emissions Test Procedures ..........................................................................12 9.0 Equipment List ...............................................................................................15 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15040001HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44529TX FCC ID: PQN44529TX2G4 INTERTEK TESTING SERVICE Report No: 15040001HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44529TX FCC ID: PQN44529TX2G4
