PQN44548RX2G4ARH RDC Helix Ion Drone2.4 Ast

eContains 1 x 3.7V LiPo battery pack and 4 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V et 4 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. HELIX ION Spin Master International SARL, hereby declares that this Helix Ion™ is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity can be requested through [email protected] or SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Par la présente, Spin Master International SARL déclare que ce jouet Helix Ion™ respecte les principales exigences ainsi que les dispositions pertinentes de la Directive 1999/5/EC. Une copie de la déclaration de conformité est disponible sur demande à l’adresse suivante : [email protected] ou SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Battery requirement for Helix Ion™ / Caractéristiques du bloc-piles de l’Helix Ion™ Power Supply / Alimentation : Rating: DC 3.7 V, 140 mAh / Puissance nominale : 3,7 V CC, 140 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack / Piles : 1 bloc-piles rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) / Requiert 1 bloc-piles rechargeable LiPo de 3,7 V (inclus) Battery requirement for Controller / Caractéristiques des piles de la radiocommande Power Supply / Alimentation : Rating: DC 6 V, 0.45 W / Puissance nominale : 6 V CC, 0,45 W Batteries: 4 x 1.5 V AA/LR6/AM3 / Piles : 4 piles 1,5 V AA/LR6/AM3 Requires 4 x 1.5 V AA size batteries (included) / Fonctionne avec 4 piles AA 1,5 V (incluses) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre toute i…

Text truncated - open the document above for the full version.

RX Unit MCU 2.4G RF Receiver Power (LIPO 3.7V) Motor Driver Motor Motor Protection SOC Unit 2.4GHz Transceiver for BT16P380 1. Block Diagram LNA T/R SW vos1 qud_n_90 qud_90 op_in+ op_out CMP OP v_sw ++ v_cap pd_out vdd_lnaREG vss_lna Channel Filter vos2 SW_EN Data_out Frequency Synthesizer 0 90 RSSI Limiting AMP Demodulator rssi vdd_base vss_base REG PA Data_in ant Modulator vco_tune cp_out vss_vco vdd_vco REG Bat_vdd_3.3 Bat_vss_3.3

09/12/2012 page 4 of 4 Letter of Agency "I, an officer of Spin Master Toys Far East Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 05 day Feb of 2015 By Signature Andy Wong PrintedName Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

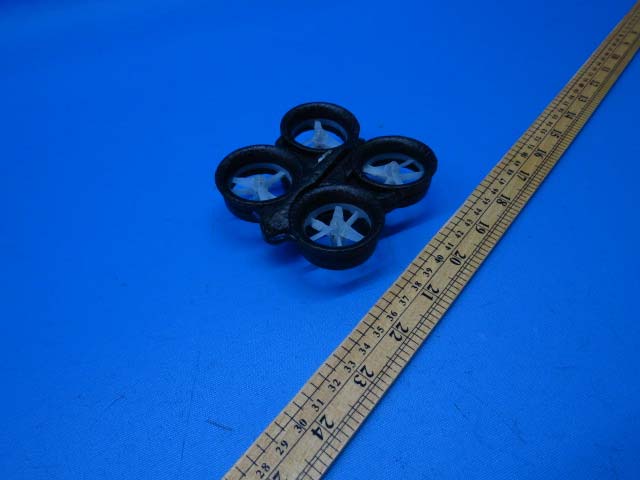

INTERTEK TESTING SERVICE Report No.: 15010735HKG-003 Equipment Photographs Model : 44548 (External) FCC ID: PQN44548RX2G4 IC: 4438B-44548RX

PDF created with pdfFactory trial version www.pdffactory.com

INTERTEK TESTING SERVICE Report No.: 15010735HKG-003 Equipment Photographs Model : 44548 (Internal) FCC ID: PQN44548RX2G4 IC: 4438B-44548RX INTERTEK TESTING SERVICE Report No.: 15010735HKG-003 Equipment Photographs Model : 44548 (Internal) FCC ID: PQN44548RX2G4 IC: 4438B-44548RX INTERTEK TESTING SERVICE Report No.: 15010735HKG-003 Equipment Photographs Model : 44548 (Internal) FCC ID: PQN44548RX2G4 IC: 4438B-44548RX INTERTEK TESTING SERVICE Report No.: 15010735HKG-003 Equipment Photographs Model : 44548 (Internal) FCC ID: PQN44548RX2G4 IC: 4438B-44548RX

Technical Description The brief circuit description is listed as below: 1)U1 acts as Voltage Regulator (LC1206 SOT-23 3.0). 2) 3) U3 acts as 2.4GHz RF transceiver module. 4) 5) U4 acts as motion processor. X1 is 24MHz crystal oscillator providing clock for U3. Q6, Q7, Q8 and Q9 act as Motor Driver. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 94.1 dBμV/m at 3m M aximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Helicopter Unit) for a RC helicopter operating at 2412, 2442 and 2470MHz. The EUT is powered by 1 X 3.7V rechargeable battery (Li-Poly). After switch on the EUT and paired with controller, the EUT can be controlled to fly forward, backward, turning left/right direction and rolling by the corresponding controller. To charge the internal battery in the helicopter, either plug the charging connector from the controller into the charging jack on the helicopter for starting the charge process or using USB charging cable for charging via PC. According to the KDB 447498: Bas ed on the Maximum allowed field strength of production tolerance was 97.1dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.539mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =1.539mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.470) mW = 9.54 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 94.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

11 22 33 44 55 66 77 88 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Model NO. Micro Quad flyer RX R03 Owen Lu 2015-1-14 1 1 R2210R R2610K C250.1uF - + M1 VBAT PTC 210 PCM BT1 3.7V_LiPo_140mAH R8100R R9 51R R101K R111K R1247K R1347K Dual Transistor R30 20K R18100K R31M1%R6510K 1% C130.1uF C2422uF/10V 12 CON1Charge port D2 1N4148 3mm M3ARG9UW3B 2 3 1 LED1 Dual Color RED+GREEN SOT-363 Q1B Q1A Q6 Dual N-CH CT8205 Q2APNP R2310R R2710K C260.1uF - + M2 R31 20K R19100K D3 1N4148 Q7 Dual N-CH CT8205 Q2BPNP R2410R R2810K C270.1uF - + M3 R32 20K R20100K D4 1N4148 Q8 Dual N-CH CT8205 Q3APNP R2510R R2910K C280.1uF - + M4 R33 20K R21100K D5 1N4148 Q9 Dual N-CH CT8205 Q3BPNP M1 M2 M3 M4 P27 P34 P35 P17 VIN VBAT VIN LOW_BAT R141K R151K R161K R171K C22 100nF C211uF VDD VDD R42K7 R52K7 VDD C23 103 SDASCL LED_R LED_G Vi Vo GND U1 LC1206 SOT-23 3.0 C40.1uF C347uF VDD C5 47U C6 22UF C2 104 L1NL C7104 CEEXT GND OUT NC U2 D11N5817 VIN R10 NC 1 NC 2 NC 3 NC 4 AUX_CL 7 VDDIO 8 AD0/SDO 9 REGOUT 10 VDD 13 NC 14 NC 15 NC 16 NC 5 NC 6 FSYNC 11 INT 12 NC 17 GND 18 RESV 19 CPOUT 20 AUX_DA 21 nCS 22 SOL/SCLK 23 SDA/SDI 24 U4MPU-6880 INT Optional 44548 SW1 SS-22D16 OFFON R210 SDASCL XRESET LED_signal M4EN M3EN M2EN M1EN VPP DVSS 31 P13/SPI0CS 38 ANT_PA 8 10 VDD_GUARD 15 VSS_GND 13 VSS_LOGIC 14 VD1 16 11 AVSS18 20 AD06/P26 25 AD07/P27 26 REG_LNA 5 AD15/P17 29 AD14/P16 30 DVDD 32 VPP 36 P12/SPI0CK 39 VSS_AC2 7 LDO_OUT 17 VSS_AC1 6 VSS_VCO_G 9 VOSN 2 P15/2CSDA 34 IOVDD 33 XCLKO 18 XRESET 37 P14/2CSCL 35 P04/PWM4 44 P05/PWM5 45 P06/PWM6 46 P07/PWM7 47 VSS_BASE 48 V_CAP 1 VOSP 3 REG_BASE 4 AD05/P25 24 AD03/P23 22 XCLKI 19 AD04/P24 23 P03/PWM3 43 P02/PWM2 42 P01/PWM1 41 P00/PWM0 40 ADCVDD 21 REG_VCO 12 AD12/P34 27 AD13/P35 28 U3 BT16P380 IR_TX IR_RX INT LEDEN LOWBAT C1 NC LQFP48 VD1VDD L3 22nH ANT1 L2 4.7nH JP1 NC C81nF C10 104 C11 0R C121pF C9 0.5pF XCLKI XCLKO VDD_Guard X124MHz C14 104 C16105 C17104 C18105 C19104 VDD VDD VD1 R7NC C15 30P C20 30P CL=20pF, 10ppmAT26 T2T3 T1 P17P35P34P27 LBC857BDW1T1G/SOT-363 LBC857BDW1T1G/SOT-363 LBC857BDW1T1G/SOT-363 LBC857BDW1T1G/SOT-363

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15010735HKG-003 i FCC ID: PQN44548RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: AIR Hogs Model: 44548RX Additional Model: 6026517, 6026518, 1035754, 1035755 Phantom No.: 20070590/ 20070591/ 20070592/ 20070593 Type of EUT: Transceiver Description of EUT: ARH RDC Helix Ion Drone2.4 Ast Serial Number: N/A FCC ID: PQN44548RX2G4 Date of Sample Submitted: January 20, 2015 Date of Test: January 20, 2015 to February 06, 2015 Report No.: 15010735HKG-003 Report Date: April 10, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15010735HKG-003 ii FCC ID: PQN44548RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission in Restricted Bands 15.205 Pass Radiated Emission Radiated Emission on the Bandedge 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15010735HKG-003 iii FCC ID: PQN44548RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 2 2.0 System Test Configuration ................................................................................... 3 2.1 Justification.......................................................................................................... 3 2.2 EUT Exercising Software..................................................................................... 3 2.3 Special Accessories ............................................................................................ 3 2.4 Measurement Uncertainty.................................................................................... 3 2.5 Support Equipment List and Description.............................................................. 3 3.0 Emission Results .................................................................................................. 4 3.1 Field Strength Calculation.................................................................................... 4 3.2 Radiated Emission Configuration Photograph ..................................................... 5 3.3 Radiated Emission Data ...................................................................................... 5 4.0 Equipment Photographs ....................................................................................... 9 5.0 Product Labelling .................................................................................................. 9 6.0 Technical Specifications ...................................................................................... 9 7.0 Instruction Manual ................................................................................................ 9 8.0 Miscellaneous Information ................................................................................. 10 8.1 Radiated Emission on the Bandedge................................................................. 10 8.2 Discussion of Pulse Desensitization .................................................................. 13 8.3 Calculation of Average Factor............................................................................ 13 8.4 Emissions Test Procedures ............................................................................... 15 9.0 Equipment List .......................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15010735HKG-003 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44548 FCC ID: PQN44548RX2G4 IC: 4438B-44548RX INTERTEK TESTING SERVICE Report No: 15010735HKG-003 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44548 FCC ID: PQN44548RX2G4 IC: 4438B-44548RX
