PQN44548TX2G4ARH RDC Helix Ion Drone2.4 Ast

eContains 1 x 3.7V LiPo battery pack and 4 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 bloc-piles LiPo 3,7 V et 4 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. HELIX ION Spin Master International SARL, hereby declares that this Helix Ion™ is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity can be requested through [email protected] or SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Par la présente, Spin Master International SARL déclare que ce jouet Helix Ion™ respecte les principales exigences ainsi que les dispositions pertinentes de la Directive 1999/5/EC. Une copie de la déclaration de conformité est disponible sur demande à l’adresse suivante : [email protected] ou SPIN MASTER INTERNATIONAL S.A.R.L., 16 Avenue Pasteur, L-2310, Luxembourg. Battery requirement for Helix Ion™ / Caractéristiques du bloc-piles de l’Helix Ion™ Power Supply / Alimentation : Rating: DC 3.7 V, 140 mAh / Puissance nominale : 3,7 V CC, 140 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack / Piles : 1 bloc-piles rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) / Requiert 1 bloc-piles rechargeable LiPo de 3,7 V (inclus) Battery requirement for Controller / Caractéristiques des piles de la radiocommande Power Supply / Alimentation : Rating: DC 6 V, 0.45 W / Puissance nominale : 6 V CC, 0,45 W Batteries: 4 x 1.5 V AA/LR6/AM3 / Piles : 4 piles 1,5 V AA/LR6/AM3 Requires 4 x 1.5 V AA size batteries (included) / Fonctionne avec 4 piles AA 1,5 V (incluses) eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre toute i…

Text truncated - open the document above for the full version.

TX Unit Power 1 (AA*4=6V MCU 2.4G RF Transmit ter SOC Unit Power 2 (USB=5V) Power managem ent Key/VR input Charging Unit LIPO 2.4GHz Transceiver for BT16P380 1. Block Diagram LNA T/R SW vos1 qud_n_90 qud_90 op_in+ op_out CMP OP v_sw ++ v_cap pd_out vdd_lnaREG vss_lna Channel Filter vos2 SW_EN Data_out Frequency Synthesizer 0 90 RSSI Limiting AMP Demodulator rssi vdd_base vss_base REG PA Data_in ant Modulator vco_tune cp_out vss_vco vdd_vco REG Bat_vdd_3.3 Bat_vss_3.3

09/12/2012 page 4 of 4 Letter of Agency "I, an officer of Spin Master Toys Far East Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 05 day Feb of 2015 By Signature Andy Wong PrintedName Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

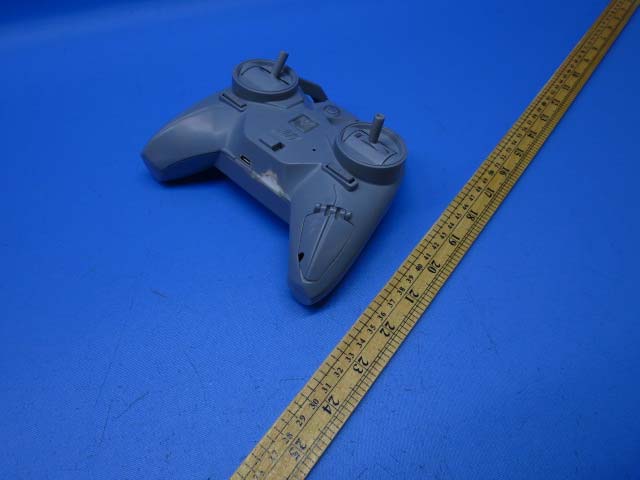

INTERTEK TESTING SERVICE Report No.: 15010735HKG-001 Equipment Photographs Model : 44548 (External) FCC ID: PQN44548TX2G4 IC: 4438B-44548TX

2.6 62.5 Standard Scale 200% 7.5 10.501 Standard Scale 100% 10.702 7.42 Standard Scale 200% 0.6 a a1.22 a1.5 a 0.8 a 1.2 a h Height h shall be greator of 0.3a or 1mm 1.5V LR6 AA SIZE 34.4 32.4 30 10.3 5.35 2.6 Font: Arial Unit :MM 8.08.0 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE 1.5V LR6 AA SIZE FCC ID:PQN44548TX2G4 IC:4438B-44548TX MODEL:44548TX SML CHINA 1.60 22.7 8.8 FCC ID:PQN44548TX2G4 IC:4438B-44548TX MODEL:44548TX SML CHINA 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA. SPIN MASTER INTERNATIONAL, S.A.R.L., 16 AVENUE PASTEUR, L-2310, LUXEMBOURG 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA. SPIN MASTER INTERNATIONAL, S.A.R.L., 16 AVENUE PASTEUR, L-2310, LUXEMBOURG This device complies with Par t 15 of the FCC Rules. Operation is subject to the following two conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 ( B ) / NMB-3 ( B ) 1.6 13.3 35.8 1.43 12.8 41.8 This device complies with Par t 15 of the FCC Rules. Operation is subject to the following two conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 ( B ) / NMB-3 ( B )

INTERTEK TESTING SERVICE Report No.: 15010735HKG-001 FCC ID: PQN44548TX2G4 IC: 4438B-44548TX Equipment Photographs Model : 44548 (Internal) INTERTEK TESTING SERVICE Report No.: 15010735HKG-001 FCC ID: PQN44548TX2G4 IC: 4438B-44548TX Equipment Photographs Model : 44548 (Internal) INTERTEK TESTING SERVICE Report No.: 15010735HKG-001 FCC ID: PQN44548TX2G4 IC: 4438B-44548TX Equipment Photographs Model : 44548 (Internal) INTERTEK TESTING SERVICE Report No.: 15010735HKG-001 FCC ID: PQN44548TX2G4 IC: 4438B-44548TX Equipment Photographs Model : 44548 (Internal) INTERTEK TESTING SERVICE Report No.: 15010735HKG-001 FCC ID: PQN44548TX2G4 IC: 4438B-44548TX Equipment Photographs Model : 44548 (Internal)

Technical Description The brief circuit description is listed as below: 1) 2) U2 acts as MCU (BT16P380). U3 acts as charging unit (PE6065) 3) 4) 5) 6) M1 acts as 2.4GHz RF transceiver module (BT16P380_Module). Y1 is 12MHz crystal oscillator providing clock for M1. VR1 and VR2 act as motion driver. J1 acts as Micro USB Socket. P1 acts as Charging Plug. Antenna Type: Internal ant enna Antenna Gain: 0dBi Nominal rated field strength: 94.6dBμV/m at 3m M aximum allowed field strength of production tolerance: +/- 3dB U1 acts as Voltage Regulator (LC1206). 7) 8)

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Controller Unit) for a RC helicopter operating at 2412, 2442 and 2470MHz. The EUT is powered by 4 X 1.5V AA batteries. After switch on the EUT and paired with helicopter, the helicopter can be controlled to fly forward, backward, turning left/right direction and rolling by the controller. Also, the corresponding controller has a charging circuitry, the EUT can be charged by the controller. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 94.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.6dBμV/ m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.726mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =1.726mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.470) mW = 9.54 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Model NO. A4 1 1 R03 Owen Lu 2015-1-14 Micro Quad TX 104C23C25 104 J16-F-B10K-506-LL 321456 VR2 104C22C24 104 J16-DF-B10K1-606-B10K2-600-LL 123654 VR1T hrottle/Rotate C11100P C1930pF C1430pF 12 Y112M R13NL XTALIXTALO R100 C81NF C100.1uF V_CAP 1 VOSN 2 VOSP 3 REG_BASE 4 REG_LNA 5 VSS_AC1 6 VSS_AC2 7 ANT_PA 8 VSS_VCO_G 9 1011 REG_VCO 12 VSS_GND 13 VSS_LOGIC 14 VDD_GUARD 15 VD1 16 LDO_OUT 17 XCKO 18 XCKI 19 AVSS18 20 ADCVDD 21 AD03/P23 22 AD04/P24 23 AD05/P25 24 AD06/P26 25 AD07/P27 26 AD12/P34 27 AD13/P35 28 AD15/P17 29 AD14/P16 30 DVSS 31 DVDD 32 IOVDD 33 P15/2CSDA 34 P14/2CSCL 35 VPP 36 XRESET 37 P13/SPI0CS 38 P12/SPI0CK 39 P00/PWM0 40 P01/PWM1 41 P02/PWM2 42 P03/PWM3 43 P04/PWM4 44 P05/PWM5 45 P06/PWM6 46 P07/PWM7 47 VSS_BASE 48 U2BT16P380 L2 22nH L10R C9NLC61.5PF ATN1ATN C1NC C180.1uF C171uF C15 0.1uF C13 0.1uF J2 C4 104 C547uF C2 0.1uF C70.1uF 16VC3 100uF VBAT Vin GND Vout U1 L C1206 3.3V VD1 ON ModeOFF Mode 12345 J1 Micro USB Socket D1 1N5817 D21N5817 USB_MODE R4100K VUSB D3 1N5817 Q23904 R54.7K C120.1uF R11100K SW1 PB-22E60L R2 10R R3 *240K 1% (TBD) R1 510K 1% Q13904 R1447K CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U3 P E6065 R15 6.2K 1% TBD MAX:500MA 12 P1 C harger Plug F1 T1.0A 3.6*10mm BT1AA X 4 Q3 CTL0302PS Q43904 R16200 R181K R12100K R8330R R9330R 2 3 1 LED2 Dual Color RED+GREEN Power LED1 M3AG4HDO R7470R VDD LOW_BAT L_Y L_Y L_X L_X R_YR_X LED_G LED_R USB_MODE BAT_ON_OFF Novice/Advance 2 31 SW2 SS-12F44 USER SW9 Tact switch Stunt toggle Overturn Reset Reset VPP VD1 VDDR_X R_Y KEY_R L_X L_Y KEY_L LI-ION Charge Overturn BUZRUSER SW5RY+ R23300 SW6RY- SW7RX+ R252.4K SW8RX- R24910 R221K 104C21 KEY_R BZ1 Buzzer 12mm Q53904 R26330R D41N5817 R2147 LI-ION Charge R6100K F20.75A VD1 VD1 VD1 BUZR LED_LOWBAT LED_R LED_G LED_LOWBAT LED_Signal LOBAT LOBAT LI-ION Charge USER BUZR VD1 USB_MODE Overturn BAT_ON_OFF BAT_ON_OFF VIN 1st: Stunt 12nd: Stunt 2 3rd: Stunt 3 VBAT VIN VD1 C161uF VDD SwitchMode ON Mode: All functioin normalOFF Mode: RF function disable, Power LED off,Charging function & low voltage normal SW3LX+ R202.4K SW4LX- R171K 104C20 KEY_L R191.2K LED_LOWBAT VD1 1 VDD 2 VSS 3 AD03/P23 4 AD04/P24 5 AD05/P25 6 AD06/P26 7 AD07/P27 8 AD12 9 AD13 10 AD15/P17 11 AD14/P16 12 P15/2CSDA 13 P14/2CSSCL 14 P13/SPI0CS 15 P12/SPI0CK 16 P00/PWM0 17 P01/PWM1 18 P02/PWM2 19 P03/PWM3 20 P04/PWM4 21 P05/PWM5 22 P06/PWM6 23 P07/PWM7 24 RESET 25 M1 B T16P380_Module Optional Throttle Yaw PitchRoll Reset 44548 Q63906 R2810K R271K VDD 1.8V_Ctrl_O 1.8V_Ctrl_O 1.8V_Ctrl_O 1.8V_Ctrl R29NC 1.8V_Ctrl 1.8V_Ctrl_O 1.8V_Ctrl_O SwitchMode 1.8V_Ctrl LED_RLED_GSwitchModeKEY_L KEY_RR_YR_X VDD 2412-2470MHz

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15010735HKG-001 i FCC ID: PQN44548TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 0769-81080068-1123 Fax: 0769-81080061 e-mail: [email protected] Manufacturer: Spin Master Toys Manufacturer Address: Room 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: AIR Hogs Model: 44548TX Additional Model: 6026517, 6026518, 1035754, 1035755 Phantom No.: 20070590/ 20070591/ 20070592/ 20070593 Type of EUT: Transceiver Description of EUT: ARH RDC Helix Ion Drone2.4 Ast Serial Number: N/A FCC ID: PQN44548TX2G4 Date of Sample Submitted: January 20, 2015 Date of Test: January 20, 2015 to February 06, 2015 Report No.: 15010735HKG-001 Report Date: April 10, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15010735HKG-001 ii FCC ID: PQN44548TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Radiated Emission in Restricted Bands 15.205 Pass Radiated Emission Radiated Emission on the Bandedge 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15010735HKG-001 iii FCC ID: PQN44548TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 2 2.0 System Test Configuration ................................................................................... 3 2.1 Justification.......................................................................................................... 3 2.2 EUT Exercising Software..................................................................................... 3 2.3 Special Accessories ............................................................................................ 3 2.4 Measurement Uncertainty.................................................................................... 3 2.5 Support Equipment List and Description.............................................................. 3 3.0 Emission Results .................................................................................................. 4 3.1 Field Strength Calculation.................................................................................... 4 3.2 Radiated Emission Configuration Photograph ..................................................... 5 3.3 Radiated Emission Data ...................................................................................... 5 4.0 Equipment Photographs ....................................................................................... 9 5.0 Product Labelling .................................................................................................. 9 6.0 Technical Specifications ...................................................................................... 9 7.0 Instruction Manual ................................................................................................ 9 8.0 Miscellaneous Information ................................................................................. 10 8.1 Radiated Emission on the Bandedge................................................................. 10 8.2 Discussion of Pulse Desensitization .................................................................. 13 8.3 Calculation of Average Factor............................................................................ 13 8.4 Emissions Test Procedures ............................................................................... 15 9.0…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15010735HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44548 FCC ID: PQN44548TX2G4 IC: 4438B-44548TX INTERTEK TESTING SERVICE Report No: 15010735HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44548 FCC ID: PQN44548TX2G4 IC: 4438B-44548TX
