PQN44557TX2G4Darth Vader s Tie Advanced X1 StarFighter (Date Code 51007AFS)

eContains 1 x 3.7V LiPo battery pack and requires 6 x 1.5 V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. fContient 1 batterie LiPo 3,7 V et fonctionne avec 6 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d’être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l’environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d’enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l’objet d’une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l’achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. Battery requirement for toy Alimentation du produit Power Supply / Alimentation : Rating: DC 3.7 V, 300 mAh / Puissance nominale : 3,7 V CC, 300 mAh Batteries: 1 x 3.7 V LiPo Rechargeable Battery Pack Piles : 1 batterie rechargeable LiPo de 3,7 V Requires 1 x 3.7 V LiPo Rechargeable Battery Pack (included) Fonctionne avec 1 batterie rechargeable LiPo de 3,7 V (fournie) Battery requirement for Controller Alimentation de la radiocommande Power Supply / Alimentation : Rating: DC 9 V, 0.45 W / Puissance nominale : 9 V CC, 0,45 W Batteries: 6 x 1.5 V AA/LR6/AM3 / Piles : 6 piles 1,5 V AA/LR6/AM3 Requires 6 x 1.5 V AA size batteries Fonctionne avec 6 piles AA 1,5 V eFCC Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult the dealer or an experienced TV-radio technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to operate the equipment. fDéclaration de la FCC : Le présent appareil est conforme à l’article 15 de la réglementation de la FCC. L'utilisation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement a été testé et jugé conforme aux limites de la classe B pour les équipements numériques en vertu de l’article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour assurer une protection raisonnable contre toute interférence nuisible avec les communications radio. Cet équipement génère, utilise et peut émettre de l’énergie de fréquence radio. S’il n’est pas installé et utilisé selon le mode d’emploi, il peut causer des interférences nuisibles aux communications radio. Cependant, il n'existe aucune garantie contre ces interférences dans le cas où l'installation ne serait pas conforme. Si ce jouet cause des interférences à la réception radio ou télévisée (ce qui est vérifiable en l’éteignant, puis en le rallumant tout en écoutant s’il y a des interférences), suivre une ou plusieurs des recommandations suivantes : • Réorienter ou déplacer l’antenne réceptrice • Augmenter la distance entre le jouet et la radio ou la télévision • Consulter le revendeur ou demander l’aide d’un technici…

Text truncated - open the document above for the full version.

44557 TX block diagram 44557 TX block diagram 44557 TX block diagram 44557 TX block diagram 2411.2-2465.2MHz CON1 U1 U3 A transmitter and a receiver must be programmed with the same RF channel frequency to be able to communicate with each other. The output power of XN297 is set by the RF_PWR bits in the RF_SETUP register. Demodulation is done with embedded data slicer and bit recovery logic. The air data rate can be programmed to 1Mbps or 2Mbps by RF_DR_HIGH and RF_DR_LOW register. A transmitter and a receiver must be programmed with the same setting. In the following chapters, all registers are in register bank 0 except with explicit claim. Figure 1 XN297 Chip Block Diagram 3 State Control 3.1 State Control Diagram  Pin signal: VDD, CE  SPI register: PWR_UP, PRIM_RX, EN_AA, NO_ACK, ARC, ARD  System information: Time out, ACK received, ARD elapsed, ARC_CNT, TX FIFO empty, ACK packet transmitted, Packet received XN297 has built-in state machines that control the state transition between different modes. When auto acknowledge feature is disabled, state transition will be fully controlled by MCU. Integrated TDD RF Transceiver XTALNXTALP FM Demodulator FM Modulator Data Slicer Rx FIFO Tx FIFO Gaussian shaping Packet Processing & State Control SPI Interface Power Management CE IRQ CSN SCK MOSI MISO RFP RFN Register banks

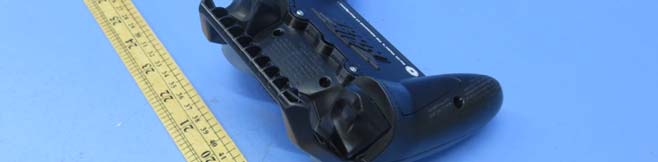

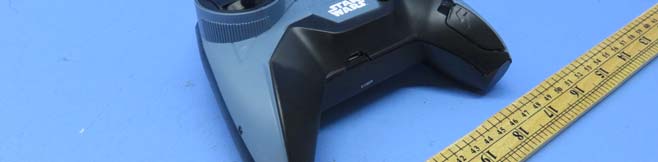

INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (External)

Tx FCC ID: PQN44557TX2G4 IC: 4438B-44557TX2G4 Size :50mmX40mm Size :22mmX5mm Size :22mmX5mm Model: 44557TX Size :18mmX2mm SPIN MASTER LTD. Size :18mmX2mm

INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (Internal) INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (Internal) INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (Internal) INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (Internal) INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (Internal) INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (Internal) INTERTEK TESTING SERVICE Report No.: 15110821HKG-001 FCC ID: PQN44557TX2G4 Equipment Photographs Model : 44557 (Internal)

Technical Description The brief circuit description is listed as below: 1) U2 acts as Voltage Regulator (ME6209 3.3V). 2) U1 acts as MCU (PMC232-S20). 3) U3 acts as Linear Charger (ETA4054). 4) U4 acts as DC-to-DC step down switching regulator. (ETA1483). 5) CON1 acts as 2.4GHz RF Module(CWDP23-BA3 2.4G). 6) J1 acts as Micro USB socket. 7) X1 is 16MHz crystal oscillator providing clock for U1. Antenna Type: Internal integral antenna Antenna Gain: 4dBi Nominal rated field strength: 94.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a portable 2.4GHz Transceiver (Controller Unit) for a RC Plane operating at 2411.2MHz to 2465.2MHz with 1MHz channel spacing. The EUT is powered by 6 X 1.5V AA batteries. After switch on the EUT and paired with helicopter, the Plane can be controlled to fly forward, backward, turning left/right direction and rolling by the controller. Also, the EUT has a charging circuitry, the corresponding receiver can be charged by this controller. Antenna Type: Internal integral antenna Antenna Gain: 4dBi Nominal rated field strength: 94.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.808mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.72mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.4652) mW = 9. 55 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master DongGuan Technical Consultancy Servicing Co. Ltd Model NO: A4 1 1 Jonye Hu 2015-7-17 Star Wars Tie Fighter RX 44557 R02 F11.0A C7100uF Throttle VDD R910R R147K R21K R8510K1% R12150K R4470R R5470R C110.1uF C90.1uF C100.1uF C1 0.1uF C847uF Vin 1 GND 2 Vout 3 U2ME6209 3.3V VR2F10K B10K-G0 C4 0.1uF R610K C50.1uF PC1 1 PC0 2 PB0 3 PB1 4 PB2 5 GND 6 PB3 7 PB4 8 PB5 9 PB6 10 PA0 11 RESET 12 PA2 13 PA3 14 VDD 15 PA6 16 PA7 17 PA4 18 PC5 19 PC4 20 U1PMC232-S20 2.4G Module CECSNSCKMOSIMISOIRQ PA4 PC1PC5PC4 12345678 CON1 CWDP23-BA3 2.4G PC0 PB0 PB1 PB6 PA0 PA2 PB3 PA6 PB3 PA4 PC1 PC5PC4 PC0 PA0PA2 PA6 PB0PB1PB2 PA3 PB4 VDD Reamrk: 1. Charge current: 500MA+/-30MA. Q1MMBT3906 L1 15uH 1.5A 12 J2 Charger CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U3 ETA4054 C18100uF C190.1uF C170.1uF C16100uF R14390K1%R1882K1% R152.7K R1647K BST 1 IN 2 SW 3 GND 4 FB 5 COMP 6 EN 7 SS 8 U4 ETA1483 C13 0.1uF C120.1uF R175.6K C203.3nF PA3 PB5 VDD T2 0805 600R PB5 Steering Trim C2 0.1uF VR3F-085 PB2 PB6 T1 0805 600R 12345 J1 Micro USB Socket PB4 LED1Green R3470R C3 0.1uF L/R S1PB22E60 Q23904 R710K C60.1uF R1310K VDD Q33904 2 3 1 LED2LED Dual CA R+G D4 1N5817 D31N5817 C151uF R11100K R10300K VDD D11N4001 D21N4001 F20.75A R1910K BT1AA*6 PA7 PA7 R2010KR2110K S3LeftS2Right R22100R 1 1 2 2 3 3 4 4 DD CC BB AA SCK MOSI VDDPA CSN IRQ CE MISO +3.3V C7 2.2pF C11 22pF L1 5.6nH C1 33nF R51M C4 820nF C3 0.5PF C12 22pF L3 4.7nH L2 10nH C6 1.2PF CSN 2 MOSI 4 MISO 5 IRQ 6 VDD 7 VSS 8 XTALP 9 XTALN 10 IREF 16 VDD 15 VSS 14 RFN 13 RFP 12 VDDPA 11 CE 1 VSS 20 CDVDD 19 VDD 18 VSS 17 SCK 3 U1 XN297 1 1 2 2 3 3 4 4 X1 16M Hz R1 22K GGND GGND GGNDGGND GGND GGND GGND GGND GGND GGND E1 Antenna P0C101 P0C102 P0C301 P0C302 P0C401 P0C402 P0C601 P0C602 P0C701 P0C702 P0C1101 P0C1102 P0C1201 P0C1202 P0E101 P0L101 P0L102 P0L201 P0L202 P0L301 P0L302 P0R101 P0R102 P0R501 P0R502 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U109 P0U1010 P0U1011 P0U1012 P0U1013 P0U1014 P0U1015 P0U1016 P0U1017 P0U1018 P0U1019 P0U1020 P0X101 P0X102 P0X103 P0X104 P0C401 P0U107 P0U1015 P0U1018 N0+303V P0U101 N0CE P0U102 N0CSN P0C102 P0C302 P0C402 P0C602 P0C1102 P0C1202 P0R101 P0U108 P0U1014 P0U1017 P0U1020 P0U1021 P0X102 P0X104 P0U106 N0IRQ P0U105 N0MISO P0U104 N0MOSI P0C101 P0U1019 P0C301 P0E101 P0L301 P0C701 P0L302 P0C702 P0L102 P0U1013 P0C1101 P0R501 P0U109 P0X101 P0C1201 P0R502 P0U1010 P0X103 P0L101 P0L202 P0U1012 P0R102 P0U1016 P0U103 N0SCK P0C601 P0L201 P0U1011 N0VDDPA N0+303V P0C401 P0U107 P0U1015 P0U1018 N0CE P0U101 N0CSN P0U102 P0C102 P0C302 P0C402 P0C602 P0C1102 P0C1202 P0R101 P0U108 P0U1014 P0U1017 P0U1020 P0U1021 P0X102 P0X104 N0IRQ P0U106 N0MISO P0U105 N0MOSI P0U104 P0C101 P0U1019 P0C301 P0E101 P0L301 P0C701 P0L302 P0C702 P0L102 P0U1013 P0C1101 P0R501 P0U109 P0X101 P0C1201 P0R502 P0U1010 P0X103 P0L101 P0L202 P0U1012 P0R102 P0U1016 N0SCK P0U103 N0VDDPA P0C601 P0L201 P0U1011 2411.2-2465.2

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15110821HKG-001 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) (FCC ID: PQN44557TX2G4) Transceiver Prepared and Checked by: Approved by: Signed On File Lok Chi Hang, Wil Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: January 06, 2016 INTERTEK TESTING SERVICES Report No.: 15110821HKG-001 i FCC ID: PQN44557TX2G4 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (86) 0769-81080068 Fax: (86) 0769-82207100 e-mail: [email protected] Manufacturer: Spin Master Ltd. Manufacturer Address: Room 1113, 11/F, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: Spin Master Model: 44557 Phantom No.: 20071184 Type of EUT: Transceiver Description of EUT: Darth Vader’s Tie Advanced X1 StarFighter (Date Code: 51007AFS) Serial Number: N/A FCC ID: PQN44557TX2G4 Date of Sample Submitted: November 19, 2015 Date of Test: November 19, 2015 to December 22, 2015 Report No.: 15110821HKG-001 Report Date: January 06, 2016 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15110821HKG-001 ii FCC ID: PQN44557TX2G4 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2014 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15110821HKG-001 iii FCC ID: PQN44557TX2G4 Table of Contents 1.0 General Description .............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants ................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification .......................................................................................................... 2 2.2 EUT Exercising Software ..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty .................................................................................... 2 2.5 Support Equipment List and Description .............................................................. 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation .................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications ...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.1 Measured Bandwidth / Radiated Emission on the Bandedge ........…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15110821HKG-001 FCC ID: PQN44557TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44557 INTERTEK TESTING SERVICE Report No: 15110821HKG-001 FCC ID: PQN44557TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44557 INTERTEK TESTING SERVICE Report No: 15110821HKG-001 FCC ID: PQN44557TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 44557 INTERTEK TESTING SERVICE Report No: 15110821HKG-001 FCC ID: PQN44557TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 44557
