PQN44647RX2G4AirHogs Stunt Shot Vehicle

INDOOR CAUTION: HAIR ENTANGLEMENT — Tie back and cover hair and secure loose clothing prior to play. ! Frequency Band(s): 2.420 - 2.465 GHz Maximum radio frequency power transmitted: < 10dBm Spin Master International B.V. hereby declares that the radio equipment type Stunt Shot™ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://doc.spinmaster.com • Do not change or modify anything on the toy. BEFORE FIRST USE: Read the user's information together with your child. SPIN MASTER LTD., 225 KING STREET WEST, TORONTO, ON M5V 3M2 CANADA Imported into EU by SPIN MASTER INTERNATIONAL, B.V., Kingsfordweg 151, 1043 GR Amsterdam, The Netherlands Imported by Spin Master Australia Pty Ltd, Suite 101, Level 1, 18-24 Chandos Street, St Leonards, NSW 2065; 1800 316 982 Spin Master logo & © Spin Master Ltd. All rights reserved. Retain this information, addresses and phone numbers for future reference. Content may vary from pictures. Keep away from obstacles and electrical hazards. Spin Master Ltd. reserves the right to discontinue the www.airhogs.com/stuntshot website at any time. MADE IN CHINA ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- AIRHOGS.COM/STUNTSHOT For in-depth video instructions go to AIRHOGS.COM/STUNTSHOT For in-depth video instructions go to Not Included x AAA ( LR03 ) 1.5 V 2 T44647_0001_20122217_GEN_IS_R4 a WARNING: CHOKING HAZARD – Small parts. Not for children under 3 years. Battery requirement for toy Power Supply: Rating: 3.2V 500mAh Battery: 1 x 3.2V 500mAh LiFe Rechargeable Battery Pack Requires: 1 x 3.2V 500mAh LiFe Rechargeable Battery Pack Battery requirement for controller Power Supply: Rating: DC 3 V, 0.45 W Batteries: 2 x 1.5 V AAA (LR03) Requires 2 x 1.5 V AAA size batteries (not included) For TROUBLESHOOTING questions and solutions, please visit our website: AIRHOGS.COM/STUNTSHOT NOTE: If normal function of the product is disturbed or interrupted, strong electromagnetic interference may be causing the issue. To reset product, turn it completely off, then turn it back on. If normal operation does not resume, move the product to another location and try again. To ensure normal performance, change the batteries, as low batteries may not allow full function. SAFETY PRECAUTIONS: - Keep hands, hair and loose clothing away from the motor/ wheels when power switch is turned ON. - Remove battery(s) from controller when not in use. - Parental guidance is recommended for the play. - Keep your toy in your sight so that you can supervise it all the time. - New alkaline batteries are recommended for use in controller to obtain maximum performance. - Users should keep strict accordance with the instruction manual while operating the product.- Your controller/charger is tailor-made for the LiFeP04 rechargeable battery used in your vehicle. Do not use it to charge any battery other than that in the toy. Note: Parental guidance is recommended when installing or replacing batteries. Under the environment with electrostatic discharge, the toy may malfunction and require user to reset the toy. SPECIAL NOTE TO ADULTS: Regularly examine for damage to the plug, enclosure and other parts. In the event of any damage, the toy must not be used with the charger until the damage has been repaired. This toy is not intended for children under 3 years old. This toy must only be used with the recommended charger. CONTAINS 1 X 3.2V 500maH LiFe BATTERY PACK AND REQUIRES 2 x 1.5V AAA (LR03) BATTERIES (not Included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life, it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. PRODUCT BATTERY REMOVAL INSTRUCTIONS: Internal battery is factory installed and non-replaceable. Product disassembly and battery removal must be performed by an adult. Do not puncture, cut, tear, compress or deform product during disassembly. Ensure product is turned off, then use a screw driver to remove screw. Lift end of battery compartment and slide out battery. Dispose of battery in accordance with your local battery recycling or disposal laws. NOTE: Opening of product will render product inoperative and voids manufacturer warranties. Dispose of remaining product components in accordance with local laws. THIS TOY IS EQUIPPED WITH A LITHIUM-ION BATTERY. SPECIAL LiFe BATTERY INSTRUCTIONS: Never charge battery unattended. - Charge battery in an isolated area. Keep away from flammable materials. - Do not expose to direct sunlight. There is a risk of the batteries exploding, overheating, or igniting. - Do not disassemble, modify, heat, or short-circuit the batteries. Do not place them in fires or leave them in hot places. - Do not drop or subject to strong impacts. - Do not allow the batteries to get wet. - Only charge the batteries with the specified Spin Master™ battery charger. - Only use the batteries in the device specified by Spin Master™. - Carefully read the instruction guide and use the batteries correctly. - In the unlikely event of leakage or explosion use sand or a chemical fire …

Text truncated - open the document above for the full version.

A B C DD C B A Title NumberRevisionSize B Date:28-Jan-2020Sheet of File:E:\飞行器\SpinMaster\moonshoot\44647TX.RX.DDBDrawn By: chippower 2.4GRX ANT motor drive charging circuit power switch 44647RXV4- block diagram

Dec 2013 Letter of Agency "I, an officer of Spin Master Toys Far East Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 17th day February of 2020 By Signature Andy Wong Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

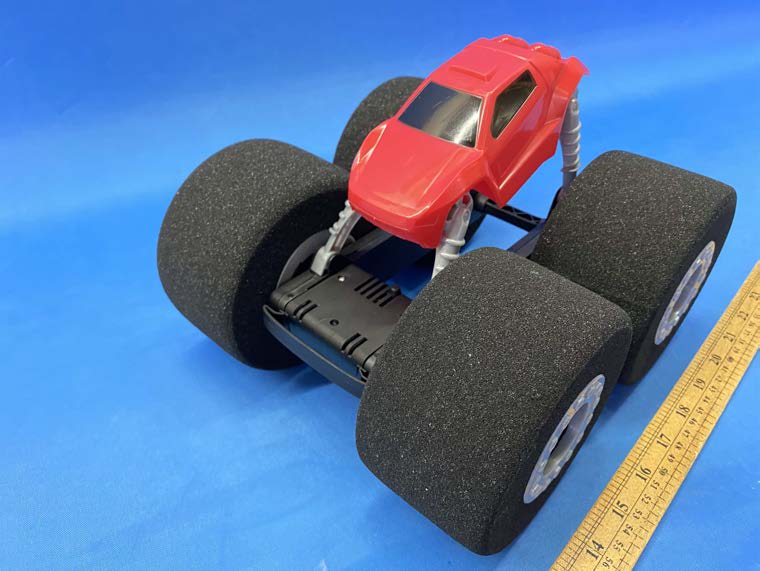

INTERTEK TESTING SERVICE FCC ID: PQN44647RX2G4 IC: 4438B-44647RX2G4 Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: PQN44647RX2G4 IC: 4438B-44647RX2G4 Equipment Photographs (External)

字高：大1.6MM 小1.2MM 字 高：大1.6MM 小1.2MM 5V

INTERTEK TESTING SERVICE FCC ID: PQN44647RX2G4 IC: 4438B-44647RX2G4 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44647RX2G4 IC: 4438B-44647RX2G4 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44647RX2G4 IC: 4438B-44647RX2G4 Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC Car. The sample supplied operated on 46 channels, normally at 2420 - 2465MHz. The channels are separated with 1MHz spacing. Antenna Type: Internal, whip antenna Antenna Gain: 0dBi Nominal rated field strength is 97.0 dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U3 acts as 2.4 RF MCU portion 2. Y1 acts as 12MHz Oscillator 3. C19 and C20 act as antenna matching circuit 4. U4 & U5 act as motor driver 5. U2 acts as Charging chipset 6. U1 acts as switched capacitor voltage doubler

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC Car. The sample supplied operated on 46 channels, normally at 2420 - 2465MHz. The channels are separated with 1MHz spacing. The EUT is powered by 1 x 3.2V rechargeable battery. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, whip antenna Antenna Gain: 0dBi Nominal rated field strength is 97.0 dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 100.0dBμV/m at 3m in frequency 2.445GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

A B C DD C B A Title NumberRevisionSize A4 Date:28-Jan-2020Sheet of File:E:\飞行器\SpinMaster\moonshoot\44647TX.RX.DDBDrawn By: MCU ANT 1 VSS2 2 PA2/_AIN2/_PWM3/SDI 3 PA3/_AIN3/_SDO 4 PA4/_AIN4/SCK 5 VDD 6 PA6/_XIN 7 PA7/_XOUT 8 PA5/_RSTB/_VPP 9 PB3/_AIN8/_PWM1/ 10 PB2/_AIN7/_PWM2/ 11 PB1/_AIN6/_IR/_INT1 12 PB0/_AIN5_/INT0 13 VDD2 14 XTALO 15 XTALI 16 U3 BL2402 ANT1 3.3V F1 1.5A C8 0.1UF VBAT C25 0.1UF C23 10UF C11 0.1UF C9 0.1UF R7 100K R15 0.033R T1 C22 36P C21 36P C20 1P C19 1P C7 0.1UF C5 0.1UF C4 10UF C2 1UF R6 100K R10 1K R3 100R R11 330K1% R13 100K1% B R T1 L PC F LV F B Q1 2301 Q2 3904 1 2 3 4 5 USB1 MICRO USB PC C6 0.1UF C12 0.1UF C14 0.1UF C24 47UF/16V C11 0.1UF C9 0.1UF R8 100K R14 0.033R T2 L R T2 LV S1 SS-12D07G4 Y1 12M R1 1R EN 1 PROG 2 GND 3 VCC 4 BAT 5 FB 6 DONE 7 CHRG 8 GND 9 U2 BX4114 R12 1.5K C1 10UF C3 10UF R2 1K D1 LED 1 2 BT1 3.2V R18 NC R9 1M VBAT VOUT 1 GND 2 EN 3 C- 4 VIN 5 C+ 6 U1 HX4002B C16 2.2UF 3.3V C18 0.1UF + C17 10UF A - + M1 MOTOR A - + M2 MOTOR C10 0.1UF C25 0.1UF D2 SMAJ6.5CA R16 0R R17 0R1% R21 0R1% 44647 V4 3.3V MOTOR PCB1 MOTOR PCB2 VM 1 IN1 2 IN2 3 IN1 4 IN3 5 IN4 6 IN3 7 VM 8 OUT3 9 PGND 10 OUT4 11 OUT3 12 OUT1 13 OUT2 14 PGND 15 OUT1 16 U5 SA8302A VM 1 IN1 2 IN2 3 IN1 4 IN3 5 IN4 6 IN3 7 VM 8 OUT3 9 PGND 10 OUT4 11 OUT3 12 OUT1 13 OUT2 14 PGND 15 OUT1 16 U4 SA8302A R19 0R1%

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to th e terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 17 TE ST REPORT Report No.: 19081361HKG-003 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) FCC ID: PQN44647RX2G4 Transceiver Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Chan Chi Hung, Terry Manager Date: February 14, 2020 TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 19081361HKG-00 3 Page 2 of 17 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (852) 2301 3822 Fax: (852) 2301 1822 e-mail: [email protected] Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Room 1113, 11/F, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: ARH VHC AirHogs Stunt Shot Vehicle Model: 44647RX Phantom No.: 20122218/20122217 Type of EUT: Transceiver Description of EUT: AirHogs Stunt Shot Vehicle Serial Number: N/A FCC ID: PQN44647RX2G4 Date of Sample Submitted: January 23, 2020 Date of Test: January 23, 2020 to February 14, 2020 Report No.: 19081361HKG-003 Report Date: February 14, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 19081361HKG-00 3 Page 3 of 17 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 19081361HKG-00 3 Page 4 of 17 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants ......................................................................................5 1.3 Test Methodology .................................................................................................... 5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ..............................................................................................................6 2.2 EUT Exercising Software ...........................................................................................6 2.3 Special Accessories ................................................................................................... 6 2.4 Measurement Uncertainty .......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .........................................................................................7 3.2 Radiated Emission Configuration Photograph ...........................................................8 3.3 Radiated Emission Data ............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 12 5.0 PRODUCT LABELLING .................................................................................................. 12 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 12 7.0 INSTRUCTION MANUAL ................................................…
