PQN44648RX2G4AirHogs Jump Fury Vehicle

INDOOR USE ONLY CAUTION: HAIR ENTANGLEMENT — Tie back and cover hair and secure loose clothing prior to play. ! Not Included x AAA ( LR03 ) 1.5 V 2 NORTH AMERICA – 1-800-622-8339 customercare@spinmaste r.com UK – 0 800 206 1191, servic euk@spinmaste r.com IRELAND – 1800 992 249 AUSTRALIA –1800 316 982, customercare@spinmaste r.com WWW.SPINMASTER.COM YRS 4+ CONTENTS 1 Jump Fury™ 1 USB Charging Cable 1 Controller Frequency Band(s): 2.422 – 2.467 GHz Maximum radio frequency power transmitted: < 10dBm BATTERY SAFETY INFORMATION: Batteries are small objects. Replacement of batteries must be done by adults. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the toy. Dispose of used batteries properly. Remove batteries for prolonged storage. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard/rechargeable). Using rechargeable batteries is not recommended due to possible reduced performance. Rechargeable batteries are only to be charged under adult supervision. Replaceable-rechargeable batteries are to be removed from the toy before being charged. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals. SPECIAL LiFe BATTERY INSTRUCTIONS: Never charge battery unattended. - Charge battery in an isolated area. Keep away from flammable materials. - Do not expose to direct sunlight. There is a risk of the batteries exploding, overheating, or igniting. - Do not disassemble, modify, heat, or short-circuit the batteries. Do not place them in fires or leave them in hot places. - Do not drop or subject to strong impacts. - Do not allow the batteries to get wet. - Only charge the batteries with the specified Spin Master™ battery charger. - Only use the batteries in the device specified by Spin Master™. - Carefully read the instruction guide and use the batteries correctly. - In the unlikely event of leakage or explosion use sand or a chemical fire extinguisher for the battery. - Batteries must be recycled or disposed of properly. PRODUCT BATTERY REMOVAL INSTRUCTIONS: Internal battery is factory installed and non-replaceable. Product disassembly and battery removal must be performed by an adult. Do not puncture, cut, tear, compress or deform product during disassembly. Ensure product is turned off, then use a screw driver to remove all screws. Separate product body halves to expose internal electronics. When battery is visible in its entirety, use scissors to cut a single battery wire, immediately wrap the cut wire end with tape to isolate it, repeat until all battery wires are cut and isolated, and the battery is free from the rest of the product. Dispose of battery in accordance with your local battery recycling or disposal laws. FCC STATEMENT: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna. • Increase the separation between the toy and the radio or the TV. • Consult the dealer or an experienced TV-radio technician for help. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd or they could void the user’s authority to operate the equipment. Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221. To contact the responsible party please visit fcc.spinmaster.com. ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Do not change or modify anything on the toy. BEFORE FIRST USE: Read the user's information together with your child. Spin Master Ltd., 225 King Street West, Toronto ON M5V 3M2 Canada Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221 Spin Master International B.V., Kingsfordweg 151, 1043 GR Amsterdam, NL Spin Master Australia Pty Ltd, Suite 101, Level 1, 18-24 Chandos Street, St Leonards, NSW 2065; 1800 316 982 Spin Master Toys UK Ltd. Secure Trust House, Boston Drive, Bourne End, Buckinghamshire, SL8 5YS, UK Spin Master logo & © Spin Master Ltd. All rights reserved. Retain this information, addresses and phone numbers for future reference. Content may vary from pictures. Keep away from obstacles and electrical hazards. Spin Master Ltd. reserves the right to discontinue the www.AIRHOGS.com/JUMPFURY website at any time. MADE IN CHINA For TROUBLESHOOTING questions and solutions, please visit our website: AIRHOGS.COM/JUMPFURY NOTE: If normal function of the product is disturbed or interrupted, strong electromagnetic interference may be causing the issue. To reset product, turn it completely off, then turn it bac…

Text truncated - open the document above for the full version.

WWW.SPINMASTER.COMAIRHOGS.COM/JUMPFURY 1 WWW.SPINMASTER.COM AIRHOGS.COM/JUMPFURY 16 T44648_0002_20130280_GML_IS_R1 4+ For in-depth video instructions go to / Pour obtenir des instructions vidéo, se rendre sur / Para ver instrucciones exhaustivas en vídeo, visita / Detaillierte Videoanleitungen findest du auf: Ga voor uitgebreide video-instructies naar / Per istruzioni video dettagliate, visitare / Para instruções em vídeo mais detalhadas, acesse Детальные видеоинструкции представлены на сайте / Szczegółowe instrukcje wideo można znaleźć na stronie / Podrobné videopokyny najdete na webu Video s podrobnými pokynmi nájdete na adrese / A részletes útmutató videók itt tekinthetők meg: / Pentru instrucţiuni video detaliate, accesaţi Για πιο λεπτομερείς οδηγίες σε βίντεο, μεταβείτε στη διεύθυνση / Videozapis s detaljnim uputama potražite na За по-подробни инструкции за видео отидете на / Za poglobljena videonavodila obiščite / Ayrıntılı videolu talimatlar için şu adrese gidin: / 如需观看详细视频说明，请前往 AIRHOGS.COM/JUMPFURY a WARNING: CHOKING HAZARD – Small parts. Not suitable for children under three years. a ATTENTION ! DANGER D'ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de trois ans. a ADVERTENCIA: PELIGRO DE ASFIXIA – Contiene piezas pequeñas. No conviene para niños menores de tres años. a ACHTUNG: ERSTICKUNGSGEFAHR – Kleinteile. Nicht für Kinder unter drei Jahren geeignet. a WAARSCHUWING: VERSTIKKINGSGEVAAR – Kleine onderdelen. Niet geschikt voor kinderen jonger dan drie jaar. a AVVERTENZA: RISCHIO DI SOFFOCAMENTO – Pezzi piccoli. Non adatto a bambini di età inferiore a tre anni. a ATENÇÃO: PERIGO DE ASFIXIA – Peças pequenas. Contra-indicado para crianças com menos de 3 anos. a ПРЕДУПРЕЖДЕНИЕ! ОПАСНОСТЬ УДУШЬЯ – Мелкие детали. Не подходит для детей в возрасте до 3 лет. a OSTRZEŻENIE: NIEBEZPIECZEŃSTWO ZADŁAWIENIA – Drobne elementy. Nie nadaje się dla dzieci w wieku poniżej 3 lat. a UPOZORNĚNÍ: NEBEZPEČÍ UDUŠENÍ – Obsahuje malé části. Nevhodné pro děti do tří let. a UPOZORNENIE: NEBEZPEČENSTVO UDUSENIA – Obsahuje malé predmety. Nevhodné pre deti do troch rokov. a FIGYELMEZTETÉS: FULLADÁSVESZÉLY – Apró alkatrészek. Csak három évnél idősebb gyermekek számára alkalmas. a AVERTISMENT: PERICOL DE ASFIXIERE – Piese mici. Contraindicat copiilor mai mici de trei ani. a ΠΡΟΕΙΔΟΠΟΙΗΣΗ: ΚΙΝΔΥΝΟΣ ΠΝΙΓΜΟΥ – Μικρά μέρη. Δεν είναι κατάλληλο για παιδιά κάτω των τριών ετών. a UPOZORENJE: OPASNOST OD GUŠENJA – Mali dijelovi. Igračka nije prikladna za djecu mlađu od tri godine. a ВНИМАНИЕ: ОПАСНОСТ ОТ ЗАДАВЯНЕ – Малки части. Неподходящо за деца под тригодишна възраст. a OPOZORILO: NEVARNOST ZADUŠITVE – Majhni deli. Ni primerno za otroke, mlajše od treh let. a UYARI: BOĞULMA TEHLİKESİ – Küçük parçalar. Üç yaşından küçük çocuklar için uygun değildir. a 警告：内含小零件，有窒息危险。不适合三岁以下儿童。 MADE IN CHINA / FABRIQUÉ EN CHINE / HECHO EN CHINA / СДЕЛАНО В КИТАЕ / ÇİN'DE ÜRETİLMİŞTİR a CAUTION: Hair Entanglement. Tie back and cover hair and secure loose clothing prior to play. a MISE EN GARDE : Les cheveux peuvent se coincer. Attacher les cheveux et les couvrir, et maintenir les vêtements amples à l'écart du jouet. a PRECAUCIÓN: Enredo de pelo. Asegúrese de llevar el pelo atado o tenerlo cubierto; revise además si lleva puesto algo que también se pueda enredar. a VORSICHT: Haare könnten sich verfangen. Vor dem Spielen Haare zusammenbinden und bedecken, weite Kleidung sichern. a VOORZICHTIG: Haar kan verstrikt raken. Bind het haar naar achteren en bedek het. Maak loshangende kleding vast voor gebruik. a ATTENZIONE: Intrappolamento dei capelli. Legare e coprire i capelli prima di giocare e tenere gli abiti lontano dal prodotto. a CUIDADO: Há possibilidade de prender o cabelo. Prenda e cubra o cabelo, assegure-se de prender qualquer peça de roupa solta antes de utilizar o produto. a ОСТОРОЖНО: Игрушка может запутать волосы. Не играйте с распущенными волосами и неприкрытой головой, а также заправьте свободную одежду перед игрой. a UWAGA: Niebezpieczeństwo wplątania włosów. Przed użyciem należy związać i zakryć włosy oraz zabezpieczyć luźne części odzieży. a POZOR: Může dojít k zapletení vlasů. Před hraním si vlasy sepněte či zakryjte a nenoste volný oděv. a VAROVANIE: Zamotanie vlasov. Pred hraním si zopnite a prikryte vlasy a upevnite voľné oblečenie. a VIGYÁZAT: Belegabalyodó haj. A játék megkezdése előtt kösse össze és fedje le a haját, illetve ügyeljen a laza ruhadarabokra. a ATENŢIE: Agăţare în păr. Strângeţi părul la spate şi acoperiţi-l şi strângeţi hainele largi înainte de a vă juca. a ΠΡΟΣΟΧΗ: Μπλέξιμο μαλλιών. Πριν από το παιχνίδι, δέστε τα μαλλιά, καλύψτε τα και σφίξτε τυχόν φαρδιά ρούχα. a OPREZ: zapetljanje u kosu. Prije igranja zavežite i prekrijte kosu i pričvrstite labavu odjeću. a ПРЕДУПРЕЖДЕНИЕ: Заплитане на косата. Завържете назад, покрийте косата и стегнете свободно висящите дрехи преди игра. a POZOR: Zapletanje las. Pred igro spnite in pokrijte lase ter zavihajte ali zatlačite ohlapna oblačila. a DİKKAT: Saçınıza Dolanabilir. Oynamaya başlamadan önce saçınızı arkaya toplayıp koruyun ve bol giysilerinizi sabitleyin. a 小心：可能会缠绕头发。在玩耍前，请扎好并盖住头发，并固定住松散衣物。 e CONTAINS 1 3.2V LiFe 500mAh BATTERY PACK AND REQUIRES 2 x 1.5V AAA (LR03) ALKALINE BATTERIES (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life, it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electri…

Text truncated - open the document above for the full version.

44648 RX Block Diagram RX MCU RX298RX Antenna 3.2V Rechargeable Battery Battery Motor Driver MX530 Motor Driver MX530 Right Motor Jump Motor Charger IC BX4114 Motor Driver MX530 Left Motor LED Indicator IR Detector G Sensor LIS2DE12 12MHz Oscillator

Dec 2013 Letter of Agency "I, an officer of Spin Master Toys Far East LTD. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Tim Lee/ Herbert Wong / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 15 day Jan of 2021__ By Signature Tommy So Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

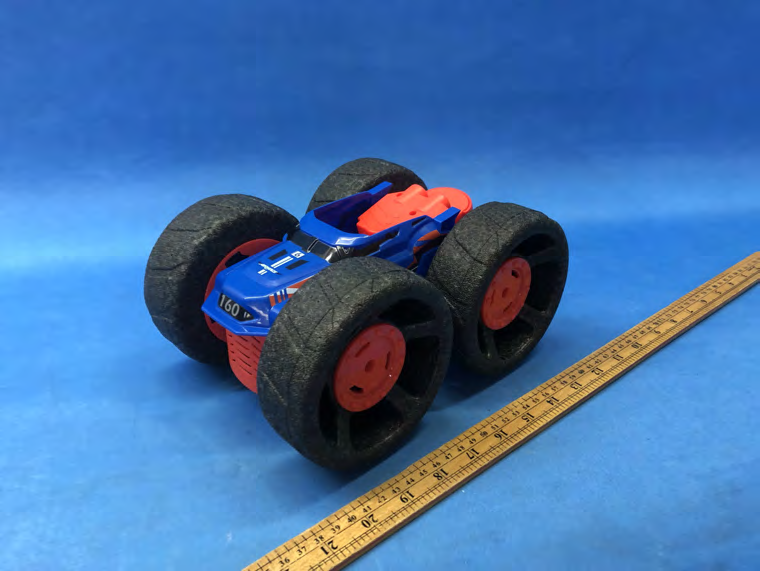

INTERTEK TESTING SERVICE FCC ID: PQN44648RX2G4 IC: 4438B-44648RX2G4 Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: PQN44648RX2G4 IC: 4438B-44648RX2G4 Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: PQN44648RX2G4 IC: 4438B-44648RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648RX2G4 IC: 4438B-44648RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648RX2G4 IC: 4438B-44648RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648RX2G4 IC: 4438B-44648RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648RX2G4 IC: 4438B-44648RX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC car. The sample supplied operated on 15 channels, normally at 2422 - 2467MHz. The channels are shown in table below. 2422 2424 2426 2430 2433 2436 2438 2441 2444 2447 2454 2459 2462 2464 2467 Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 97.2dBμV/m at 3m (Peak), 81.5dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U2 (SOC_FC298RX) acts as RF MCU 2. Y1 acts as 12MHz Oscillator 3. C7 and L1 act as antenna matching circuit 4. U4, U5 and U8 (MX530) act as Motor circuit 5. U3 (BX4114) acts as Charging IC 6. U6 (LIS2DE12TR) acts as Accelerometer IC

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC car. The sample supplied operated on 15 channels, normally at 2422 - 2467MHz. The channels are shown in table below. 2422 2424 2426 2430 2433 2436 2438 2441 2444 2447 2454 2459 2462 2464 2467 The EUT is powered by 1 x 3.2V Rechargeable battery. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 97.2dBμV/m at 3m (Peak), 81.5dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 84.5dBμV/m at 3m in frequency 2.422GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA Sheet ofSize Date: Date: Drawing By: Checked By: Title: Early light industrial Co.Ltd Model NO. 12 Jump shot RX 44648 Rev:00 V D R _ D R G 1 V D D _ R F 2 A N T 3 P A 1 8 / S C L 0 / S E G 4 4 P A 1 9 / S D A 0 / S E G 5 5 P A 2 2 / R X D 0 / S E G 8 6 P A 2 3 / T X D 0 / S E G 9 7 P A 2 4 / M O S I 1 / R X D 0 / S E G 1 0 8 PA25/MISO1/TXD0/SEG11 9 PA26/SCK1/RXD0/SEG12 10 PA27/NSS1/TXD0/SEG13 11 PB0/RXD1/SEG18 12 PB1/TXD1/SEG19 13 PB2/SCL0/SEG20 14 PB3/SDA0/SEG21 15 PB4/SEG22 16 P B 5 / A N 0 / S E G 2 3 1 7 P B 6 / A N 1 / S E G 2 4 1 8 P B 7 / A N 2 / S E G 2 5 1 9 P B 8 / A N 3 / S E G 2 6 2 0 D G N D 2 1 P B 1 2 / M R S T N 2 2 P B 1 3 / A N 5 2 3 V D D 2 4 PA0/AVREFEN/AN6/ISCK0 25 PA1/AVREFEP/AN7/ISDA0 26 PA6/AN12 27 PA7/AN13 28 PA8/RXD1/AN14 29 PA9/TXD1/AN15 30 XTALN 31 XTALP 32 G N D 0 U2 SOC_FC298RX EN 1 PROG 2 GND 3 VCC 4 BAT 5 FB 6 DONE 7 CHRG 8 G N D 9 U3BX4114 Vout 1 GND 2 EN 3 C- 4 Vin 5 C+ 6 U1 DC_DC HX4002B S C L / S P C 1 CS 2 SDO/SA0 3 SDA/SDI/SDO 4 R e s 5 G N D 6 G N D 7 GND 8 VDD 9 VDD 10 I N T 1 1 1 I N T 2 1 2 U6 LIS2DE12TR VCC 1 IN_A 2 IN_B 3 VDD 4 OutB 5 GND 6 GND 7 OutA 8 G N D 9 U4MX530 E1 Antenna BT1 3 . 2 V / 5 0 0 M A F1 1.5A 300K R1 100K R2 1.5K R3 1K R5 0.033R/1206 R6 3K R20 3K R21 1K R22 2.7K R24 300R R23 0R R17 0.82R/0.5W R19 300K R12 100K R13 10K R15 10K R16 10K R18 10K R14 300R R4 VBAT Q2 3904 D2 5817 D1 4148 D3 4148 SW1 SW DPDT GND GND GND 1uF C30 GND 1 2 3 4 5 J1 Micro USB Socket 47uF/16V C2 EN 2.2uF C31 GND VCC 10uF C3 GND 0.1uF C4 GND GND BAT_LV SW_state GND GND GND GND GND 10uF C6 GND 0.1uF C29 USB_LV GNDGNDGND GND 1uF C25 0.1uF C23 GNDGND VCC GND VCC VCC G_SCL G_SDA G _ I N T 1 2 3 4 5 J2LINK 0.1uF C34 GND VCC GND VCC ISDA ISCK Q3 PLW945-B IR1 ILW945-T VCC GNDGND Encoder MRSTN M M1 Steering Motor 0.1uF C12 0.1uF C14 0.1uF C13 GNDGND 0.1uF C15 Curren_Motor_Jump VCC 0.1uF C11 GND VBAT R1 F1 VCC 1 IN_A 2 IN_B 3 VDD 4 OutB 5 GND 6 GND 7 OutA 8 G N D 9 U5MX530 1K R8 0.033R/1206 R9 M M2 Left Motor 0.1uF C17 0.1uF C19 0.1uF C18 GNDGND 0.1uF C20 Curren_Motor_L VCC 0.1uF C16 GND VBAT L_IN_A L_IN_B VCC 1 IN_A 2 IN_B 3 VDD 4 OutB 5 GND 6 GND 7 OutA 8 G N D 9 U8MX530 1K R10 0.033R/1206 R11 M M3 Right Motor 0.1uF C24 0.1uF C27 0.1uF C26 GNDGND 0.1uF C28 Curren_Motor_R VCC 0.1uF C22 GND VBAT R_IN_B R_IN_A 47uF/16V C32 VBAT GND LED1 RED GND L E D 10uF C5 GND 1 2 Y112M 10ppm 12pF NC C8 NC C9 GND GND SW_state USB_LV BAT_LV LED ISDA ISCK 0.1uF C21 GND S1 S p r i n g D e t 1 S2 S p r i n g D e t 2 GND R1 L_IN_A L_IN_B R_IN_B R_IN_A G_INT GND VCC 0.1uF C10 GND C u r r e n _ M o t o r _ L C u r r e n _ M o t o r _ J u m p C u r r e n _ M o t o r _ R E n c o d e r M R S T N E N 1uF C1 GND VCC 1.5pF C7 L1 5.6nH GND F 1 d e b u g u a r t T X C H R G G _ S D A G _ S C L CHRG XiaohongTang2021/1/5 A3 Q1 ATM2301 S D O 1 SDX 2 VDDIO 3 NC 4 I N T 1 5 I N T 2 6 V D D 7 GNDIO 8 GND 9 CSB 10 P S 1 1 S C X 1 2 U7 BMA253 N C 1 SDA 2 VDDIO 3 NC 4 I N T 1 5 N C 6 V D D 7 GNDIO 8 GND 9 NC 10 N C 1 1 S C L 1 2 U9 DS_da260B VCC GND VCC G_SDAG_SDA VCC GNDGND VCC GND VCC G_SCL GND G_SCL G _ I N T G _ I N T VCC Option for Backup IMU Programming Port PIBT101 PIBT102 COBT1 PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301 PIC302 COC3 PIC401 PIC402 COC4 PIC501 PIC502 COC5 PIC601 PIC602 COC6 PIC701 PIC702 COC7 PIC801 PIC802 COC8 PIC901 PIC902 COC9 PIC1001 PIC1002 COC10 PIC1101 PIC1102 COC11 PIC1201 PIC1202 COC12 PIC1301 PIC1302 COC13 PIC1401 PIC1402 COC14 PIC1501 PIC1502 COC15 PIC1601 PIC1602 COC16 PIC1701 PIC1702 COC17 PIC1801 PIC1802 COC18 PIC1901 PIC1902 COC19 PIC2001 PIC2002 COC20 PIC2101 PIC2102 COC21 PIC2201 PIC2202 COC22 PIC2301 PIC2302 COC23 PIC2401 PIC2402 COC24 PIC2501 PIC2502 COC25 PIC2601 PIC2602 COC26 PIC2701 PIC2702 COC27 PIC2801 PIC2802 COC28 PIC2901 PIC2902 COC29 PIC3001 PIC3002 COC30 PIC3101 PIC3102 COC31 PIC3201 PIC3202 COC32 PIC3401 PIC3402 COC34 PID101 PID102 COD1 PID201 PID202 COD2 PID301 PID302 COD3 PIE101 COE1 PIF101 PIF102 COF1 PIIR101 PIIR102 COIR1 PIJ101 PIJ102 PIJ103 PIJ104 PIJ105 COJ1 PIJ201 PIJ202 PIJ203 PIJ204 PIJ205 COJ2 PIL101 PIL102 COL1 PILED101 PILED102 COLED1 PIM101 PIM102 COM1 PIM201 PIM202 COM2 PIM301 PIM302 COM3 PIQ101 PIQ102 PIQ103 COQ1 PIQ201 PIQ202 PIQ203 COQ2 PIQ301 PIQ303 COQ3 PIR101 PIR102 COR1 PIR201 PIR202 COR2 PIR301 PIR302 COR3 PIR401 PIR402 COR4 PIR501 PIR502 COR5 PIR601 PIR602 COR6 PIR801 PIR802 COR8 PIR901 PIR902 COR9 PIR1001 PIR1002 COR10 PIR1101 PIR1102 COR11 PIR1201 PIR1202 COR12 PIR1301 PIR1302 COR13 PIR1401 PIR1402 COR14 PIR1501 PIR1502 COR15 PIR1601 PIR1602 COR16 PIR1701 PIR1702 COR17 PIR1801 PIR1802 COR18 PIR1901 PIR1902 COR19 PIR2001 PIR2002 COR20 PIR2101 PIR2102 COR21 PIR2201 PIR2202 COR22 PIR2301 PIR2302 COR23 PIR2401 PIR2402 COR24 PIS101 PIS102 COS1 PIS201 PIS202 COS2 PISW101 PISW102 PISW103 PISW104 PISW105 PISW106 COSW1 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 COU1 PIU200 PIU201 PIU202 PIU203 PIU204 PIU205 PIU206 PIU207 PIU208 PIU209 PIU2010 PIU2011 PIU2012 PIU2013 PIU2014 PIU2015 PIU2016 PIU2017 PIU2018 PIU2019 PIU2020 PIU2021 PIU2022 PIU2023 PIU2024 PIU2025 PIU2026 PIU2027 PIU2028 PIU2029 PIU2030 PIU2031 PIU2032 COU2 PIU301 PIU302 PIU303 PIU304 PIU305 PIU306 PIU307 PIU308 PIU309 COU3 PIU401 PIU402 PIU403 PIU404 PIU405 PIU406 PIU407 PIU408 PIU409 COU4 PIU501 PIU502 PIU503 PIU504 PIU505 PIU506 PIU507 PIU508 PIU509 COU5 PIU601 PIU602 PIU603 PIU604 PIU605 PIU606 PIU607 PIU608 PIU609 PIU6010 PIU6011 PIU6012 COU6 PIU701 PIU702 PIU703 PIU704 PIU705 PIU706 PIU707 PIU708 PIU709 PIU7010 PIU7011 PIU7012 COU7 PIU801 PIU802 PIU803 PIU804 PIU805 PIU806 PIU807 PIU808 PIU809 COU8 PIU901 PIU902 PIU903 PIU904 PIU905 PIU906 PIU907 PIU908 PIU909 PIU9010 PIU9011 PIU9012 COU9 PIY101 PIY102 COY1 PIC402 PIR102 PIR201 PIU2028 NLBAT0LV PIU206 PIU308 NLCHRG PIC1502 PIR501 PIU2018 NLCurren0Motor0Jump PIC2002 PIR801 PIU2017 NLCurren0Motor0L PIC2802 PIR1001 PIU2019 NLCurren0Motor0R PIU207 NLdebug uart TX PIR1502 PIU2023 NLEN PIQ303 PIR2401 PIU2020 NLEncoder PIU208 PIU402 NLF1 PIU2016 PIU6011 PIU705 PIU905 NLG0INT PIR21…
