PQN44648TX2G4AirHogs Jump Fury Control

INDOOR USE ONLY CAUTION: HAIR ENTANGLEMENT — Tie back and cover hair and secure loose clothing prior to play. ! Not Included x AAA ( LR03 ) 1.5 V 2 NORTH AMERICA – 1-800-622-8339 customercare@spinmaste r.com UK – 0 800 206 1191, servic euk@spinmaste r.com IRELAND – 1800 992 249 AUSTRALIA –1800 316 982, customercare@spinmaste r.com WWW.SPINMASTER.COM YRS 4+ CONTENTS 1 Jump Fury™ 1 USB Charging Cable 1 Controller Frequency Band(s): 2.422 – 2.467 GHz Maximum radio frequency power transmitted: < 10dBm BATTERY SAFETY INFORMATION: Batteries are small objects. Replacement of batteries must be done by adults. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the toy. Dispose of used batteries properly. Remove batteries for prolonged storage. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard/rechargeable). Using rechargeable batteries is not recommended due to possible reduced performance. Rechargeable batteries are only to be charged under adult supervision. Replaceable-rechargeable batteries are to be removed from the toy before being charged. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals. SPECIAL LiFe BATTERY INSTRUCTIONS: Never charge battery unattended. - Charge battery in an isolated area. Keep away from flammable materials. - Do not expose to direct sunlight. There is a risk of the batteries exploding, overheating, or igniting. - Do not disassemble, modify, heat, or short-circuit the batteries. Do not place them in fires or leave them in hot places. - Do not drop or subject to strong impacts. - Do not allow the batteries to get wet. - Only charge the batteries with the specified Spin Master™ battery charger. - Only use the batteries in the device specified by Spin Master™. - Carefully read the instruction guide and use the batteries correctly. - In the unlikely event of leakage or explosion use sand or a chemical fire extinguisher for the battery. - Batteries must be recycled or disposed of properly. PRODUCT BATTERY REMOVAL INSTRUCTIONS: Internal battery is factory installed and non-replaceable. Product disassembly and battery removal must be performed by an adult. Do not puncture, cut, tear, compress or deform product during disassembly. Ensure product is turned off, then use a screw driver to remove all screws. Separate product body halves to expose internal electronics. When battery is visible in its entirety, use scissors to cut a single battery wire, immediately wrap the cut wire end with tape to isolate it, repeat until all battery wires are cut and isolated, and the battery is free from the rest of the product. Dispose of battery in accordance with your local battery recycling or disposal laws. FCC STATEMENT: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference to radio communications. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this toy does cause interference to radio or television reception (you can check this by turning the toy off and on while listening for the interference), one or more of the following measures may be useful: • Reorient or relocate the receiving antenna. • Increase the separation between the toy and the radio or the TV. • Consult the dealer or an experienced TV-radio technician for help. NOTE: Changes, adjustments or modifications to this unit, including but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd or they could void the user’s authority to operate the equipment. Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221. To contact the responsible party please visit fcc.spinmaster.com. ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Do not change or modify anything on the toy. BEFORE FIRST USE: Read the user's information together with your child. Spin Master Ltd., 225 King Street West, Toronto ON M5V 3M2 Canada Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221 Spin Master International B.V., Kingsfordweg 151, 1043 GR Amsterdam, NL Spin Master Australia Pty Ltd, Suite 101, Level 1, 18-24 Chandos Street, St Leonards, NSW 2065; 1800 316 982 Spin Master Toys UK Ltd. Secure Trust House, Boston Drive, Bourne End, Buckinghamshire, SL8 5YS, UK Spin Master logo & © Spin Master Ltd. All rights reserved. Retain this information, addresses and phone numbers for future reference. Content may vary from pictures. Keep away from obstacles and electrical hazards. Spin Master Ltd. reserves the right to discontinue the www.AIRHOGS.com/JUMPFURY website at any time. MADE IN CHINA For TROUBLESHOOTING questions and solutions, please visit our website: AIRHOGS.COM/JUMPFURY NOTE: If normal function of the product is disturbed or interrupted, strong electromagnetic interference may be causing the issue. To reset product, turn it completely off, then turn it bac…

Text truncated - open the document above for the full version.

WWW.SPINMASTER.COMAIRHOGS.COM/JUMPFURY 1 WWW.SPINMASTER.COM AIRHOGS.COM/JUMPFURY 16 T44648_0002_20130280_GML_IS_R1 4+ For in-depth video instructions go to / Pour obtenir des instructions vidéo, se rendre sur / Para ver instrucciones exhaustivas en vídeo, visita / Detaillierte Videoanleitungen findest du auf: Ga voor uitgebreide video-instructies naar / Per istruzioni video dettagliate, visitare / Para instruções em vídeo mais detalhadas, acesse Детальные видеоинструкции представлены на сайте / Szczegółowe instrukcje wideo można znaleźć na stronie / Podrobné videopokyny najdete na webu Video s podrobnými pokynmi nájdete na adrese / A részletes útmutató videók itt tekinthetők meg: / Pentru instrucţiuni video detaliate, accesaţi Για πιο λεπτομερείς οδηγίες σε βίντεο, μεταβείτε στη διεύθυνση / Videozapis s detaljnim uputama potražite na За по-подробни инструкции за видео отидете на / Za poglobljena videonavodila obiščite / Ayrıntılı videolu talimatlar için şu adrese gidin: / 如需观看详细视频说明，请前往 AIRHOGS.COM/JUMPFURY a WARNING: CHOKING HAZARD – Small parts. Not suitable for children under three years. a ATTENTION ! DANGER D'ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de trois ans. a ADVERTENCIA: PELIGRO DE ASFIXIA – Contiene piezas pequeñas. No conviene para niños menores de tres años. a ACHTUNG: ERSTICKUNGSGEFAHR – Kleinteile. Nicht für Kinder unter drei Jahren geeignet. a WAARSCHUWING: VERSTIKKINGSGEVAAR – Kleine onderdelen. Niet geschikt voor kinderen jonger dan drie jaar. a AVVERTENZA: RISCHIO DI SOFFOCAMENTO – Pezzi piccoli. Non adatto a bambini di età inferiore a tre anni. a ATENÇÃO: PERIGO DE ASFIXIA – Peças pequenas. Contra-indicado para crianças com menos de 3 anos. a ПРЕДУПРЕЖДЕНИЕ! ОПАСНОСТЬ УДУШЬЯ – Мелкие детали. Не подходит для детей в возрасте до 3 лет. a OSTRZEŻENIE: NIEBEZPIECZEŃSTWO ZADŁAWIENIA – Drobne elementy. Nie nadaje się dla dzieci w wieku poniżej 3 lat. a UPOZORNĚNÍ: NEBEZPEČÍ UDUŠENÍ – Obsahuje malé části. Nevhodné pro děti do tří let. a UPOZORNENIE: NEBEZPEČENSTVO UDUSENIA – Obsahuje malé predmety. Nevhodné pre deti do troch rokov. a FIGYELMEZTETÉS: FULLADÁSVESZÉLY – Apró alkatrészek. Csak három évnél idősebb gyermekek számára alkalmas. a AVERTISMENT: PERICOL DE ASFIXIERE – Piese mici. Contraindicat copiilor mai mici de trei ani. a ΠΡΟΕΙΔΟΠΟΙΗΣΗ: ΚΙΝΔΥΝΟΣ ΠΝΙΓΜΟΥ – Μικρά μέρη. Δεν είναι κατάλληλο για παιδιά κάτω των τριών ετών. a UPOZORENJE: OPASNOST OD GUŠENJA – Mali dijelovi. Igračka nije prikladna za djecu mlađu od tri godine. a ВНИМАНИЕ: ОПАСНОСТ ОТ ЗАДАВЯНЕ – Малки части. Неподходящо за деца под тригодишна възраст. a OPOZORILO: NEVARNOST ZADUŠITVE – Majhni deli. Ni primerno za otroke, mlajše od treh let. a UYARI: BOĞULMA TEHLİKESİ – Küçük parçalar. Üç yaşından küçük çocuklar için uygun değildir. a 警告：内含小零件，有窒息危险。不适合三岁以下儿童。 MADE IN CHINA / FABRIQUÉ EN CHINE / HECHO EN CHINA / СДЕЛАНО В КИТАЕ / ÇİN'DE ÜRETİLMİŞTİR a CAUTION: Hair Entanglement. Tie back and cover hair and secure loose clothing prior to play. a MISE EN GARDE : Les cheveux peuvent se coincer. Attacher les cheveux et les couvrir, et maintenir les vêtements amples à l'écart du jouet. a PRECAUCIÓN: Enredo de pelo. Asegúrese de llevar el pelo atado o tenerlo cubierto; revise además si lleva puesto algo que también se pueda enredar. a VORSICHT: Haare könnten sich verfangen. Vor dem Spielen Haare zusammenbinden und bedecken, weite Kleidung sichern. a VOORZICHTIG: Haar kan verstrikt raken. Bind het haar naar achteren en bedek het. Maak loshangende kleding vast voor gebruik. a ATTENZIONE: Intrappolamento dei capelli. Legare e coprire i capelli prima di giocare e tenere gli abiti lontano dal prodotto. a CUIDADO: Há possibilidade de prender o cabelo. Prenda e cubra o cabelo, assegure-se de prender qualquer peça de roupa solta antes de utilizar o produto. a ОСТОРОЖНО: Игрушка может запутать волосы. Не играйте с распущенными волосами и неприкрытой головой, а также заправьте свободную одежду перед игрой. a UWAGA: Niebezpieczeństwo wplątania włosów. Przed użyciem należy związać i zakryć włosy oraz zabezpieczyć luźne części odzieży. a POZOR: Může dojít k zapletení vlasů. Před hraním si vlasy sepněte či zakryjte a nenoste volný oděv. a VAROVANIE: Zamotanie vlasov. Pred hraním si zopnite a prikryte vlasy a upevnite voľné oblečenie. a VIGYÁZAT: Belegabalyodó haj. A játék megkezdése előtt kösse össze és fedje le a haját, illetve ügyeljen a laza ruhadarabokra. a ATENŢIE: Agăţare în păr. Strângeţi părul la spate şi acoperiţi-l şi strângeţi hainele largi înainte de a vă juca. a ΠΡΟΣΟΧΗ: Μπλέξιμο μαλλιών. Πριν από το παιχνίδι, δέστε τα μαλλιά, καλύψτε τα και σφίξτε τυχόν φαρδιά ρούχα. a OPREZ: zapetljanje u kosu. Prije igranja zavežite i prekrijte kosu i pričvrstite labavu odjeću. a ПРЕДУПРЕЖДЕНИЕ: Заплитане на косата. Завържете назад, покрийте косата и стегнете свободно висящите дрехи преди игра. a POZOR: Zapletanje las. Pred igro spnite in pokrijte lase ter zavihajte ali zatlačite ohlapna oblačila. a DİKKAT: Saçınıza Dolanabilir. Oynamaya başlamadan önce saçınızı arkaya toplayıp koruyun ve bol giysilerinizi sabitleyin. a 小心：可能会缠绕头发。在玩耍前，请扎好并盖住头发，并固定住松散衣物。 e CONTAINS 1 3.2V LiFe 500mAh BATTERY PACK AND REQUIRES 2 x 1.5V AAA (LR03) ALKALINE BATTERIES (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life, it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electri…

Text truncated - open the document above for the full version.

44648 TX Block Diagram TX MCU FC298TX 4 Input Buttons Antenna 3V Battery Steering VR Throttle VR LED 1 & 2 Indicators 12MHz Oscillator

Dec 2013 Letter of Agency "I, an officer of Spin Master Toys Far East LTD. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Tim Lee/ Herbert Wong / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 15 day Jan of 2021__ By Signature Tommy So Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

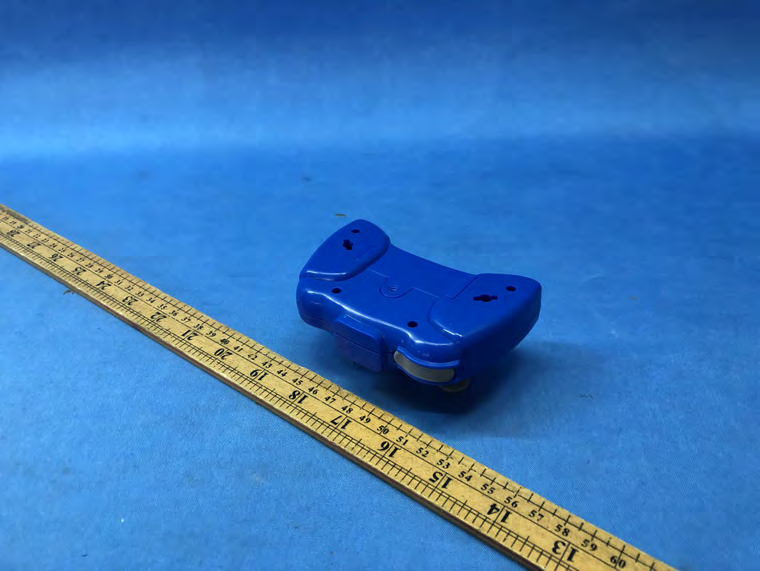

INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Controller Unit) for a RC car. The sample supplied operated on 15 channels, normally at 2422 - 2467MHz. The channels are shown in table below. 2422 2424 2426 2430 2433 2436 2438 2441 2444 2447 2454 2459 2462 2464 2467 Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 101.1dBμV/m at 3m (Peak), 85.3dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (SOC_FC298TX) acts as RF Module 2. Y1 acts as 12MHz Oscillator 3. C3 and L1 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Controller Unit) for a RC car. The sample supplied operated on 15 channels, normally at 2422 - 2467MHz. The channels are shown in table below. 2422 2424 2426 2430 2433 2436 2438 2441 2444 2447 2454 2459 2462 2464 2467 The EUT is powered by 2 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 101.1dBμV/m at 3m (Peak), 85.3dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 88.3dBμV/m at 3m in frequency 2.467GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Sheet ofSize Date: Date: Drawing By: Checked By: Title: Early light industrial Co.Ltd Model NO. A42 Jump shot TX 44648 Rev:00 2 XiaohongTang 2020/1/5 E1 ANT1 F1 1A S3 ON/OFF S1 Trim+ S2 Trim- S4 Jump L1 5.6nH BT1 3V 1 2 Y112M 10ppm 12pF ANT 1 GND 2 VDD 3 PA1/AIN1 4 PB0/AIN3 5 PA2/AIN2 6 PB5 7 PA0/AIN0 8 VDD 9 PA5 10 PB1/AIN4 11 PA7/AIN5 12 PA3/MRSTN 13 XTALN 14 XTALP 15 VDD 16 U1 SOC_FC298TX VDD 0.1uF C8 VDD 1uF C7 1.2pF C3 NC C1 NC C2 VDD 10pF C5 300R R5 LED2 RED VDD 0.1uF C6 VDD 10K R2 5.1K R3 10K R4 10K/90 Degree VR1 0.1uF C4 CH1 V R _ E N 1 10K/90 Degree VR2 CH3 V R _ E N 3 KEY Buzzer CH3 VR_EN3 KEY 300R R1 LED1 GREEN ThrottleSteering VR_EN1 CH1 5.1K R8 0R/1206 R10 VDDVDD PIBT101 PIBT102 COBT1 PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301 PIC302 COC3 PIC401 PIC402 COC4 PIC501 PIC502 COC5 PIC601 PIC602 COC6 PIC701 PIC702 COC7 PIC801 PIC802 COC8 PIE101 COE1 PIF101 PIF102 COF1 PIL101 PIL102 COL1 PILED101 PILED102 COLED1 PILED201 PILED202 COLED2 PIR101 PIR102 COR1 PIR201 PIR202 COR2 PIR301 PIR302 COR3 PIR401 PIR402 COR4 PIR501 PIR502 COR5 PIR801 PIR802 COR8 PIR1001 PIR1002 COR10 PIS101 PIS102 COS1 PIS201 PIS202 COS2 PIS301 PIS302 COS3 PIS401 PIS402 COS4 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 PIU107 PIU108 PIU109 PIU1010 PIU1011 PIU1012 PIU1013 PIU1014 PIU1015 PIU1016 COU1 PIVR101 PIVR102 PIVR103 COVR1 PIVR201 PIVR202 PIVR203 COVR2 PIY101 PIY102 COY1 PIBT102 PIC101 PIC201 PIC302 PIC401 PIC501 PIC601 PIC701 PIC801 PIR102 PIR502 PIS102 PIS202 PIS302 PIS402 PIU102 PIVR102 PIVR202 PIBT101 PIF101 PIC102 PIU1015 PIY102 PIC202 PIU1014 PIY101 PIC301 PIL101 PIU101 PIE101 PIL102 PILED101 PIU105 PILED102 PIR101 PILED201 PIU1010 PILED202 PIR501 PIR301 PIR802 PIS401 PIR302 PIR401 PIS201 PIR402 PIS101 PIU104 POBuzzer PIU106 PIVR203 POCH3 PIU107 PIVR201 POVR0EN3 PIC802 PIR202 PIR801 PIS301 PIU108 POKEY PIU1011 PIVR103 POCH1 PIU1012 PIVR101 POVR0EN1 PIU1013 PIC402 PIC502 PIC602 PIC702 PIF102 PIR201 PIR1001 PIR1002 PIU103 PIU109 PIU1016 POBuzzer POCH1 POCH3 POKEY POVR0EN1 POVR0EN3

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 21010793HKG‐001 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) FCC ID: PQN44648TX2G4 Transceiver Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: February 19, 2021 TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 21010793HKG‐001 Page 2 of 16 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Andy Wong Tel: 852‐23013822 Fax: 852‐23011822 e‐mail: [email protected] Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Brand Name: ARH VHC JumpFury Control Model: 44648TX Additional Model: 6060397, 6060398, 1078632, 1078633 Phantom No.: 20130279/20130280 Type of EUT: Transceiver Description of EUT: AirHogs Jump Fury Control Serial Number: N/A FCC ID: PQN44648TX2G4 Date of Sample Submitted: January 19, 2021 Date of Test: January 19, 2021 to January 28, 2021 Report No.: 21010793HKG‐001 Report Date: February 19, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 21010793HKG‐001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 21010793HKG‐001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................12 5.0 PRODUCT LABELLING..................................................................................................12 6.0 TECHNICAL SPECIFICATIONS .......................................................................................12 7.0 INSTRUCTION MANUAL.......................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: PQN44648TX2G4 IC: 4438B-44648TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Back View)
