PQN66803RX2G41MJC RDC 1 to 24 El Toro Loco

1 1:24 TH Scale • Échelle 1:24 • Escala 1:24 INDOOR / OUTDOOR • INTÉRIEUR / EXTÉRIEUR • INTERIORES / EXTERIORES YRS ANS AÑOS 4+ TM WWW.MONSTERJAMRC.COM Not included Non fournies No incluidas x AAA ( LR03 ) 1.5 V 1,5 V 5 POWER SWITCH INTERRUPTEUR D'ALIMENTATION INTERRUPTOR DE ENCENDIDO DRIFT ADJUSTER RÉGLAGE DE LA DÉRIVE AJUSTADOR DE GIRO BATTERY COMPARTMENT COMPARTIMENT DES PILES COMPARTIMENTO PARA LAS PILAS 6 Frequency Band(s): 2.4112.472GHz Maximum radio frequency power transmitted: <10dBm Bande(s) de fréquence : 2,411-2,472 GHz Puissance de radiofréquence maximale transmise : <10 dBm Banda(s) de frecuencia: 2,411 - 2,472 GHz Potencia máxima de radiofrecuencia transmitida: <10 dBm Spin Master International BV hereby declares that the radio equipment type El Toro Loco™ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://doc.spinmaster.com Par la présente, Spin Master International BV déclare que l'équipement radio de type El Toro Loco™ respecte la Directive 2014/53/UE. L'intégralité de la déclaration de conformité UE est disponible à l'adresse Internet suivante : http://doc.spinmaster.com Por la presente, Spin Master International BV declara que el tipo de equipo de radio usado en El Toro Loco™ cumple la Directiva 2014/53/EU. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet: http://doc.spinmaster.com e�• Do not change or modify anything on the toy. BEFORE FIRST USE: Read the user's information together with your child. SPIN MASTER LTD., 225 KING STREET WEST, TORONTO, ON M5V 3M2 CANADA Imported into EU by SPIN MASTER INTERNATIONAL, B.V., Kingsfordweg 151, 1043 GR Amsterdam, The Netherlands Imported by Spin Master Australia Pty Ltd, Suite 101, Level 1, 18-24 Chandos Street, St Leonards, NSW 2065; 1800 316 982 Spin Master logo & © Spin Master Ltd. All rights reserved. Retain this information, addresses and phone numbers for future reference. Content may vary from pictures. Keep away from obstacles and electrical hazards. Spin Master Ltd. reserves the right to discontinue the www.monsterjamrc.com website at any time. MADE IN CHINA -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- f�• Ne pas altérer le jouet ou modifier l'un des composants. AVANT LA PREMIÈRE UTILISATION : Lire les instructions avec votre enfant. SPIN MASTER LTD., 225 KING STREET WEST, TORONTO, ON M5V 3M2 CANADA Importé dans l'UE par SPIN MASTER INTERNATIONAL, B.V., Kingsfordweg 151, 1043 GR Amsterdam, The Netherlands Importé par Spin Master Australia Pty Ltd, Suite 101, Level 1, 18-24 Chandos Street, St Leonards, NSW 2065; 1800 316 982 Le logo Spin Master & © Spin Master Ltd. Tous droits réservés. Conserver les informations, adresses et numéros de téléphone pour consultation ultérieure. Le contenu peut différer des images. Maintenir à l'écart de tout obstacle ou risque électrique. Spin Master Ltd. se réserve le droit de supprimer le site Internet www.monsterjamrc.com à tout moment. FABRIQUÉ EN CHINE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- E�• No cambie ni modifique ninguna de las piezas del juguete. ANTES DE UTILIZARLO POR PRIMERA VEZ, lea detenidamente la información dirigida al usuario junto con el niño. SPIN MASTER LTD., 225 KING STREET WEST, TORONTO, ON M5V 3M2 CANADA Importado en la UE por SPIN MASTER INTERNATIONAL, B.V., Kingsfordweg 151, 1043 GR Amsterdam, The Netherlands Logotipo de Spin Master y © Spin Master Ltd. Todos los derechos reservados. Conserve toda la información, las direcciones y los números de teléfono para futuras referencias. El contenido del paquete puede no corresponder con las imágenes. Mantenga el producto alejado de obstáculos y riesgos eléctricos. Spin Master Ltd. se reserva el derecho a suspender el uso del sitio web www.monsterjamrc.com en cualquier momento. HECHO EN CHINA Juguete Importado por: Spin Master México, S.A. de C.V. Av. Insurgentes Sur No.1070 piso 8 Colonia Insurgentes San Borja Alcaldía Benito Juárez C.P. 03100, Ciudad de México. R.F.C. SMM050627V48 MONSTERJAMRC.COM For in-depth video instructions go to Para ver instrucciones exhaustivas en vídeo, visita Pour obtenir des instructions vidéo, se rendre sur T66803_0021_20128052_GBL_IS_R3 © 2021 Feld Motor Sports, Inc. MONSTER JAM®, UNITED STATES HOT ROD ASSOCIATION™, USHRA™ , EL TORO LOCO®, GRAVE DIGGER®, MEGALODON®, MONSTER MUTT® are trademarks of and used under license by FMS. All rights reserved. © 2021 Feld Motor Sports, Inc. MONSTER JAM®, UNITED STATES HOT ROD ASSOCIATION™, USHRA™ , EL TORO LOCO®, GRAVE DIGGER®, MEGALODON®, MONSTER MUTT® sont des marques de commerce de FMS utilisées sous licence. Tous droits réservés. © 2021 Feld Motor Sports, Inc. MONSTER JAM®, UNITED STATES HOT ROD ASSOCIATION™, USHRA™ , EL TORO LOCO®, GRAVE DIGGER®, MEGALODON®, MONSTER MUTT® son marcas comerciales y se usan bajo licencia de FMS. Todos los derechos reservados. a WARNING: CHOKING HAZARD – Small parts. Not for children under 3 years. a ATTENTION ! DANGER D'ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de 3 ans. a ADVERTENCIA: PELIGRO DE ASFIXIA – Contiene piezas pequeñas. No conviene para niños menores de tres años. CAUTION: HAIR ENTANGLEMENT — Tie back and cover hair and secure loose clothing prior to play. ! MISE EN GARDE : LES CHEVEUX PEUVENT SE COINCER — Attacher les cheveux et les couvrir, et maintenir les vêtements amples à l'écart du jouet. ! PRECAUCIÓN: ENREDO DE PELO — Asegúrese de llevar el pelo atado o tenerlo cubierto; revise además si lleva puesto algo que también se pueda enredar. ! NORTH AMERIC…

Text truncated - open the document above for the full version.

设计 4.5V DC 标准化 A 阶段 标记 第1张 共1张 2.4GHz Band MCU crystal/16MHz APM POWER 批准 First Union GND steering motor Real motor 66803-RX-M03 block chart 审核 Version:00 日期 2020-6-5

Dec 2013 Letter of Agency "I, an officer of       do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 17th day April of 2020 By Signature Andy Wong Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

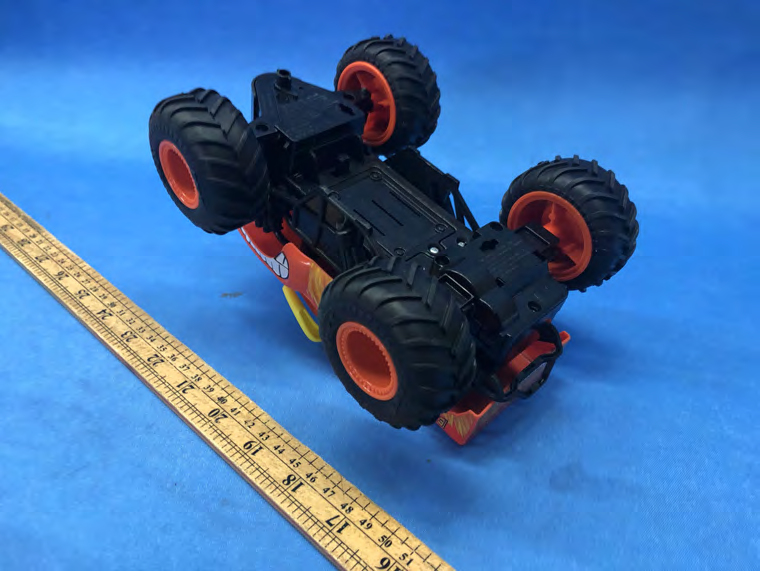

INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC car. The sample supplied operated on 22 channels, normally at 2411 - 2472MHz. The channels are shown in below table. 2411 2413 2420 2422 2424 2426 2428 2432 2435 2437 2439 2441 2443 2445 2451 2453 2455 2457 2461 2468 2470 2472 The EUT is powered by 3 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 95.9dBμV/m at 3m (Peak), 78.5dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (HF2410) acts as 2.4 RF Module 2. U2 (HF7302B) acts as MCU 3. Y1 acts as 16MHz Oscillator 4. C2, C4, C6, L1 and L2 act as antenna matching circuit 5. M1 & M2 act as Motors.

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC car. The sample supplied operated on 22 channels, normally at 2411 - 2472MHz. The channels are shown in below table. 2411 2413 2420 2422 2424 2426 2428 2432 2435 2437 2439 2441 2443 2445 2451 2453 2455 2457 2461 2468 2470 2472 The EUT is powered by 3 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 95.9dBμV/m at 3m (Peak), 78.5dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 81.5dBμV/m at 3m in frequency 2.472GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2020/6/6Sheet of File:E:\ 工作资料 \..\66803-RX-M03-SCH.SchDocDrawn By: C1 18PF C3 18PF Y1 16MHZ GND GND C11 0.1uF GND VDD GND C6 NC L1 5.6nH C4 0.5pF L2 NC GND GND F B TEST R L BT1 Battery GND C12 220uF E1 ANT1 C2 1.8P S1 NC R1 GND ANT RB7/ICSPDAT RB6/ICSPCLK MCLR/RC0RB4 RB5 VDD XC1 XC2 1 2 3 4 56 7 8 9 10 VCCVDD LDO NC INA INB INCOUTC OUTB GND OUTA NC 1 2 3 4 512 13 14 15 16 IND VMNC OUTD GND 6 7 89 10 11 VM R F B L VCC VDD GND C14 22uF GND A - + M2 A - + M1 C13 104 C8 104 U1 U2 HF7302B PTC1 100K R2 0R R4 GND GND 100R R3 HF2410 66803-RX-M03

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 20061095HKG‐003 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) FCC ID: PQN66803RX2G41 Transceiver Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 09, 2020 TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20061095HKG‐003 Page 2 of 16 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (852) 2301 3822 Fax: (852) 2301 1822 e‐mail: [email protected] Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Room 1113, 11/F, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: Spin Master Ltd. Model: 66803 Phantom No.: 20128052/20128981/20128983/20130661 Type of EUT: Transceiver Description of EUT: MJC RDC 1 to 24 El Toro Loco Serial Number: N/A FCC ID: PQN66803RX2G41 Date of Sample Submitted: June 18, 2020 Date of Test: June 18, 2020 to June 26, 2020 Report No.: 20061095HKG‐003 Report Date: July 09, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20061095HKG‐003 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20061095HKG‐003 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................12 5.0 PRODUCT LABELLING..................................................................................................12 6.0 TECHNICAL SPECIFICATIONS .......................................................................................12 7.0 INSTRUCTION MANUAL.........................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: PQN66803RX2G41 IC: 4438B-66803RX2G41 Configuration Photographs Worst-Case Radiated Emissions (Back View)
