PQN66807RX2G4MJC RDC Megalodon Storm Vehicle

WWW.SPINMASTER.COMWWW.MONSTERJAMRC.COM 1 WWW.SPINMASTER.COM WWW.MONSTERJAMRC.COM 16 T66807_0002_20122968_GML_IS_R3 For in-depth video instructions go to / Pour obtenir des instructions vidéo, se rendre sur / Para ver instrucciones exhaustivas en vídeo, visita / Detaillierte Videoanleitungen findest du auf: Ga voor uitgebreide video-instructies naar / Per istruzioni video dettagliate, visitare / Para instruções em vídeo mais detalhadas, acesse Детальные видеоинструкции представлены на сайте / Szczegółowe instrukcje wideo można znaleźć na stronie / Podrobné videopokyny najdete na webu Video s podrobnými pokynmi nájdete na adrese / A részletes útmutató videók itt tekinthetők meg: / Pentru instrucţiuni video detaliate, accesaţi Για πιο λεπτομερείς οδηγίες σε βίντεο, μεταβείτε στη διεύθυνση / Videozapis s detaljnim uputama potražite na За по-подробни инструкции за видео отидете на / Za poglobljena videonavodila obiščite / Ayrıntılı videolu talimatlar için şu adrese gidin: MONSTERJAMRC.COM aWARNING: CHOKING HAZARD – Small parts. Not suitable for children under three years. aATTENTION ! DANGER D'ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de trois ans. aADVERTENCIA: PELIGRO DE ASFIXIA – Contiene piezas pequeñas. No conviene para niños menores de tres años. aACHTUNG: ERSTICKUNGSGEFAHR – Kleinteile. Nicht für Kinder unter drei Jahren geeignet. aWAARSCHUWING: VERSTIKKINGSGEVAAR – Kleine onderdelen. Niet geschikt voor kinderen jonger dan drie jaar. aAVVERTENZA: RISCHIO DI SOFFOCAMENTO – Pezzi piccoli. Non adatto a bambini di età inferiore a tre anni. aATENÇÃO: PERIGO DE ASFIXIA – Peças pequenas. Contra-indicado para crianças com menos de 3 anos. aПРЕДУПРЕЖДЕНИЕ! ОПАСНОСТЬ УДУШЬЯ – Мелкие детали. Не подходит для детей в возрасте до 3 лет. aOSTRZEŻENIE: NIEBEZPIECZEŃSTWO ZADŁAWIENIA – Drobne elementy. Nie nadaje się dla dzieci w wieku poniżej 3 lat. aUPOZORNĚNÍ: NEBEZPEČÍ UDUŠENÍ – Obsahuje malé části. Nevhodné pro děti do tří let. aUPOZORNENIE: NEBEZPEČENSTVO UDUSENIA – Obsahuje malé predmety. Nevhodné pre deti do troch rokov. aFIGYELMEZTETÉS: FULLADÁSVESZÉLY – Apró alkatrészek. Csak három évnél idősebb gyermekek számára alkalmas. aAVERTISMENT: PERICOL DE ASFIXIERE – Piese mici. Contraindicat copiilor mai mici de trei ani. aΠΡΟΕΙΔΟΠΟΙΗΣΗ: ΚΙΝΔΥΝΟΣ ΠΝΙΓΜΟΥ – Μικρά μέρη. Δεν είναι κατάλληλο για παιδιά κάτω των τριών ετών. aUPOZORENJE: OPASNOST OD GUŠENJA – Mali dijelovi. Igračka nije prikladna za djecu mlađu od tri godine. aВНИМАНИЕ: ОПАСНОСТ ОТ ЗАДАВЯНЕ – Малки части. Неподходящо за деца под тригодишна възраст. aOPOZORILO: NEVARNOST ZADUŠITVE – Majhni deli. Ni primerno za otroke, mlajše od treh let. aUYARI: BOĞULMA TEHLİKESİ – Küçük parçalar. Üç yaşından küçük çocuklar için uygun değildir. Spin Master Ltd., 225 King Street West, Toronto ON M5V 3M2 Canada Imported into EU by / Importé dans l’UE par Spin Master International B.V., Kingsfordweg 151, 1043 GR Amsterdam, The Netherlands Imported by / Importé par Spin Master Australia Pty Ltd, Suite 101, Level 1, 18-24 Chandos Street, St Leonards, NSW 2065; ) 1800 316 982 Импортер: ООО «Спин Мастер РУС», Россия, Москва 117638 Одесская ул. 2, Бизнес-центр «Лотос», башня С, 10 эт. Тел.: 8 800 301 38 22 MADE IN CHINA / FABRIQUÉ EN CHINE / HECHO EN CHINA / СДЕЛАНО В КИТАЕ / ÇİN'DE ÜRETİLMİŞTİR aCAUTION: Hair Entanglement. Tie back and cover hair and secure loose clothing prior to play. aMISE EN GARDE :Les cheveux peuvent se coincer. Attacher les cheveux et les couvrir, et maintenir les vêtements amples à l'écart du jouet. aPRECAUCIÓN:Enredo de pelo. Asegúrese de llevar el pelo atado o tenerlo cubierto; revise además si lleva puesto algo que también se pueda enredar. aVORSICHT:Haare könnten sich verfangen. Vor dem Spielen Haare zusammenbinden und bedecken, weite Kleidung sichern. aVOORZICHTIG:Haar kan verstrikt raken. Bind het haar naar achteren en bedek het. Maak loshangende kleding vast voor gebruik. aATTENZIONE:Intrappolamento dei capelli. Legare e coprire i capelli prima di giocare e tenere gli abiti lontano dal prodotto. aCUIDADO:Há possibilidade de prender o cabelo. Prenda e cubra o cabelo, assegure-se de prender qualquer peça de roupa solta antes de utilizar o produto. aОСТОРОЖНО:Игрушка может запутать волосы. Не играйте с распущенными волосами и неприкрытой головой, а также заправьте свободную одежду перед игрой. aUWAGA:Niebezpieczeństwo wplątania włosów. Przed użyciem należy związać i zakryć włosy oraz zabezpieczyć luźne części odzieży. aPOZOR:Může dojít k zapletení vlasů. Před hraním si vlasy sepněte či zakryjte a nenoste volný oděv. aVAROVANIE:Zamotanie vlasov. Pred hraním si zopnite a prikryte vlasy a upevnite voľné oblečenie. aVIGYÁZAT:Belegabalyodó haj. A játék megkezdése előtt kösse össze és fedje le a haját, illetve ügyeljen a laza ruhadarabokra. aATENŢIE:Agăţare în păr. Strângeţi părul la spate şi acoperiţi-l şi strângeţi hainele largi înainte de a vă juca. aΠΡΟΣΟΧΗ:Μπλέξιμο μαλλιών. Πριν από το παιχνίδι, δέστε τα μαλλιά, καλύψτε τα και σφίξτε τυχόν φαρδιά ρούχα. aOPREZ: zapetljanje u kosu. Prije igranja zavežite i prekrijte kosu i pričvrstite labavu odjeću. aПРЕДУПРЕЖДЕНИЕ:Заплитане на косата. Завържете назад, покрийте косата и стегнете свободно висящите дрехи преди игра. aPOZOR:Zapletanje las. Pred igro spnite in pokrijte lase ter zavihajte ali zatlačite ohlapna oblačila. aDİKKAT: Saçınıza Dolanabilir. Oynamaya başlamadan önce saçınızı arkaya toplayıp koruyun ve bol giysilerinizi sabitleyin. UK – 0800 206 1191, [email protected] IRELAND – 1800 992 249 FRANCE – 0800 909 150, [email protected] AUSTRALIA – 1800 316 982, [email protected] DEUTSCHLAND – 00800 0101 0222, [email protected] SCHWEIZ – 0800 561 350 • ÖSTERREICH – 0800 297 267 NEDERLAND – 0800 022 3683, [email protected] BELGIË/BELGIQUE – 0800 77 688 • LUXEMBOURG – 800 2 8044 ITALIA – 800 788 532, [email protected] MÉXICO – 01 800 9530147, [email protected] POLSKA – 800080238, poland@spinmaster…

Text truncated - open the document above for the full version.

A B C D D C B A Title NumberRevisionSize B Date:9-Jan-2020 Sheet of File:E:\ 伎㹼ಘ\SpinMaster\66807\66807R.DDB.DDBDrawn By: chippower 2.4GRX ANT motor drive charging circuit power switch LED 66807RXV4A- block diagram 12MHz Oscillator

Dec 2013 Letter of Agency "I, an officer of Spin Master Toys Far East Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 30th day March of 2020 By Signature Andy Wong Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

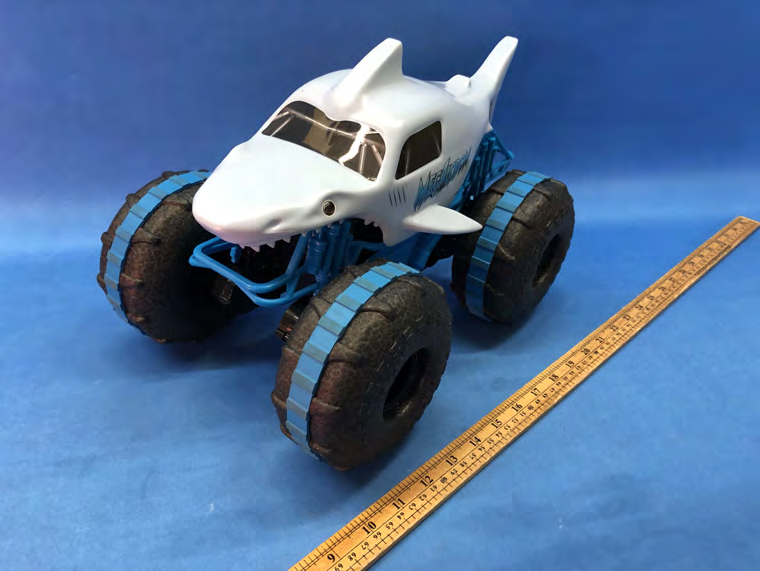

INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN66807RX2G4 IC: 4438B-66807RX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC car. The sample supplied operated on 46 channels, normally at 2420 - 2465MHz. The channels are separated with 1MHz channel spacing. The EUT is powered by 1 x 6.4V rechargeable battery. After switch on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, whip antenna Antenna Gain: 0dBi Nominal rated field strength is 99.0dBμV/m at 3m (Peak), 73.7dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U4 (BL2402D) acts as MCU 2. Y1 acts as 12MHz Oscillator 3. C17 and C18 act as antenna matching circuit 4. U8 & U9 act as motor driver 5. U2,U3,U5, Q5, Q6 and corresponding components act as charging circuitry

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC car. The sample supplied operated on 46 channels, normally at 2420 - 2465MHz. The channels are separated with 1MHz channel spacing. The EUT is powered by 1 x 6.4V rechargeable battery. After switch on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, whip antenna Antenna Gain: 0dBi Nominal rated field strength is 99.0dBμV/m at 3m (Peak), 73.7dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 76.7dBμV/m at 3m in frequency 2.445GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

A B C DD C B A Title NumberRevisionSize B Date:9-Jan-2020 Sheet of File:E:\飞行器\SpinMaster\66807\66807R.DDB.DDBDrawn By: OUT 2 IN 3 VSS 1 U7ME/6209 3.3V VIN 1 2 2 3 3 PWM1 4 VSS 8 AIN 7 PWM3 6 FB 5 U3 ABE02C2 VIN 1 2 2 3 3 PWM1 4 VSS 8 AIN 7 PWM3 6 FB 5 U2 ABE02D VIN 1 2 2 3 3 PWM1 4 VSS 8 AIN 7 PWM3 6 FB 5 U5 ABE02D G 1 D 3 S 2 Q2 RU206B G 1 D 3 S 2 Q14 RU206B 1 1 2 2 3 3 4 4 8 8 7 7 6 6 5 5 U1 SI9926BDY 1 3 5 2 4 6 S1 SS22F20G15 PC F4 2.5A C10 0.1UF C8 0.1UF C22 22UF C21 22UF C16 1UF C2 0.1UF C7 0.1UF C4 0.1UF C3 0.1UF C1 0.1UF R19 0.1R R4 47K R22 1K R2 1K R3 10K R18 15K1% R5 82K1% R8 10R R6 10R R9 22R R10 22R C5 0.1UF R7 10R R11 100K R13 100R R16 1K R12 100K R14 1K D4 5819 R24 330K1% R25 100K1% C6 0.1UF D2 SS34 D1 5819 L1 15UH D3 SS34 Q3 2301 LV Q4 3904 C9 0.1UF R21 10K R20 10K T3 ANT 1 VSS2 2 PA2/_AIN2/_PWM3/SDI 3 PA3/_AIN3/_SDO 4 PA4/_AIN4/SCK 5 VDD 6 PA6/_XIN 7 PA7/_XOUT 8 PA5/_RSTB/_VPP 9 PB3/_AIN8/_PWM1/ 10 PB2/_AIN7/_PWM2/ 11 PB1/_AIN6/_IR/_INT1 12 PB0/_AIN5_/INT0 13 VDD2 14 XTALO 15 XTALI 16 U4 BL2402D ANT1 Y1 12MHz C29 0.1UF BI 1 FI 2 GND 3 VCC 4 BO 8 BO 7 FO 6 FO 5 U8 C24 0.1UF C26 0.1UF C23 0.1UF R59 100K R57 0.015R T1 C20 36P C19 36P C17 1P C18 1P C12 0.1UF B R T1 L PC F LV F B C30 0.1UF BI 1 FI 2 GND 3 VCC 4 BO 8 BO 7 FO 6 FO 5 U9 C27 0.1UF C32 0.1UF/10V C26 0.1UF C23 0.1UF R60 100K R58 0.015R T2 L R T2 LED1 YL3ARG9UCK30-C-T R28 2K R29 10K A - + M1 MOTOR M2 MOTOR 66807 Megalodon RX + C15 100UF/25V + C14 100UF/16V + C31 47UF/16V + C33 47UF/16V T3 C34 0.1UF C11 0.1UF R66 0R1% R65 0R1% R64 0R1% CP2129AB CP2129AB 1 2 USB CABLE V4A C34 0.1UF MOTOR PCB1 MOTOR PCB2 3.3V 3.3V 3.3V VBAT VBAT VBAT 5V 5V LED 1 2 BT1 3.3V 1 2 BT1 3..3V F3 15A F2 15A Battery PCB LED R15 100K R26 100K Q5 3904 Q6 NCE60P04AY R23 100K F1 0.125A D5 SMAJ6.5CA R61 0R1% R68 0R1% R27 3.3K 3.3V

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 17 TEST REPORT Report No.: 20031079HKG‐003R1 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) FCC ID: PQN66807RX2G4 Transceiver This report supersedes previous report with report number 20031079HKG‐003 dated April 09, 2020. Please refer TY‐S20‐0050 Letter issued on May 08, 2020 for amendment/ supersede notification. Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: May 08, 2020 TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20031079HKG‐003R1 Page 2 of 17 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (852) 2301 3822 Fax: (852) 2301 1822 e‐mail: [email protected] Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Room 1113, 11/F, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: MJC RDC Megalodon Storm Vehicle Model: 66807RX Phantom No.: 20122967/20122968 Type of EUT: Transceiver Description of EUT: MJC RDC Megalodon Storm Vehicle Serial Number: N/A FCC ID: PQN66807RX2G4 Date of Sample Submitted: March 18, 2020 Date of Test: March 18, 2020 to March 24, 2020 Report No.: 20031079HKG‐003R1 Report Date: May 08, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20031079HKG‐003R1 Page 3 of 17 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20031079HKG‐003R1 Page 4 of 17 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................12 5.0 PRODUCT LABELLING..................................................................................................12 6.0 TECHNICAL…
