PQN67856TX2G4All Terrain Batmobile Control

INDOOR USE ONLY ALL-TERRAIN B AT MOBILE T M RC -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- e POWER SWITCH f INTERRUPTEUR D'ALIMENTATION E INTERRUPTOR DE ENCENDIDO d EIN/AUS-SCHALTER n STROOMSCHAKELAAR i INTERRUTTORE DI ALIMENTAZIONE p CHAVE LIGA/DESLIGA r ПЕРЕКЛЮЧАТЕЛЬ ПИТАНИЯ P WŁĄCZNIK ZASILANIA c VYPÍNAČ s VYPÍNAČ h BEKAPCSOLÓGOMB R COMUTATOR DE ALIMENTARE g ΔΙΑΚΟΠΤΗΣ ΛΕΙΤΟΥΡΓΙΑΣ C PREKIDAČ ZA NAPAJANJE B ПРЕВКЛЮЧВАТЕЛ НА ЗАХРАНВАНЕТО l STIKALO ZA VKLOP/IZKLOP t GÜÇ ANAHTARI z 电源开关 e CHARGING LED f LED DE CHARGE E LED DE CARGA d LADE-LED n LED-LAMPJE i LED DI RICARICA p LED DE CARREGAMENTO r ИНДИКАТОР ЗАРЯДА P DIODA ŁADOWANIA c KONTROLKA NABÍJENÍ LED s KONTROLKA LED NABÍJANIA h TÖLTÉSJELZŐ LED R LED DE ÎNCĂRCARE g LED ΦΟΡΤΙΣΗΣ C LED SVJETLO PUNJENJA B СВЕТОДИОД ЗА ЗАРЕЖДАНЕ l LED-LUČKA ZA POLNJENJE t ŞARJ LED'İ z 充电 LED 灯 e DO NOT USE REMOTE IN WATER f NE PAS UTILISER LA RADIOCOMMANDE DANS L'EAU E NO UTILIZAR EL CONTROL REMOTO DENTRO DEL AGUA d DIE FERNBEDIENUNG NICHT IM WASSER VERWENDEN. n GEBRUIK DE CONTROLLER NIET IN HET WATER i NON USARE IL RADIOCOMANDO IN ACQUA p NÃO USE O CONTROLE REMOTO NA ÁGUA r�НЕ ИСПОЛЬЗОВАТЬ УСТРОЙСТВО УПРАВЛЕНИЯ В ВОДЕ P NIE UŻYWAĆ KONTROLERA W WODZIE c DÁLKOVÝ OVLADAČ NEPOUŽÍVEJTE VE VODĚ s NEPOUŽÍVAJTE DIAĽKOVÉ OVLÁDANIE VO VODE h NE HASZNÁLJA A TÁVIRÁNYÍTÓT VÍZBEN R NU FOLOSIŢI TELECOMANDA ÎN APĂ g ΜΗΝ ΧΡΗΣΙΜΟΠΟΙΕΙΤΕ ΤΟ ΤΗΛΕΚΑΤΕΥΘΥΝΟΜΕΝΟ ΣΤΟ ΝΕΡΟ C DALJINSKI UPRAVLJAČ NEMOJTE UPOTREBLJAVATI U VODI B НЕ ИЗПОЛЗВАЙТЕ ДИСТАНЦИОННОТО УПРАВЛЕНИЕ ВЪВ ВОДА l UPRAVLJALNIKA NE UPORABLJAJTE V VODI t KUMANDAYI SUDA KULLANMAYIN z 请勿将遥控器浸在水中使用 e CHARGING COMPARTMENT f COMPARTIMENT DE CHARGE E COMPARTIMIENTO DE CARGA d LADEKABEL-FACH nOPLAADCOMPARTIMENT i SCOMPARTO DI RICARICA p COMPARTIMENTO DE CARREGAMENTO r ОТСЕК ДЛЯ ЗАРЯДНОГО УСТРОЙСТВАP KOMORA ŁADOWANIA c NABÍJECÍ PŘIHRÁDKA s NABÍJACIA PRIEHRADKA h A TÖLTŐ REKESZE R COMPARTIMENT DE ÎNCĂRCARE g ΤΜΗΜΑ ΦΟΡΤΙΣΗΣ C ODJELJAK ZA PUNJENJE B ОТДЕЛЕНИЕ ЗА ЗАРЕЖДАНЕ l PREDALČEK ZA NAPAJANJE t ŞARJ BÖLMESİ z 充电仓 e DRIVING ON WATER f CONDUITE SUR L'EAU E CONDUCCIÓN EN EL AGUA d IM WASSER FAHREN n OVER WATER RIJDEN i GUIDARE IN ACQUA p PILOTAR NA ÁGUA r ПЕРЕДВИГАЕТСЯ ПО ВОДЕ P JAZDA PO WODZIE c JÍZDA PO VODĚ s JAZDA NA VODE h VEZETÉS A VÍZ FELSZÍNÉN R CONDUCEREA PE APĂ g�ΟΔΗΓΗΣΗ ΣΤΟ ΝΕΡΟ C VOŽNJA PO VODI B ШОФИРАНЕ ПО ВОДА l VOŽNJA PO VODI t SUDA SÜRME z 在水中行驶 e NOTE: Before driving on water ENSURE THE CHARGING CABLE STORAGE COMPARTMENT IS FIRMLY CLOSED. There is no additional preparation required to drive on water. Fully submerging the vehicle in water is not recommended. f REMARQUE : Avant de conduire le véhicule sur l'eau, S'ASSURER QUE LE COMPARTIMENT DE RANGEMENT DU CÂBLE DE CHARGE EST BIEN FERMÉ. Aucune autre préparation n'est nécessaire avant de conduire le véhicule sur l'eau. Il n'est pas recommandé d'immerger entièrement le véhicule dans l'eau. E NOTA: Antes de conducir en el agua, ASEGÚRATE DE QUE EL COMPARTIMENTO PARA GUARDAR EL CABLE DE CARGA ESTÁ BIEN CERRADO. No se requiere una preparación adicional para conducir en el agua. Se recomienda no sumergir completamente el vehículo en el agua. d�HINWEIS: Vor einer Fahrt im Wasser MUSS SICHERGESTELLT WERDEN, DASS DAS LADEKABEL-FACH FEST GESCHLOSSEN IST. Für das Fahren im Wasser ist keine weitere Vorbereitung nötig. Es wird empfohlen, das Fahrzeug nicht vollständig unter Wasser zu tauchen. nOPMERKING: Controleer voordat je over het water rijdt of HET OPBERGVAK VOOR DE OPLAADKABEL VOLLEDIG IS AFGESLOTEN. Er is verder geen extra voorbereiding nodig om over water te rijden. Je kunt het voertuig beter niet volledig in water onderdompelen. i NOTA: prima di guidare in acqua, ASSICURATI CHE LO SCOMPARTO DEL CAVO DI RICARICA SIA CHIUSO SALDAMENTE. Non è richiesta alcuna preparazione aggiuntiva per guidare in acqua. Si sconsiglia di immergere completamente il veicolo nell'acqua. p NOTA: antes de pilotar na água, CERTIFIQUE-SE DE QUE O COMPARTIMENTO DE ARMAZENAMENTO DO CABO DE CARREGAMENTO ESTEJA FIRMEMENTE FECHADO. Não é necessário preparo adicional para pilotar na água. Não é recomendado submergir totalmente o veículo na água. r ПРИМЕЧАНИЕ: перед передвижением по воде УБЕДИСЬ В ТОМ, ЧТО ОТСЕК ДЛЯ ХРАНЕНИЯ КАБЕЛЯ ДЛЯ ЗАРЯДКИ ПЛОТНО ЗАКРЫТ. Дополнительная подготовка для передвижения по воде не требуется. Не рекомендуется полное погружение устройства под воду.P WAŻNE: przed rozpoczęciem jazdy po wodzie NALEŻY SPRAWDZIĆ, CZY KOMORA PRZEWODU ŁADOWANIA JEST DOBRZE ZAMKNIĘTA. Nie jest wymagane żadne dodatkowe przygotowanie do jazdy po wodzie. Nie zaleca się całkowitego zanurzenia pojazdu w wodzie. c POZNÁMKA: Před jízdou po vodě SE UJISTĚTE, ŽE JE ÚLOŽNÝ PROSTOR PRO NABÍJECÍ KABEL PEVNĚ UZAVŘENÝ. Žádná další příprava není před jízdou po vodě nutná. Nedoporučujeme model úplně ponořovat do vody. s POZNÁMKA: Pred jazdou na vode SA PRESVEDČTE, ŽE PRIEHRADKA NA ULOŽENIE NABÍJACIEHO KÁBLA JE PEVNE UZAVRETÁ. Jazda na vode si nevyžaduje žiadnu dodatočnú prípravu. Neodporúča sa úplne ponoriť vozidlo do vody. h MEGJEGYZÉS: A víz felszínén való vezetés előtt ELLENŐRIZZE, HOGY A TÖLTŐKÁBEL TARTÓREKESZE SZOROSAN ZÁRVA VAN-E. A víz felszínén való vezetéshez semmilyen további előkészület nem szükséges. A járművet nem ajánlott teljesen a víz alá meríteni. R NOTĂ: Înainte de a conduce pe apă, ASIGURAŢI-VĂ CĂ COMPARTIMENTUL DE DEPOZITARE AL CABLULUI DE ÎNCĂRCARE ESTE BINE ÎNCHIS. Nu sunt necesare pregătiri suplimentare pentru conducerea pe apă. Nu se recomandă scufundarea completă a vehiculului în apă. g ΣΗΜΕΙΩΣΗ: Πριν την οδήγηση στο νερό, ΒΕΒΑΙΩΘΕΙΤΕ ΟΤΙ ΤΟ ΤΜΗΜΑ ΑΠΟΘΗΚΕΥΣΗΣ ΤΟΥ ΚΑΛΩΔΙΟΥ ΦΟΡΤΙΣΗΣ ΕΙΝΑΙ ΚΑΛΑ ΚΛΕΙΣΜΕΝΟ. Δεν απαιτείται περαιτέρω προετοιμασία για την οδήγηση στο νερό. Δεν συνιστάται η πλήρης βύθιση του οχήματος στο νερό. C NAPOMENA: prije nego krenete voziti po vodi, PROVJERITE JE LI ODJELJAK KABELA ZA PUNJENJE ČVRSTO ZATVOREN. Nema dodatni…

Text truncated - open the document above for the full version.

Dec 2013 Letter of Agency "I, an officer of Spin Master Toys Far East Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 17th day March of 2021 By Signature Tommy So Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Controller Unit) for a RC car. The sample supplied operated on 46 channels, normally at 2420 - 2465MHz. The channels are separated with 1MHz spacing. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 100.9dBμV/m at 3m (Peak), 81.0dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (BL2402D) acts as MCU 2. Y1 acts as 12MHz Oscillator 3. C1 and C2 act as antenna matching circuit 4. U2 acts as speaker 5. Q1 (8050) acts as amplifier

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Controller Unit) for a RC car. The sample supplied operated on 46 channels, normally at 2420 - 2465MHz. The channels are separated with 1MHz spacing. The EUT is powered by 2 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 100.9dBμV/m at 3m (Peak), 81.0dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 84.0dBμV/m at 3m in frequency 2.420GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 ABCD 4 3 2 1 D CBA Revision Sheet of Size Date:Date:Date: Drawing By:Checked By:Approved By: Title: Spin Master (DongGuan) Toys Co., Ltd. Model NO: A4 1 1 67856TX V1A ANT1 Y112M C318PC718P C11P C60.1uf ANT 1 VSS2 2 PA2/ AIN2/ PWM3/SDI 3 PA3/ AIN3/ SDO 4 PA4/ AIN4/SCK 5 VDD 6 PA6/ Xin 7 PA7/ Xout 8 PA5/ RSTb/ VPP 9 PB3/ AIN8/ PWM1/ 10 PB2/ AIN7/ PWM2/ 11 PB1/ AIN6/ IR/ INT1 12 PB0/ AIN5 /INT0 13 VDD2 14 XTALO 15 XTALI 16 U1 BL2402D LR S3 L Fine tune C2 1P C4 0.1UF C8 0.1UF FB PC2 PC1 S2 R Fine tune PC2 PC1 BAT1 AAA*2=3V C50.1uf F1 FUSE/1A R11K Q18050 U2 BELL BELL S1 ON/OFF R2 1K D1 BLUE LED BELL VR2RJ09A-H-B5Kb(90)-G-Y03 VR1 RJ09A-H-B5Kb(90)-G-Y03 LR FB VDD VDD VDD C90.1uf 25/01/2021 Jack Xu

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 21020199HKG-001 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) FCC ID: PQN67856TX2G4 Transceiver Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: April 30, 2021 TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 21020199HKG-001 Page 2 of 16 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Tommy So Tel: (852) 2301 3822 Fax: (852) 2301 1822 e-mail: [email protected] Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Brand Name: BAT RDC All Terrain Batmobile Control Model: 67856TX Additional Model: 67856, 6062330, 6062331, 1081267, 1081268 Phantom No.: 20134005/20134006 Type of EUT: Transceiver Description of EUT: All Terrain Batmobile Control Serial Number: N/A FCC ID: PQN67856TX2G4 Date of Sample Submitted: February 02, 2021 Date of Test: February 02, 2021 to February 10, 2021 Report No.: 21020199HKG-001 Report Date: April 30, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 21020199HKG-001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 21020199HKG-001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 12 5.0 PRODUCT LABELLING .................................................................................................. 12 6.0 TECHNICAL SPECIFICATIONS ...........................................................…

Text truncated - open the document above for the full version.

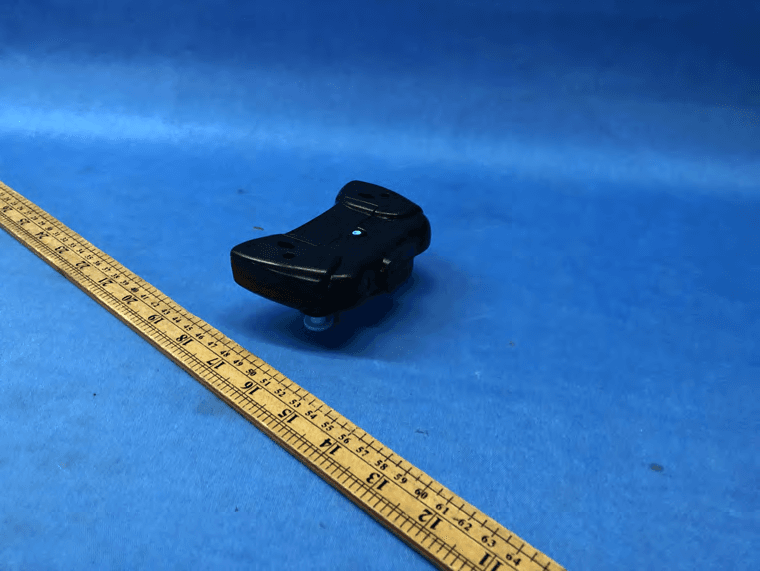

INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: PQN67856TX2G4 IC: 4438B-67856TX Configuration Photographs Worst-Case Radiated Emissions (Back View)
