PQN70133RX2G4SPG SGS Spy Video Car (Date Code 30608AAT)

TM 8 + YEARS/ ANS HOW TO INSTALL BATTERIES: 1. Open the battery door with a screwdriver. 2. If used batteries are present, remove these batteries from the unit by pulling up on one end of each battery. DO NOT remove or install batteries using sharp or metal tools. 3. Install new batteries as shown in the polarity diagram (+/-) inside the battery compartment. 4. Replace battery door securely. 5. Check your local laws and regulations for correct recycling and/or battery disposal. INSTALLATION DES PILES : 1. Ouvrir le compartiment des piles à l’aide d’un tournevis. 2. Si des piles épuisées se trouvent dans l’unité, les retirer en tirant sur chacune d’elles. Ne pas utiliser d’objet pointu ou métallique pour extraire ou installer les piles. 3. Placer les nouvelles piles comme indiqué sur le schéma de polarité (+/-) à l’intérieur du compartiment des piles. 4. Bien refermer le couvercle du compartiment. 5. Consulter la législation locale concernant le recyclage et/ou l’élimination des piles afin de les jeter correctement. a WARNING: CHOKING HAZARD – Small parts. Not for Children under 3 years. a ATTENTION ! RISQUE D’ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de 3 ans. SPIN MASTER LTD., 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA Customer Care/Service clientèle : 1-800-622-8339 Email : [email protected] Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221, USA www.spinmaster.com TM & © Spin Master Ltd. All rights reserved. Please remove all packaging materials before giving to children. An adult should periodically check this toy to ensure no damage or hazards exist, if so, remove from use. Children should be supervised during play. The item inside this package may vary from the photographs and/or illustrations. Spin Master reserves the right to discontinue use of the www.spygear.net website at any time. MADE IN CHINA. TM et © Spin Master Ltd. Tous droits réservés. Retirer tout l’emballage avant de donner le jouet à des enfants. Un adulte doit régulièrement examiner ce jouet afin de s’assurer qu’il ne présente pas de dommage ni de risque. En cas de problème, ne plus l’utiliser. Les enfants doivent être surveillés lorsqu’ils jouent. Le contenu de cet emballage peut différer des photographies et/ou des illustrations. Spin Master se réserve le droit de supprimer le site Internet www.spygear.net à tout moment. FABRIQUÉ EN CHINE 20063687 REV 0 T70133_0001_20063687_NBL_IS_R1 BATTERY SAFETY INFORMATION: Requires 10 x 1.5 V AA/LR06 alkaline batteries (not included). Batteries are small objects. - Replacement of batteries must be done by adults. - Follow the polarity (+/-) diagram in the battery compartment. - Promptly remove dead batteries from the toy. - Dispose of used batteries properly. - Remove batteries for prolonged storage. - Only batteries of the same or equivalent type as recommended are to be used. - DO NOT incinerate used batteries. - DO NOT dispose of this product in fire, as batteries inside may explode or leak. - DO NOT dispose of batteries in fire, as batteries may explode or leak. - DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard). - DO NOT use rechargeable batteries. - DO NOT recharge non-rechargeable batteries. - DO NOT short-circuit the supply terminals. INFORMATIONS DE SÉCURITÉ RELATIVES AUX PILES : Fonctionne avec 10 piles alcalines AA/LR06 1,5 V (non fournies). Les piles sont de petits objets. - Le remplacement des piles doit être effectué par un adulte. - Respecter le schéma de polarité (+/-) du compartiment des piles. - Retirer immédiatement toute pile épuisée du jouet. - Jeter correctement les piles épuisées. - Retirer les piles du jouet en cas d’inutilisation prolongée. - N’utiliser que des piles d’un même type ou d’un type équivalent à celui recommandé. - NE PAS incinérer les piles épuisées. - Ne pas jeter les piles au feu ; elles pourraient exploser ou fuir. - Ne pas jeter ce produit au feu ; les piles qu’il contient pourraient exploser ou fuir. - NE PAS mélanger des piles neuves et des piles épuisées, ou des piles de types différents (ex : alcalines/standard). - NE PAS utiliser de piles rechargeables. - NE PAS recharger des piles non rechargeables. - NE PAS court-circuiter les bornes d’alimentation. NOTE: If normal function of the product is disturbed or interrupted, strong electro-magnetic interference may be causing the issue. To reset product, turn it completely off, then turn it back on. If normal operation does not resume, move the product to another location and try again. To ensure normal performance, change the batteries, as low batteries may not allow full function. REMARQUE : De fortes interférences électromagnétiques peuvent perturber ou interrompre le fonctionnement normal du produit. Pour le réinitialiser, l’éteindre complètement et le rallumer. Si le produit ne fonctionne toujours pas normalement, changer de lieu d’utilisation et réessayer. Des piles faibles peuvent empêcher le produit de fonctionner correctement. Pour des performances optimales, remplacer les piles. Care and Maintenance: Always remove batteries from the toy when it is not being used for a long period of time. Wipe the toy gently with a clean damp cloth. Keep the toy away from direct heat. Do not submerge the toy in water. This can damage the electronic assemblies. Entretien et maintenance : Toujours retirer les piles lorsque le jouet n’est pas utilisé pendant une longue période. Nettoyer délicatement le jouet avec un chiffon humide et propre. Conserver le jouet à l’écart de toute source de chaleur. Ne pas plonger le jouet dans l’eau ; les composants électroniques risqueraient d’être endommagés. This device complies with Industry Canada License-exempt RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the devic…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA 2.4GHZ POWER TFT Display 2410.875-2464.875MHZ SPY VIDEO CAR VX6 (REMOTE Block Diagram) MCU & 2.4G Module KA-2431-RA2 oscillator=12MHZ Fan Ben Dong 1.0A 11 Title SizeDocument NumberRev Date:Sheet of 3.3V 0 0 0 S1 POWER SWITCH 21 3 RESET PTC1 6V DC KEYS

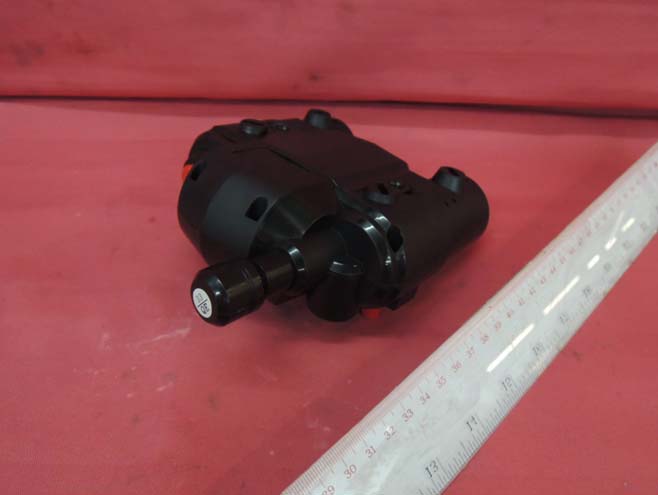

INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (External)

INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-001 FCC ID: PQN70133RX2G4 Equipment Photographs Model: 70133 (Internal)

Technical Description The Equipment Under Test (EUT) is a portable 2.4GHz transceiver (Controller) for a corresponding RC C ar with 17 channels which is operating at 2410.875MHz ± 2464.875MHz. The EUT is powered by a 6.0 V DC source (4 x 1.5V ³AA ́ batteries). The EUT has a forward or backward control lever and a left or right control lever. After switching ON the EUT and the RC Car, activating the control levers on the EUT can control the RC Car moving forward, backward, left or right. Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2410.875MHz – 2464.875MHz, 17 channels Antenna Type: Internal and integral Antenna Gain: 0dBi Nominal rated field strength: 91.7dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 2dB The functions of main ICs are mentioned below. 1. U3 (KA-2431-RA2) acts as 2.4GHz RF module. 2. U2 (CE6209A33P) acts as DC/DC converter 2.4GHz RF module U3 (KA-2431-RA2): 1. U6 (SNRC12AFG) acts as MCU. 2 . Y2 (12MHz) acts as clock for U6 (wireless processor) 3. U4 (XC6204-25) acts as regulator. 4. U1 (AP1110) acts as RF amplifier. 5. VT1 (2520) acts as band pass filter. 6. U5 (A7121IC) acts as radio core of 2.4GHz transceiver. 7. Y1 (18MHz) provides system clock for U5 (2.4GHz transceiver). A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.5AMICCOM Electronics Corporation Document Title 2.4GHz GFSK Transceiver with 3Mbps Revision History Rev. No.HistoryIssue DateRemark 1.0Transfer from AMIC. Modify ordering information.Nov. 9th, 2005Released 1.1 ReviseDimensions inPackage Information Apr. 28th, 2006Released 1.2AMICCOM LOGO Changed.Oct. 5 th , 2007Released 1.3Add final version logo, top marking info., reflow profile, Carry tape & reel dimensions Jun. 26 th , 2008Released 1.4Change English Company NameNov. 30, 2010 1.5Correct ordering information and remove A7122.Jan. 06, 2011 Important Notice: AMICCOM reserves the right to make changes to its products or to d iscontinue any integrated circuit product or service without notice. AMICCOM integrated circuit products are not designed, intended, authorized, or warranted to be suitable for use in life-support applications, devices or systems or other critical applications. Use of AMICCOM products in su ch applications is understood to be fully at the risk of the customer. A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.51AMICCOM Electronics Corporation Typical Applications n Wireless digital audio n Wireless Mouse and Keyboard n 2.4GHz ISM Band Communication System nWireless game pad nWireless toy General Description A7121 is a monolithic CMOS integrated circuit for wireless applications in 2.4GHz ISM band. The device is provided in a 32-lead plastic QFN5X5 packaging and is designed as a complete GFSK transceiver up to 3Mbps/ 1Mbps data rate. The chip features a fully programmable frequency synthesizer with integrated VCO circuitry. Pin Configurations 1 2 3 4 5 6 7 8 910111213141516 24 23 22 21 20 19 18 17 3231302928272625 VT CPO VDD _ P LL XI XS YDR_PF BB_CLK MS1 RFO BP _ L IM2 BP _ L I M1 BP _BPF DDV_A RFI VDD _ VCO BP _ VCO RX_C LK R X _ S YN CD_TXEN TRXD T XD F _CLK RES TEN MS0 VDD _ D S P I _ TXD S P I _C LK SP I _CSBP _LPFS P I _ R XDB P _DSRSSI A7121 QFN Package Top View Important Notice: AMICCOM reserves the right to make changes to its products or to discontinue any integrated circuit product or service without notice. AMICCOM integrated circuit products are not designed, intended, authorized, or warranted to be suitable for use in life- support applications, devices or systems or other critical applications. Use of AMICCOM products in such applications is understood to be fully at the risk of the customer. A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.52AMICCOM Electronics Corporation Block Diagram OSCILLATOR VCO MOD System Control Logic MODEM INTERFACE 4 5 7 8 1 6 3 2 16 15 14 13 1211 109 18 19 20 23 24 21 22 17 28 27262531 30 2932 PA AGC LNA 90 LPF DS LIMITE R RSSI BPF SPI P LL C R YS TAL RX_CLK R X _ S YN CD_TXEN TRXD TXD F _ C LK RESTEN MS0 BP _ L IM2 BP _ L I M1 BP _ VCO VDD _ VCO BP _BPF V DD_D S P I _ R XD S P I _ T XD S P I _C LKSP I _CS BP_LPF BP _DS RSSI M S1 BB_CLK YDR_PF XS XI VDD_PLL CPO VT ORF RFI DDV_A System Block Diagram A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.53AMICCOM Electronics Corporation Specification(Ta=25°C, VDD=2.5V, data rate= 3Mbps, TX data without Gaussian shaping unless otherwise noted.) ParameterDescriptionMinimumTypicalMaximumUnit General Operating Temperature-4085 °C Supply Voltage2.252.52.75V RX Mode28mA TX Mode @0dBm output34mA TX Mode @-6dBm output24mA Synthesizer Mode10mA Standby Mode1.5mA Current Consumption Transceiver Circuit Sleep Mode 2 mA Phase Locked Loop X’TAL Settling Time5ms @1M Mode 1 4, 8, 12, 16, 20X’TAL Frequency @3M Mode 1 9,18 MHz VCO Operation Frequency2400~2484MHz PLL Settling Time @settle to 20KHz @ Loop BW = 30 KHz 150 ms Transmitter TX Power@ Maximum Power Setting04dBm Power Control Range6dB Adjacent Channel-20dBc Second Channel-20dBm In-band Spurious ≧Third Channel -40dBm 30MHz~1GHz-36 1GHz~12.75GHz-30 1.8GHz~ 1.9GHz-47 Out-band Spurious 2 (Operating Mode) 5.15GHz~ 5.3GHz-47 dBm @1M Mode250Frequency Deviation @3M Mode750 KHz TX Settling Time @ Loop BW = 30 KHz 30 ms Receiver @1M Mode-85Sensitivity @BER=0.001 @3M Mode-80 dBm @1M Mode2IF Frequency @3M Mode4.5 MHz Image Rejection20dB Maximum Input Power@RF input-20dBm 30MHz~1GHz-57Spurious Emission 2 1GHz~12.75GHz-47 dBm AGC Gain Control0, 5, 15, 20dB RSSI Range@RF input-95-55dBm RSSI Slope Accuracy@RF input= -70 and –80 dBm20% RX Settling Time @ Loop BW = 30 KHz 30 ms A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.54AMICCOM Electronics Corporation Digital IO DC characteristics High Level Input Voltage (V IH )0.8*VDDVDDV Low Level Input Voltage (V IL )00.2*VDDV High Level Output Voltage (V OH )@I OH = -0.5mAVDD-0.4VDDV Low Level Output Voltage (V OL )@I OL = 0.5mA00.4V Note: 1. Data rate= 1Mbps @1M Mode, Data rate= 3Mbps @3M Mode. 2. With ex…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 13070476HKG-001 The Equipment Under Test (EUT) is a portable 2.4GHz RF transceiver (Controller) for a RC Car operating at 2410.875MHz – 2464.875MHz. The EUT is powered by a 6.0 V DC source (4 x 1.5V “AA” batteries). The EUT has a forward or backward control lever and a left or right control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 91.7dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 2dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 93.7dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.703mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.703mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.464875) mW = 9.55 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA TFT Connector KA-2431-RA2 OFF ON 数据线穿过磁环 A 70133 REMOTE MCU&2.4G Module/TFT A4 11Wednesday, July 17, 2013 Title SizeDocument NumberRev Date:Sheet of LCD_IO3 GND_RF LCD_IO6 DVSS LCD_IO5 LCD_IO2 LCD_IO13 LCD_IO7 VCC33_AD LCD_IO11 LCD_IO4 GPIO0 GND_RF VCC33 GPIO1 LCD_IO0 LCD_IO10 AIN2 LCD_IO9 GPIO2LCD_IO8 GPIO7 AIN1_LLCD_IO14 KEY LCD_IO1 VDD_RF AIN3 GND VDD_33 VDD_33 VCC33 VDD6V RF_GND GND D_GND VCC33 VDD6V RF_GND VDD_33V VDD33V VDD33 VCC33 TFT V33VDD_33 VDD6V RT R36 0R C8 47uF/16V R50R R26 0R C5 22uF/16V L5 Q1 8050 2 1 3 R24 470K C7 47uF/16V R15 0R L4 SW15SW2P3T 1 2 34 5 6 1 2 34 5 6 L8 PAIR R17100K IR L3 R32 0R R28 0R U2CE6209A33P 2 13 GND OUTIN RST L2 R13 100K C4 47uF/16V R8100K R12100K R16 0R R24 0R C3 1uF FPC1 Pitch 1.0*22Pin 1 2 3 4 5 6 7 8 9 10 20 11 12 13 14 15 16 17 18 19 22 21 NC LED+ LED- VDD28 GND VDD28 CS/LCDIO11 IM2/VDD28 SPI4W/GND RST D0(SDA)/LCDIO3 RD/LCDIO2 VDD28 D7/LCDIO10 D6/LCDIO9 D5/LCDIO8 D4/LCDIO7 D3/LCDIO6 D2/LCDIO5 D1/LCDIO4 RS(SCL)/LCDIO0 WR(D/C)/LCDIO1 R10 0R R14 2.2K U3 50 49 48 47 46 45 43 42 41 40 39 39 38 37 36 35 34 33 32 30 29 28 27 261 2 3 4 5 6 7 8 9 10 11 12 13 15 16 17 18 19 20 21 22 23 24 31 25 14 GND VCC33_RF RF_TXD LCD_IO16 LCD_IO15 LCD_IO14 LCD_IO10 LCD_IO2 LCD_IO1 LCD_IO0 LCD_IO9 LCD_IO8 LCD_IO7 LCD_IO6 LCD_IO5 LCD_IO4 LCD_IO3 VCC33 LCD_IO21 LCD_IO19 LCD_IO18 LCD_IO17 KEY GNDGND PWR_EN VCC18 DN DP OUTR GPIO7 GPIO6 GPIO3 LCD_IO13 LCD_IO12 LCD_IO11 VCC33 GPIO1 GPIO0 AIN3 AIN2 AIN1 AIN1_L VDD_DAC PGA-VIN VSS_ADC NC LCD_IO20 GND_RF GPIO2 PTC1 L6 BW R31 0R C1 22uF/16V C10 47uF/16V R10100K C6 1uF R9 1K R33 0R R30 0R FW L7 R25 0R R4 10R L1 BT1 6V LFT R270R C9 47uF/16V C2 0.1uF C2 47uF/16V R18100K R34 0R R29 0R R25470K GPIO1 LCD_IO14 GPIO2 GPIO0 LCD_IO7 LCD_IO3 GND_RF GPIO0 LCD_IO6 LCD_IO14 GND_RF GPIO2 VDD33V LCD_IO2 GPIO7 VDD_RF LCD_IO0 GPIO1 AIN1_L LCD_IO4 LCD_IO9 LCD_IO11 LCD_IO10 VDD_33 AIN1 LCD_IO1 VDD_33 LCD_IO5 LCD_IO8 LCD_IO13 KEY DVSS KEY LCD_IO13 LED+ LCDIO11 LCDIO2 LCD_IO10 LCD_IO9 LCD_IO8 LCD_IO7 LCD_IO6 LCD_IO5 LCD_IO4 LCD_IO3 LCD_IO1 LCD_IO0 LCD_IO21 LCD_IO21 RST GPIO_3 LED- LED- GPIO_3 RST AIN1 AIN1_L 55 44 33 22 11 D D C C B B A A RS232 -RX+TX Serial Flash CREATIVE SEMICONDUCTOR LTD.CO C264 V01 KA-2431-RA-V0.1-MAIN-LCD SF_MOSISF_SCK SF_CS RXTX GPIO0 SF_MOSI AIN1_L OUTR LCD_IO9 PWR_EN LCD_IO14 LCD_IO10 GPIO7 LCD_IO6 AIN1 RF_RX_SEL RESET RF_ANT1 GPIO3 LCD_IO7 RF_PA LCD_IO11 LCD_IO15 RF_SPI_OUT RF_CE KEY RF_TX_SEL GPIO2 TX LCD_IO21SF_CS LCD_IO1GPIO6 LCD_IO3SF_MISOLCD_IO5 GPIO1 LCD_IO2LCD_IO0 AIN2 LCD_IO4LCD_IO8SF_SCK PGA_VIN XIN XOUT RX AIN3 SF_MISO LCD_IO16 LCD_IO17LCD_IO18LCD_IO19LCD_IO20 LCD_IO12LCD_IO13 RF_SPI_CS RF_SPI_CLK RF_SPI_IN RF_ANT2 RF_RXD TRXD RF_RXD MSO RF_CE SPI_RXD RF_SPI_IN SPI_CS RF_SPI_CS SPI_TXD RF_SPI_OUT CD_TXEN RF_ANT2 MSI RF_PA BB_CLK RF_ANT1 RXEN RF_RX_SEL SPI_CLK RF_SPI_CLK TXEN RF_TX_SEL CD_TXENTRXDMSOSPI_RXDRXENSPI_CLKSPI_TXDSPI_CSMSIBB_CLKTXENVCC33_RFAGND_RF VDDA_ADC RF_TXDGND_RFVCC33_RFLCD_IO16LCD_IO10LCD_IO14LCD_IO15LCD_IO8LCD_IO9LCD_IO0LCD_IO1LCD_IO2VCC33LCD_IO3LCD_IO4LCD_IO5LCD_IO6LCD_IO7RESETLCD_IO18LCD_IO19LCD_IO20LCD_IO21GNDKEY NCGND_RFVSSA_ADCGPIO2VDDA_ADCAIN1_LAIN1PGA_VINLCD_IO6AIN2AIN3GPIO0GPIO1VCC18VCC33LCD_IO11LCD_IO12LCD_IO13LCD_IO3GNDLCD_IO7OUTRDPDNPWR_EN RF_TXD DP DN VCC33 VCC33 VCC18 VCC18 VCC33 VCC33 VCC33 VCC33 VCC33 VCC18 VCC33 VCC33 AGND_RF VCC18 VCC33 CD_TXENSPI_CSSPI_CLKBB_CLKSPI_RXDSPI_TXDTRXDMSOMSIRXENTXENVCC33_RFAGND_RF TitleSize Document Number Rev Date: Sheet of A3 13 Friday, December 21, 2012 TitleSize Document Number Rev Date: Sheet of A3 13 Friday, December 21, 2012 TitleSize Document Number Rev Date: Sheet of A3 13 Friday, December 21, 2012 C49 15uF C49 15uF R15 100K R15 100K J7 2.54/pin4 J7 2.54/pin4 1234 R131.5KR131.5K C422.2nFC422.2nF 12 C432.2nFC432.2nF 12 C380.1uFC380.1uF C44 0.1uF C44 0.1uF 1 2 R16 1K R16 1K U6 SNRC12AFG U6 SNRC12AFG AIN3 15 AIN2 16 AIN1 17 AIN1_L 18 VDDA_ADC 19 VSSA_ADC 21 RF_SPI_CS 22 RF_SPI_CLK 23 RF_SPI_IN 24 RF_SPI_OUT 25 RF_ANT1 26 RF_ANT2 27 RF_PA 28 RF_CE 29 GND 30 VDD3 31 RF_TX_SEL 32 RF_TXD 33 RF_RX_SEL 34 RF_RXD 35 LCD_IO16 36 LCD_IO15 37 LCD_IO14 38 LCD_IO10 39 PGA_VIN 20 LCD_IO13 3 LCD_IO12 4 LCD_IO11 5 VDD18 6 GND 7 VDD3 8 LCD_IO2 9 LCD_IO1 10 LCD_IO0 11 GPIO2 12 GPIO1 13 GPIO0 14 GPIO6 1 GPIO3 2 GPIO7 80 VDDA1 78 VGNDA1 77 OUTR 79 KEY 67 PWR_EN 68 VCAPB 71 VCAPA 70 VDD_RC 69 VDDAL 76 VDDA 75 VSSA 72 DP 74 DN 73 GND 66 VDD3 65 XOUT 64 XIN 63 RST 62 TEST 61 LCD_IO17 60 LCD_IO18 59 LCD_IO19 58 LCD_IO20 57 LCD_IO21 56 SF_SO 55 SF_SI 54 SF_SCK 53 SF_CS_ 52 VDD3 51 GND 50 VDD18 49 TX 48 RX 47 LCD_IO3 46 LCD_IO4 45 LCD_IO5 44 LCD_IO6 43 LCD_IO7 42 LCD_IO8 41 LCD_IO9 40 C46 0.1uF C46 0.1uF 12 C360.1uFC360.1uF 12 R17100KR17100K 8-SOIC U7MX25L512 8-SOIC U7MX25L512 CS# 1 SO 2 WP# 3 GND 4 SI 5 SCLK 6 HOLD# 7 VCC 8 Y2 12MHz Y2 12MHz R191MR191M C47 0.1uF C47 0.1uF 12 R14100KR14100K C41 0.1uF C41 0.1uF 1 2 R1856KR1856K R21 0R R21 0R J9 J25 J9 J25 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 25 25 C370.1uFC370.1uF 12 C340.1uFC340.1uF 12 R20 100R R20 100R C39 22pF C39 22pF 1 2 C40 22pF C40 22pF 1 2 J11 J25 J11 J25 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 25 25 C450.1uFC450.1uF 12 C35 15uF C35 15uF C48 15uF C48 15uF 55 44 33 22 11 D D C C B B A A KA-2431-RA-V0.1-RF VCC25_RF XT SPI_RXDSPI_CSSPI_TXDSPI_CLKCD_TXENMSIMSOBB_CLKTXENTXEN RXENRXEN CD_TXENTRXDMSOSPI_RXDRXENSPI_CLKSPI_CSSPI_TXDMSIBB_CLKTXENAGND_RF XT VCC33 VCC33 TRXD AGND_RF AGND_RF AGND_RF AGND_RF VCC25_RF AGND_RF AGND_RF AGND_RF VCC33 AGND_RF AGND_RF AGND_RFAGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF VCC33 AGND_RF AGND_RF VCC33 AGND_RF AGND_RF AGND_RF AGND_RF VCC25_RF AGND_RF AGND_RF VCC25_RF VCC33 VCC25_RF AGND_RF CD_TXENSPI_CSSPI_CLKBB_CLKSPI_RXDSPI_TXDTRXDMSOMSIRXENAGND_RFTXENVCC33 TitleSize Document Number Rev Date: Sheet of <Doc> <RevC o <Title> A4 33 Friday, December 21…

Text truncated - open the document above for the full version.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070476HKG-001R1 i FCC ID: PQN70133RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Spin Master Toys Far East Ltd. BRAND NAME: Spy Gear, MODEL: 70133 Additional Model: 6022350, 1030070 FCC ID: PQN70133RX2G4 Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 86-769-81080068-1123 Fax: N/A e-mail: N/A Manufacturer: SpinMaster Toys Far East LTD. Manufacturer Address: 1113, 11 th Floor, Chinachen Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Brand Name: Spy Gear Model: 70133 Additional Model: 6022350, 1030070 Phantom No.: 20063687 Type of EUT: Transceiver Description of EUT: SPG SGS Spy Video Car (Date Code: 30608AAT) Serial Number: N/A FCC ID : PQN70133RX2G4 Date of Sample Submitted: July 11, 2013 Date of Test: July 11,2013 to July 25, 2013 Report No.: 13070476HKG-001R1 Report Date: August 12, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070476HKG-001R1 ii FCC ID: PQN70133RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Spin Master Toys Far East Ltd. BRAND NAME: Spy Gear, MODEL: 70133 Additional Model: 6022350, 1030070 FCC ID: PQN70133RX2G4 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070476HKG-001R1 iii FCC ID: PQN70133RX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 8 5.0 Product Labelling ................................................................................................ 8 6.0 Technical Specifications ..............................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13070476HKG-001 FCC ID: PQN70133RX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 70133 Radiated Emission 70133 13060476HKG-001 A  B  INTERTEK TESTING SERVICE Report No: 13070476HKG-001 FCC ID: PQN70133RX2G4 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 70133 Radiated Emission 70133 13060476HKG-001 A  B 
