PQN70133TX2G4SPG SGS Spy Video Car (Date Code 30608AAT)

TM 8 + YEARS/ ANS HOW TO INSTALL BATTERIES: 1. Open the battery door with a screwdriver. 2. If used batteries are present, remove these batteries from the unit by pulling up on one end of each battery. DO NOT remove or install batteries using sharp or metal tools. 3. Install new batteries as shown in the polarity diagram (+/-) inside the battery compartment. 4. Replace battery door securely. 5. Check your local laws and regulations for correct recycling and/or battery disposal. INSTALLATION DES PILES : 1. Ouvrir le compartiment des piles à l’aide d’un tournevis. 2. Si des piles épuisées se trouvent dans l’unité, les retirer en tirant sur chacune d’elles. Ne pas utiliser d’objet pointu ou métallique pour extraire ou installer les piles. 3. Placer les nouvelles piles comme indiqué sur le schéma de polarité (+/-) à l’intérieur du compartiment des piles. 4. Bien refermer le couvercle du compartiment. 5. Consulter la législation locale concernant le recyclage et/ou l’élimination des piles afin de les jeter correctement. a WARNING: CHOKING HAZARD – Small parts. Not for Children under 3 years. a ATTENTION ! RISQUE D’ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de 3 ans. SPIN MASTER LTD., 450 FRONT STREET WEST, TORONTO, ON M5V 1B6 CANADA Customer Care/Service clientèle : 1-800-622-8339 Email : [email protected] Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville, NY 14221, USA www.spinmaster.com TM & © Spin Master Ltd. All rights reserved. Please remove all packaging materials before giving to children. An adult should periodically check this toy to ensure no damage or hazards exist, if so, remove from use. Children should be supervised during play. The item inside this package may vary from the photographs and/or illustrations. Spin Master reserves the right to discontinue use of the www.spygear.net website at any time. MADE IN CHINA. TM et © Spin Master Ltd. Tous droits réservés. Retirer tout l’emballage avant de donner le jouet à des enfants. Un adulte doit régulièrement examiner ce jouet afin de s’assurer qu’il ne présente pas de dommage ni de risque. En cas de problème, ne plus l’utiliser. Les enfants doivent être surveillés lorsqu’ils jouent. Le contenu de cet emballage peut différer des photographies et/ou des illustrations. Spin Master se réserve le droit de supprimer le site Internet www.spygear.net à tout moment. FABRIQUÉ EN CHINE 20063687 REV 0 T70133_0001_20063687_NBL_IS_R1 BATTERY SAFETY INFORMATION: Requires 10 x 1.5 V AA/LR06 alkaline batteries (not included). Batteries are small objects. - Replacement of batteries must be done by adults. - Follow the polarity (+/-) diagram in the battery compartment. - Promptly remove dead batteries from the toy. - Dispose of used batteries properly. - Remove batteries for prolonged storage. - Only batteries of the same or equivalent type as recommended are to be used. - DO NOT incinerate used batteries. - DO NOT dispose of this product in fire, as batteries inside may explode or leak. - DO NOT dispose of batteries in fire, as batteries may explode or leak. - DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard). - DO NOT use rechargeable batteries. - DO NOT recharge non-rechargeable batteries. - DO NOT short-circuit the supply terminals. INFORMATIONS DE SÉCURITÉ RELATIVES AUX PILES : Fonctionne avec 10 piles alcalines AA/LR06 1,5 V (non fournies). Les piles sont de petits objets. - Le remplacement des piles doit être effectué par un adulte. - Respecter le schéma de polarité (+/-) du compartiment des piles. - Retirer immédiatement toute pile épuisée du jouet. - Jeter correctement les piles épuisées. - Retirer les piles du jouet en cas d’inutilisation prolongée. - N’utiliser que des piles d’un même type ou d’un type équivalent à celui recommandé. - NE PAS incinérer les piles épuisées. - Ne pas jeter les piles au feu ; elles pourraient exploser ou fuir. - Ne pas jeter ce produit au feu ; les piles qu’il contient pourraient exploser ou fuir. - NE PAS mélanger des piles neuves et des piles épuisées, ou des piles de types différents (ex : alcalines/standard). - NE PAS utiliser de piles rechargeables. - NE PAS recharger des piles non rechargeables. - NE PAS court-circuiter les bornes d’alimentation. NOTE: If normal function of the product is disturbed or interrupted, strong electro-magnetic interference may be causing the issue. To reset product, turn it completely off, then turn it back on. If normal operation does not resume, move the product to another location and try again. To ensure normal performance, change the batteries, as low batteries may not allow full function. REMARQUE : De fortes interférences électromagnétiques peuvent perturber ou interrompre le fonctionnement normal du produit. Pour le réinitialiser, l’éteindre complètement et le rallumer. Si le produit ne fonctionne toujours pas normalement, changer de lieu d’utilisation et réessayer. Des piles faibles peuvent empêcher le produit de fonctionner correctement. Pour des performances optimales, remplacer les piles. Care and Maintenance: Always remove batteries from the toy when it is not being used for a long period of time. Wipe the toy gently with a clean damp cloth. Keep the toy away from direct heat. Do not submerge the toy in water. This can damage the electronic assemblies. Entretien et maintenance : Toujours retirer les piles lorsque le jouet n’est pas utilisé pendant une longue période. Nettoyer délicatement le jouet avec un chiffon humide et propre. Conserver le jouet à l’écart de toute source de chaleur. Ne pas plonger le jouet dans l’eau ; les composants électroniques risqueraient d’être endommagés. This device complies with Industry Canada License-exempt RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the devic…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA 2.410.875-2.464.875MHZ CMOS SENSOR AP8855A MOTOR DRIVER CE6200-18M MCU & 2.4G Module KA-2431-TA2 oscillator=12MHZ U2 U6 LED2 CMOS PCB IR LEDS 850nm Fan Ben Dong<RevCode> SPY VIDEO CAR VX6 (CAR Block Diagram) A 11Friday, August 02, 2013 Title SizeDocument NumberRev Date:Sheet of 1.8V 3.3V 2.8V 2.8V 3.3V 0 0 0 0 0 BAT9V 12 MOTOR LEFT/RIGHT PTC1 PTC1 BAT9V R31K RED LED MOTOR FW/BW S1 POWER SWITCH 21 3 PTC1 RESETR2 USA 100R 12 KEY Q1 8050 2 3 1 GPIO3

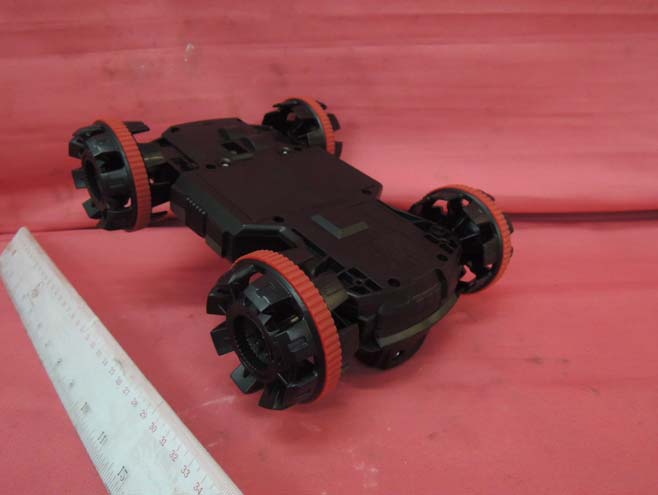

INTERTEK TESTING SERVICE Report No.: 13060476HKG-002 FCC ID: PQN70133TX2G4 Equipment Photographs Model: 70133 (External)

INTERTEK TESTING SERVICE Report No.: 13070476HKG-002 FCC ID: PQN70133TX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-002 FCC ID: PQN70133TX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-002 FCC ID: PQN70133TX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-002 FCC ID: PQN70133TX2G4 Equipment Photographs Model: 70133 (Internal) INTERTEK TESTING SERVICE Report No.: 13070476HKG-002 FCC ID: PQN70133TX2G4 Equipment Photographs Model: 70133 (Internal)

Technical Description The Equipment Under Test (EUT) is a portable 2.4GHz RF transceiver (Vehicle) of a RC Car system with 17 channels operating at 2410.875MHz ± 2464.875MHz MHz. The EUT is powered by a 9.0 V DC source (6 x 1.5V AA batteries). The EUT has an ON/OFF switch. After switching ON the EUT and the transceiver (Controller) of the RC Car, the EUT can be controlled to move forward, backward left and right by the transceiver (Controller). Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2410.875MHz – 2464.875MHz, 17 channels Antenna Type: Internal and integral Antenna Gain: 0dBi Nominal rated field strength: 101.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 2dB The functions of main ICs are mentioned below. 1. U4 (KA-2431-TA2) acts as 2.4GHz RF module. 2. U2 (CE6200A 18P) acts as power regulator. 3. U1 (acts as DC/DC converter. 2.4GHz RF module U3 (KA-2431-TA2): 1. U6 (SN RC13AFG) acts as MCU. 2. Y2 (12MHz) acts as clock for U6 (wireless processor) 3. U4 (XC6204-25) acts as regulator. 4. U1 (AP1110) acts as RF amplifier. 5. VT1 (2520) acts as band pass filter. 6. U5 (A7121IC) acts as radio core of 2.4GHz transceiver. 7. Y1 (18MHz) provides system clock for U5 (2.4GHz transceiver). A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.5AMICCOM Electronics Corporation Document Title 2.4GHz GFSK Transceiver with 3Mbps Revision History Rev. No.HistoryIssue DateRemark 1.0Transfer from AMIC. Modify ordering information.Nov. 9th, 2005Released 1.1 ReviseDimensions inPackage Information Apr. 28th, 2006Released 1.2AMICCOM LOGO Changed.Oct. 5 th , 2007Released 1.3Add final version logo, top marking info., reflow profile, Carry tape & reel dimensions Jun. 26 th , 2008Released 1.4Change English Company NameNov. 30, 2010 1.5Correct ordering information and remove A7122.Jan. 06, 2011 Important Notice: AMICCOM reserves the right to make changes to its products or to d iscontinue any integrated circuit product or service without notice. AMICCOM integrated circuit products are not designed, intended, authorized, or warranted to be suitable for use in life-support applications, devices or systems or other critical applications. Use of AMICCOM products in su ch applications is understood to be fully at the risk of the customer. A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.51AMICCOM Electronics Corporation Typical Applications n Wireless digital audio n Wireless Mouse and Keyboard n 2.4GHz ISM Band Communication System nWireless game pad nWireless toy General Description A7121 is a monolithic CMOS integrated circuit for wireless applications in 2.4GHz ISM band. The device is provided in a 32-lead plastic QFN5X5 packaging and is designed as a complete GFSK transceiver up to 3Mbps/ 1Mbps data rate. The chip features a fully programmable frequency synthesizer with integrated VCO circuitry. Pin Configurations 1 2 3 4 5 6 7 8 910111213141516 24 23 22 21 20 19 18 17 3231302928272625 VT CPO VDD _ P LL XI XS YDR_PF BB_CLK MS1 RFO BP _ L IM2 BP _ L I M1 BP _BPF DDV_A RFI VDD _ VCO BP _ VCO RX_C LK R X _ S YN CD_TXEN TRXD T XD F _CLK RES TEN MS0 VDD _ D S P I _ TXD S P I _C LK SP I _CSBP _LPFS P I _ R XDB P _DSRSSI A7121 QFN Package Top View Important Notice: AMICCOM reserves the right to make changes to its products or to discontinue any integrated circuit product or service without notice. AMICCOM integrated circuit products are not designed, intended, authorized, or warranted to be suitable for use in life- support applications, devices or systems or other critical applications. Use of AMICCOM products in such applications is understood to be fully at the risk of the customer. A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.52AMICCOM Electronics Corporation Block Diagram OSCILLATOR VCO MOD System Control Logic MODEM INTERFACE 4 5 7 8 1 6 3 2 16 15 14 13 1211 109 18 19 20 23 24 21 22 17 28 27262531 30 2932 PA AGC LNA 90 LPF DS LIMITE R RSSI BPF SPI P LL C R YS TAL RX_CLK R X _ S YN CD_TXEN TRXD TXD F _ C LK RESTEN MS0 BP _ L IM2 BP _ L I M1 BP _ VCO VDD _ VCO BP _BPF V DD_D S P I _ R XD S P I _ T XD S P I _C LKSP I _CS BP_LPF BP _DS RSSI M S1 BB_CLK YDR_PF XS XI VDD_PLL CPO VT ORF RFI DDV_A System Block Diagram A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.53AMICCOM Electronics Corporation Specification(Ta=25°C, VDD=2.5V, data rate= 3Mbps, TX data without Gaussian shaping unless otherwise noted.) ParameterDescriptionMinimumTypicalMaximumUnit General Operating Temperature-4085 °C Supply Voltage2.252.52.75V RX Mode28mA TX Mode @0dBm output34mA TX Mode @-6dBm output24mA Synthesizer Mode10mA Standby Mode1.5mA Current Consumption Transceiver Circuit Sleep Mode 2 mA Phase Locked Loop X’TAL Settling Time5ms @1M Mode 1 4, 8, 12, 16, 20X’TAL Frequency @3M Mode 1 9,18 MHz VCO Operation Frequency2400~2484MHz PLL Settling Time @settle to 20KHz @ Loop BW = 30 KHz 150 ms Transmitter TX Power@ Maximum Power Setting04dBm Power Control Range6dB Adjacent Channel-20dBc Second Channel-20dBm In-band Spurious ≧Third Channel -40dBm 30MHz~1GHz-36 1GHz~12.75GHz-30 1.8GHz~ 1.9GHz-47 Out-band Spurious 2 (Operating Mode) 5.15GHz~ 5.3GHz-47 dBm @1M Mode250Frequency Deviation @3M Mode750 KHz TX Settling Time @ Loop BW = 30 KHz 30 ms Receiver @1M Mode-85Sensitivity @BER=0.001 @3M Mode-80 dBm @1M Mode2IF Frequency @3M Mode4.5 MHz Image Rejection20dB Maximum Input Power@RF input-20dBm 30MHz~1GHz-57Spurious Emission 2 1GHz~12.75GHz-47 dBm AGC Gain Control0, 5, 15, 20dB RSSI Range@RF input-95-55dBm RSSI Slope Accuracy@RF input= -70 and –80 dBm20% RX Settling Time @ Loop BW = 30 KHz 30 ms A7121 2.4GHz GFSK Transceiver Jan. 2011, Version 1.54AMICCOM Electronics Corporation Digital IO DC characteristics High Level Input Voltage (V IH )0.8*VDDVDDV Low Level Input Voltage (V IL )00.2*VDDV High Level Output Voltage (V OH )@I OH = -0.5mAVDD-0.4VDDV Low Level Output Voltage (V OL )@I OL = 0.5mA00.4V Note: 1. Data rate= 1Mbps @1M Mode, Data rate= 3Mbps @3M Mode. 2. With external R…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 13070476HKG-001 The Equipment Under Test (EUT) is a portable 2.4GHz RF transceiver (Vehicle) of a RC Car system of a RC Car operating at 2410.875MHz – 2464.875MHz MHz. The EUT is powered by a 9.0 V DC source (6 x 1.5V AA batteries). The EUT has an ON/OFF switch. After switching ON the EUT and the transmitter of the RC Car, the EUT can be controlled to move forward, backward left and right by the transmitter. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 101.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 2dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 103.9dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 7.364mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 7.364mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.464875) mW = 9.55 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA IR LEDS 850nm CMOS SENSOR CMOS PCB 数据线穿过磁环 <Doc><RevCode> 70133 CMOS Sensor & IR LED SCh A4 11Wednesday, July 17, 2013 Title SizeDocument NumberRev Date:Sheet of VDD33 BAT9V SEN_VDD18 SEN_VDD28 BAT9V R1510K R31K R610K J32 Pitch 0.5*24Pin 1 2 3 4 5 6 7 8 9 10 19 11 12 13 14 15 16 17 18 21 20 23 22 24 PCK AGND HYNC RESET VSYNC PWND IMG1 2.8V IMG0 IMG7 SDA DOVDD IMG6 IR_SW IMG5 DGND IMG4 SCL IMG3 SEN_CLK IMG2 GND AVDD IR_VCC R430R L2 R400R R2 100R L1 Q1 8050 2 3 1 R370R IMG7 IMG4 IMG2 IMG0 VSYNC RESET IMG5 IMG3 IMG1 HYNC ADA GPIO3 SCL IMG6 GPIO3 SEN_CLK PCK 5 5 4 4 3 3 2 2 1 1 DD CC BB AA KA-2431-TA2 左转右转 前进后退 <Do c>1.0 70133 MCU & 2.4G/Motor Driver A4 64Wednesday, July 17, 2013 Title SizeDocument NumberRev Date:Sheet of SDA GPIO3 SCL DVSS VDD33 KEY AIN1_L AIN3 VDD33 GND_RF PGA_VIN VSYNC IMG4 IMG7 GPIO2 GPIO7 HSYNC IMG0 IMG2 IMG1 GPIO15 IMG6 IMG5 GPIO14 IMG3 PCK VDD33 AIN1 GND GPIO6 SEN_CLK GND_RF GPIO0 AIN2 GPIO1 GPIO0 GND BAT9V VDD33 VCC33 VDD33 VDD33 VDD33 RF_VDD33 VDD33 VDD33 Q3 D882 2 1 3 Q7 9014 2 1 3 Q8 9014 2 1 3 R410R R211K R520R R4 270R R520R L3 R29 10K R1 1K R250R MOTOR2 R18100R R17100R Q6 D882 2 1 3 R31 100K R380R Q9 9014 2 1 3 MOTOR1 R7 0R Q10 D882 2 1 3 LED4 0603 RED Q13 B772 2 1 3 U4 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 30 29 28 27 261 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 31 25 GND VCC33_RF RF_TXD GPIO16 GPIO15 GPIO14 IMG7 PCK HSYNC VSYNC IMG6 IMG5 IMG4 IMG3 IMG2 IMG1 IMG0 VCC33 GPIO21 GPIO19 GPIO18 GPIO17 GPIO5 GNDGND GPIO4 KEY PWR_EN VGNDA1 OUTR GPIO7 GPIO6 GPIO3 SCL SDA SEN_CLK VCC33 GPIO2 GPIO1 GPIO0 AIN3 AIN2 AIN1 AIN1_L VDDA_ADC PGA-VIN VSS_ADC NC GPIO20 GND_RF PTC1 R51K R9 1K GND R18100R C20 0.1uF Q12 B772 2 1 3 Q11 D882 2 1 3 SW3 GND SW2 C16 22pF R14 100R Q5 B772 2 1 3 Q2 9014 2 1 3 R30100K R8 100K R280R PTC1 Q4 B772 2 1 3 R21100R C15 10pF R20 10K R13 100R RST AIN1_LGPIO14 HYNC GPIO7 DVSS PCK GPIO15 GPIO2IMG5 IMG6 KEY GND_RF PGA_VIN AIN1 GPIO_4 IMG4 IMG7 VSYNC SDA SCL GPIO3 IMG3 IMG2 IMG1 IMG0 GND GPIO6 SEN_CLK KEY GPIO0 GPIO7 GPIO6 GPIO1 GPIO2 GPIO_16 GPIO0 GPIO1 RESET RF_GND RESET RST 5 5 4 4 3 3 2 2 1 1 DD CC BB AA <Doc>1.0 70133 CAR POWER SCh A4 63Wednesday, July 17, 2013 Title SizeDocument NumberRev Date:Sheet of SEN_VDD18 SEN_VDD28 VCC33 RF_VDD33 BAT9V BAT9V BAT9V VDD33 VDD33 RF_VDD33 R3 27K C14 47uF/16V U5 SN8P2501 8 10 11 12 13 141 2 3 4 5 6 7 9 8 10 11 12 13 141 2 3 4 5 6 7 9 R470R S1 SS2273 2 1 3 U2CE6200A18P 1 36 GND INVout C7 100uF/16V R240R R33 47K GND U1BL1117-33 1 35 2 4 ADJ INVout GND EN C5 0.1uF PTC3 C13 0.1uF R270R R10 1M C10 47uF/16V C8 47uF/16V R19 100K R360R C6 100uF/16VD2 C1 47uF/16V R2 180K 1% L1 L2 R460R C9 1nF R260R C2 47uF/16V R11 680K 1% C11 0.1uF R12 1M GND R480R BAT AA*6 D1 R530R C3 0.1uF AIN1_1 AIN1_L GPIO_15 GPIO_16 GPIO_4 RF_GND 55 44 33 22 11 D D C C B B A A KA-2431-RA-V0.1-RF VCC25_RF XT SPI_RXDSPI_CSSPI_TXDSPI_CLKCD_TXENMSIMSOBB_CLKTXENTXEN RXENRXEN CD_TXENTRXDMSOSPI_RXDRXENSPI_CLKSPI_CSSPI_TXDMSIBB_CLKTXENAGND_RF XT VCC33 VCC33 TRXD AGND_RF AGND_RF AGND_RF AGND_RF VCC25_RF AGND_RF AGND_RF AGND_RF VCC33 AGND_RF AGND_RF AGND_RFAGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF AGND_RF VCC33 AGND_RF AGND_RF VCC33 AGND_RF AGND_RF AGND_RF AGND_RF VCC25_RF AGND_RF AGND_RF VCC25_RF VCC33 VCC25_RF AGND_RF CD_TXENSPI_CSSPI_CLKBB_CLKSPI_RXDSPI_TXDTRXDMSOMSIRXENAGND_RFTXENVCC33 TitleSize Document Number Rev Date: Sheet of <Doc> <RevC o <Title> A4 33 Friday, December 21, 2012 TitleSize Document Number Rev Date: Sheet of <Doc> <RevC o <Title> A4 33 Friday, December 21, 2012 TitleSize Document Number Rev Date: Sheet of <Doc> <RevC o <Title> A4 33 Friday, December 21, 2012 R9 47R R410KR410K C12 33pF C12 33pF C6 1pF C6 1pF R7 100K R7 100K C311uFC311uF U5 A7121IC U5 A7121IC BP_LIM2 1 BP_LIM1 2 BP_BPF 3 VDD_A 4 RFI 5 RFO 6 VDD_VCO 7 BP_VCO 8 VT 9 CPO 10 VDD_PLL 11 XT 12 XS 13 F P_RDY 14 BB_CLK 15 MSI 16 MSO 17 RSTN 18 F_CLK 19 TXD 20 TRXD 21 CD_TXEN 22 RX_SYN 23 RX_CLK 24 VDD_D 25 SPI _RXD 26 SPI _TXD 27 SPI _CLK 28 SPI _CS 29 BP_LPF 30 BP_DS 31 RSSI 32 C110pFC110pF R127KR127K C10 1nF C10 1nF Y118MHzY118MHz L22.7nHL22.7nH 1 1 2 2 C820pFC820pF C90.1uFC90.1uF C21 10pF C21 10pF R2 2.2K R2 2.2K C281nFC281nF U4 XC6204-25 U4 XC6204-25 VIN 1 GND 2 CE 3 BP/ADJ 4 VOUT 5 C14 0.1uF C14 0.1uF R1227KR1227K L1 2.7nH L1 2.7nH 1 1 2 2 C33 0.1uF C33 0.1uF C305.6pFC305.6pF R639KR639K C29 0.1uF C29 0.1uF L38.2nHL38.2nH 1 1 2 2 C1615pFC1615pF C20 5.6pF C20 5.6pF C2510pFC2510pF R8 220R R8 220R R10680RR10680R C181uFC181uF C221nFC221nF C15 5.6pF C15 5.6pF C191pFC19 C40.1uFC40.1uF R3 1.5K R3 1.5K C23 1nF C23 1nF C27 470pF C27 470pF U3BFG425U3BFG425 C17 1.2pF C17 1.2pF R11 220R R11 220R C32 15uF C32 15uF C24 0.1uF C24 0.1uF R5 4.7uH R5 1 1 2 2 C71.2pFC71.2pF C21uFC21uF Q1 MMBT3906 Q1 MMBT3906 1 2 3 C26 1uF C26 1uF C5100pFC5100pF U2 S408 U2 S408 RF2 1 GND 2 RF1 3 V1 4 RF 5 V2 6 U1 AP1110 U1 AP1110 VCC 1 RFIN 2 VCC_BIAS 3 NC 4 VB1 5 VB2 6 RFOUT 7 RFOUT 8 Q2 MMBT3906 Q2 MMBT3906 1 2 3 E1ANTENNAE1ANTENNA C13 33pF C13 33pF C110.1uFC110.1uF VT12520VT12520 I 1 O 2 G 3 G 4 C31nFC31nF 55 44 33 22 11 D D C C B B A A RS232 -RX+TX Serial Flash CREATIVE SEMICONDUCTOR LTD.CO C264 V01 KA-2431-RA-V0.1-MAIN SF_MOSISF_SCK SF_CS RXTX SF_MISO TRXD RF_RXD MSO RF_CE SPI_RXD RF_SPI_IN SPI_CS RF_SPI_CS SPI_TXD RF_SPI_OUT CD_TXEN RF_ANT2 MSI RF_PA BB_CLK RF_ANT1 RXEN RF_RX_SEL SPI_CLK RF_SPI_CLK TXEN RF_TX_SEL CD_TXENTRXDMSOSPI_RXDRXENSPI_CLKSPI_TXDSPI_CSMSIBB_CLKTXENVCC33_RFAGND_RF AIN1AIN1 GPIO17GPIO18 GPIO5 AIN3 AIN2PGA_VIN OUTR GPIO4 S_SDAS_SCLS_VSYNCS_HSYNCS_PCK RF_RXD SEN_CLK XIN RESET XOUT GPIO7 VGNDA1 RF_TX_SEL RF_RX_SEL RF_SPI_OUT RF_ANT2 RF_SPI_IN RF_PA RF_ANT1 RF_CE RF_SPI_CS RF_SPI_CLK KEY GPIO3GPIO2GPIO1GPIO0 S_IMG7 GPIO6 AIN1_L SF_MOSI RX SF_MISO TX SF_CS S_IMG0 SF_SCK S_IMG2S_IMG3S_IMG1S_IMG5S_IMG4 S_IMG6 GPIO16 GPIO15 GPIO14 GPIO19GPIO20GPIO21 RF_TXD VCC33_RFGND_RFRF_TXDGPIO16GPIO15GPIO14S_IMG7S_PCKS_HSYNCS_VSYNCS_IMG6S_IMG5S_IMG4S_IMG3S_IMG2S_IMG1S_IMG0VCC33GPIO21GPIO20GPIO19GPIO18RESETG…

Text truncated - open the document above for the full version.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070476HKG-002R1 i FCC ID: PQN70133TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Spin Master Toys Far East Ltd. BRAND NAME: Spy Gear, MODEL: 70133 Additional Model: 6022350, 1030070 FCC ID: PQN70133TX2G4 Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 86-769-81080068-1123 Fax: N/A e-mail: N/A Manufacturer: SpinMaster Toys Far East LTD. Manufacturer Address: 1113, 11 th Floor, Chinachen Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Brand Name: Spy Gear Model: 70133 Additional Model: 6022350, 1030070 Phantom No.: 20063687 Type of EUT: Transceiver Description of EUT: SPG SGS Spy Video Car (Date Code: 30608AAT) Serial Number: N/A FCC ID : PQN70133TX2G4 Date of Sample Submitted: July 11, 2013 Date of Test: July 11, 2013 to July 25, 2013 Report No.: 13070476HKG-002R1 Report Date: August 12, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070476HKG-002R1 ii FCC ID: PQN70133TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Spin Master Toys Far East Ltd. BRAND NAME: Spy Gear, MODEL: 70133 Additional Model: 6022350, 1030070 FCC ID: PQN70133TX2G4 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070476HKG-002R1 iii FCC ID: PQN70133TX2G4 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 8 5.0 Product Labelling ................................................................................................ 8 6.0 Technical Specifications .............................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13070476HKG-002 FCC ID: PQN70133TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 70133 Radiated Emission 70133 13060476HKG-002 A  B  INTERTEK TESTING SERVICE Report No: 13070476HKG-002 FCC ID: PQN70133TX2G4 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 70133 Radiated Emission 70133 13070476HKG-002 A  B 
