PQN70156SPG SGC FieldAgnt Walkie Talkie

TM BATTERY SAFETY INFORMATION: Requires 2 x 9 V (6LR61) alkaline batteries (not included). Batteries are small objects. - Replacement of batteries must be done by adults. - Follow the polarity (+/-) diagram in the battery compartment. - Promptly remove dead batteries from the toy. - Dispose of used batteries properly. - Remove batteries for prolonged storage. - Only batteries of the same or equivalent type as recommended are to be used. - DO NOT incinerate used batteries. - DO NOT dispose of this product in fire, as batteries inside may explode or leak. - DO NOT dispose of batteries in fire, as batteries may explode or leak. - DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard). - DO NOT use rechargeable batteries. - DO NOT recharge non-rechargeable batteries. - DO NOT short-circuit the supply terminals. INFORMATIONS DE SÉCURITÉ RELATIVES AUX PILES : Fonctionne avec 2 piles alcalines (6LR61) 9 V (non fournies). Les piles sont de petits objets. - Le remplacement des piles doit être effectué par un adulte. - Respecter le schéma de polarité (+/-) du compartiment des piles. - Retirer immédiatement toute pile épuisée du jouet. - Jeter correctement les piles épuisées. - Retirer les piles du jouet en cas d’inutilisation prolongée. - N’utiliser que des piles d’un même type ou d’un type équivalent à celui recommandé. - NE PAS incinérer les piles épuisées. - Ne pas jeter les piles au feu ; elles pourraient exploser ou fuir. - Ne pas jeter ce produit au feu ; les piles qu'il contient pourraient exploser ou fuir. - NE PAS mélanger des piles neuves et des piles épuisées, ou des piles de types différents (ex : alcalines/standard). - NE PAS utiliser de piles rechargeables. - NE PAS recharger des piles non rechargeables. - NE PAS court-circuiter les bornes d’alimentation. INFORMACIÓN DE SEGURIDAD DE LA BATERÍA: Necesita 2 pilas alcalinas tipo (6LR61) 9 V (no incluidas). Recuerde que las pilas son objetos pequeños. - Pida ayuda a un adulto para cambiar las pilas. - Siga las instrucciones de polaridad (+ / -) que aparecen en el compartimento de las pilas. - Retire rápidamente las pilas una vez gastadas. - Las pilas usadas deben desecharse de forma adecuada. - Retire las pilas si va a guardar el juguete durante un período de tiempo prolongado. - Utilice únicamente pilas del tipo recomendado o de un tipo equivalente. - NO exponga las pilas usadas al fuego. - NO arroje las pilas al fuego, ya que podrían explotar o desprender productos químicos. - NO arroje las pilas de este producto al fuego, ya que podrían explotar o desprender productos químicos. - NO mezcle pilas nuevas y viejas, ni mezcle pilas de tipos distintos (p. ej. alcalinas y normales). - NO utilice pilas recargables. - NO intente recargar pilas no recargables. - NO cortocircuite las terminales de corriente. NOTE: If normal function of the product is disturbed or interrupted, strong electro-magnetic interference may be causing the issue. To reset product, turn it completely off, then turn it back on. If normal operation does not resume, move the product to another location and try again. To ensure normal performance, change the batteries, as low batteries may not allow full function. REMARQUE : De fortes interférences électromagnétiques peuvent perturber ou interrompre le fonctionnement normal du produit. Pour le réinitialiser, l’éteindre complètement et le rallumer. Si le produit ne fonctionne toujours pas normalement, changer de lieu d’utilisation et réessayer. Des piles faibles peuvent empêcher le produit de fonctionner correctement. Pour des performances optimales, remplacer les piles. NOTA: Importantes interferencias electromagnéticas pueden perturbar el funcionamiento normal del producto. Para reiniciarlo, apáguelo y vuelva a encenderlo. Si el producto sigue sin funcionar normalmente, cambie de zona de uso y vuelva a intentarlo. Las pilas usadas pueden impedir que el vehículo funcione de manera correcta. Para un rendimiento óptimo, cambie las pilas. Care and Maintenance: Always remove batteries from the toy when it is not being used for a long period of time. Wipe the toy gently with a clean damp cloth. Keep the toy away from direct heat. Do not submerge the toy in water. This can damage the electronic assemblies. Entretien et maintenance : - Toujours retirer les piles lorsque le jouet n’est pas utilisé pendant une longue période. - Nettoyer délicatement le jouet avec un chiffon humide et propre. - Conserver le jouet à l’écart de toute source de chaleur. - Ne pas plonger le jouet dans l’eau ; les composants électroniques risqueraient d’être endommagés. Cuidado y mantenimiento: - Retire las pilas del juguete si no piensa utilizarlo durante un período largo de tiempo. - Limpie el juguete cuidadosamente con un paño limpio y húmedo. - No exponga el juguete a fuentes de calor. - No sumerja el juguete en agua. De lo contrario, los componentes electrónicos podrían sufrir daños. Special Note to Adults: Parental guidance is recommended when installing or replacing batteries. Regularly examine the toy for damage. In the event of any damage, the toy must not be used until the damage has been repaired. This toy is not intended for children under 3 years old. Remarque à l’attention des adultes : - Il est recommandé aux parents d’aider les enfants lors de l’installation et du remplacement des piles. - Vérifier régulièrement l’état du jouet. S'il présente des dommages, le jouet ne doit pas être utilisé jusqu'à ce qu'il soit réparé. Ce jouet ne convient pas aux enfants de moins de 3 ans. Nota para adultos: - Se recomienda contar con la ayuda de un adulto a la hora de instalar o cambiar la batería. - El juguete puede experimentar problemas de funcionamiento si sufre una descarga de electricidad estática. En ese caso, será necesario reiniciarlo. 6 + YEARS/ANS AÑOS HOW TO USE YOUR FIELD AGENT WALKIE TALKIES™ NOTE: Both Field Agent Walkie Talkies™ must be switched on in order to communicate. 1. Turn the POWER SWITCH on each unit to O…

Text truncated - open the document above for the full version.

ABCD DCBA Scale Sheet Size FCSM No. DWG No. Rev 0 of 0 A4 ANT 49.860MHz Super-regenerative receiver modulator RT S? T T T R R R 49.860MHz Battery 9VBattery 9VAudio Amplifier Morse codeMorse code Key Speaker/ Microphone Oscillator 70156 walkie talkies US Block diagram Frequency:49.860MHz

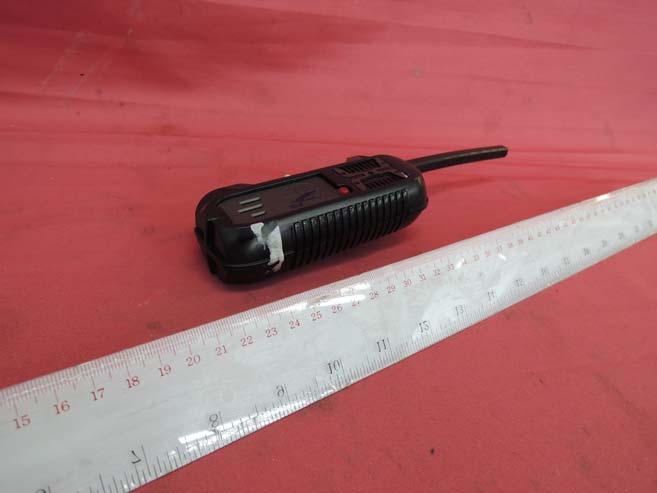

INTERTEK TESTING SERVICE Report No.: 13040262HKG-002 FCC ID: PQN70156 Equipment Photographs Model : 70156 (External)

INTERTEK TESTING SERVICE Report No.: 13040262HKG-002 FCC ID: PQN70156 Equipment Photographs Model : 70156 (Internal) INTERTEK TESTING SERVICE Report No.: 13040262HKG-002 FCC ID: PQN70156 Equipment Photographs Model : 70156 (Internal) INTERTEK TESTING SERVICE Report No.: 13040262HKG-002 FCC ID: PQN70156 Equipment Photographs Model : 70156 (Internal)

Model: 70156 Technical Description The Equipment Under Test (EU T) is a superregenerative Transceiver operating 49.860MHz. The EUT is power by 1 x 9.0VDC alkaline battery. The EUT has an ON /OFF switch, transmit button (PTT) and puls e generation button (code key). The communication method of the EUT is half duplex. To transmit the signal, press and hold t he transmit button. To send the pulse signal, press and hold the pulse generation button. The receiving mode will active after switching on the EUT. The circuit of the transmitter comprises of, 1. Encoder: Audio Amplifier and Morse code key Consisting: U1,CALL,SW2-A,R12, C27,C24,R17,C26,R18 2. A RF Oscillator (49.860MHz) Consisting: Y1 3. A Filter Network Consisting: L1,C8,C9,C10,C12,C11,R1 4. Amplifier Consisting: Q1,Q2 5. A Power Supply Consisting: 9.0V Alkaline battery 6. Speaker Consisting: SRK The transmitter uses an external, integral and telescope-type.

Analysis Report Report No.: HK13040262 The Equipment Under Test (EUT) is a superregenerative Transceiver operating 49.860MHz. The EUT is power by 1 x 9.0VDC alkaline battery. The EUT has an ON/OFF switch, transmit button (PTT) and pulse generation button (code key). The communication method of the EUT is half duplex. To transmit the signal, press and hold the transmit button. To send the pulse signal, press and hold the pulse generation button. The receiving mode will active after switching on the EUT. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 65.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 68.0dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.002mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.002mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13040262HKG-002 FCC ID: PQN70156 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com i GENERAL INFORMATION Spin Master Toys Far East Ltd. BRAND NAME: N/A, MODEL: 70156 FCC ID: PQN70156 Grantee: Spin Master Toys Far East Ltd. Grantee Address: Rm 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: 86-0769-71080068 ext 1123 Fax: 86-0769-82207100 e-mail: N/A Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Rm 1113A, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: N/A Model: 70156 Additional Model: 6021650, 1029127, 1029852 Type of EUT: Transceiver Description of EUT: SPG SGC FieldAgnt WalkieTalkie Serial Number: N/A FCC ID: PQN70156 Date of Sample Submitted: May 03, 2013 Date of Test: May 03, 2013 to May 06, 2013 Report No.: 13040262HKG-002 Report Date: May 09, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13040262HKG-002 FCC ID: PQN70156 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com ii SUMMARY OF TEST RESULT Spin Master Toys Far East Ltd. BRAND NAME: N/A, MODEL: 70156 FCC ID: PQN70156 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13040262HKG-002 FCC ID: PQN70156 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 2 2.0 System Test Configuration................................................................................. 3 2.1 Justification ........................................................................................................... 3 2.2 EUT Exercising Software....................................................................................... 3 2.3 Special Accessories .............................................................................................. 3 2.4 Equipment Modification ......................................................................................... 3 2.5 Measurement Uncertainty...................................................................................... 4 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results................................................................................................ 5 3.1 Field Strength Calculation...................................................................................... 5 3.2 Radiated Emission Configuration Photograph........................................................ 5 3.3 Radiated Emission Data ........................................................................................ 5 4.0 Equipment Photographs..................................................................................... 7 5.0 Product Labelling................................................................................................ 7 6.0 Technical Specifications..................................................................................... 7 7.0 Instruction Manual..................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13040262HKG-002 FCC ID: PQN70156 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 70156 Model: 70156 Job Num: 13040262HKG-002 Side A INTERTEK TESTING SERVICE Report No: 13040262HKG-002 FCC ID: PQN70156 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 70156 Model: 70156 Job Num: 13040262HKG-002 Side B
