PQN7260113M56GAB Pop Star Gabby TRUX

WARNING: CHOKING HAZARD — Small parts. Not for children under 3 years. Accessories Accessoires Interactive Accessories Accessoires interactifs CONTENTS / CONTENU INSTRUCTIONS MODE D'EMPLOI 5+ YEARS ANS visit Me at... retrOuve-moi sur... FOr videO instruCtiOns • BOnus COntent • Chatsters app dOwnlOad * Available for iOS or Android devices MOdes d'emploi en vidéO • COntenu supplémentaire • appliCatiOn Chatsters à télécharger * Disponible en version iOS ou Android ATTENTION ! RISQUE D’ÉTOUFFEMENT— Contient de petits éléments. Ne convient pas aux enfants de moins de 3 ans. Télécharger dans l’App Store Appli Android sur Google Play See Chatsters.com for compatible devices. Ask a parent before going online. Liste des appareils compatibles disponible sur Chatsters.com. Demande la permission à l'un de tes parents avant d'aller sur Internet. Head Button Commande tête Doll’s Right Heart Touch Sensors Capteurs tactiles du coeur droit Lip Sensor Area for Accessories Lip Button Capteurs des lèvres (interaction avec les accessoires) Commande lèvres Compartiment à piles dans la chaussure droite de la poupée Doll’s Right Shoe Battery Compartment Doll’s Left Shoe Battery Compartment Compartiment à piles dans la chaussure gauche de la poupée On/Off Switch Interrupteur On/Off Capteurs tactiles du coeur gauche Doll’s Left Heart Touch Sensors Hi, i’m Gabby! Learn about my features! Salut ! Je m’appelle Gabby ! Voici mes caractéristiques ! Install 2 AA Batteries in Doll’s Right Shoe Battery Compartment Insérer 2 piles AA dans le compartiment à piles de la chaussure droite Insérer 2 piles AA dans le compartiment à piles de la chaussure gauche Install 2 AA Batteries in Doll’s Left Shoe Battery Compartment YOU MUST INSTALL BATTERIES IN BOTH SHOES TO PLAY. INSÉRER LES PILES DANS LES DEUX CHAUSSURES AVANT DE JOUER. Requires 4 X1.5V AA (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. • Fonctionne avec 4 piles alcalines AA (LR6) 1,5 V (non fournies). Les piles ou les batteries doivent être correctement recyclées ou éliminées. Lorsque ce produit arrive en fin de vie, il ne doit pas être jeté avec le reste des déchets ménagers. Conformément à la directive sur les Déchets des équipements électriques et électroniques (DEEE), il doit être collecté séparément afin d'être éliminé selon les meilleures techniques de récupération et de recyclage disponibles. Cette démarche réduit les risques de pollution du sol et des eaux, et permet ainsi de minimiser l’impact de toute substance nocive sur la santé et sur l'environnement. Cela diminue également la quantité de ressources nécessaires à la fabrication de nouveaux produits, et évite la saturation des sites d'enfouissement. Veuillez apporter votre contribution en ne jetant pas ce produit avec les déchets de votre commune. Le symbole de la « poubelle sur roues » signifie que ce produit doit faire l'objet d'une collecte respectant la directive sur les Déchets des équipements électriques et électroniques (DEEE). Vous pouvez également retourner les produits en fin de vie à votre détaillant lors de l'achat d'un produit similaire neuf. Pour plus d’informations, contactez votre commune. Battery Safety Information: Requires 4 X 1.5V AA (LR6) alkaline batteries (NOT INCLUDED). Batteries are small objects. Replacement of batteries must be done by adults. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the toy. Dispose of used batteries properly. Remove batteries for prolonged storage. Only batteries of the same or equivalent type as recommended are to be used. • DO NOT incinerate used batteries. • DO NOT dispose of batteries in fire, as batteries may explode or leak. • DO NOT mix old and new batteries or types of batteries (i.e. alkaline/standard). • DO NOT use rechargeable batteries. • DO NOT recharge non-rechargeable batteries. • DO NOT short-circuit the supply terminals. Informations concernant les piles : Fonctionne avec 4 piles alcalines AA (LR6) 1,5 V (NON FOURNIES). Les piles sont des objets de petite taille. Le remplacement des piles doit être effectué par un adulte. Respecter le schéma de polarité (+/-) figurant dans le compartiment des piles. Enlever rapidement les piles usagées du jouet. Jeter correctement les piles usagées. Retirer les piles en cas d'inutilisation prolongée.. N’utiliser que des piles d’un même type ou d’un type équivalent à celui recommandé. • NE PAS incinérer les piles usagées. • NE PAS jeter les piles au feu, car elles peuvent exploser ou fuir. • NE PAS mélanger piles usagées et piles neuves, ni différents types de piles (c'est-à-dire alcalines/standard). • NE PAS utiliser de piles rechargeables. • NE PAS recharger des piles non rechargeables. • NE PAS court-circuiter les terminaux d’alimentation. 1 1 2 2 Open the battery door with a philips screwdriver (not included). • À l’aide d’un tournevis cruciforme (non fourni), ouvrir le compartiment des piles. If used or spent batteries are present, remove these batteries from the unit by pulling up on one end of each battery. Install 4 new AA size (LR6) alkaline batteries (not included) as s…

Text truncated - open the document above for the full version.

Product Block Diagram Batteries 1.5V x 4AA (6.0V) Voltage Regulator U5 3.3V MCU (LCD Controller/Driver with Speaker Driver) U6 Sound Controller U4 RFID U2 LCD Driver U1 LCD Panel Left Side LCD Panel Right Side Crystal Oscillator 32.768kHz Y2 Touch Sensors Pad 1 & Pad2 Control Key S5~S7 LED LED1~LED3 Motor M1 MIC MK1 Crystal Oscillator 13.56MHz Y1 Crystal Oscillator 24MHz Y3 Speaker SP1 Antenna 13.56MHz EEPROM U7 CMOS Flash U8 W55MID50 Data Sheet Winbond Electronics Corp. 5 Revision: A3 Publish Date: 2003/3/24 System Description 2.1 W55MID50 System Block Diagram 2.2 W55MID50 Functional Description Transmission Power Amplifier (PA) It provides 4 different selectable transmission power for Reader chip to support MFID WB Tag's radiation power supply. The external inductor coupling circuit is designed for 13.56MHz magnetic field resonance. The coupled center frequency will depend on equivalent value of external PCB inductor and capacitor. Envelope Detector & Analog Front End The major function of this unit provides MFID WB Tag's data can be extracted. Voltage Regulator The voltage regulator generates the system needs of device power supply. Configuration Register System configuration register controls the all functional settings of W55MID50 such as Tag data Command Extractor Configuration Register Data- Buff. output Data- Buff. I Envelope detector & Analog Front End Oscillation circuit 13.56MHz Voltage Regulator Preamble & Data Clk Generator Decoder (NRZ/ Man.) Reset & Power down Control PA Data- Buff. II TXD

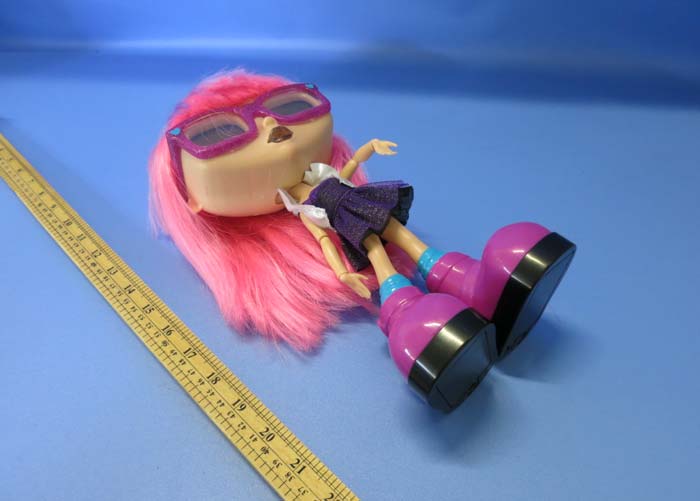

INTERTEK TESTING SERVICE Report: 14070167HKG-005 FCC ID: PQN7260113M56 IC: 4438B-72601 Equipment Photographs Model: 72601 (External)

Spin Master International,S.A.R.L., 16 Avenue Pasteur, L-2310,Luxembourg CAN ICES-3(B) /NMB-3(B) © 2014 SML MADE IN CHINA 72600 72602 All Rights Reserved This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : PQN7260113M56 SPIN MASTER LTD. Model: 72601 IC: 4438B-72601

INTERTEK TESTING SERVICE Report: 14070167HKG-005 FCC ID: PQN7260113M56 IC: 4438B-72601 Equipment Photographs Model : 72601 (Internal) INTERTEK TESTING SERVICE Report: 14070167HKG-005 FCC ID: PQN7260113M56 IC: 4438B-72601 Equipment Photographs Model : 72601 (Internal) INTERTEK TESTING SERVICE Report: 14070167HKG-005 FCC ID: PQN7260113M56 IC: 4438B-72601 Equipment Photographs Model : 72601 (Internal) INTERTEK TESTING SERVICE Report: 14070167HKG-005 FCC ID: PQN7260113M56 IC: 4438B-72601 Equipment Photographs Model : 72601 (Internal) INTERTEK TESTING SERVICE Report: 14070167HKG-005 FCC ID: PQN7260113M56 IC: 4438B-72601 Equipment Photographs Model : 72601 (Internal) INTERTEK TESTING SERVICE Report: 14070167HKG-005 FCC ID: PQN7260113M56 IC: 4438B-72601 Equipment Photographs Model : 72601 (Internal)

Technical Description The brief circuit description is listed as below: 1)U6 acts as MCU ( LCD Controller/Driver with speaker(GPLB62200A) 2)U1 acts as LCD Driver (GPLD2120A). 3)U2 acts as RFID Reader (W55MID50). 4)U4 acts as Sound Controller (GPCE2064A) 5)Y1 act as Crystal Oscillator (13.56MHz) for U2. 6)Y2 acts as Crystal Oscillator (32.768kHz) for U4. 7)Y3 acts as Crystal Oscillator (24MHz) for U6. 8)M1 acts as Motor. 9) U5 acts as Voltage Regulator. 10) U7 acts as EEPROM. 11) U8 acts as CMOS Flash IC. Antenna Type: Internal antenna Antenna Gain: 0dBi Maximum allowed field strength of production tolerance: from 48 dBμV/m to 54 dBμV/m at 3m W55MID50 Data Sheet Winbond MFID WB Reader W55MID50 Data Sheet W55MID50 Data Sheet Winbond Electronics Corp. 2 Revision: A3 Publish Date: 2003/3/24 Contents General Description 3 1.1 W55MID50 Features..............................................................................................3 1.2 W55MID50 Pin Description...................................................................................4 System Description 5 2.1 W55MID50 System Block Diagram.......................................................................5 2.2 W55MID50 Functional Description.......................................................................5 Electronic Characteristics 7 3.1 W55MID50 Absolute Maximum Ratings...............................................................7 3.2 W55MID50 DC Characteristics..............................................................................7 3.3 W55MID50 Ordering Information.........................................................................7 3.4 FAQ........................................................................................................................8 3.5 W55MID50 Data Sheet Document History............................................................8 W55MID50 Data Sheet Winbond Electronics Corp. 3 Revision: A3 Publish Date: 2003/3/24 General Description Winbond MFID WB (Magnetic Field Identification) series is used in all areas of automatic data capture allowing contactless identification of objects using magnetic field. From ticketing to industrial automation and access control, the applications of MFID are burgeoning. In recent years automatic identification procedures have become very popular in many service industries, purchasing and distribution logistics, industry, manufacturing companies and material flow systems. W55MID50 is one of series in Winbond MFID WB family that supports multi-functional Reader solution and especially focus on toy, security, and consumer related applications. The applications with Winbond MFID WB Tag series such as W55MID10 that provides read-only mask ROM-ID version transponder for mass production solution in toy industrial, meanwhile W55MID15 provides the other solution for manufacture option, which is 243 bonding-ID selection transponder. Besides the single tag transponder application, W55MID35 offers multi-transponder recognition function for intelligent and smart toy applications. W55MID50 provides a wide variety of applications for toy, security, and consumer market meanwhile the W55MID50 is the most cost effective solution on current MFID WB related application market. 1.1 W55MID50 Features ‰ Magnetic field resonance frequency: 13.56MHz ‰ Data clock: 22 ~ 66KHz ‰ Inductive coupled power supplies for transponder's no battery operation ‰ On-chip rectifier, voltage limiter, clock extraction, power management, uC interface ‰ Provides NRZ and Manchester coding data format ‰ Adjustable 4-level of Reader transmission power selection ‰ Provides serial and parallel mode uC interface ‰ uC data output rate ≥ 1Mbps ‰ Low power, low voltage operation ‰ Supports power-down mode ≤ 1uA ‰ Operating distance: 0 ~ 10cm ‰ Operating voltage: 2.4V ~ 5.5V ‰ Operating temperature: 0 ~ 70 °C ‰ Package: Dice form, PDIP-20, SOP-20 ‰ Reference design PC board Size: 2.0x2.0cm 2 (without PCB antenna) ‰ Winbond patented "Automatic Reader Transmission Power Adjustment" for Reader optimum transmission power adjust ‰ Minimize external components W55MID50 Data Sheet Winbond Electronics Corp. 4 Revision: A3 Publish Date: 2003/3/24 1.2 W55MID50 Pin Description Symbol PAD No. I/O Functional Description D3 1 O Data output #3 D2 2 O Data output #2 D1 3 O Data output #1 D0 4 O Data output #0 XIN 5 I Connect to external 13.56MHz oscillator XOUT 6 O Connect to external 13.56MHz oscillator VSS 7 GND Digital power return path CMD 8 I/O R/W configuration register CLK 9 I Command R-W/ Read data clock VDD 10 Power Power path RX_VDD 11 Power Power path of Rx RX_VSS 12 GND Power return path of Rx ENV 13 I Envelope detector input RESET 14 I Reset TagIn 15 O Indication of tag arrival COIL 16 O PA output to connect with PCB antenna TX_VSS 17 GND Power return path of PA TX_VDD 18 Power Power path of PA W55MID50 Data Sheet Winbond Electronics Corp. 5 Revision: A3 Publish Date: 2003/3/24 System Description 2.1 W55MID50 System Block Diagram 2.2 W55MID50 Functional Description Transmission Power Amplifier (PA) It provides 4 different selectable transmission power for Reader chip to support MFID WB Tag's radiation power supply. The external inductor coupling circuit is designed for 13.56MHz magnetic field resonance. The coupled center frequency will depend on equivalent value of external PCB inductor and capacitor. Envelope Detector & Analog Front End The major function of this unit provides MFID WB Tag's data can be extracted. Voltage Regulator The voltage regulator generates the system needs of device power supply. Configuration Register System configuration register controls the all functional settings of W55MID50 such as Tag data Command Extractor Configuration Register Data- Buff. output Data- Buff. I Envelope detector & Analog Front End Oscillation circuit 13.56MHz Voltage Regulator Preamble & Data Clk Generator Decoder (NRZ/ Man.) Reset & Power down Control PA Data- Buff. II TXD W55MID50 Data Sheet Winbond E…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 14070167HKG-005 The equipment under test (EUT) is a transmitter for a Doll (RFID toy reader) operating at 13.56 MHz which is controlled by a crystal. The EUT is powered by 4 x AA size batteries. This product consists of a doll (RFID toy reader) and 14pcs of interactive accessories (passive tags). The EUT have an ON/OFF switch, a head button, a lip button, two LCD displays and two touch buttons (on the eyeglasses). After switch on the EUT, it can give you a response (i.e. dancing or singing) when you place the passive tags on the lip or you can play different modes by pressing different buttons. The EUT can also connect with iPad via 18kHz audio tone for game playing. Antenna Type: Internal antenna Antenna Gain: 0dBi Maximum allowed field strength of production tolerance: 48 dBμV/m to 54 dBμV/m at 3m According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 54 dBμV/m at 3m in frequency 13.56MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00008mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00008mW. The SAR Exclusion Threshold Level for 13.56MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 442.7mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 5 6 7 8 ABCD 8 7 6 5 4 3 2 1 D CBA LB62_PA0 PA0 LB62_PA1 PA1 LB62_PA2 PA2 LB62_PB0 PB0 LB62_PB1 PB1 LB62_PB2 PB2 LB62_PB3 PB3 IntLBIntCEHSData0Data1Data2Data3 C290.1uF C300.1uF VDD_LB33V C310.1uF C2710uF C570.1uF C580.1uF C590.1uF VDDB C28100uF C600.1uF C610.1uF VBAT_B C760.1uF SP1 29mm 16R 0W25 Y324MHz C62 20pF C63 20pF C6430pF R291M R332M VDD_LB33V C65TBD(10uF) Q11 LMBT3904LT1G R451M R4410K D51N4148 C660.1uF R3510K VDD_LB33V PB5PB6 LB62_SEG0LB62_SEG1LB62_SEG2LB62_SEG3LB62_SEG4LB62_SEG5LB62_SEG6 LB62_PC5 LB62_VLCD LB62_V2LB62_V3 LP62_COM0LP62_COM1LP62_COM2LP62_COM3LP62_COM4LP62_COM5LP62_COM6LP62_COM7LP62_COM8LP62_COM9 LP62_COM10LP62_COM11LP62_COM12LP62_COM13LP62_COM14LP62_COM15LP62_COM16LP62_COM17LP62_COM18LP62_COM19LP62_COM20LP62_COM21LP62_COM22LP62_COM23LP62_COM24LP62_COM25LP62_COM26LP62_COM27LP62_COM28LP62_COM29 LP62_COM0LP62_COM1LP62_COM2LP62_COM3LP62_COM4LP62_COM5LP62_COM6LP62_COM7LP62_COM8LP62_COM9LP62_COM10LP62_COM11LP62_COM12LP62_COM13LP62_COM14LP62_COM15LP62_COM16LP62_COM17LP62_COM18LP62_COM19LP62_COM20LP62_COM21LP62_COM22LP62_COM23LP62_COM24LP62_COM25LP62_COM26LP62_COM27LP62_COM28LP62_COM29 LP62_SEG8LP62_SEG9 LP62_SEG10LP62_SEG11LP62_SEG12LP62_SEG13LP62_SEG14LP62_SEG15LP62_SEG16LP62_SEG17LP62_SEG18LP62_SEG19LP62_SEG20LP62_SEG21LP62_SEG22LP62_SEG23LP62_SEG24LP62_SEG25LP62_SEG26LP62_SEG27LP62_SEG28LP62_SEG29LP62_SEG30LP62_SEG31LP62_SEG32LP62_SEG33LP62_SEG34LP62_SEG35LP62_SEG36LP62_SEG37LP62_SEG38LP62_SEG39LP62_SEG40LP62_SEG41LP62_SEG42LP62_SEG43LP62_SEG44LP62_SEG45LP62_SEG46LP62_SEG47LP62_SEG48LP62_SEG49LP62_SEG50LP62_SEG51LP62_SEG52LP62_SEG53LP62_SEG54LP62_SEG55LP62_SEG56LP62_SEG57LP62_SEG58LP62_SEG59LP62_SEG60LP62_SEG61LP62_SEG62LP62_SEG63LP62_SEG64LP62_SEG65LP62_SEG66LP62_SEG67 SEG8SEG9SEG10SEG11SEG12SEG13SEG14SEG15SEG16SEG17SEG18SEG19SEG20SEG21SEG22SEG23SEG24SEG25SEG26SEG27SEG28SEG29SEG30SEG31SEG32SEG33SEG34SEG35SEG36SEG37SEG38SEG39SEG40SEG41SEG42SEG43SEG44SEG45SEG46SEG47SEG48SEG49SEG50SEG51SEG52SEG53SEG54SEG55SEG56SEG57SEG58SEG59SEG60SEG61SEG62SEG63SEG64SEG65SEG66SEG67 LB62_SEG0LB62_SEG1LB62_SEG2LB62_SEG3LB62_SEG4LB62_SEG5LB62_SEG6LB62_PC5LB62_VLCDLB62_V2LB62_V3 C750.1uF C740.1uF C730.1uF C721uF C712.2uF C700.22uF C690.22uF LCD Sounds Controller LB62_PC4 PC4 R481M R471KR491K Touch Pad1Touch Pad2 R501M S6Tact Switch Lip PA4 R461M S5Tact Switch Wakeup PA3 VDD_LB33V PA0PA2PA6PA7PB0PB1PB2PB3PA1PA3 R2610R ONOFF C250.1uF C2210uF Vin GND Vout U5 LC1206 3.3V C260.1uF C23220uF D3 1N4148 VBAT_A VBAT_B VDDB VBAT_A D41N4001 C24100uF OTPSDA 5 OTPSCK 6 GND 7 VDDB 1 VDD_LB33 2 SIFEN 3 VPP 4 CON2 OTP Writer VDD_LB33V VDDB SIFENVPPOTPSDAOTPSCK S1S2S3S4 VDD_LB33V X32SELPLL24MENVREG_OFFX24MSEL CS# 1 SO 2 WP# 3 GND 4 SI 5 SCLK 6 HOLD# 7 VCC 8 U8MX25L1606EM1I-12G R5510K R561M C680.1uF VDDB PB5PB6 PA4 PC4 A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP* 7 VCC 8 U724C02 VDD_LB33V C670.1uF R5310K R5410K PA6PA7 LB62_PC5 BT1AA X 4 PTC1TRA185 VBAT VBAT_A VDDB VBAT_A VDDB DVSS VBAT VBAT GND Doll's Right Side Doll's Left Side SW1 SS12F15G4 1P2T JP1 0R R281M S7Tact Switch PA5 PA5 Tryme JP10 0R Short-circuit JP10 when programming,After programming, disconnect JP10 and Short-circui t JP1. TP1 TP2 L17 10uF Cancel **(MX25L3206EM2I-12G ) only for TRU Version COM0 COM1 COM2 COM3 COM4 COM5 COM6 COM7 COM8 COM9 COM10 COM11 COM12 COM13 COM14 COM15 COM16 COM17 COM18 COM19 COM20 COM21 COM22 COM23 COM24 COM25 COM26 COM27 COM28 COM29 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24SEG25SEG26SEG27SEG28SEG29SEG30SEG31SEG32SEG33SEG34SEG35SEG36SEG37SEG38SEG39SEG40SEG41SEG42SEG43SEG44SEG45SEG46SEG47SEG48SEG49SEG50SEG51SEG52SEG53SEG54SEG55SEG56SEG57SEG58SEG59SEG60SEG61SEG62SEG63SEG64SEG65SEG66SEG67 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 VLCD V2 V3 SEG59 1 SEG58 2 SEG57 3 SEG56 4 SEG55 5 SEG54 6 SEG53 7 SEG52 8 SEG51 9 SEG50 10 SEG49 11 SEG48 12 SEG47 13 SEG46 14 SEG45 15 SEG44 16 SEG43 17 SEG42 18 SEG41 19 SEG40 20 SEG39 21 SEG38 22 SEG37 23 SEG36 24 SEG35 25 SEG34 26 SEG33 27 SEG32 28 SEG31 29 SEG30 31 SEG29 32 SEG28 33 SEG27 34 SEG26 35 SEG25 36 SEG24 37 SEG23 38 SEG22 39 SEG21 40 SEG20 41 SEG19 42 SEG18 43 SEG17 44 SEG16 45 SEG15 46 SEG14 47 SEG13 48 SEG12 49 SEG11 50 SEG10 51 SEG09 52 SEG08 53 SEG07 54 SEG06 55 SEG05 56 SEG04 57 SEG03 58 SEG02 59 SEG01 60 SEG00 61 PB7 79 PB6 80 PB5 81 PB4 82 PB3 84 PB2 85 PB1 86 PB0 87 PA7 89 PA6 90 PA5 91 PA4 92 PA3 93 PA2 94 PA1 95 PA0 96 PC5 97 PC4 98 PC3 99 PC2 100 PC1 101 PC0 102 TEST 104 SEG73 152 SEG72 153 SEG71 154 SEG70 155 SEG69 156 SEG68 157 SEG67 158 SEG66 159 SEG65 160 SEG64 161 SEG63 162 SEG62 163 SEG61 164 SEG60 165 CAP1P 125 CAP1N 126 CAP2P 127 CAP2N 128 LCDVPP 129 VLCD 130 V4 131 V3 132 V2 133 V1 134 VSS_LCD1 30 VSS_LCD2 124 VSS_LCD3 151 VSS 105 AVSS_DAC 121 VSS_DAC 116 VSS_DAC 120 VSS_IO 83 NC1 113 NC2 114 NC3 115 RESETB 103 X32I 110 X32O 111 AUDN 117 AUDP 119 X24MO 108 X24MI 109 COM16 135 COM17 136 COM18 137 COM19 138 COM20 139 COM21 140 COM22 141 COM23 142 COM24 143 COM25 144 COM26 145 COM27 146 COM28 147 COM29 148 COM30 149 COM31 150 COM0 77 COM1 76 COM2 75 COM3 74 COM4 73 COM5 72 COM6 71 COM7 70 COM8 69 COM9 68 COM10 67 COM11 66 COM12 65 COM13 64 COM14 63 COM15 62 VDD_REGIN 106 VDD_LCD 123 AVDD_DAC 122 VDD_DAC 118 VDD_IO 88 VDD_PB 78 VDD33V_REGOUT 107 VDD33V 112 U6 GPLB62200A(Masking) 1 2 3 4 5 6 7 8 ABCD 8 7 6 5 4 3 2 1 D CBA VSS 7 DO 10 NRST 1 RS4 2 RS3 3 RS2 4 RS1 5 RS0 6 VDD 11 COIL0 8 COIL1 9 U3W55MID15 C*TBD L* Antenna RS0RS1 RS2RS3RS4 OPT VDD_RFID VDD_RFID DVSS VDD_RFID C7100pF C6100pF C5100pF C4100pF C910pF C810pF Y1 13.56MHZ MFID_D3MFID_D2MFID_D1MFID_D0 MFID_CMD MFID_CLK MFID_TIN MFID_RES MFID_RESMFID_D3MFID_D2MFID_D1MFID_D0MFID_CMDMFID_CLKMFID_TINSounds Controller MFID_CMDMFID_CLKMFID_TINMFID_RESMFID_D0MFID_D1MFID_D2MFID_D3 C247uF C1047uF C30.1uF C110.1uF L1BeadL2Bead VDD_RFIDVDD_RFID TXVDDRXVDD TXVDD RXVDD L31.0uH C1410pF C120.1uF L44.7uH C1847pF L5Antenna C13250pF C1910pF D21N4148 D11N4148 R1270K C2127pF C20750pF COILENV COILENV MFID Reader MFID Single Tag D0 4 XIN 5 D1 3 D2 2 D3 1 XOUT 6 CMD 8 CLK 9 TAGIN 17 …

Text truncated - open the document above for the full version.

lntertek Valued Quality. Deliveæd, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accred¡ted this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory act¡vit¡es as listed in the HOKLAS directory of accreditod laboretories. TEST REPORT Report No.: 140701 67HKG-005 Spin Master Toys Far East Ltd. Application For Certification (Oríginal Grant) (FCG lD: PQN7260113M56) Transmitter Wong Kwok Yeung, Kenneth Lead Engineer by: This ßport shall not be ßproduced, exæpt ¡n full This repol ls lor ths sxclusive us€ of lntêrlek's Cl¡ent and ¡s provided pursuanl to ths agrêement b€tween lntert€k and lts Cl¡ent lnt€rlsKs rosPonsibllity and l¡ab¡l¡ty ar€ llm¡tsd to lhe terms snd ændit¡ons of lhe agre€ment. lnterlsk sssumes no l¡8b¡l¡ty to 8ny party, othsr than to lhs Cliont ln smrdanæ w¡th the agreêmênt, for any loss, €xpsnss or demags ocæs¡on6d by th€ uss of this rsport. Only lhs Cli€nt ¡s aulhoriz€d to pslmlt c.oPy¡ng or d¡stribulion of thls rspol Ênd thsn only in its entirsty. Any uss of th€ lnt€rt€k nams or ons of its marks for tho salo or adv€rtis€m€nt of thg tested m8terial, product or seMcÆ must frsl b€ approved in writ¡ng by lntertsk Thê obs€rvat¡ons and test rgsults in this r€porl ars relevant only to ths sample tostgd Thls rgporl by ¡tself doos not imply th8t th€ matsrial, product, or servlcs is or has Bver b6sn und€r an lnt€rtek c€rl¡t¡cation program Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Poak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Webs¡to: www.hk.int€rtek-etlsemko.com Approved by: Supervisor Date: July 29,2014 Hung, Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14070167HKG-005 i FCC ID: PQN7260113M56 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (852) 23013822 Fax: (852) 23011820 e-mail: [email protected] Manufacturer: Pacific Industries (Zhong Shan) Ltd. Manufacturer Address: Xincun Factory Area,Baishawan Industrial Park,Eastern District, Zhong Shan,Guangdong,China Brand Name: Spin Master Toys Model: 72601 Additional Model: 1033217, 1032294 Phantom No.: 20066840/20068303/20067002/20067391 Type of EUT: Transmitter Description of EUT: GAB Pop Star Gabby TRUX (Date Code: 40603APA) Serial Number: N/A FCC ID: PQN7260113M56 Date of Sample Submitted: July 04, 2014 Date of Test: July 04, 2014 to July 20, 2014 Report No.: 14070167HKG-005 Report Date: July 29, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14070167HKG-005 ii FCC ID: PQN7260113M56 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength Frequency Stability 15.225 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14070167HKG-005 iii FCC ID: PQN7260113M56 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 2.5 Support Equipment L…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14070167HKG-005 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 72601 FCC ID: PQN7260113M56 IC: 4438B-72601 INTERTEK TESTING SERVICE Report No: 14070167HKG-005 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 72601 FCC ID: PQN7260113M56 IC: 4438B-72601
