PQN92300RX2G4DCR VHC LnchNDfndBatmobleTech Vehicle

e DRIFT ADJUSTER f RÉGLAGE DE LA DÉRIVE E AJUSTADOR DE GIRO d DRIFT-REGLER n STUURSTABILISATOR i REGOLAZIONE DERAPATA p AJUSTADOR DE DRIFT r РЕГУЛЯТОР ЗАНОСА P REGULATOR ODCHYLENIA c SEŘÍZENÍ PROTI STÁČENÍ s REGULÁTOR SMEROVANIA h KISODRÓDÁS-BEÁLLÍTÓ R REGLAJ DERAPARE g ΡΥΘΜΙΣΗ ΣΤΡΟΦΗΣ C REGULACIJA DRIFTANJA B РЕГУЛАТОР ЗА ПРИПЛЪЗВАНЕ l REGULATOR PROTI ZANAŠANJU t YANLAMA AYARI e POWER SWITCH f INTERRUPTEUR D'ALIMENTATION E INTERRUPTOR DE ENCENDIDO d EIN/AUS-SCHALTER n STROOMSCHAKELAAR i INTERRUTTORE DI ALIMENTAZIONE p CHAVE LIGA/DESLIGA r ПЕРЕКЛЮЧАТЕЛЬ ПИТАНИЯ P WŁĄCZNIK ZASILANIA c VYPÍNAČ s VYPÍNAČ h BEKAPCSOLÓGOMB R COMUTATOR DE ALIMENTARE g ΔΙΑΚΟΠΤΗΣ ΛΕΙΤΟΥΡΓΙΑΣ C PREKIDAČ ZA NAPAJANJE B ПРЕВКЛЮЧВАТЕЛ НА ЗАХРАНВАНЕТО l STIKALO ZA VKLOP/IZKLOP t GÜÇ ANAHTARI e CHARGING CABLE STORAGE f RANGEMENT DU CÂBLE DE CHARGE E ALMACENAMIENTO DEL CABLE DE CARGA d LADEKABEL-HALTERUNG n OPBERGVAK VOOR OPLAADKABEL i SCOMPARTO PER IL CAVO DI RICARICA p ARMAZENAMENTO DO CABO DE CARREGAMENTO r ОТСЕК ДЛЯ ХРАНЕНИЯ КАБЕЛЯ ДЛЯ ЗАРЯДКИ P PRZECHOWYWANIE PRZEWODU ŁADOWANIA c PROSTOR PRO NABÍJECÍ KABEL s PRIESTOR NA ULOŽENIE NABÍJACIEHO KÁBLA h TÖLTŐKÁBEL REKESZE R DEPOZITARE CABLU DE ÎNCĂRCARE g ΑΠΟΘΗΚΕΥΣΗ ΚΑΛΩΔΙΟΥ ΦΟΡΤΙΣΗΣ C ODJELJAK ZA KABEL ZA PUNJENJE B СЪХРАНЕНИЕ НА ЗАХРАНВАЩИЯ КАБЕЛ l PREDALČEK ZA NAPAJALNI KABEL t ŞARJ KABLOSU BÖLMESİ INDOOR USE ONLY / UTILISATION EN INTÉRIEUR UNIQUEMENT / PARA USO EXCLUSIVO EN INTERIORES / NUR ZUR VERWENDUNG IN INNENRÄUMEN UITSLUITEND VOOR GEBRUIK BINNENSHUIS / ADATTO SOLAMENTE PER GIOCARE ALL'INTERNO / USE SOMENTE EM AMBIENTES FECHADOS ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В ПОМЕЩЕНИИ / TYLKO DO UŻYTKU W POMIESZCZENIACH / POUŽÍVEJTE POUZE DOMA / NA POUŽITIE IBA V INTERIÉRI KIZÁRÓLAG BELTÉRI HASZNÁLATRA / UTILIZARE EXCLUSIVĂ ÎN INTERIOR / ΑΠΟΚΛΕΙΣΤΙΚΑ ΓΙΑ ΧΡΗΣΗ ΣΕ ΕΣΩΤΕΡΙΚΟ ΧΩΡΟ / SAMO ZA UPOTREBU U ZATVORENOM PROSTORU САМО ЗА УПОТРЕБА В ЗАТВОРЕНИ ПОМЕЩЕНИЯ / SAMO ZA UPORABO V ZAPRTIH PROSTORIH / YALNIZCA İÇ MEKANDA KULLANIMA UYGUNDUR spinmaster.com/batmanrc For in-depth video instructions go to / Pour obtenir des instructions vidéo, se rendre sur Para ver instrucciones exhaustivas en vídeo, visita / Detaillierte Videoanleitungen gibt es auf Ga voor uitgebreide video-instructies naar / Per istruzioni video dettagliate, visitare Para instruções em vídeo mais detalhadas, acesse / Детальные видеоинструкции представлены на сайте Szczegółowe instrukcje wideo można znaleźć na stronie / Podrobné videopokyny najdete na webu Video s podrobnými pokynmi nájdete na adrese / A részletes útmutató videók itt tekinthetők meg Pentru instrucţiuni video detaliate, accesaţi / Για πιο λεπτομερείς οδηγίες σε βίντεο, μεταβείτε στη διεύθυνση Videozapis s detaljnim uputama potražite na / За по-подробни видео инструкции отидете на Za poglobljena videonavodila obiščite / Ayrıntılı videolu talimatlar için BATMAN and all related characters and elements © & ™ DC Comics. WB SHIELD: © & ™ WBEI. (s20) BATMAN et tous les personnages et éléments associés © et ™ DC Comics. WB SHIELD : © et ™ WBEI. (s20) Not included • Non fournies • No incluidas • nicht enthalten Niet inbegrepen • Non incluse • Não inclusas • Не входят в комплект Niedołączone • Nejsou součástí balení • Nie je súčasť balenia Nem tartozék • Neincluse • Δεν περιλαμβάνονται Ne isporučuju se u paketu • Не са включени • Ni priloženo • Ayrı satılır 1.5 V 1,5 V 2 x AAA ( LR03 ) a WARNING: CHOKING HAZARD – Small parts. Not suitable for children under three years. a ATTENTION ! DANGER D'ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de trois ans. a ADVERTENCIA: PELIGRO DE ASFIXIA – Contiene piezas pequeñas. No conviene para niños menores de tres años. a ACHTUNG: ERSTICKUNGSGEFAHR – Kleinteile. Nicht für Kinder unter drei Jahren geeignet. a WAARSCHUWING: VERSTIKKINGSGEVAAR – Kleine onderdelen. Niet geschikt voor kinderen jonger dan drie jaar. a AVVERTENZA: RISCHIO DI SOFFOCAMENTO – Pezzi piccoli. Non adatto a bambini di età inferiore a tre anni. a ATENÇÃO: PERIGO DE ASFIXIA – Peças pequenas. Contra-indicado para crianças com menos de 3 anos. a ПРЕДУПРЕЖДЕНИЕ! ОПАСНОСТЬ УДУШЬЯ – Мелкие детали. Не подходит для детей в возрасте до 3 лет. a OSTRZEŻENIE: NIEBEZPIECZEŃSTWO ZADŁAWIENIA – Drobne elementy. Nie nadaje się dla dzieci w wieku poniżej 3 lat. a UPOZORNĚNÍ: NEBEZPEČÍ UDUŠENÍ – Obsahuje malé části. Nevhodné pro děti do tří let. a UPOZORNENIE: NEBEZPEČENSTVO UDUSENIA – Obsahuje malé predmety. Nevhodné pre deti do troch rokov. a FIGYELMEZTETÉS: FULLADÁSVESZÉLY – Apró alkatrészek. Csak három évnél idősebb gyermekek számára alkalmas. a AVERTISMENT: PERICOL DE ASFIXIERE – Piese mici. Contraindicat copiilor mai mici de trei ani. a ΠΡΟΕΙΔΟΠΟΙΗΣΗ: ΚΙΝΔΥΝΟΣ ΠΝΙΓΜΟΥ – Μικρά μέρη. Δεν είναι κατάλληλο για παιδιά κάτω των τριών ετών. a UPOZORENJE: OPASNOST OD GUŠENJA – Mali dijelovi. Igračka nije prikladna za djecu mlađu od tri godine. a ВНИМАНИЕ: ОПАСНОСТ ОТ ЗАДАВЯНЕ – Малки части. Неподходящо за деца под тригодишна възраст. a OPOZORILO: NEVARNOST ZADUŠITVE – Majhni deli. Ni primerno za otroke, mlajše od treh let. a UYARI: BOĞULMA TEHLİKESİ – Küçük parçalar. Üç yaşından küçük çocuklar için uygun değildir. e Retain this information, addresses and phone numbers for future reference. f Conserver les informations, adresses et numéros de téléphone pour consultation ultérieure. E Conserve toda la información, las direcciones y los números de teléfono para futuras referencias. d Alle Informationen, Adressen und Telefonnummern bitte für mögliche Rückfragen aufbewahren. n Bewaar deze informatie, adressen en telefoonnummers voor toekomstig gebruik. i Conservare informazioni, indirizzi e numeri di telefono per riferimento futuro. p Guarde todos os endereços, números de telefone e demais informações para consulta e referência. r Запишите указанные на упаковке адреса и номера телефонов, чтобы у вас была возможность связаться с нами. Рекомендуется присмотр взрослых. Изготовитель: Спин Мастер Лтд., 225 Кинг Стрит Вест, Торонто, OН М5В 3М2 Канада )180062…

Text truncated - open the document above for the full version.

92300RX PCBA block diagram USB charging circuit Power supply 3.2V 500mAh RX PCBA 2.4G/MCU HF2416 Crystal 16M12pF Antenna33mm length Motor driver Switch

Dec 2013 Letter of Agency "I, an officer of       do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 17th day April of 2020 By Signature Andy Wong Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

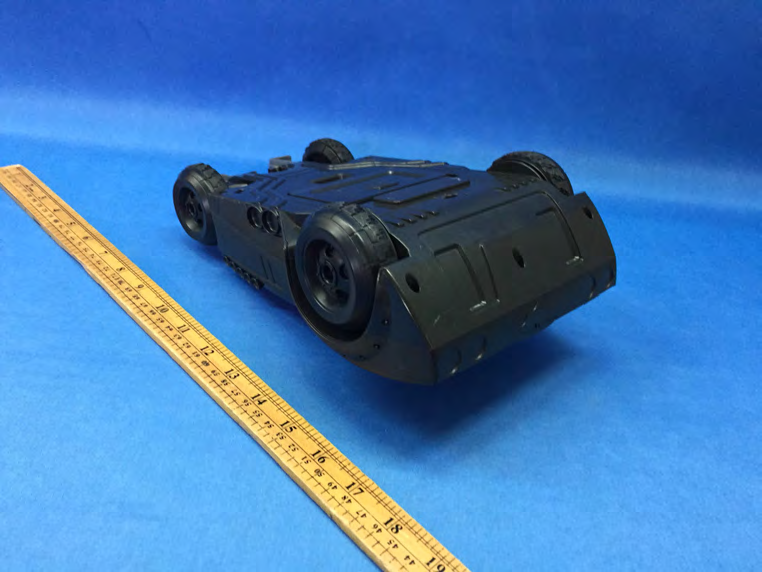

INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs ( External) INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs ( External)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)this device must accept any interference received,including interference that may cause undesired operation. ©SPIN MASTER LTD. ALL RIGHTS RESERVED MADE IN CHINA TM&© DC Comics.(s20) 92300 o FCC ID:PQN92300RX2G4 IC:4438B-92300RX SPIN MASTER LTD. MODEL:92300RX CAN ICES-3(B)/NMB-3(B)

INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs ( Internal) INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs ( Internal) INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Equipment Photographs ( Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Car Unit) for a RC car. The sample supplied operated on 22 channels, normally at 2420 - 2465MHz. The channel table is shown below. 2420 2422 2424 2426 2428 2430 2432 2435 2437 2439 2441 2443 2445 2447 2449 2451 2453 2455 2457 2459 2461 2465 Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 98.2dBμV/m at 3m (Peak), 71.8dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U4 (HF2416) acts as 2.4G RF Module 2. U1 (AM1127S) acts as Motor Driver 3. U2 (BX4114) acts as a USB Charging Circuit 4. Y1 acts as 16MHz Oscillator 5. C11, C13, C15, L2 and L3 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Car Unit) for a RC car. The sample supplied operated on 22 channels, normally at 2420 - 2465MHz. The channel table is shown below. 2420 2422 2424 2426 2428 2430 2432 2435 2437 2439 2441 2443 2445 2447 2449 2451 2453 2455 2457 2459 2461 2465 The EUT is powered by 1 x 3.2V rechargeable battery. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 98.2dBμV/m at 3m (Peak), 71.8dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 74.8dBμV/m at 3m in frequency 2.465GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Sheet ofSize Date: Date: Drawing By: Checked By: Title: Eealy light industrial Co.Ltd Model NO. A4 Defend Batmobile RC RX 92300 Rev:02 3 XiaohongTang2020/03/05 IN_F 1 IN_B 2 IN_R 3 IN_L 4 NC 5 LDO_OUT 6 OUT_R 7 GND_RL 8 OUT_L 9 GND 10 SEL 11 DVCC 12 PVCC 13 OUT_B 14 GND_FB 15 OUT_F 16 U1 AM1127S E1 ANT1 L3 2.2nH 3.3PF C11 VCC 0.1uF C16 F B R L 22uF/16V C8 VBAT 220uF/16V C7 0.1uF C4 L1 Flexional Wire VBAT Q1 8050D Q2 8050D 470R R7 470R R8 flexional 0.1R R3 22uF/16V C6 flexional L Ball Switch F B R Curren_Motor_M VCC 0.1uF C2 1K R1 Curren_Motor_M EN 1 PROG 2 GND 3 VCC 4 BAT 5 FB 6 DONE 7 CHRG 8 G N D 9 U2 BX4114 BT1 3.2V/500MA M M1 F/B Motor LED1 F1 1.5A 0.82R/0.5W R4 1.5K R5 470R R6 10uF/16V C54.7uF C3 ON OFF/CHARGER 1 2 P1 USB Cable 12 S1 Ball Switch 12 S2 Ball Switch 0.1uF C17 Ball Switch 1uF C1 VBAT 0.1uF C22 0.1uF C23 0.1uF C9 M M2 Steering Motor 0.1uF C20 0.1uF C21 1 2 Y116M 10ppm 12pF 22PF C10 22PF C12 0.5PF C15 L2 5.6nH 0.5PF C13 VCC 0.1uF C14 2 3 1 SW1 SW 1P2T 300K R14 300K R13 1K R10 10K R12 100K R9 Q4 3904 0.1uF C19 GND 1 ANT 2 RC0/MCLR 3 RC1/PWM2 4 RC2/PWM1 5 RB1/AN10/INT0 6 RB2/AN8 7 RB3/AN9 8 RB4/AN11 9 RB5/AN13 10 VDD1 11 RB6/ICSPCLK 12 RB7/ICSPDAT 13 VDD2 14 XC1 15 XC2 16 U4 HF2416 RB4 RB4 Q3 8550D VBAT 1K R11 4.7uF C18 RB6 RB6 DVCC 1 0R/0805 J1 DVCC 0R/1206 R15 PIBT101 PIBT102 COBT1 PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301 PIC302 COC3 PIC401 PIC402 COC4 PIC501 PIC502 COC5 PIC601 PIC602 COC6 PIC701 PIC702 COC7 PIC801 PIC802 COC8 PIC901 PIC902 COC9 PIC1001 PIC1002 COC10 PIC1101 PIC1102 COC11 PIC1201 PIC1202 COC12 PIC1301 PIC1302 COC13 PIC1401 PIC1402 COC14 PIC1501 PIC1502 COC15 PIC1601 PIC1602 COC16 PIC1701 PIC1702 COC17 PIC1801 PIC1802 COC18 PIC1901 PIC1902 COC19 PIC2001 PIC2002 COC20 PIC2101 PIC2102 COC21 PIC2201 PIC2202 COC22 PIC2301 PIC2302 COC23 PIE101 COE1 PIF101 PIF102 COF1 PIJ101 PIJ102 COJ1 PIL101 PIL102 COL1 PIL201 PIL202 COL2 PIL301 PIL302 COL3 PILED101 PILED102 COLED1 PIM101 PIM102 COM1 PIM201 PIM202 COM2 PIP101 PIP102 COP1 PIQ101 PIQ102 PIQ103 COQ1 PIQ201 PIQ202 PIQ203 COQ2 PIQ301 PIQ302 PIQ303 COQ3 PIQ401 PIQ402 PIQ403 COQ4 PIR101 PIR102 COR1 PIR301 PIR302 COR3 PIR401 PIR402 COR4 PIR501 PIR502 COR5 PIR601 PIR602 COR6 PIR701 PIR702 COR7 PIR801 PIR802 COR8 PIR901 PIR902 COR9 PIR1001 PIR1002 COR10 PIR1101 PIR1102 COR11 PIR1201 PIR1202 COR12 PIR1301 PIR1302 COR13 PIR1401 PIR1402 COR14 PIR1501 PIR1502 COR15 PIS101 PIS102 COS1 PIS201 PIS202 COS2 PISW101 PISW102 PISW103 COSW1 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 PIU107 PIU108 PIU109 PIU1010 PIU1011 PIU1012 PIU1013 PIU1014 PIU1015 PIU1016 COU1 PIU201 PIU202 PIU203 PIU204 PIU205 PIU206 PIU207 PIU208 PIU209 COU2 PIU401 PIU402 PIU403 PIU404 PIU405 PIU406 PIU407 PIU408 PIU409 PIU4010 PIU4011 PIU4012 PIU4013 PIU4014 PIU4015 PIU4016 COU4 PIY101 PIY102 COY1 PIU102 PIU407 NLB PIC1702 PIS102 PIS202 PIU4013 NLBall Switch PIC202 PIR102 PIU4010 NLCurren0Motor0M PIC701 PIQ301 PIU1012 PIU101 NLF PIR702 PIR802 PIU404 NLflexional PIBT102 PIC101 PIC201 PIC301 PIC501 PIC601 PIC702 PIC801 PIC1001 PIC1201 PIC1301 PIC1401 PIC1501 PIC1601 PIC1701 PIC1801 PIC1901 PIF101 PIJ101 PIJ102 PIQ203 PIQ403 PIR302 PIR502 PIR1202 PIR1402 PIR1501 PIR1502 PIS101 PIS201 PIU108 PIU1010 PIU203 PIU209 PIU401 PIU403 PIU104 NLL PIBT101 PISW102 PIC302 PISW101 PIU205 PIU206 PIC401 PIC2301 PIM102 PIU1014 PIC402 PIC2202 PIM101 PIU1016 PIC502 PIR401 PIR602 PIU201 PIU204 PIC901 PIC2101 PIM202 PIU107 PIC902 PIC2002 PIM201 PIU109 PIC1002 PIU4016 PIY102 PIC1101 PIU402 PIC1102 PIL202 PIL302 PIC1202 PIU4015 PIY101 PIC1302 PIE101 PIL201 PIC1502 PIL301 PIC1802 PIQ401 PIR1002 PIC2001 PIC2102 PIC2201 PIC2302 PIF102 PIP102 PIL101 PIQ101 PILED101 PIR601 PILED102 PIU208 PIP101 PIR402 PIQ102 PIR701 PIQ103 PIQ201 PIQ202 PIR801 PIQ302 PIR901 PIR1001 PIQ402 PIR1102 PIR1201 PIR101 PIR301 PIU1015 PIR501 PIU202 PIR1101 PIU105 PIU1011 PIU207 PIU405 PIU408 PIU103 PIU406 NLR PIC1902 PIR1302 PIR1401 PIU409 NLRB4 PIU4012 NLRB6 PIC102 PIC602 PIL102 PIQ303 PIR902 PIR1301 PISW103 PIU1013 PIC802 PIC1402 PIC1602 PIU106 PIU4011 PIU4014

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 17 TEST REPORT Report No.: 20030359HKG-003 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) FCC ID: PQN92300RX2G4 Transceiver Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: April 20, 2020 TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20030359HKG-003 Page 2 of 17 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (852) 2301 3822 Fax: (852) 2301 1822 e-mail: [email protected] Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Room 1113, 11/F, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: DCR VHC LnchNDfndBatmobleTech Vehicle Model: 92300RX PMN: 92300RX Phantom No.: 20128677/20128679 Type of EUT: Transceiver Description of EUT: DCR VHC LnchNDfndBatmobleTech Vehicle Serial Number: N/A FCC ID: PQN92300RX2G4 Date of Sample Submitted: March 09, 2020 Date of Test: March 09, 2020 to March 24, 2020 Report No.: 20030359HKG-003 Report Date: April 20, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20030359HKG-003 Page 3 of 17 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20030359HKG-003 Page 4 of 17 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 12 5.0 PRODUCT LABELLING .................................................................................................. 12 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 12 7.0 INSTRUCTION …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Configuration Photographs W orst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: PQN92300RX2G4 IC: 4438B-92300RX Configuration Photographs Worst-Case Radiated Emissions ( Back View)
