PQN92300TX2G4DCR VHC LnchNDfndBatmobleTech Control

e DRIFT ADJUSTER f RÉGLAGE DE LA DÉRIVE E AJUSTADOR DE GIRO d DRIFT-REGLER n STUURSTABILISATOR i REGOLAZIONE DERAPATA p AJUSTADOR DE DRIFT r РЕГУЛЯТОР ЗАНОСА P REGULATOR ODCHYLENIA c SEŘÍZENÍ PROTI STÁČENÍ s REGULÁTOR SMEROVANIA h KISODRÓDÁS-BEÁLLÍTÓ R REGLAJ DERAPARE g ΡΥΘΜΙΣΗ ΣΤΡΟΦΗΣ C REGULACIJA DRIFTANJA B РЕГУЛАТОР ЗА ПРИПЛЪЗВАНЕ l REGULATOR PROTI ZANAŠANJU t YANLAMA AYARI e POWER SWITCH f INTERRUPTEUR D'ALIMENTATION E INTERRUPTOR DE ENCENDIDO d EIN/AUS-SCHALTER n STROOMSCHAKELAAR i INTERRUTTORE DI ALIMENTAZIONE p CHAVE LIGA/DESLIGA r ПЕРЕКЛЮЧАТЕЛЬ ПИТАНИЯ P WŁĄCZNIK ZASILANIA c VYPÍNAČ s VYPÍNAČ h BEKAPCSOLÓGOMB R COMUTATOR DE ALIMENTARE g ΔΙΑΚΟΠΤΗΣ ΛΕΙΤΟΥΡΓΙΑΣ C PREKIDAČ ZA NAPAJANJE B ПРЕВКЛЮЧВАТЕЛ НА ЗАХРАНВАНЕТО l STIKALO ZA VKLOP/IZKLOP t GÜÇ ANAHTARI e CHARGING CABLE STORAGE f RANGEMENT DU CÂBLE DE CHARGE E ALMACENAMIENTO DEL CABLE DE CARGA d LADEKABEL-HALTERUNG n OPBERGVAK VOOR OPLAADKABEL i SCOMPARTO PER IL CAVO DI RICARICA p ARMAZENAMENTO DO CABO DE CARREGAMENTO r ОТСЕК ДЛЯ ХРАНЕНИЯ КАБЕЛЯ ДЛЯ ЗАРЯДКИ P PRZECHOWYWANIE PRZEWODU ŁADOWANIA c PROSTOR PRO NABÍJECÍ KABEL s PRIESTOR NA ULOŽENIE NABÍJACIEHO KÁBLA h TÖLTŐKÁBEL REKESZE R DEPOZITARE CABLU DE ÎNCĂRCARE g ΑΠΟΘΗΚΕΥΣΗ ΚΑΛΩΔΙΟΥ ΦΟΡΤΙΣΗΣ C ODJELJAK ZA KABEL ZA PUNJENJE B СЪХРАНЕНИЕ НА ЗАХРАНВАЩИЯ КАБЕЛ l PREDALČEK ZA NAPAJALNI KABEL t ŞARJ KABLOSU BÖLMESİ INDOOR USE ONLY / UTILISATION EN INTÉRIEUR UNIQUEMENT / PARA USO EXCLUSIVO EN INTERIORES / NUR ZUR VERWENDUNG IN INNENRÄUMEN UITSLUITEND VOOR GEBRUIK BINNENSHUIS / ADATTO SOLAMENTE PER GIOCARE ALL'INTERNO / USE SOMENTE EM AMBIENTES FECHADOS ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В ПОМЕЩЕНИИ / TYLKO DO UŻYTKU W POMIESZCZENIACH / POUŽÍVEJTE POUZE DOMA / NA POUŽITIE IBA V INTERIÉRI KIZÁRÓLAG BELTÉRI HASZNÁLATRA / UTILIZARE EXCLUSIVĂ ÎN INTERIOR / ΑΠΟΚΛΕΙΣΤΙΚΑ ΓΙΑ ΧΡΗΣΗ ΣΕ ΕΣΩΤΕΡΙΚΟ ΧΩΡΟ / SAMO ZA UPOTREBU U ZATVORENOM PROSTORU САМО ЗА УПОТРЕБА В ЗАТВОРЕНИ ПОМЕЩЕНИЯ / SAMO ZA UPORABO V ZAPRTIH PROSTORIH / YALNIZCA İÇ MEKANDA KULLANIMA UYGUNDUR spinmaster.com/batmanrc For in-depth video instructions go to / Pour obtenir des instructions vidéo, se rendre sur Para ver instrucciones exhaustivas en vídeo, visita / Detaillierte Videoanleitungen gibt es auf Ga voor uitgebreide video-instructies naar / Per istruzioni video dettagliate, visitare Para instruções em vídeo mais detalhadas, acesse / Детальные видеоинструкции представлены на сайте Szczegółowe instrukcje wideo można znaleźć na stronie / Podrobné videopokyny najdete na webu Video s podrobnými pokynmi nájdete na adrese / A részletes útmutató videók itt tekinthetők meg Pentru instrucţiuni video detaliate, accesaţi / Για πιο λεπτομερείς οδηγίες σε βίντεο, μεταβείτε στη διεύθυνση Videozapis s detaljnim uputama potražite na / За по-подробни видео инструкции отидете на Za poglobljena videonavodila obiščite / Ayrıntılı videolu talimatlar için BATMAN and all related characters and elements © & ™ DC Comics. WB SHIELD: © & ™ WBEI. (s20) BATMAN et tous les personnages et éléments associés © et ™ DC Comics. WB SHIELD : © et ™ WBEI. (s20) Not included • Non fournies • No incluidas • nicht enthalten Niet inbegrepen • Non incluse • Não inclusas • Не входят в комплект Niedołączone • Nejsou součástí balení • Nie je súčasť balenia Nem tartozék • Neincluse • Δεν περιλαμβάνονται Ne isporučuju se u paketu • Не са включени • Ni priloženo • Ayrı satılır 1.5 V 1,5 V 2 x AAA ( LR03 ) a WARNING: CHOKING HAZARD – Small parts. Not suitable for children under three years. a ATTENTION ! DANGER D'ÉTOUFFEMENT – Contient de petits éléments. Ne convient pas aux enfants de moins de trois ans. a ADVERTENCIA: PELIGRO DE ASFIXIA – Contiene piezas pequeñas. No conviene para niños menores de tres años. a ACHTUNG: ERSTICKUNGSGEFAHR – Kleinteile. Nicht für Kinder unter drei Jahren geeignet. a WAARSCHUWING: VERSTIKKINGSGEVAAR – Kleine onderdelen. Niet geschikt voor kinderen jonger dan drie jaar. a AVVERTENZA: RISCHIO DI SOFFOCAMENTO – Pezzi piccoli. Non adatto a bambini di età inferiore a tre anni. a ATENÇÃO: PERIGO DE ASFIXIA – Peças pequenas. Contra-indicado para crianças com menos de 3 anos. a ПРЕДУПРЕЖДЕНИЕ! ОПАСНОСТЬ УДУШЬЯ – Мелкие детали. Не подходит для детей в возрасте до 3 лет. a OSTRZEŻENIE: NIEBEZPIECZEŃSTWO ZADŁAWIENIA – Drobne elementy. Nie nadaje się dla dzieci w wieku poniżej 3 lat. a UPOZORNĚNÍ: NEBEZPEČÍ UDUŠENÍ – Obsahuje malé části. Nevhodné pro děti do tří let. a UPOZORNENIE: NEBEZPEČENSTVO UDUSENIA – Obsahuje malé predmety. Nevhodné pre deti do troch rokov. a FIGYELMEZTETÉS: FULLADÁSVESZÉLY – Apró alkatrészek. Csak három évnél idősebb gyermekek számára alkalmas. a AVERTISMENT: PERICOL DE ASFIXIERE – Piese mici. Contraindicat copiilor mai mici de trei ani. a ΠΡΟΕΙΔΟΠΟΙΗΣΗ: ΚΙΝΔΥΝΟΣ ΠΝΙΓΜΟΥ – Μικρά μέρη. Δεν είναι κατάλληλο για παιδιά κάτω των τριών ετών. a UPOZORENJE: OPASNOST OD GUŠENJA – Mali dijelovi. Igračka nije prikladna za djecu mlađu od tri godine. a ВНИМАНИЕ: ОПАСНОСТ ОТ ЗАДАВЯНЕ – Малки части. Неподходящо за деца под тригодишна възраст. a OPOZORILO: NEVARNOST ZADUŠITVE – Majhni deli. Ni primerno za otroke, mlajše od treh let. a UYARI: BOĞULMA TEHLİKESİ – Küçük parçalar. Üç yaşından küçük çocuklar için uygun değildir. e Retain this information, addresses and phone numbers for future reference. f Conserver les informations, adresses et numéros de téléphone pour consultation ultérieure. E Conserve toda la información, las direcciones y los números de teléfono para futuras referencias. d Alle Informationen, Adressen und Telefonnummern bitte für mögliche Rückfragen aufbewahren. n Bewaar deze informatie, adressen en telefoonnummers voor toekomstig gebruik. i Conservare informazioni, indirizzi e numeri di telefono per riferimento futuro. p Guarde todos os endereços, números de telefone e demais informações para consulta e referência. r Запишите указанные на упаковке адреса и номера телефонов, чтобы у вас была возможность связаться с нами. Рекомендуется присмотр взрослых. Изготовитель: Спин Мастер Лтд., 225 Кинг Стрит Вест, Торонто, OН М5В 3М2 Канада )180062…

Text truncated - open the document above for the full version.

92300TX PCBA block diagram Power supply two cell 3V TX PCBA 2.4G/MCU HF2410 Crystal 16M 12pF Antenna 33mm length Button(left/right/forward /backward/flexional)

Dec 2013 Letter of Agency "I, an officer of       do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 17th day April of 2020 By Signature Andy Wong Printed Name Senior Quality Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

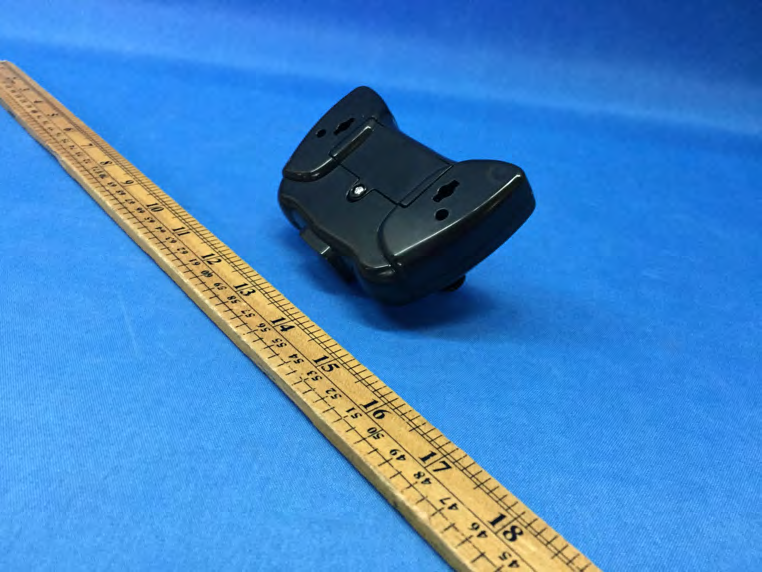

INTERTEK TESTING SERVICE FCC ID: PQN92300TX2G4 IC: 4438B-92300TX Equipment Photographs ( External) INTERTEK TESTING SERVICE FCC ID: PQN92300TX2G4 IC: 4438B-92300TX Equipment Photographs ( External)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)this device must accept any interference received,including interference that may cause undesired operation. ©SPIN MASTER LTD ALL RIGHTS RESERVED MADE IN CHINA FCC ID:PQN92300TX2G4 IC:4438B-92300TX CAN ICES-3(B)/NMB-3(B) MODEL: 92300TX Spin Master Ltd.225 King Street West,Toronto ON M5V 3M2 CanadaSpin Mster International B.V.Kingsfordweg 151.1043 GR Amsterdam.The Netherlands AAA / LR03 1.5V AAA / LR03 1.5V

INTERTEK TESTING SERVICE FCC ID: PQN92300TX2G4 IC: 4438B-92300TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: PQN92300TX2G4 IC: 4438B-92300TX Equipment Photographs ( Internal) INTERTEK TESTING SERVICE FCC ID: PQN92300TX2G4 IC: 4438B-92300TX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Controller Unit) for a RC car. The sample supplied operated on 22 channels, normally at 2420 - 2465MHz. The channel table is shown below. 2420 2422 2424 2426 2428 2430 2432 2435 2437 2439 2441 2443 2445 2447 2449 2451 2453 2455 2457 2459 2461 2465 Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 100.3dBμV/m at 3m (Peak), 78.4dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (HF2410) acts as MCU 2 . Y1 acts as 16MHz Crystal Oscillator 3 . C1, C3, C4, L1 and L2 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 22 channels, normally at 2420 - 2465MHz. The channel table is shown below. 2420 2422 2424 2426 2428 2430 2432 2435 2437 2439 2441 2443 2445 2447 2449 2451 2453 2455 2457 2459 2461 2465 The EUT is powered by 2 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 100.3dBμV/m at 3m (Peak), 78.4dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 81.4dBμV/m at 3m in frequency 2.465GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Sheet ofSize Date: Date: Drawing By: Checked By: Title: Eealy light industrial Co.Ltd Model NO. A42 Defend Batmobile RC TX 92300 Rev:02 3 XiaohongTang2020/03/05 E1 ANT1 F1 1A S5 flexiona S1 F S2 B S3 R S4 L 0.1uF C6 GND F B R L flexiona VCC 4.7uF C7 BR L L1 5.6nH F flexiona 0.5PF C1 1.8pF C3 BT1 3V GND 1 ANT 2 RB7/ICSPDAT 3 RB6/ICSPCLK 4 MCLR/RC0 5 RB4 6 RB5 7 VDD 8 XC1 9 XC2 10 U1HF2410 L2 2.2nH 0.5pF C4 VCC 100k R1 1 2 Y116M 10ppm 12pF 22PF C2 22PF C5 0R/1206 R6 0R/1206 R7 PIBT101 PIBT102 COBT1 PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301 PIC302 COC3 PIC401 PIC402 COC4 PIC501 PIC502 COC5 PIC601 PIC602 COC6 PIC701 PIC702 COC7 PIE101 COE1 PIF101 PIF102 COF1 PIL101 PIL102 COL1 PIL201 PIL202 COL2 PIR101 PIR102 COR1 PIR601 PIR602 COR6 PIR701 PIR702 COR7 PIS101 PIS102 COS1 PIS201 PIS202 COS2 PIS301 PIS302 COS3 PIS401 PIS402 COS4 PIS501 PIS502 COS5 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 PIU107 PIU108 PIU109 PIU1010 COU1 PIY101 PIY102 COY1 PIS202 PIU104 NLB PIS102 PIU103 NLF PIR101 PIS502 PIU105 NLflexiona PIBT102 PIC102 PIC201 PIC402 PIC501 PIC601 PIC702 PIR601 PIR602 PIR701 PIR702 PIS101 PIS201 PIS301 PIS401 PIS501 PIU101 PIS402 PIU106 NLL PIBT101 PIF101 PIC101 PIE101 PIL102 PIC202 PIU1010 PIY102 PIC301 PIU102 PIC302 PIL101 PIL202 PIC401 PIL201 PIC502 PIU109 PIY101 PIS302 PIU107 NLR PIC602 PIC701 PIF102 PIR102 PIU108

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 17 TEST REPORT Report No.: 20030359HKG-001 Spin Master Toys Far East Ltd. Application For Certification (Original Grant) FCC ID: PQN92300TX2G4 Transceiver Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: April 20, 2020 TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20030359HKG-001 Page 2 of 17 GENERAL INFORMATION Grantee: Spin Master Toys Far East Ltd. Grantee Address: Room 1113, 11/F., Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Andy Wong Tel: (852) 2301 3822 Fax: (852) 2301 1822 e-mail: [email protected] Manufacturer: Spin Master Toys Far East Ltd. Manufacturer Address: Room 1113, 11/F, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: DCR VHC LnchNDfndBatmobleTech Control Model: 92300TX Phantom No.: 20128677/20128679 Type of EUT: Transceiver Description of EUT: DCR VHC LnchNDfndBatmobleTech Control Serial Number: N/A FCC ID: PQN92300TX2G4 Date of Sample Submitted: March 09, 2020 Date of Test: March 09, 2020 to March 24, 2020 Report No.: 20030359HKG-001 Report Date: April 20, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20030359HKG-001 Page 3 of 17 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Spin Master Toys Far East Ltd. Intertek Report No: 20030359HKG-001 Page 4 of 17 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 12 5.0 PRODUCT LABELLING .................................................................................................. 12 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 12 7.0 INSTRUCTION MANUAL ......…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: PQN92300TX2G4 IC: 4438B-92300TX Configuration Photographs W orst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: PQN92300TX2G4 IC: 4438B-92300TX Configuration Photographs Worst-Case Radiated Emissions ( Back View)
