PQS-BM2800DBOOMER II DATA TAC WIRELESS OEM MODEM MODULE

User Manual and Integrator’s Guide Boomer II OEM Modem Modules: BM2-800D BM2-900D Revision 3.7 November 2003 © Wavenet Technology Pty Ltd ACN 079 965 003 Publication No. BM210012WT37 Published November 2003 This publication is copyright and no part may be reproduced or copied without the prior consent of: Wavenet Technology Pty Ltd. 140 Burswood Rd Burswood, 6100 Western Australia Telephone: +61 8 9262 0200 Facsimile: +61 8 9355 5622 E-mail: [email protected] Web Site: www.wavenet.com.au This manual is intended to be used for the operation of Wavenet Technology equipment. Performance figures quoted are typical values and subject to normal manufacturing and service tolerances. Wavenet Technology Pty Ltd reserves the right to alter, without notice, the equipment, software or specification to meet technological advancement. Microsoft, Windows and the Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Other product and company names herein may be the trademarks of their respective owners. Whilst every precaution has been taken in the preparation of this document, neither Wavenet Technology Pty Ltd nor any of its representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this book. Published by Wavenet Technology Pty Ltd. This product is a modular transmitter approved under FCC Part 2 and Part 90 rules. 800MHz Modem Module - FCC ID: PQS-BM2800D 900MHz Modem Module - FCC ID: PQS-BM2900D This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. This product is approved under Industry Canada (IC) RSS119 rules. 800MHz Modem Module - IC: 4062A-BM28001 900MHz Modem Module - IC: 4062A-BM29001 Canadian Representative for Industry Canada correspondence is Jay Sarkar, 15 Parkside Cresent, Nepean Ontario, Canada K2R 7N3 Telephone: 613-225-2812, Fax: 613-225-6140. Boomer II User Manual & Integrator’s Guide __________________________________________________ Contents BM210012WT37 3 Copyright Wavenet Technology © November 2003 Contents Introduction ......................................................................................................6 Modem Features ..........................................................................................7 Wireless Applications ...................................................................................8 Developer Support .......................................................................................9 Integrator Developers Kit..............................................................................9 Compliance Statement ...............................................................................10 Information for Your Safety.........................................................................11 The Integrator’s Task .....................................................................................13 Plan the Product and Create the Design ....................................................14 Develop and Validate the Hardware ...........................................................17 Develop Supporting Applications Software.................................................18 Test and Approve the Product....................................................................18 Environmental Issues .................................................................................19 Regulatory Requirements...........................................................................21 Installing the Modem......................................................................................27 Mounting the Boomer II OEM Modem to Your Device................................28 Connecting the Data Interface Port ............................................................29 Selecting & Positioning the Antenna ..........................................................38 Supplying Power ........................................................................................44 Using the Modem Test Jig .............................................................................55 Features .....................................................................................................55 Exploring the Boomer II Test Jig ................................................................56 Initial Calibration.........................................................................................59 Fitting the Boomer-II Modem ......................................................................59 Software Development Tools .........................................................................61 Wavenet SDK.............................................................................................61 Wavenet Commander ................................................................................65 Wavenet Application Loader.......................................................................69 Integration Testing .........................................................................................73 Hardware Integration ..................................................................................73 Desense and EMI.......................................................................................74 Regulatory Compliance ..............................................................................75 Application Software...................................................................................76 Final Assembly ...........................................................................................76 End User Problem Resolution ....................................................................76 O…

Text truncated - open the document above for the full version.

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 29 October 2003 Industry Canada Certification and Engineering Bureau 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Subject: Part 90.203(e) Compliance Attestation Applicant: Wavenet Technology Pty Ltd Product: OEM Wireless Radio Modem Module Model: BM2-800D FCC ID: PQS-BM2800D Dear Sir/Madam, This equipment meets the requirements of the FCC Rules, Parts 90.203(e) except as provided in paragraph (g) of the section 203. The operator cannot program and transmit on frequencies other than those programmed by the manufacturer, service or maintenance personnel, using the equipment’s external operational controls. Yours sincerely DAVID SHAWCROSS Technology Manager

August 2002APREL Project No.: WVTB-Boomer II Modem-3922-1 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM28001 Exhibit 10 Attestation Statements FCC Part 15, Subpart B Class B Certificate of Conformity FCC Part 2 & 90 Statement of Compliance August 2002APREL Project No.: WVTB-Boomer II Modem-3922-1 Consulting * Research * Training * Certification Testing Since 1981 Certificate of Compliance FCC ID: PQS-BM26001 PRODUCT: Wireless OEM Modem Module MODEL: Boomer II MANUFACTURER: Wavenet Technology Pty Ltd We certify that the pertinent tests have been performed on the above-described equipment and that this equipment conforms to the applicable requirements of FCC Parts 2, 15 and 90. See Exhibit 2, Engineering Reports Jayanta (Jay) K. Sarkar Technical Director, Standards and Certification APREL Laboratories

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 10 November 2003 Industry Canada Certification and Engineering Bureau 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Subject: Antenna Attestation Applicant: Wavenet Technology Pty Ltd Product: OEM Wireless Radio Modem Module Model: BM2-800D FCC ID: PQS-BM2800D Dear Sir/Madam, This letter is to confirm that where the above equipment is used in Mobile applications, a maximum antenna gain of 5 dBi with minimum separation distance of 20 cm is required for compliance with FCC RF Exposure requirements. An antenna gain of 5 dBi or greater is only applicable to Fixed Base applications. Yours sincerely DAVID SHAWCROSS Technology Manager

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 29 October 2003 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Subject: Request for Confidentiality Applicant: Wavenet Technology Pty Ltd Product: Wireless Radio Modem for iPAQ Model: BM2-800D FCC ID: PQS-BM2800D Dear Sir/Madam, Wavenet Technology Pty Ltd, hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Parts Lists and Operational Description Exhibit submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These documents contain detailed information about the product, which Wavenet Technology Pty Ltd considers to be proprietary, confidential and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Wavenet Technology Pty Ltd considers this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely DAVID SHAWCROSS Technology Manager

Label is placed in recess on rear of modem

Serial #: 000/YY/WWXXXX LLI #: 888888HH Model: BM2-800D IC: 4062A-BM2800D FCC ID: PQS-BM2800D Wavenet Technology Pty Ltd. Made in Malaysia Part #: FFSPPPTTCCRRR

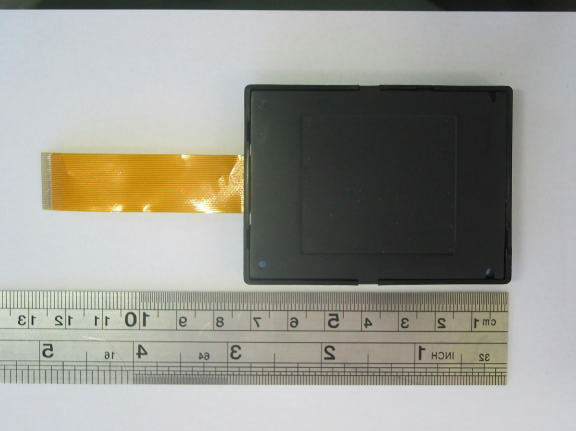

August 2002APREL Project No.: WVTB-Boomer II Modem-3922-1 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM28001 Exhibit 5 Photographs of the Equipment External Photos Internal Photos

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 29 October 03 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Subject: Tuning Information Applicant: Wavenet Technology Pty Ltd Product: Boomer-II OEM modem module Model: BM2-800D FCC ID: PQS-BM2800D Dear Sir/Madam, The Boomer-II OEM modem module is a broadband device across the authorised band with controlled output power that is flat across the same band. As such there is no tuning procedure to be performed or required. The functional operation and system description is provided in Exhibit “Operational Description”. The operating frequency range of the device is fixed in the modem firmware at the time of manufacture and cannot be changed by the user. The frequency band is restricted to that permitted by the FCC. The transmit output power and duty cycle is fixed in the modem firmware at the time of manufacture and cannot be changed by the user. The output power level is measured and fixed using calibrated test equipment to the approved level of 32dBm maximum. The duty cycle is limited to 30% maximum. Yours sincerely DAVID SHAWCROSS Technology Manager

Oct. 30, 2003 TIMCO ENGINEERING INC. P.O. Box 370 849 N.W. State Road 45 Newberry, Florida Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 806-821 MHz (25 kHz Channel Spacing) and 821-824 MHz (12.5 kHz Channel Spacing). Applicant: Wavenet Technology PTY. LTD. Product: Boomer II Data TAC Wireless OEM Modem Module Model: BM2-800D FCC ID: PQS-BM2800D Dear Sir/Madam, As appointed agent for Wavenet Technology PTY. LTD., we would like to submit the application for FCC certification of the above product. Please review all necessary files uploaded to TIMCO Upload Site. The Boomer II Model BM2-800D was certified by FCC under PQS-BM28001. However, the original FCC Grant was restricted for use with maximum ERP of 1.9 Watts, a specific antenna and duty cycle of 10% which does not allow the manufacturer the flexibility to market their product. Therefore, the manufacturer wish to apply for a new FCC Grant with the following new specifications without any modifications on the original certified product: (1) Conducted of RF output power of 2.1 watts as measured by Ultratech. Please note that the conducted power measured on the original application was incorrect, we assume the cable loss was added to the power measurement; therefore, it shows unusual low level. (2) The maximum duty cycle is 30% (3) The antenna separation is changed according to new antenna gain limits specified in the Uses Manual. This application is subject to Modular Approval per FCC DA 00-1407 for Mobile and Base application only. A new FCC certification with SAR compliance for a Portable OEM product, which employs this radio, is required. If you have any queries, please do not hesitate to contact us. Yours truly, UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Oct. 30, 2003 Wavenet Technology PTY. LTD. 140 Burswood Road Burswood, Western Australia, 6100 Attn.: Mr. David Shawcross Subject: Certification Testing in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 806-821 MHz (25 kHz Channel Spacing) and 821- 824 MHz (12.5 kHz Channel Spacing). Product: Boomer II Data TAC Wireless OEM Modem Module Model: BM2-800D FCC ID: PQS-BM2800D Dear Mr. Shawcross, The product sample has been tested in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 806-821 MHz (25 kHz Channel Spacing) and 821-824 MHz (12.5 kHz Channel Spacing), and the results and observation were recorded in the engineering report, Our File No.: WTP-017A-FCC90 Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Boomer II Data TAC Wireless OEM Modem Module Model No.: BM2-800D FCC ID: PQS-BM2800D Applicant: Wavenet Technology PTY. LTD. 140 Burswood Road Burswood, Western Australia, 6100 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) --- NEW MPE -- UltraTech's File No.: WTP-017A-FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Oct. 30, 2003 Report Prepared by: Tri Luu, P.Eng. Tested by: Hung Trinh, RFI Technician Issued Date: Oct. 30, 2003 Test Dates: Oct. 30, 2003 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i Boomer II Data TAC Wireless OEM Modem Module, Model BM2-800D FCC ID: PQS-BM2800D ULTRATECH GROUP OF LABS File #: WTP-017A-FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Oct. 30, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ....................................................................................................................................... 1 1.1. SCOPE....................................................................................................................................................................... 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 1 1.3. NORMATIVE REFERENCES ................................................................................................................................. 1 EXHIBIT 2. PERFORMANCE ASSESSMENT ............................................................................................................ 2 2.1. CLIENT INFORMATION ........................................................................................................................................... 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION................................................…

Text truncated - open the document above for the full version.

51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] Assessment of Compliance For Maximum Permissible Exposure Evaluation with Respect to FCC Rule Part 47CFR §2.1091 and the Standards ANSI/IEEE C95.1- 1999 and C95.3-1992 Wireless OEM Modem Module Boomer II 800 MHz Wavenet Technologies Pty Ltd. November 2002 APREL Project No. WVTB-Boomer II-Modem 3922-1  November, 2002 Page 3 APREL Project No.: DATB – WVTB-Boomer II-3922-1 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:PQS-BM28001 Client :Wavenet Technologies Pty Ltd. Equipment :Wireless OEM Modem Module Model :BOOMER II 800 MHz ENGINEERING SUMMARY This report contains the results of the evaluation performed on the Wavenet OEM Wireless Modem, Model BOOMER II 800MHz. The tests were carried out in accordance with the applicable requirements of FCC rules found in 47CFR §2.1091 and the standards ANSI/IEEE C95.1-1999 and C95.3-1992. The Wireless OEM Module is an 800 MHz OEM product for integration into customer end user equipment as an OEM modem and interfaces to it via the data interface port. It was tested using a whip standard ¼ wave portable antenna mounted on a ground plane and the unit connected to a test jig. The output power of the unit was set at maximum value and running with 100% duty cycle. The modem provides two available bands: a) 806-821 MHz and b) 821-824 MHz. The bands are firmware controlled and can not be switched by the user. The DUI was tested on two frequencies: 806 MHz (low channel of 806-821 MHz band) and 821 MHz (low channel of 821-824 MHz band) which has the highest ERP among three channels. The methodology and results for the tests are described in the appropriate section of this report. The maximum RF-power exposure level measured at 20 cm from the antenna for 806-821 MHz band was 0.178 mW/cm 2 . The maximum power exposure level measured at 20 cm from the antenna for 821- 824 MHz band was 0.145 mW/cm 2 . Users and installers should be provided with the appropriate operating instructions regarding safe distances, for satisfying RF exposure compliance. (The results presented in this report relate only to the sample tested.)  November, 2002 Page 4 APREL Project No.: WVTB-Boomer II-Modem-3922-1 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC SUBMISSION INFORMATION FCC ID:PQS-BM28001 Equipment:Wireless OEM Modem Module Model:BM28001 800 MHz For:Certification Applicant:Wavenet Technologies Pty Ltd. 140 Burswood Road Burswood, Perth, WA 6100 Australia Manufacturer: Wavenet Technologies Pty Ltd. 140 Burswood Road Burswood, Perth, WA 6100 Australia Evaluated by:APREL Inc. 51 Spectrum Way Nepean, Ontario Canada, K2R 1E6  November, 2002 Page 5 APREL Project No.: WVTB-Boomer II-Modem-3922-1 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 ACRONYMS CBTCalibration Before Test CNRCalibration Not Required DUIDevice Under Investigation ERPEffective Radiated Power FCCFederal Communications Commission MPEMaximum Permissible Exposure N/ANot Applicable NTSNot To Scale OEMOriginal Equipment Manufacturer QAQuality Assurance  November, 2002 Page 6 APREL Project No.: WVTB-Boomer II-Modem-3922-1 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 1.0INTRODUCTION 1.1General This report describes the Maximum Permissible Exposure (MPE) tests on a Wavenet BOOMER II 800MHz OEM Wireless Modem, connected to a test jig and using a whip standard ¼ wave portable antenna mounted on a ground plane, the combination hereinafter called the DUI (Device Under Investigation). 1.2Scope MPE evaluation was performed on the DUI in accordance with the requirements of the FCC rules for RF compliance found in 47CFR §2.1091 and the standard ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. This Engineering Report contains the following: • Methodology as to how the tests were performed. • Test results and analysis. • Identification of the test equipment used for the testing. • Test set-up diagram. 1.3Schedule The MPE tests were completed on November 2002. 2.0APPLICABLE DOCUMENTS FCC Rule Part 47CFR §2.1091 ANSI/IEEE C95.1-1999, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300GHz. ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01), Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields.  November, 2002 Page 7 APREL Project No.: WVTB-Boomer II-Modem-3922-1 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 3.0TEST SAMPLE The MPE test described in this procedure was performed on: - Wavenet BOOMER II 800MHz OEM Wireless Modem, connected to a test jig and using a whip standard ¼ wave portable antenna mounted on a ground plane. 4.0GENERAL REQUIREMENTS 4.1Location of Test Facilities The tests were performed by APREL Laboratories at APREL’s test facility located in Nepean, Ontario, Canada. The laboratory operates a 3 and 10 meter Open Area Test Site (OATS) measurement facility. The test site is calibrated to ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteri…

Text truncated - open the document above for the full version.

Boomer II User Manual & Integrator’s Guide ____________________________________________ Integrator’s Task BM210012WT37 23 Copyright Wavenet Technology © November 2003 For “mobile or fixed devices”, defined as transmitting devices designed to be generally used such that a separation distance of at least 20 cm is maintained between the body of the user and the transmitting radiated structure, Maximum Permissible Exposure (MPE) limits may be used with field strength or power density limit of 0.537 mW/cm 2 at 806 MHz or 0.597 mW/cm 2 at 896 MHz. Output is specified at the antenna terminal of this module. This modular transmitter is only approved for OEM integration into final products that satisfy MPE categorical Exclusion Requirements of 2.1091 of the FCC rules. Accordingly the final product and its antenna must operate with: A. A minimum separation distance of 20 cm or more from all persons using an antenna with gain not exceeding 3dBd (or 5 dBi) in fixed or mobile applications or, B. A minimum separation distance of 25 cm or more from all persons using an antenna with gain not exceeding 6 dBd in fixed applications only or, C. A minimum separation distance of 35 cm or more from all persons using an antenna with gain not exceeding 9 dBd in fixed applications only or, D. A minimum separation distance of 50 cm or more from all persons using an antenna with gain not exceeding 12 dBd in fixed applications only. Note: The use of an antenna with gain greater than 5dBi for Mobile applications will require an MPE measurement to satisfy the RF Exposure requirements of 2.1091 of the FCC rules and notification of the separation distance to all users and applicable documentation. Separate approval is required for this module to operate in portable products with respect to 2.1093 of FCC rules. If the Boomer-II OEM Modem Module is used in a mobile or fixed application and if the integrator uses one of the above antennae configurations the MPE limits will not be exceeded. In this case, the following clause should be included in the installation and user documentation: "To satisfy FCC RF exposure requirements a separation distance of XX cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended.” Where the actual separation distance (XX) corresponds to the specific antenna configuration used as previously detailed.

August 2002APREL Project No.: WVTB-Boomer II Modem-3922-1 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM28001 Exhibit 2a Engineering Report on ERP (2.1046) Assessment of Compliance for Measurement of Effective Radiated Power (ERP) in accordance with the FCC Rules & Regulations Part 2.1046 and 90 Wireless OEM Modem Module Boomer II Wavenet Technologies Pty Ltd. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] August 2002 APREL Project No.:WVTB-BoomerII-Modem-3922-1  August 2002 Page 3 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:PQS-BM28001 Applicant:Wavenet Technologies Pty Ltd. Equipment:Wireless OEM Modem Module Model:BOOMER II Standard:FCC Rules and Regulations Part 2.1046 and 90 ENGINEERING SUMMARY This report contains the results of the effective radiated power (ERP) measurement performed on a Wavenet OEM Wireless Modem, model BOOMER II.The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1046 and 90. The product was evaluated for ERP when it was set at the maximum power level. The Wireless OEM Module is an 800 MHz OEM product for integration into customer end user equipment as an OEM modem and interfaces to it via the data interface port. The modem provides two available bands: a) 806-821 MHz and b) 821-824 MHz. The bands are software controlled and can not be switched by the user. This report presents test data for both frequency bands, 806-821 MHz (Mask G) and 821-824 MHz (Mask H). Wavenet Boomer II was tested for ERP at high, middle and low frequencies at each band, thus covering both bands. The measurements were performed at 806 MHz, 815 MHz, 821 MHz, 822 MHz and 824 MHz. The highest ERP in the frequency band 806-821 MHz is 1.828 W at 806 MHz. The highest ERP in the frequency band 821-824 MHz is 1.496 W at 821 MHz. (The results presented in this report relate only to the sample tested.) Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary RF Power Output as Radiated Ref. Paragraph 2.1046 and 9081Passed  August 2002 Page 4 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the effective radiated power (ERP) measurement conducted on a Wavenet Wireless OEM Modem Module, model BOOMER II. Test Facility The tests were performed for Wavenet Technologies Pty Ltd. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is: 90416 APREL is accredited by Standard Council of Canada. APREL is also accredited by Industry Canada. Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1046 and the appropriate limits (90). Test Equipment The test equipment used during the evaluation is listed in Appendix A. Environmental Conditions Measurements were conducted in open area test site. Temperature:25 °C ± 2- Relative Humidity:30 - 50 % Air Pressure:101 kPa ± 3 Personnel: The equipment was tested by Roman Kuleba, EMC Engineer and the repo…
