PQS-BM29001Wireless OEM Modem Module

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Exhibit 9 for Boomer II 900 MHz User’s Manual Boomer II OEM Modem User Manual and Integrator’s Guide August 2002 © Wavenet Technology Pty Ltd ACN 079 965 003 Publication No. BM210012WT11 (11 September 2002) Published August 2002 This publication is copyright and no part may be reproduced or copied without the prior consent of: Wavenet Technology Pty Ltd. 140 Burswood Rd Burswood, 6100 Western Australia Telephone:+61 8 9262 0200 Facsimile:+61 8 9355 5622 E-mail:[email protected] Web Site:www.wavenet.com.au This manual is intended to be used for the operation of Wavenet Technology equipment. Performance figures quoted are typical values and subject to normal manufacturing and service tolerances. Wavenet Technology Pty Ltd reserves the right to alter, without notice, the equipment, software or specification to meet technological advancement. Microsoft, Windows and the Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Other product and company names herein may be the trademarks of their respective owners. Whilst every precaution has been taken in the preparation of this document, neither Wavenet Technology Pty Ltd nor any of its representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this book. Published by Wavenet Technology Pty Ltd. This device has not been authorized as required by the rules of the Federal Communications Commission (FCC). This device is not, and may not be, offered for sale or lease, or sold or leased within the USA, until authorization is obtained. This product contains a transmitter approved under the FCC rules. 800MHz Modem FCC ID: PQS-BM28001 900MHz Modem FCC ID: PQS-BM29001 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Boomer II User Manual & Integrator’s Guide__________________________________________________Contents BM210012WT093Wavenet Technology Contents Introduction...................................................................................................................7 Applications..............................................................................................................8 Compliance Statement...........................................................................................9 Information for Your Safety.................................................................................10 Host Requirements...............................................................................................11 Installation..................................................................................................................13 Mounting the Boomer II OEM Modem to Your Device...................................14 Connecting the Data Interface Port...................................................................15 Pin Descriptions................................................................................................15 Serial Communications Interface...................................................................16 Status Input / Output lines...............................................................................17 LED Interface....................................................................................................17 Connecting & Positioning the Antenna.............................................................20 Positioning.........................................................................................................20 Supplying Power...................................................................................................21 Batteries.............................................................................................................21 Plug-in Supplies................................................................................................21 Automotive Supplies........................................................................................22 Environmental Considerations.......................................................................22 Test Jig.......................................................................................................................23 Features.................................................................................................................23 Exploring the Boomer II Test Jig........................................................................24 Initial Calibration...................................................................................................27 Set Up.....................................................................................................................28 RSUSER................................................................................................................30 Operations.........................................................................................................30 Using RSUSER.................................................................................................31 Hot Key Descriptions........................................................................................31 Reprogramming Modems................................................................................35 Software Development Kit.......................................................................................37 Native Control Language Application Programmer’s Interface.....................38 Implementation...............................................................................…

Text truncated - open the document above for the full version.

Boomer II OEM Modem Module User Manual and Integrator’s Guide November 2002 © Wavenet Technology Pty Ltd ACN 079 965 003 Publication No. BM210012WT27 Published November 2002 This publication is copyright and no part may be reproduced or copied without the prior consent of: Wavenet Technology Pty Ltd. 140 Burswood Rd Burswood, 6100 Western Australia Telephone: +61 8 9262 0200 Facsimile: +61 8 9355 5622 E-mail: [email protected] Web Site: www.wavenet.com.au This manual is intended to be used for the operation of Wavenet Technology equipment. Performance figures quoted are typical values and subject to normal manufacturing and service tolerances. Wavenet Technology Pty Ltd reserves the right to alter, without notice, the equipment, software or specification to meet technological advancement. Microsoft, Windows and the Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Other product and company names herein may be the trademarks of their respective owners. Whilst every precaution has been taken in the preparation of this document, neither Wavenet Technology Pty Ltd nor any of its representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this book. Published by Wavenet Technology Pty Ltd. This device has not been authorized as required by the rules of the Federal Communications Commission (FCC). This device is not, and may not be, offered for sale or lease, or sold or leased within the USA, until authorization is obtained. This product contains a transmitter approved under the FCC rules. 800MHz Modem Module FCC ID: PQS -BM28001 900MHz Modem Module FCC ID: PQS -BM29001 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference rece ived including interference that may cause undesired operation. Boomer II User Manual & Integrator’s Guide __________________________________________________ Contents BM210012WT27 3 Wavenet Technology Contents Introduction ......................................................................................................9 Applications ................................................................................................11 Compliance Statement ...............................................................................12 Information for Your Safety.........................................................................13 Host Requirements.....................................................................................14 The Integrator’s Task .....................................................................................15 Plan the Product and Create the Design ....................................................16 Develop a Usage Model .........................................................................16 Develop a Message Model .....................................................................16 Define a Service Strategy .......................................................................17 Diagnostic Capabilities ...........................................................................18 Customer Problem Isolation....................................................................18 End User Support ...................................................................................18 Investigate and Obtain Regulatory Approval ..........................................18 Develop and Validate the Hardware ...........................................................19 Design the Hardware Platform................................................................19 Consider Power Supply Options .............................................................19 Select the Source Antenna .....................................................................19 Set Up a Development Test Environment...............................................19 Develop Supporting Applications Software.................................................20 Select a Communications Model ............................................................20 Develop End-to-End Applications Software ............................................20 Test and Approve the Product....................................................................20 Perform EMI and Desense Testing.........................................................20 Set Up a Final Test Environment ............................................................21 Install and Field Test the Product ...........................................................21 Environmental Issues .................................................................................21 ESD Handling Precautions .....................................................................22 Regulatory Requirements...........................................................................23 Modem Only Certification........................................................................23 Full Product Certification.........................................................................23 Country Requirements............................................................................23 Air Interface Protocols ............................................................................27 Installing the Modem......................................................................................29 Mounting the Boomer II OEM Modem to Your Device................................30 Connecting the Data Interface Port ............................................................31 Data Interface Pin Descriptions ..............................................................33 Modem On/Off Control............................................................................34 Modem Reset Input .............…

Text truncated - open the document above for the full version.

© Wavenet Technology Pty Ltd ACN 079 965 003 Publication No. BM210012WT27 Published November 2002 This publication is copyright and no part may be reproduced or copied without the prior consent of: Wavenet Technology Pty Ltd. 140 Burswood Rd Burswood, 6100 Western Australia Telephone: +61 8 9262 0200 Facsimile: +61 8 9355 5622 E-mail: [email protected] Web Site: www.wavenet.com.au This manual is intended to be used for the operation of Wavenet Technology equipment. Performance figures quoted are typical values and subject to normal manufacturing and service tolerances. Wavenet Technology Pty Ltd reserves the right to alter, without notice, the equipment, software or specification to meet technological advancement. Microsoft, Windows and the Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Other product and company names herein may be the trademarks of their respective owners. Whilst every precaution has been taken in the preparation of this document, neither Wavenet Technology Pty Ltd nor any of its representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this book. Published by Wavenet Technology Pty Ltd. This product contains a transmitter approved under the FCC rules. 800MHz Modem Module FCC ID: PQS-BM28001 900MHz Modem Module FCC ID: PQS-BM29001 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Introduction ________________________________________________ Boomer II User Manual & Integrator’s Guide Wavenet Technology 12 BM210012WT27 Compliance Statement The Wavenet Boomer-II OEM Modem Module has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Output is specified at the antenna terminal of this module. This modular transmitter is only approved for OEM integration into final products that satisfy mobile operating requirements of 2.1091 of the FCC rules. The final product and its antenna must operate with a minimum separation distance of 20 cm or more from all persons using the antenna with maximum average gain not exceeding 1 dBi to satisfy MPE compliance. Separate approval is required for this module to operate in portable products with respect to 2.1093 of FCC rules. Wavenet has obtained certificates of Technical Acceptability for use in Canada in accordance with the Radio Standards Procedure RSP-100 and Radio Standards Specification RSS119, Issue 3. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause interference harmful to radio communications. There is no guarantee however, that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‰ Reorient or relocate the receiving antenna. ‰ Increase the separation between the equipment and receiver. ‰ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‰ Consult your supplier or an experienced radio/TV technician for assistance. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Exhibit 10 for Boomer II 900 MHz Attestation Statements FCC Part 15, Subpart B Class B Certificate of Conformity FCC Part 2 & 90 Statement of Compliance Declaration of Conformity Regarding Electromagnetic Interference Analysis for WaveNet Technolgies Pty Ltd. Wireless OEM Modem Module 900 MHz We hereby declare that the equipment specified above was evaluated for assessment of compliance with respect to the requirements of Part 15, Subpart B, Class B of the FCC Rules and Regulations. The Equipment has been shown to comply with the above applicable standards as indicated in the engineering report under the APREL Project number: DoC WVTB-Boomer II-Modem-3922-2. We attest to the accuracy of all measurement data and completeness of these measurements as reported in the above report. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 Certificate of Compliance FCC ID: PQS-BM29001 PRODUCT: Wireless OEM Modem Module MODEL: Boomer II (900 MHz) MANUFACTURER: Wavenet Technology Pty Ltd We certify that the pertinent tests have been performed on the above-described equipment and that this equipment conforms to the applicable requirements of FCC Parts 2, 15 and 90. See Exhibit 2, Engineering Reports Jayanta (Jay) K. Sarkar Technical Director, Standards and Certification APREL Laboratories

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Table of Contents List of Exhibits Submitted E E X X H H I I B B I I T T 1 1 : : C C O O V V E E R R L L E E T T T T E E R R S S for Boomer II 900 MHz application a) Application overview b) Equipment Identification c) Authorization Letter /Agent Designated (Jay Sarkar) d) Request for confidentiality Exhibit 2:Engineering Reports (Test Reports) a) ERP (2.1046) b) Radiated Spurious Emissions (2.1053) c) Bandwidth (2.1049) Modulation Characteristics (2.1047) d) Spurious Emissions at Antenna Terminal (2.1051) e) Frequency Stability (2.1055) Exhibit 3: Operational/Technical Description (Confidential) Exhibit 4: ID Label/Location Exhibit 5:External Photographs of the Equipment Internal Photographs of the equipment (Confidential) Exhibit 6:Block Diagram (Confidential) Exhibit 7: Schematic Diagram (Confidential) Exhibit 8:Parts List (Confidential), Tune–up Procedure Exhibit 9:User’s Manual Exhibit 10:a) Attestation Statement: FCC Part 15 Declaration of Conformance (DoC) certificate b) Attestation Statement: the equipment complies with Part 90

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Exhibit 1 for Boomer II 900 MHz a) Application overview b) Equipment: c) Authorization Letter /Agent Designated (Jay Sarkar) d) Request for confidentiality October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 EXHIBIT 1b Equipment Identification FCC ID: PQS-BM29001 MANUFACTURER: Wavenet Technology Pty Ltd FCC ID:PQS-BM29001 Product:Wireless OEM Modem Module Model:Boomer II 900 MHz EUT Type:Licensed Non-Broadcast Station Transmitter (TNB) TX Frequency:896-901 MHz Measured ERP:1.556 W Emission Designators:9K8F1D Frequency Stability:1.5 ppm in 896-901 MHz band 140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 12 September 2002 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Gentlemen: RE:Wavenet Technology Pty Ltd Product: OEM Wireless Modem, Boomer II, FCC ID: PQS-BM29001 Request for Confidentiality Wavenet Technology Pty Ltd, hereby requests confidentiality of the Block Diagram, Schematic Diagrams, photographs, Parts List and Operational Description Exhibit for the attached test report. These documents contain detailed system and equipment description and related information about the product, which Wavenet Technology Pty Ltd considers to be proprietary, confidential and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Wavenet Technology Pty Ltd considers this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely JOHN THOMPSON Managing Director

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 January 15, 2003 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Gentlemen: RE:Wavenet Technology Pty Ltd Product: OEM Wireless Modem, Boomer II, FCC ID: PQS-BM29001 Request for Confidentiality Wavenet Technology Pty Ltd, hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Parts List and Operational Description Exhibit for the attached test report. These documents contain detailed system and equipment description and related information about the product, which Wavenet Technology Pty Ltd considers to be proprietary, confidential and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Wavenet Technology Pty Ltd considers this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. We further request the confidentiality of the RF exposure exhibit in reply to CRN 24659, as the test lab (APREL Laboratories) now assesses this information as proprietary. Yours sincerely JOHN THOMPSON Managing Director

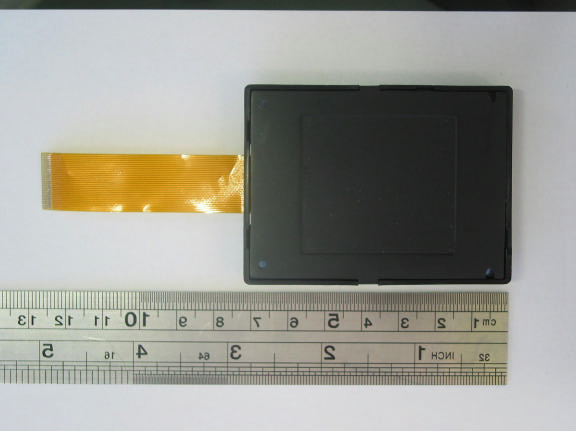

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Exhibit 5 for Boomer II 900 MHz Photographs of the Equipment External Photos A

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Exhibit 4 FCC ID Label/Location The label will be placed in the slightly recessed area on the back of the modem module.

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Exhibit 5 for Boomer II 900 MHz Photographs of the Equipment Internal Photos B

51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] Assessment of Compliance For Maximum Permissible Exposure Evaluation with Respect to FCC Rule Part 47CFR §2.1091 and the Standards ANSI/IEEE C95.1- 1999 and C95.3-1992 Wireless OEM Modem Module Boomer II 900 MHz Wavenet Technologies Pty Ltd. November 2002 APREL Project No. WVTB-Boomer II-Modem 3922-2  November, 2002 Page 2 APREL Project No.: DATB – WVTB-Boomer II-3922-1 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 E E n n g g i i n n e e e e r r i i n n g g R R e e p p o o r r t t Subject:Maximum Permissible Exposure Evaluation with Respect to FCC Rule Part 47CFR §2.1091 and the standards ANSI/IEEE C95.1-1999 and C95.3-1992 FCC ID:PQS-BM29001 Equipment:Wireless OEM Modem Module Model:Boomer II 900 MHz Client:Wavenet Technologies Pty Ltd. 140 Burswood Road Burswood, Perth, WA 6100 Australia Project #:WVTB-Boomer II-3922-2 Prepared by:APREL Laboratories, Regulatory Compliance Division 51 Spectrum Way Nepean, Ontario K2R 1E6  November, 2002 Page 3 APREL Project No.: DATB – WVTB-Boomer II-3922-1 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:PQS-BM29001 Client :Wavenet Technologies Pty Ltd. Equipment :Wireless OEM Modem Module Model :BOOMER II 900 MHz ENGINEERING SUMMARY This report contains the results of the evaluation performed on the Wavenet OEM Wireless Modem, Model BOOMER II 900MHz. The tests were carried out in accordance with the applicable requirements of FCC rules found in 47CFR §2.1091 and the standards ANSI/IEEE C95.1-1999 and C95.3-1992. The Wireless OEM Module is a 900 MHz OEM product for integration into customer end user equipment as an OEM modem and interfaces to it via the data interface port. It was tested using a whip standard ¼ wave portable antenna mounted on a ground plane and the unit connected to a test jig. The output power of the unit was set at maximum value and running with 100% duty cycle. The modem provides one available band: 896-901 MHz. The bands are firmware controlled and can not be switched by the user. The DUI was tested on the frequency 901 MHz (Highest Channel) which has the highest ERP among three channels. The methodology and results for the tests are described in the appropriate section of this report. The maximum RF-power exposure level measured at 20 cm from the antenna was 0.185 mW/cm 2 . Users and installers should be provided with the appropriate operating instructions regarding safe distances, for satisfying RF exposure compliance. (The results presented in this report relate only to the sample tested.)  November, 2002 Page 4 APREL Project No.: WVTB-Boomer II-Modem-3922-2 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC SUBMISSION INFORMATION FCC ID:PQS-BM29001 Equipment:Wireless OEM Modem Module Model:BM29001 900 MHz For:Certification Applicant:Wavenet Technologies Pty Ltd. 140 Burswood Road Burswood, Perth, WA 6100 Australia Manufacturer: Wavenet Technologies Pty Ltd. 140 Burswood Road Burswood, Perth, WA 6100 Australia Evaluated by:APREL Inc. 51 Spectrum Way Nepean, Ontario Canada, K2R 1E6  November, 2002 Page 5 APREL Project No.: WVTB-Boomer II-Modem-3922-2 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 ACRONYMS CBTCalibration Before Test CNRCalibration Not Required DUIDevice Under Investigation ERPEffective Radiated Power FCCFederal Communications Commission MPEMaximum Permissible Exposure N/ANot Applicable NTSNot To Scale OEMOriginal Equipment Manufacturer QAQuality Assurance  November, 2002 Page 6 APREL Project No.: WVTB-Boomer II-Modem-3922-2 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 1.0INTRODUCTION 1.1General This report describes the Maximum Permissible Exposure (MPE) tests on a Wavenet BOOMER II 900MHz OEM Wireless Modem, connected to a test jig and using a whip standard ¼ wave portable antenna mounted on a ground plane, the combination hereinafter called the DUI (Device Under Investigation). 1.2Scope MPE evaluation was performed on the DUI in accordance with the requirements of the FCC rules for RF compliance found in 47CFR §2.1091 and the standard ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. This Engineering Report contains the following: • Methodology as to how the tests were performed. • Test results and analysis. • Identification of the test equipment used for the testing. • Test set-up diagram. 1.3Schedule The MPE tests were completed on November 2002. 2.0APPLICABLE DOCUMENTS FCC Rule Part 47CFR §2.1091 ANSI/IEEE C95.1-1999, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300GHz. ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01), Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields.  November, 2002 Page 7 APREL Project No.: WVTB-Boomer II-Modem-3922-2 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 3.0TEST SAMPLE The MPE test described in this procedure was performed on: - Wavenet BO…

Text truncated - open the document above for the full version.

October 2002APREL Project No.: WVTB-Boomer II Modem-3922-2 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-BM29001 Exhibit 2a for Boomer II 900 MHz Engineering Report on ERP (2.1046) Assessment of Compliance for Measurement of Effective Radiated Power (ERP) in accordance with the FCC Rules & Regulations Part 2.1046 and 90 Wireless OEM Modem Module Boomer II 900 MHz Wavenet Technologies Pty Ltd. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] October 2002 APREL Project No.:WVTB-BoomerII-Modem-3922-2 E E n n g g i i n n e e e e r r i i n n g g R R e e p p o o r r t t Subject: Measurement of Effective Radiated Power (ERP) in accordance with the FCC Rules & Regulations Part 2.1046 and 90 FCC ID: PQS-BM29001 Equipment: Wireless OEM Modem Module Model: BOOMER II (900 MHz) Client: Wavenet Technologies Pty Ltd. 140 Burswood Rd Burswood, Perth, WA 6100 AUSTRALIA Project #: WVTB-BoomerII-Modem-3922-2 Prepared By:APREL Laboratories, Regulatory Compliance Division 51 Spectrum Way Nepean, Ontario K2R 1E6  October 2002 Page 3 APREL Project No WVTB-Boomer II modem–3922…

Text truncated - open the document above for the full version.
