PQS-BM3900MBoomer III OEM Modem

User Manual and Integrator’s Guide Boomer-III Mobitex OEM Modem Module: BM3-900M Draft Revision 0.5 October 2003 © Wavenet Technology Pty Ltd ACN 079 965 003 Publication No. BM315012WT05 Draft 14th October 2003 This publication is copyright and no part may be reproduced or copied without the prior consent of: Wavenet Technology Pty Ltd. 140 Burswood Rd Burswood, 6100 Western Australia Telephone: +61 8 9262 0200 Facsimile: +61 8 9355 5622 E-mail: [email protected] Web Site: www.wavenet.com.au This manual is intended to be used for the operation of Wavenet Technology equipment. Performance figures quoted are typical values and subject to normal manufacturing and service tolerances. Wavenet Technology Pty Ltd reserves the right to alter, without notice, the equipment, software or specification to meet technological advancement. Microsoft, Windows and the Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Other product and company names herein may be the trademarks of their respective owners. Whilst every precaution has been taken in the preparation of this document, neither Wavenet Technology Pty Ltd nor any of its representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this book. Published by Wavenet Technology Pty Ltd. This product is a modular transmitter approved under FCC Part 2 and Part 90 rules. 900MHz Modem Module - FCC ID: PQS-BM3900M This device complies with Part 15 Class B of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. This product is approved under Industry Canada (IC) RSS119 rules. 900MHz Modem Module - IC: 4062A-BM3900M Boomer-III User Manual & Integrator’s Guide__________________________________________________ Contents BM310012WT05 3 Copyright Wavenet Technology © October 2003 Contents Introduction ......................................................................................................5 Modem Features ..........................................................................................6 Wireless Applications ...................................................................................7 Developer Support .......................................................................................8 Integrator Developers Kit..............................................................................8 Compliance Statement .................................................................................9 Information for Your Safety.........................................................................10 The Integrator’s Task .....................................................................................11 Plan the Product and Create the Design ....................................................12 Develop and Validate the Hardware ...........................................................15 Develop Supporting Applications Software.................................................16 Test and Approve the Product....................................................................16 Environmental Issues .................................................................................17 Regulatory Requirements...........................................................................19 Installing the Modem......................................................................................23 Mounting the Boomer-III OEM Modem to Your Device ..............................24 Connecting the Data Interface Port ............................................................25 Selecting & Positioning the Antenna ..........................................................37 Supplying Power ........................................................................................42 Using the Modem Test Jig .............................................................................53 Features .....................................................................................................53 Exploring the Boomer-II Test Jig ................................................................54 Initial Calibration.........................................................................................57 Fitting the Boomer-III Modem .....................................................................57 Software Development Tools .........................................................................59 Wavenet SDK.............................................................................................59 Wavenet Commander ................................................................................60 Wavenet Application Loader.......................................................................64 Integration Testing .........................................................................................69 Hardware Integration ..................................................................................69 Desense and EMI.......................................................................................70 Regulatory Compliance ..............................................................................71 Application Software...................................................................................72 Final Assembly ...........................................................................................72 End User Problem Resolution ....................................................................72 OEM Service Depot Repair ........................................................................73 Contents _________________________________________________ Boomer-III User Manual & Integrator’s Guide Copyright Wavenet Technology © October…

Text truncated - open the document above for the full version.

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 14 October 2003 Federal Communications Commission Authorization & Evaluation Division 7435 Oaklands Mills Road Colombia MD 21046 USA Applicant: WAVENET TECHNOLOGY Equipment: FCC ID: PQS-BM3900M Subject: Part 90.203 Compliance. Dear Sirs This equipment meets the requirements of the FCC Rules, Parts 90.203(e) except as provided in paragraph (g) of the section 203. The operator cannot program and transmit on frequencies other than those programmed by the manufacturer, service or maintenance personnel, using the equipments external operational controls. Yours faithfully JOHN THOMPSON Managing Director

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 16 September 2003 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Subject: Request for Confidentiality Applicant: Wavenet Technology Pty Ltd Product: Wireless Radio Modem for iPAQ Model: BM3-900M FCC ID: PQS-BM3900M Dear Sir/Madam, Wavenet Technology Pty Ltd, hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Parts Lists and Operational Description Exhibit submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These documents contain detailed information about the product, which Wavenet Technology Pty Ltd considers to be proprietary, confidential and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Wavenet Technology Pty Ltd considers this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely DAVID SHAWCROSS Technology Manager

Correspondence Summary Questions and Answers October 15, 2003 SUBJECT: WAVENET TECHNOLOGY PTY LTD. - FCC ID: PQS-BM3900M TCB Question: Part 2.1033(c)(8): Please, provide the dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. Applicant Answer: The PA supply voltages are the DC voltages at the Modem Connector Input - 0.2V. (In page 19 of the system description the Modem voltage rating is specified as a nominal voltage 3.8V with a range of 3.4 to 4.8V). The PA supply voltage will be 3.2 to 4.6V. Nominal is 3.6V. The PA current is ~ total current - 0.1A The maximum PA current at 2.0W output power is 1.5A at 3.8V level. Nominal PA current (2W output) is 1.4A. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 [email protected]

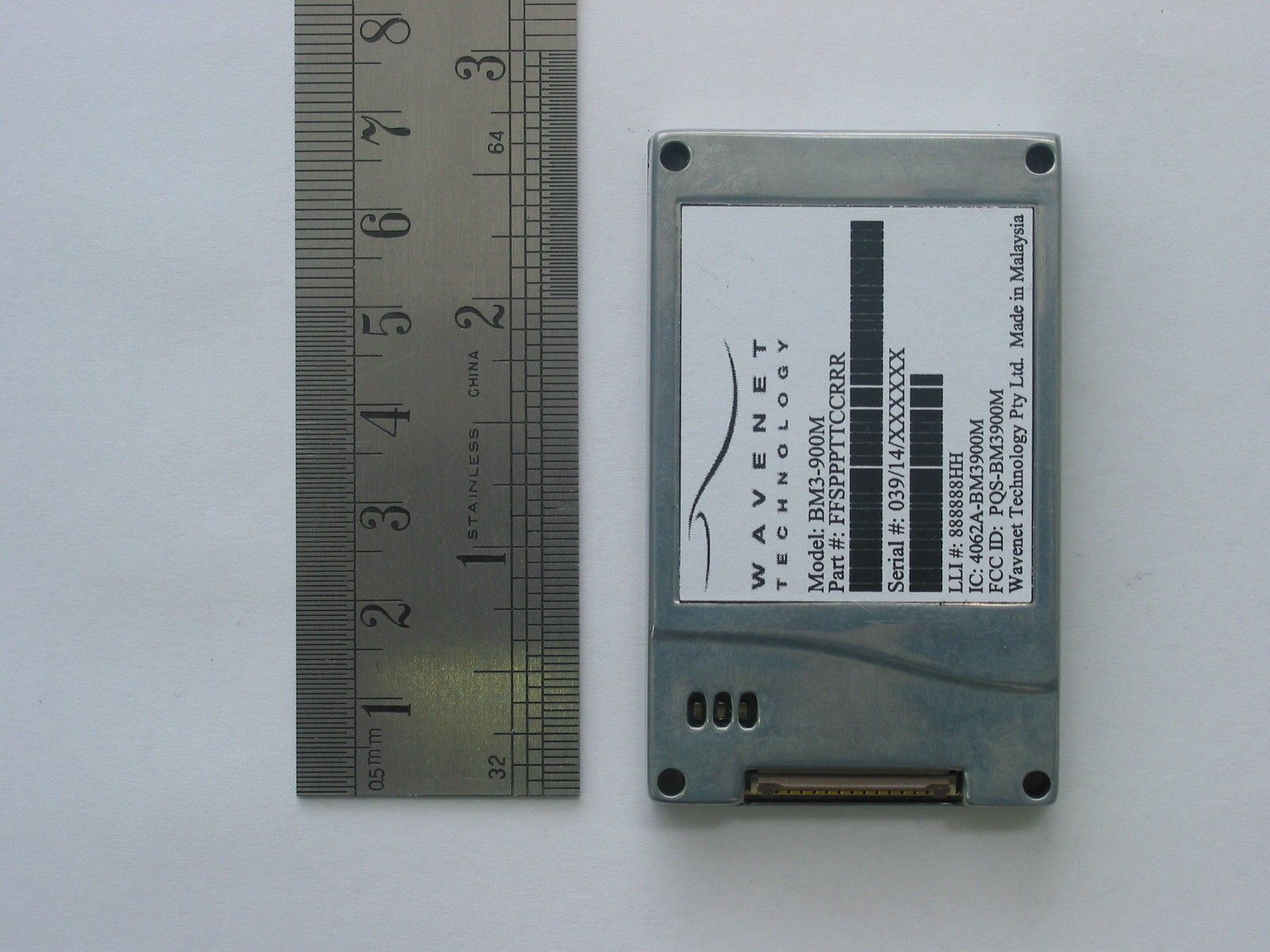

Serial #: 039/14/XXXXXXLLI #: 888888HHModel: BM3-900MIC: 4062A-BM3900MFCC ID: PQS-BM3900MWavenet Technology Pty Ltd. Made in MalaysiaPart #: FFSPPPTTCCRRR

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 8 October 03 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Subject: Tuning Information Applicant: Wavenet Technology Pty Ltd Product: Boomer-III OEM modem module Model: BM3-900M FCC ID: PQS-BM3900M Dear Sir/Madam, The Boomer-III OEM modem module is a broadband device across the authorised band with controlled output power that is flat across the same band. As such there is no tuning procedure to be performed or required. The functional operation and system description is provided in Exhibit “Operational Description”. The operating frequency range of the device is fixed in the modem firmware at the time of manufacture and cannot be changed by the user. The frequency band is restricted to that permitted by the FCC. The transmit output power and duty cycle is fixed in the modem firmware at the time of manufacture and cannot be changed by the user. The output power level is measured and fixed using calibrated test equipment to the approved level of 33dBm maximum. The duty cycle is limited to 30% maximum. Yours sincerely DAVID SHAWCROSS Technology Manager

Integrator’s Task ___________________________________________ Boomer-III User Manual & Integrator’s Guide Copyright Wavenet Technology © October 2003 20 BM310012WT04 All certification tests must be made by a qualified laboratory to ensure that the equipment complies with the applicable technical standards. United States of America The Federal Communications Commission (FCC) requires application for certification of digital devices in accordance with CFR Title 47, Part 2 and Part 15. A Wavenet Boomer-III OEM Modem Module is part of a complete system and certain testing is necessary for the integrated product. FCC Part 15, Class A or B certification (dependant upon final integrated product type) must be performed with the maximum configuration use and include all peripherals of the integrated product. The application for certification must refer to the approval data on file for the particular Boomer-III Modem Module, as shown in the following example. Include the following language in the documentation inserting the name of the integrated product in place of xxx below: “The Wavenet Boomer -III OEM modem module is a subassembly of xxx and has FCC Identifier PQS-BM3900M” FCC Part 2 certification requires all integrated products to have routine environmental evaluation for radio-frequency (RF) exposure prior to equipment authorization or use in accordance with FCC rules 2.1091 and 2.1093 and FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields, OET Bulletin 65 and its Supplement C. For “portable devices”, defined in accordance with FCC rules as transmitting devices designed to be used within 20 cm of the user body under normal operating conditions, Specific Absorption Rate (SAR) testing must be performed and the unit re-submitted for separate FCC certification approval. An exposure limit of 1.6 W/kg will apply to most OEM integrated applications. For “mobile or fixed devices”, defined as transmitting devices designed to be generally used such that a separation distance of at least 20 cm is maintained between the body of the user and the transmitting radiated structure, Maximum Permissible Exposure (MPE) limits may be used with field strength or power density limit of 0.597 mW/cm2 (at 896 MHz). Wavenet submitted module specific information and test reports for generic MPE compliance. If the Boomer-III OEM Modem Module is used in a mobile or fixed application with an antenna system gain less than 5dBi, the MPE limits will not be exceeded. In this case, the following clause should be included in the installation and user documentation: "To satisfy FCC RF exposure requirements a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To Boomer-III User Manual & Integrator’s Guide____________________________________________ Integrator’s Task BM310012WT04 21 Copyright Wavenet Technology © October 2003 ensure compliance, operations at closer than this distance is not recommended." If an antenna system is used which has an average gain greater than 5dBi then the integrated product must be re-tested as a complete unit and submitted with its own FCC ID. It is mandatory for portable integrated products such as handheld and body-worn devices to comply with FCC guidelines for Specific Absorption Rate (SAR) requirements. Refer to OET Bulletin 65 and Supplement C (June 2002). The submission should include end product information, end product SAR/MPE test report, and a reference to the Wavenet Boomer-III OEM Modem Module FCC ID for all other Part 90 requirements. It is a requirement for integrated product certification that you provide the following statement in user documentation: “Regulatory Notice of Compliance This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‰ Reorient or relocate the receiving antenna. ‰ Increase the separation between the equipment and receiver. ‰ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‰ Consult the dealer or an experienced radio/TV technician for help.” Labelling The FCC requires the integrated product to be labelled as shown here: “This product contains a type-accepted transmitter approved under FCC ID: PQS-BM3900M.” Refer to FCC CFR 47, Part 2, Subpart J for information on obtaining an FCC grantee code, FCC identifier requirements, label requirements, and other equipment authorisation procedures.

October 01, 2003 TIMCO ENGINEERING INC. P.O. Box 370 849 N.W. State Road 45 Newberry, Florida Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency band 896-901MHz (12.5kHz Channel Spacing). Applicant: Wavenet Technology Pty Ltd. Product: Boomer-III Mobitex Wireless OEM Modem Module Model: BM3-900M FCC ID: PQS-BM3900M Dear Sir/Madam, As appointed agent for Wavenet Technology Pty Ltd., we would like to submit the application for certification of the above product. Please review all necessary files uploaded to TIMCO Upload Web Site. This application is subject to Modular Approval per FCC DA 00-1407 with the following limitations: • For Mobile and Base Devices only. FCC new certification with SAR compliance for a Portable OEM product, which employs this radio, is required. • For any antenna with the gain less than or equal to 5 dBi • The separation distance from antenna to any person shall be not less than 20 cm If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] October 01, 2003 Wavenet Technology Pty Ltd. 140 Burswood Road Burswood, Perth, WA Australia, 6100 Attn.: Mr.David Shawcross Subject: Certification Testing in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency band 896-901MHz (12.5kHz Channel Spacing). Product: Boomer-III Mobitex Wireless OEM Modem Module Model: BM3-900M Dear Shawcross, The product sample has been tested in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency band 896-901MHz (12.5kHz Channel Spacing), and the results and observation were recorded in the engineering report, Our File No.: WTP015QFCC90. Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Boomer-III Mobitex Wireless OEM Modem Module Model No.: BM3-900M FCC ID: PQS-BM3900M Applicant: Wavenet Technology Pty Ltd. 140 Burswood Road Burswood, Perth, WA Australia, 6100 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: WTP015QFCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 01, 2003 Report Prepared by: Dharmajit Solanki, RFI Engineer Tested by: Mr.Hung Trinh, RFI Technician Issued Date: October 01, 2003 Test Dates: September 24 - 30, 2003 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 01, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST...................................................................................................................... 1 EXHIBIT 2. INTRODUCTION ....................................................................................................................................... 2 2.1. SCOPE....................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 2 2.3. NORMATIVE REFERENCES ................................................................................................................................. 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................ 3 3.1. CLIENT INFORMATION ........................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS................................................................................................................ 4 3.4. LIST OF EUT’S PORTS................................................................................................................................................ 5 3.5. ANCILLARY EQUIPMENT............................................................................................................................................. 5 3.6. TEST SETUP BLOCK DIAGRAM...........................…

Text truncated - open the document above for the full version.

Annex 1 – Photographs of Test Setup Photo #1 Boomer III Data Wireless OEM Mo dem Module, Model BM3-900M FCC ID: PQS-BM3900 M IC: 4062A-BM3900 M Annex 1 – Photographs of Test Setup Photo #2 Boomer III Data Wireless OEM Mo dem Module, Model BM3-900M FCC ID: PQS-BM3900 M IC: 4062A-BM3900 M Annex 1 – Photographs of Test Setup Photo #3 Boomer III Data Wireless OEM Mo dem Module, Model BM3-900M FCC ID: PQS-BM3900 M IC: 4062A-BM3900 M
