PQS-DWM0001Wireless Modem attachment for Palm m125 m500 m505

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 9 User’s Manual Dualwave M Wireless Modem User Manual © Wavenet Technology Pty Ltd ACN 079 965 003 Publication No. DWMUSERD01 (First Draft 13 February 2002) Published January 2002 This publication is copyright and no part may be reproduced or copied without the prior consent of: Wavenet Technology Pty Ltd. 140 Burswood Rd Burswood Perth WA 6100 Australia Telephone:+61 8 9262 0200 Facsimile:+61 8 9355 5622 E-mail:[email protected] Web Site:www.wavenet.com.au This manual is intended to be used for the operation of Wavenet Technology equipment. Performance figures quoted are typical values and subject to normal manufacturing and service tolerances. Wavenet Technology Pty Ltd reserves the right to alter, without notice, the equipment, software or specification to meet technological advancement. Microsoft, Windows and the Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Palm M, Palm m500/m505/m125, and HotSync are trademarks of Palm Computing, Inc. Other product and company names herein may be the trademarks of their respective owners. Whilst every precaution has been taken in the preparation of this document, neither Wavenet Technology Pty Ltd nor any of its representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this book. Published by Wavenet Technology Pty Ltd. This product contains a transmitter approved under the FCC rules. FCC ID: xxxxxxxxxx-xxxx-x This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Dualwave M User Manual________________________________________________________________Contents 3Wavenet Technology Contents Introduction...................................................................................................................5 Features....................................................................................................................5 Compliance Statement...........................................................................................6 Information for Your Safety....................................................................................6 System Requirements.............................................................................................8 Checking the Package Contents...........................................................................8 Exploring Your Dualwave M..................................................................................9 Online Indicator.................................................................................................11 On/Low Battery Indicator.................................................................................11 Getting Started..........................................................................................................12 Connecting Your Dualwave M to the PDA.......................................................12 Removing the Dualwave M.............................................................................12 Charging the Dualwave M’s Battery..................................................................13 Installing Modem Tools Software on Your PDA..............................................14 Removing Software From Your PDA............................................................17 Using Your Dualwave M..........................................................................................18 Modem Tools Application....................................................................................19 Info Tab..............................................................................................................19 Setup Tab..........................................................................................................20 Network Tab......................................................................................................21 Wakeup Tab......................................................................................................22 About Modem Tools.........................................................................................23 Synchronising Data Between Your PDA and Computer................................23 Updating Firmware on Your Dualwave M.........................................................25 Installing New Software on Your PDA..............................................................27 Troubleshooting........................................................................................................28 Technical Support.................................................................................................31 Care & Maintenance................................................................................................32 Specifications..........................................................Error! Bookmark not defined. Introduction______________________________________________________________Dualwave M User Manual Wavenet Technology4 Introduction The Dualwave M is a wireless modem developed for Personal Digital Assistants (PDAs), such as the Palm™ m125/m500/m505. It enables access to worldwide DataTAC wireless networks in the USA, Canada, Malaysia, Singapore, Hong Kong, Taiwan and Australia. The Dualwave M is available in 2 customer configurations. A Public network version for the 806 – 821MHz band (25kHz channels) and a Private network version for the 821- 824MHz band (12.5kHz channels). These are not interchangeable. This technology offers the following unique benefits to the PDA u…

Text truncated - open the document above for the full version.

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 10 Attestation Statements FCC Part 15, Subpart B Class B Certificate of Conformity FCC Part 2 & 90 Statement of Compliance February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 Certificate of Compliance FCC ID: PQS-DWM0001 PRODUCT: PDA Wireless Modem attachment MODEL: Dualwave M MANUFACTURER: Wavenet Technology Pty Ltd We certify that the pertinent tests have been performed on the above-described equipment and that this equipment conforms to the applicable requirements of FCC Parts 2, 15 and 90. See Exhibit 2, Engineering Reports Jayanta (Jay) K. Sarkar Technical Director, Standards and Certification APREL Laboratories

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Table of Contents List of Exhibits Submitted E E X X H H I I B B I I T T 1 1 : : C C O O V V E E R R L L E E T T T T E E R R S S a) Application overview b) Equipment Identification c) Authorization Letter /Agent Designated (Jay Sarkar) d) Request for confidentiality Exhibit 2:Engineering Reports (Test Reports) a) ERP (2.1046) b) Radiated Spurious Emissions (2.1053) c) Bandwidth (2.1049) Modulation Characteristics (2.1047) d) Spurious Emissions at Antenna Terminal (2.1051) e) Frequency Stability (2.1055) Exhibit 3: Operational/Technical Description (Confidential) Exhibit 4: ID Label/Location Exhibit 5:External Photographs of the Equipment Internal Photographs of the equipment Exhibit 6:Block Diagram (Confidential) Exhibit 7: Schematic Diagram (Confidential) Exhibit 8:Parts List (Confidential), Tune–up Procedure Exhibit 9:User’s Manual Exhibit 10:a) Attestation Statement: FCC Part 15 Declaration of Conformance (DoC) certificate b) Attestation Statement: the equipment complies with Part 90 Exhibit 11:RF Exposure Information: SAR Report (Includes Test Set-up Photographs)

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 1 a) Application overview b) Equipment c) Authorization Letter /Agent Designated (Jay Sarkar) d) Request for confidentiality February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 EXHIBIT 1b Equipment Identification FCC ID: PQS-DWM0001 MANUFACTURER: Wavenet Technology Pty Ltd PRODUCT: Wireless Modem attachment for Palm m125/m250/m500/m505/PDA MODEL: DUALWAVE M EUT TYPE: Licensed Non-Broadcast Station Transmitter (TNB) TX Frequency: 806-821 MHz MEASURED ERP: 1.622 W

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 4 FCC ID Label/Location

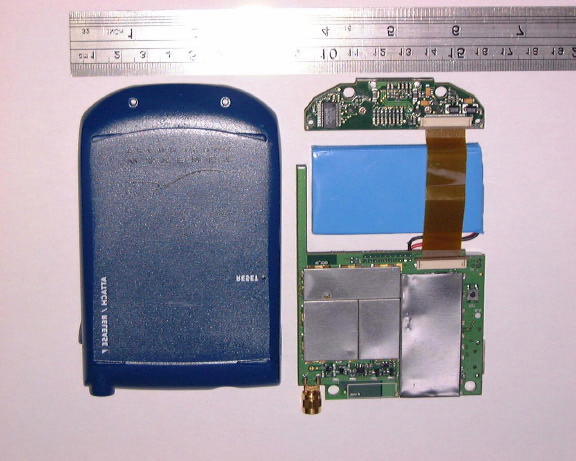

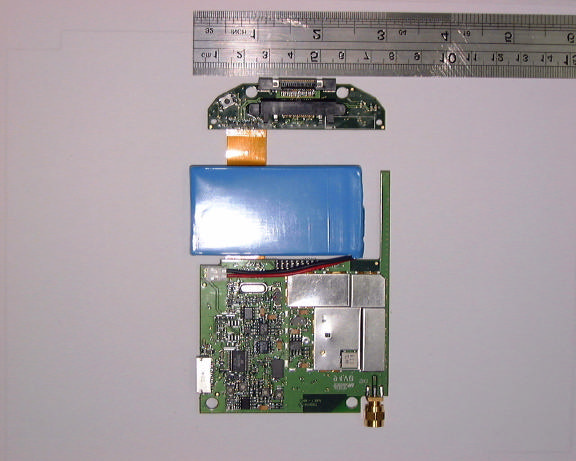

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 5 Photographs of the Equipment External Photos Internal Photos

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 11 RF Exposure Information SAR Report Certification Report on Specific Absorption Rate (SAR) Experimental Analysis Wavenet Technologies Pty Ltd. Wireless Modem DUALWAVE M Test Date: March 2002 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] This report shall not be reproduced, except in full, without the express written permission of APREL Laboratories WVTB-Dual Wave M Motient Cradle-3873 Dualwave M Page 2 of 31Project # WVT—Dual Wave M Motient Cradle-3873 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2000 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. FCC ID:PQS-DWM0001 Applicant:Wavenet Technologies Pty Ltd Equipment:PDA Wireless Modem Attachment for Palm-M Series Model:DUALWAVE-M Standard:FCC 96 –326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation ENGINEERING SUMMARY This report contains the results of the engineering evaluation performed on the DUALWAVE-M Attachment for the Palm-M series PDA. The measurements were carried out in accordance with FCC 96-326. The DUALWAVE-M was evaluated for its maximum power level 32.1 dBm / 1.622 W (ERP) with a 10 % duty cycle. The DUALWAVE-M modem is an attachment for a Palm-M series PDA. The device can also be attached to a desktop PC. The DUALWAVE-M was tested at low, middle and high channels for the keyboard up, keyboard down, and right sides for body, and hand, exposure while attached to the PDA and for bystander exposure while attached to a laptop. The maximum 10g SAR (0.55 W/kg) was found to coincide with the peak performance RF output power of channel 2000 (806 MHz) for the Keyboard Down of the device. (The hot spot is located near the base of the antenna). The maximum 1g SAR (1.1 W/kg) was found to coincide with the peak performance RF output power of channel 2000 (806 MHz) for the Keyboard Down of the device. (The hot spot is located near the base of the antenna). The conservative SAR was measured with no separation distance (zero mm) from the device to the phantom. Test data and graphs are presented in this report. The DUALWAVE-M was tested for bystander exposure while attached to a laptop PC with and without the PDA. It was found that the assessed delta produced a lower value SAR while the DUT was attached to the laptop. All tests conducted and documented in this report were performed while the DUT was used in wireless mode. Based on the test results and on how the device will be marketed and used, it is certified that the product meets the requirements as set forth in the above specifications, for the RF exposure environment. The results presented in this report relate only to the sample tested. Page 3 of 31Project # WVT—Dual Wave M Motient Cradle-3873 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2000 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. TABLE OF CONTENTS ENGINEERING SUMMARY.................................................................................................2 1.Introduction...................................................................................................................4 2.Applicable Documents................................................................................................4 3.Device Under Investigation........................................................................................5 4.Test Equipment............................................................................................................6 5.SET Up..........................................................................................................................7 6.Test Results...............................................................................................................14 6.1.Transmitter Characteristics......................................................................................14 6.2.SAR Measurements..................................................................................................15 6.3.User’s Hand Exposure..............................................................................................16 6.4.Body Exposure..........................................................................................................17 7.Conclusions................................................................................................................18 Appendix A: Graphic Plots For SAR Measurements................................................18 Validation Scan.....................................................................................................................18 Appendix B: Uncertainty Budget..................................................................................18 Appendix C Probe Calibration............................................................................................18 Abbreviated Record For Use in SAR Report...................................................................18 Page 4 of 31Project # WVT—Dual Wave M Motient Cradle-3873 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2000 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. 1. INTRODUCTION Tests were conducted to determine the Specific Absorption Rate (SAR) for a sample DWV-M. These tests were conducted at APREL Laboratories’ facility located at 51 Spectrum Way, Nepean, Ontario, Canada. A view of the SAR measurement setup can be seen in Appendix A Figure 1. This report describes the results obtained. 2. APPLICABLE DOCUMENTS The following documents are appli…

Text truncated - open the document above for the full version.

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 2a Engineering Report on ERP (2.1046) Assessment of Compliance for Measurement of Effective Radiated Power (ERP) in accordance with the FCC Rules & Regulations Part 2.1046 and 90 Wireless Modem DUALWAVE M Wavenet Technologies Pty Ltd. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] February 2002 APREL Project No.:WVTB-Dual Wave M-3861  February 2002 Page 3 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:PQS-DWM0001 Applicant:Wavenet Technologies Pty Ltd. Equipment:Wireless Modem attachment for Palm m125/m500/m505/PDA Model:DUALWAVE M Standard:FCC Rules and Regulations Part 2.1046 and 90 ENGINEERING SUMMARY This report contains the results of the effective radiated power (ERP) measurement performed on a Wavenet Wireless Modem attachment for Palm m125/m500/m505/or equivalent PDA, model DUALWAVE M.The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1046 and 90. The product was evaluated for ERP when it was set at the maximum power level. Wavenet DUALWAVE M was tested for ERP at high, middle, and low frequencies with the maximum ERP obtained at frequency 806.00 MHz. The test data is presented in this report under the section: Test Results. The measured ERP is 1.622 W. The PDA Wireless Modem is an attachment for a Palm and it can be attached to a PC. The DUALWAVE M was evaluated in three configurations: 1. PDA Wireless Modem attached to Palm, 2. Wireless Modem attached to Palm and connected to PC, 3. Wireless Modem only (Communicating with a PC). The highest values of ERP were obtained in configuration 1 (Palm and Wireless Modem attached together) placed in vertical position. (The results presented in this report relate only to the sample tested.)  February 2002 Page 4 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary RF Power Output as Radiated Ref. Paragraph 2.1046 and 9081Passed  February 2002 Page 5 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the effective radiated power (ERP) measurement conducted on a Wavenet Wireless Modem, model DUALWAVE M, and attachment for Palm m125/m500/m505/ PDA Test Facility The tests were performed for Wavenet Technologies Pty Ltd. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is: 90416 APREL is accredited by Standard Council of Canada. APREL is also accredited by Industry Canada and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1046 and the appropriate limits (90). Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. Temperature:25 °C ± 2- Relative Humidity:30 - 50 % Air Pressure:101 kPa ± 3 Personnel: The equipment was tested by Roman Kuleba, EMC Engineer and the report was written by Jay Sarkar, Technical Director, Standards and Certification.  February 2002 Page 6 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC SUBMISSION INFORMATION FCC ID:PQS-DWM0001 Equipment (type):Wireless Modem attachment for Palm m125/m500/m505/PDA As Marketed Model:DUALWAVE M For:Certification Applicant:Wavenet Technologies Pty Ltd. 140 Burswood Rd Burswood, Perth, WA 6100 AUSTRALIA Manufacturer: Wavenet Technologies Pty Ltd. 140 Burswood Rd Burswood, Perth, WA 6100 AUSTRALIA Evaluated by:APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6  February 2002 Page 7 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 MANUFACTURER’S DATA FCC ID No:PQS-DWM0001 Equipment Type:Wireless Modem attachment for Palm m125/m500/m505/PDA Model:DUALWAVE M Reference:FCC Rules and Regulations Parts 2 and Part 90 Manufacturer:Wavenet Technologies Pty Ltd Power Source: 3.6 (nominal) VDC, Lithium Battery Development Stage of Unit:Production GENERAL SPECIFICATIONS 1.Frequency Range:806.00 to 821.00 MHz (Transmitter) 2. Measured ERP1.622 W (32.1 dBm) 3.Emission Designators (See 47 CFR § 2.201 and §2.202):20K0F1D 4. Antenna Impedance:50   February 2002 Page 8 APREL Project No WVTB-Dual Wave M 3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Test:RF Power Output as Radiated (ERP) Ref.:FCC Part …

Text truncated - open the document above for the full version.

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 2b Engineering Report on Radiated Spurious Emissions (2.1053) Assessment of Compliance for Measurement of Field Strength of Spurious Radiation in accordance with the FCC Rules & Regulations Part 2.1053 and 90 Wireless Modem DUALWAVE M Wavenet Technologies Pty Ltd. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] February 2002 APREL Project No.:WVTB-Dual Wave M-3861 February 2002 Page 3 APREL Project No: WVTB-Dual Wave M-3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:PPQS-DWM0001 Applicant:Wavenet Technologies Pty Ltd. Equipment: Wireless Modem attachment for Palm m125/m500/m505/PDA Model:DUALWAVE M Standard:FCC Rules and Regulations Part 2.1053 and 90 ENGINEERING SUMMARY This report contains the results of Field Strength of Spurious Radiation measurement performed on a Wavenet Wireless Modem attachment for Palm m125/m500/m505 or equivalent PDA, model DUALWAVE M in accordance with the FCC Rules and Regulations Part 2.1053 and 90. The measurements were carried out using direct method and substitution method both as radiated. The product was evaluated for spurious radiation when it was set at the highest ERP. DUALWAVE M was tested with Palm m500. The Wireless Modem is an attachment for a Palm and it can be attached to a PC. The DUALWAVE M was evaluated in three configurations: 1. Wireless Modem attached to Palm m500 2. Wireless Modem attached to Palm m500 and connected to PC 3. Wireless Modem attached to a PC. The highest values of Spurious Emissions were obtained in configuration 1, Wireless Modem attached to Palm and placed in vertical position. As such, test data using both methods (direct and substitution) for only configuration 1 is presented. The test data for configurations 1, 2 and 3 are given using substitution method. The results presented in this report relate only to the sample tested. Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary Field Strength of Spurious Radiation Ref. Paragraph 2.1053 and 9081Passed February 2002 Page 4 APREL Project No: WVTB-Dual Wave M-3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the Field Strength of Spurious Radiation measurement conducted on a Wavenet Wireless Modem attachment for Palm m125/m500/m505/PDA, model DUALWAVE M. Test Facility The tests were performed for Wavenet Technologies Pty Ltd. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is 90416. APREL is accredited by Standard Council of Canada. APREL is also accredited by Industry Canada and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1053 and the appropriate limits (90). Personnel: The equipment was tested by Roman Kuleba, EMC Engineer, methodology developed and the report was written by Jayanta (Jay) K. Sarkar, Technical Director, Standards and Certification. Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. Temperature:24°C ± 2, February 2002 Page 5 APREL Project No: WVTB-Dual Wave M-3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Relative Humidity: 30 - 50 % , Air Pressure: 101 kPa ± 3. FCC SUBMISSION INFORMATION FCC ID:PPQS-DWM0001 Equipment type: Wireless Modem attachment for Palm m125/m500/m505/PDA Model:DUALWAVE M For:Certification Applicant:Wavenet Technologies Pty Ltd. 140 Burswood Rd Burswood, Perth, WA 6100 AUSTRALIA Manufacturer: Wavenet Technologies Pty Ltd. 140 Burswood Rd Burswood, Perth, WA 6100 AUSTRALIA Evaluated by:APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6 February 2002 Page 6 APREL Project No: WVTB-Dual Wave M-3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 MANUFACTURER’S DATA FCC ID:PPQS-DWM0001 Equipment Type: Wireless Modem attachment for Palm m125/m500/m505/PDA Model:DUALWAVE M Reference:FCC Rules and Regulations Parts 2 and Part 90 Manufacturer:Wavenet Technologies Pty Ltd Power Source: 3.6 (nominal) VDC Battery, Lithium-ion Development Stage of Unit: Production GENERAL SPECIFICATIONS 1.Frequency Range:806.00 to 821.00 MHz (Transmitter) 2. Output Power:1.622 W (32.1dBm) ERP 3.Emission Designators (See 47 CFR § 2.201 and §2.202):20K0F1D 4. Antenna Impedance:50 Ω February 2002 Page 7 APREL Project No: WVTB-Dual Wave M-3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Test:Field Strength of Spurious Radiation Ref:FCC Parts 2.1053 and 90.210 Criteria:Emission Mask G: The permitted maximum level of spurious emission is 43 + 10 log (P…

Text truncated - open the document above for the full version.

February 2002 APREL Project No.: WVTB-Dualwave-M-3861 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PQS-DWM0001 Exhibit 2c Engineering Report on Bandwidth (2.1049) Modulation Characteristics (2.1047) Assessment of Compliance for Measurement of Modulation Characteristic/ Occupied Bandwidth in accordance with the FCC Rules & Regulations Part 2.1047/49 and 90 Wireless Modem DUALWAVE M Wavenet Technologies Pty Ltd. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] February 2002 APREL Project No.:WVTB-Dual Wave M-3861  February 2002 Page 3 APREL Project No WVTB-Dual Wave M-3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Modulation Characteristics & Occupied Bandwidth COCOCONSULTING * Research * Training * Certification Testing Since 1981 FCC ID:PQS-DWM0001 Applicant:Wavenet Technologies Pty Ltd. Equipment:Wireless Modem for Palm m125/m500/m505/PDA Model:DUALWAVE M Standard:FCC Rules and Regulations Part 2.1047/49 and 90 ENGINEERING SUMMARY This report contains the results of the Occupied Bandwidth/Bandwidth Limitation measurement performed on a Wavenet PDA Wireless Modem for Palm m125/m500/m505 x model DUALWAVE M. The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1049. The product was evaluated for bandwidth when it was set at the maximum power level. The DUALWAVE M was tested with Palm m500. The Wireless Modem is an attachment for a Palm and it can be attached to a PC. However, the Bandwidth Limitation was carried out only on Wireless Modem attached to Palm m500, as bandwidth does not change due to different configurations. Modulation Characteristics (FCC Rule PART 2.1047): This test is not applicable, as the device is not capable of voice transmission. Limiting of Modulation: The Modulation levels are fixed for digital modulation levels only and are digitally generated. The Modulation deviation is set during manufacture to the standard RD LAP 19.2 kbps 4 level FSK modulation and MDC 4.8 kbps 2 level FSK. This format is digital non-voice data only, continuous frequency, continuous phase, and frequency shift keying, narrow band frequency modulation. The results presented in this report relate only to the sample tested. Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary Bandwidth/bandwidth Limitation Ref. Paragraph 2.1049 and 9081Passed  February 2002 Page 4 APREL Project No WVTB-Dual Wave M-3861 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Modulation Characteristics & Occupied Bandwidth COCOCONSULTING * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the occ…

Text truncated - open the document above for the full version.
