PQTDORM08315 MHz Keyfob Transmitter

ALL KEY FOBS MUST BE PRESENT AND REPROGRAMMED WHEN PROGRAMMING NEW FOBS 1. Close all doors 2. Insert key into ignition 3. Hold down the power UNLOCK button on the driver's door panel, continue to hold down until instructed to release in step 9. 4. Perform steps 5 through 8 in rapid succession. 5. Turn the ignition to the ON position (as far as you can go without starting the engine.) 6. Turn the ignition to the OFF position. 7. Turn the ignition to the ON position 8. Turn the ignition to the OFF position. 9. Release the power UNLOCK button on the door panel. Vehicle will cycle door locks if vehicle entered programming mode 10. Hold down the LOCK and UNLOCK buttons on the remote until the doors lock and unlock. This may take up to 30 seconds. 11. Repeat step 10 NOW for each additional remote. (Including any existing remotes). 12. Turn the ignition to the ON position to exit the programming mode. FCC WARNING Statement 15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Dorman Products Inc. could void the user’s authority to operate the equipment. IC WARNING The term IC before the Certification/Registration number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference including interference that may cause undesired operation of the device.

Dorman Products PQTDORM08 Block Diagram 3V Battery Microcontroller IC PCB Antenna 315MHz ASK Tx IC

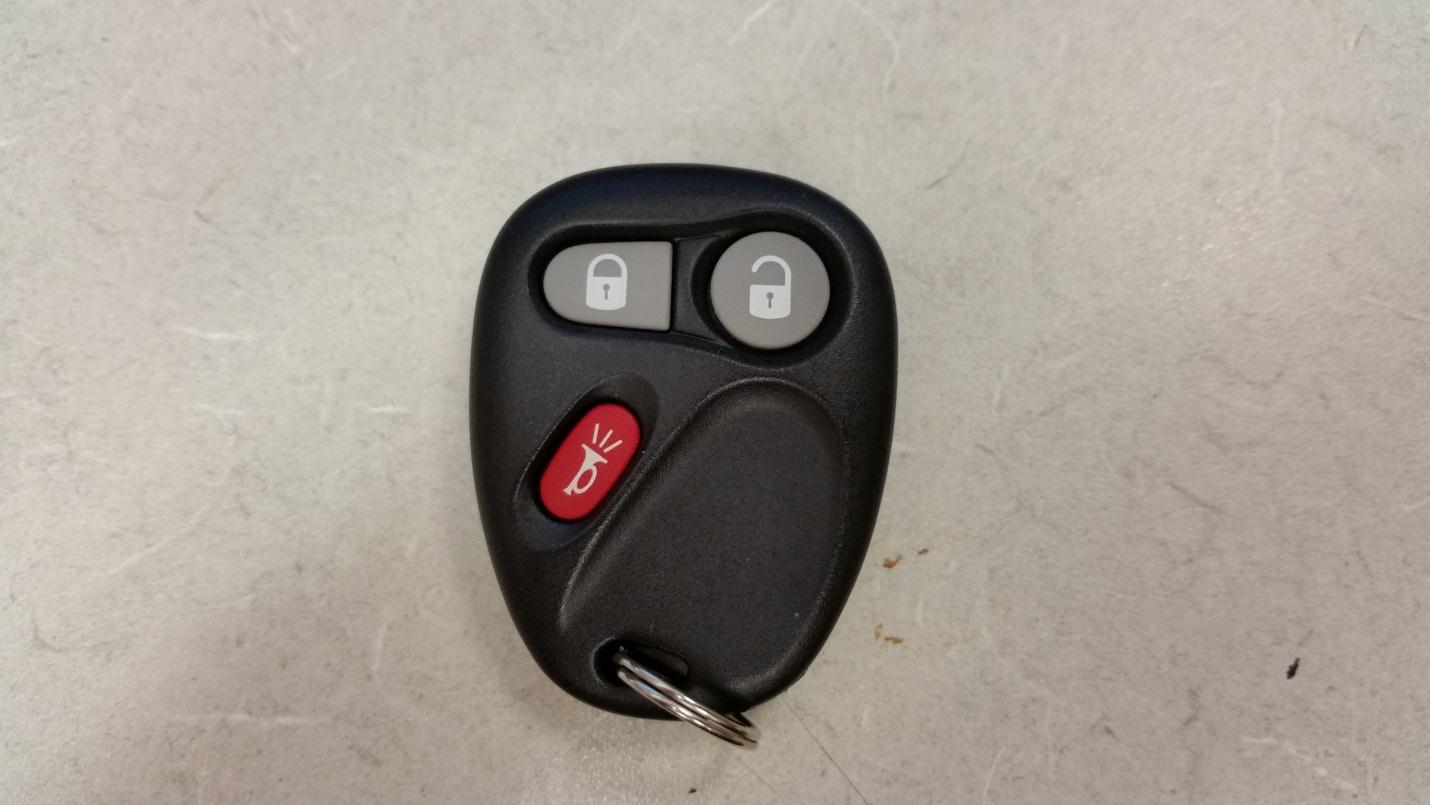

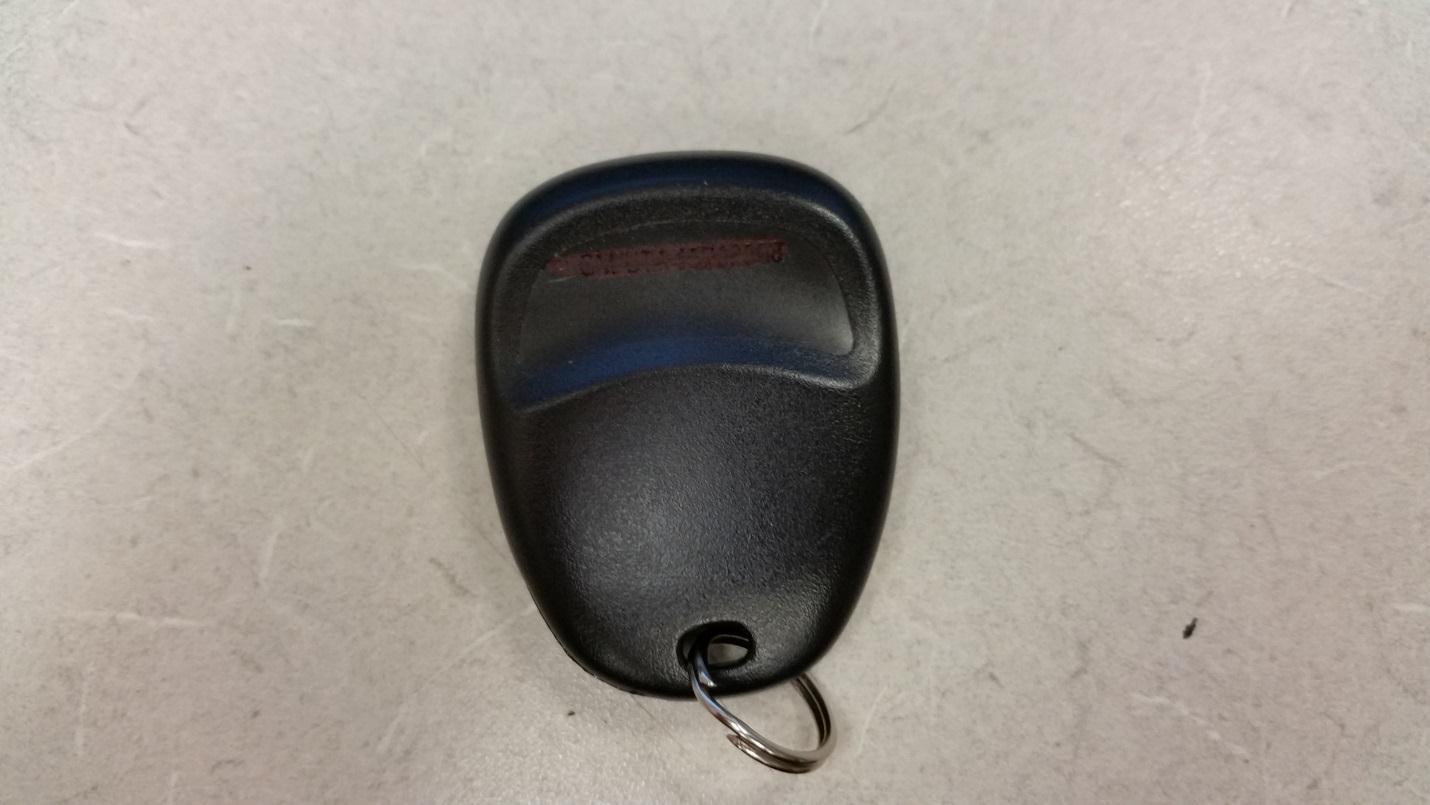

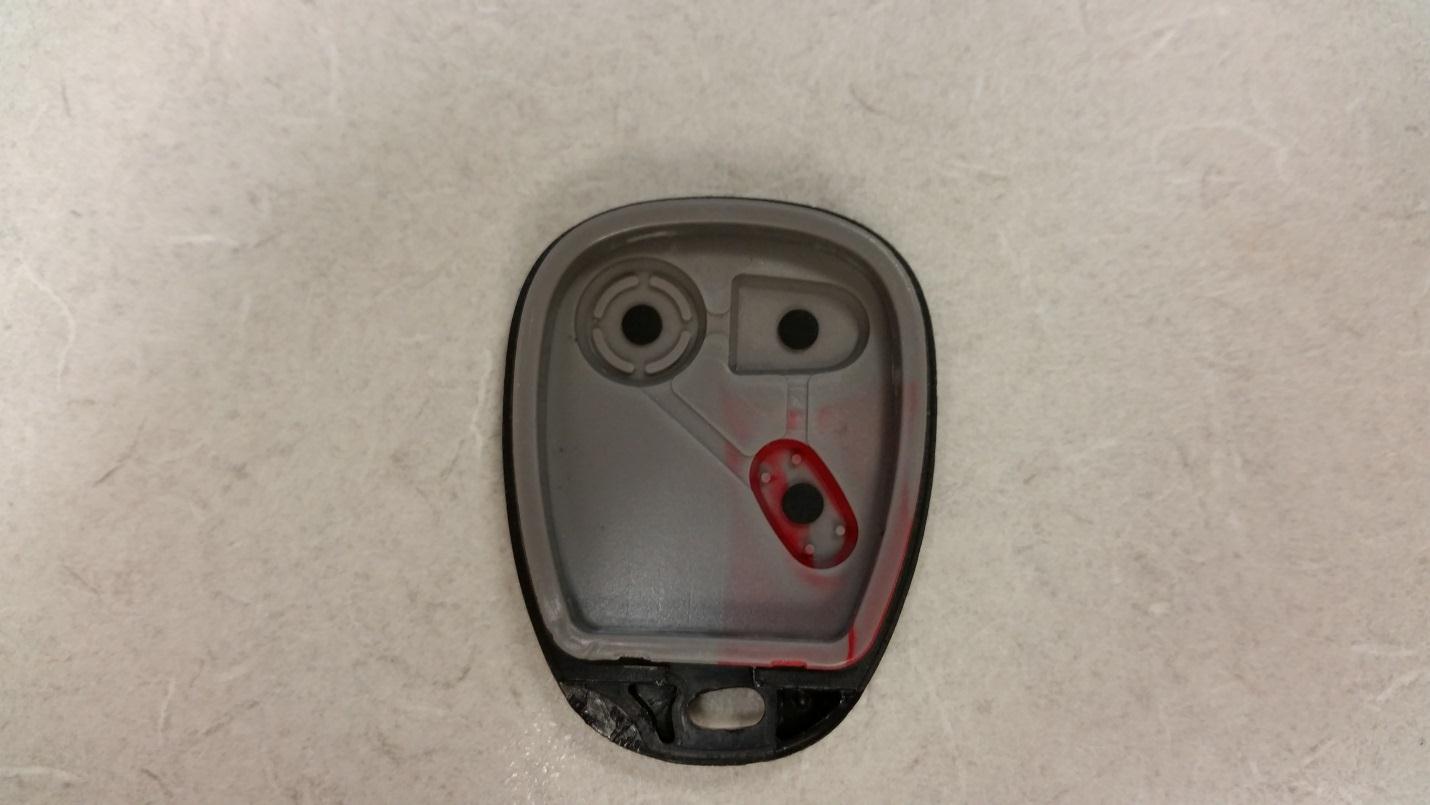

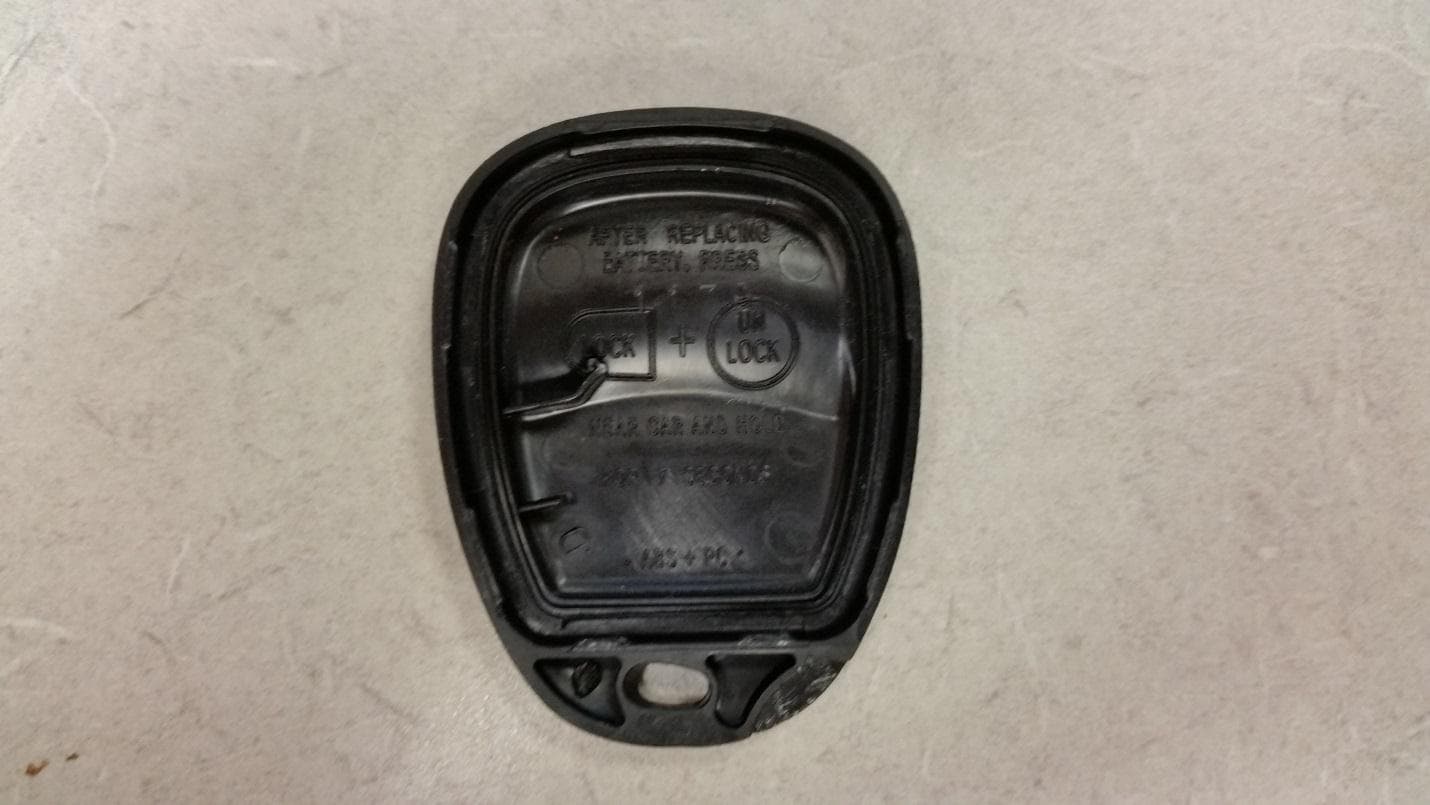

External Photo 13733 & 13734 Back External Photo 13733 & 13734 Front Inside of case 13733 & 13734 Back Inside of case 13733 & 13734 Front

Dorman Products PQT DORM08 Label will be molded permanently into plastic housing. Label Location

Dorman Products, Inc. FCC ID: PQTDORM08 IC: 10735A-DORM08 Label Sample The XX in the Model is representative of any of the following Models submitted on this application:  13733  13734 Dorman Products, Inc. Model: 137XX 961IN YYDDD FCC ID:PQTDORM08 IC: 10735A-DORM08

13733/13734 Internal Back 13733/13734 Internal Front

Operational Description: PQTDORM08 The keyfob assembly consists of a plastic case with 3 button cutouts, a rubber button panel, and a PCB and battery. It generates an on-off keyed, Manchester encoded signal that is transmitted at 315MHz. The keyfob uses an MCU IC that detects button presses and calculates and transmits an encoded signal to a receiver via an external software controlled transmitter IC. Neither IC uses an external resonator. The antenna is integrated into the PCB. The 2 keyfob models are electrically identical. The PCBs are exactly identical between each. The only difference between the two models is the software in the MCU. The software in model 13733 transmits a signal with a slightly lower maximum duty cycle and thus is able to transmit with a slightly higher output signal. Because of the higher maximum duty cycle in the 13734 software, its output power was adjusted to fit within allowable limits. The output power is set by the software for each model. MODEL DESCRIPTION Buttons 13734 KEYLESS ENTRY REMOTE 3 13733 KEYLESS ENTRY REMOTE 3

PQT DORM08 item qty Package Value Description MFG MFG Part Number references 11COIN_HLDR_CR2032 COIN CELL RETAINER BATT1 21SM0402 12pF CAP CER 12PF 50V 5% C0G 0402 MURATA GRM1555C1H120JZ01D C1 32SM0402 3.9pF CAP CER 3.9PF 50V NP0 0402 MURATA GJM1555C1H3R9CB01D C2,C3 41SM0402 0.001uF CAP CER 1000PF 50V 10% X7R 0402MURATA GCM155R71H102KA37D C4 51SM0402 2.2uF CAP CERAMIC 2.2UF 6.3V X5R 0402PANASONIC ECJ-0EB0J225M C5 61SM0402 68pF CAP CER 68PF 50V 5% NP0 0402 MURATA GRM1555C1H680JZ01D C6 71SM0402 0.22uH INDUCTOR 220NH 120MA 0402 MURATA LQG15HSR22J02D L1 84SM0402 49.9Kohms RES,SMT,0402,49.9K OHM VISHAY CRCW040249K9FKED R1,R2,R5,R6 91QFN-16_3x3mm IC MCU ARM 16KB FLASH 16QFN FREESCALE MKL02Z16VFG4 U1 101MSOP-10 IC TX 27-960MHZ FSK 3.6V 10MSOPSILABS SI4012-C1001GT U2
