PQTDORM44315 MHz Keyfob Transmitter

ALL KEY FOBS MUST BE PRESENT AND REPROGRAMMED WHEN PROGRAMMING NEW FOBS Programming Instructions: A new remote can be programmed to the vehicle when there is one existing remote already programmed. Have all new remote keys cut by a locksmith, hardware store or dealer before beginning programming. To program additional remotes, you should have all existing and new remotes present when programming. 1. With vehicle turned OFF, place all existing remotes in the cup holder. 2. Insert the mechanical key of the new remote into the driver’s door lock cylinder located on the outside of the driver door. (There could be a plastic cover over the lock. If so insert the mechanical key in the opening on the bottom of the cover and gently pry up removing cover from the lock cylinder). 3. Turn the key to the unlock position five times within ten seconds. The Driver Information Center (DIC) displays “Ready for Remote #2, 3, 4 or 5.” 4. Place the new remote into the remote learning pocket. (The remote learning pocket is located inside the center console storage area or under the cup holder. The cup holder will need to be pulled out to access the remote learning pocket). 5. Press the ignition start button. When the remote is learned, the DIC display will show that it is ready to program the next remote. 6. Remove the new remote from the remote learning pocket and press the unlock button. To program additional remotes, repeat Steps 4 through 6. When all additional remotes are programmed, press and hold the ignition start button for 30 seconds to exit the programming mode. FCC WARNING Statement 15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Dorman Products Inc. could void the user’s authority to operate the equipment. FCC Part 15.21: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. IC WARNING FVIN 6399395IC The term IC before the Certification/Registration number only signifies that the Industry Canada technical specifications were met. This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference Including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. Cet appareil est conforme aux RSSs exempts de licence d'Industrie Canada. Le fonctionnement est Suivant deux conditions: 1) Cet appareil ne doit pas causer d'interférences; Et(2) Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent Fonctionnement du dispositif

Date: 5/5/2020 To: Federal Communications Commission Authorization and Evaluation Division From: Joseph Braun, Senior Vice President, General Counsel Subject: Agent Authorization for certification of FCC ID: PQTDORM44 Dear Sir or Madam: Dorman Products hereby appoints Richard Reitz of Retlif Testing Laboratories to act as our agent in the matter of FCC filings for the certification of FCC ID: PQTDORM44 Dorman Products further attest that no party to the application is subject to denial of federal benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 USA 853(a). Sincerely, Joseph Braun Senior Vice President, General Counsel Dorman Products, Inc.

NEW PRODUCTS. NEW SOLUTIONS. NEW OPPORTUNITIES. 3400 East Walnut Street • Colmar, PA 18915-1800 • Customer Service: 1-800-523-2492 • Fax: 859-567-7010 Dear Sir or Madam: The application for FCC ID: PQTDORM44 will cover 2 unique part numbers. The only differences are in the plastic case containing the PCB. Each PCB is equipped with multiple solder pads to accommodate the variety of button configurations. MODEL DESCRIPTION Buttons 99121 KEYLESS ENTRY REMOTE 4 99122 KEYLESS ENTRY REMOTE 5 Sincerely, Joseph Braun Senior Vice President, General Counsel Dorman Products, Inc.

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: PQTDORM44 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Operational Description PQTDORM44 OpDes.pdf Schematic PQTDORM44 Schem.pdf Part List PQTDORM44 PartsLst.pdf Block Diagram PQTDORM44 BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name None None Sincerely, Joseph Braun Senior Vice President, General Counsel Dorman Products, Inc.

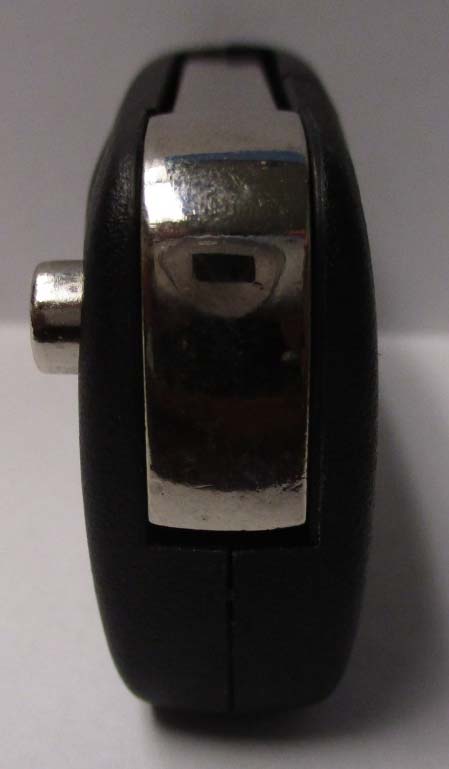

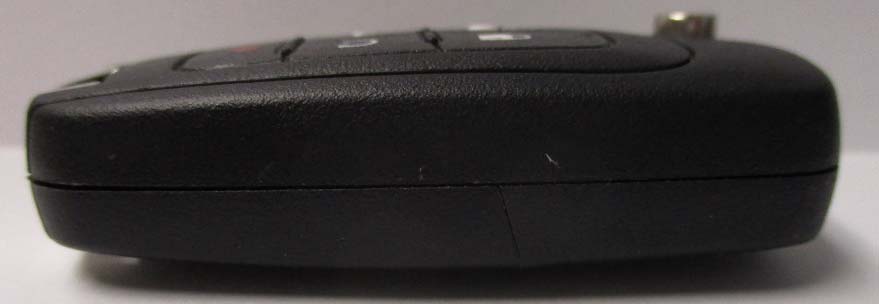

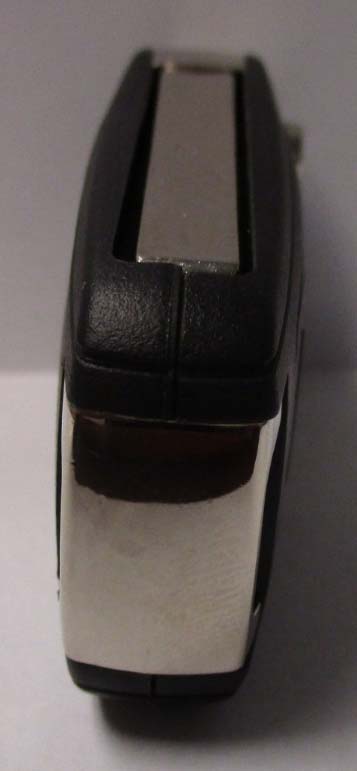

External Photos PQTDORM44 Front Rear Top Bottom External Photos PQTDORM44 Side 1 Side 2

Label Location PQTDORM44 Note: Label Location is identical on all models listed for PQTDORM44. Label text will be laser etched on to key fob.

DORMAN PRODUCTS Model: 99121 102817 YYDDD FCC ID: PQTDORM44 IC: 10735A-DORM44 BATT CR2032

Internal Photos PQTDORM44 Antenna

FCC Part 15, Subpart C, Section 15.231 Industry Canada, RSS-210 and RSS-GEN Test Report On 315 MHz Keyfob Transmitter FCC ID: PQTDORM44 IC: 10735A-DORM44 Customer Name: Dorman Products, Inc. Customer P.O: 4200008877 Date of Report: May 8, 2020 Test Report No: R-2991P Test Start Date: November 21, 2018 Test Finish Date: May 8, 2020 Test Technicians: D. Fiore, M. Nowak Lead Technician: A. Warwick Approved By: D. Rybicki Report Prepared By: P. Harris Our letters, procedures and reports are for the exclusive use of the customer to whom they are addressed and their communication or the use of the name of Retlif Testing Laboratories must receive our prior written approval. Our letters, procedures and reports apply only to the sample tested and are not necessarily indicative of the qualities of apparently identical or similar products. The letters, procedures and reports and the name of Retlif Testing Laboratories or insignia are not to be used under any circumstances in advertising to the general public. This test report shall not be reproduced, except in full, without the written approval of Retlif Testing Laboratories. Report No. R-2991P Page 2 of 33 Re tlif Te sting Laboratories R Table of Contents Certification and Signatures .................................................................................................. 3 Revision History .................................................................................................................... 4 Requirements and Test Results ............................................................................................ 8 General Requirements FCC and IC .................................................................................... 13 Open Area Test Site ........................................................................................................... 14 Equipment Lists .................................................................................................................. 15 Test Data ............................................................................................................................ 17 Report No. R-2991P Page 3 of 33 Re tlif Te sting Laboratories R Certification and Signatures We certify that this report is a true representation of the results obtained from the tests of the equipment stated. We further certify that the measurements shown in this report were made in accordance with the procedures indicated and vouch for the qualifications of all Retlif Testing Laboratories personnel taking them. Arik L. Warwick EMI Test Engineer David M. Rybicki Laboratory Supervisor Non-Warranty Provision The testing services have been performed, findings obtained and reports prepared in accordance with generally accepted laboratory principles and practices. This warranty is in lieu of all others, either expressed or implied. Non-Endorsement This test report contains only findings and results arrived at after employing the specific test procedures and standards listed herein. It is not intended to constitute a recommendation, endorsement or certification of the product or material tested. This report must not be used by the client to claim product endorsement by ANSI National Accreditation Board (ANAB). Report No. R-2991P Page 4 of 33 Re tlif Te sting Laboratories R Revision History Revisions to this document are listed below; the latest revised document supersedes all previous issues of this document. Revision Date Pages Affected - May 8, 2020 Original Release Report No. R-2991P Page 5 of 33 Re tlif Te sting Laboratories R Technical Information Report Number: R-2991P Customer: Dorman Products, Inc Address: 3400 East Walnut Street Colmar, PA 18915 Manufacturer: Dorman Products, Inc. Manufacturer Address: 3400 East Walnut Street Colmar, PA 18915 Test Sample: 315 MHz Keyfob Transmitter Model Numbers: 99121, 99122 FCC ID: PQTDORM44 IC: 10735A-DORM44 Type: Security / Remote Control Transmitter Power Requirements: 3 VDC Derived from a CR2032 Battery Frequency of Operation: 315 MHz Equipment Class: DSC Equipment Use: Portable < 2.5 cm Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.231 Radio Standards Specification, RSS-210, Issue 9, August, 2016 Test Procedure: ANSI C63.10:2013 RSS-GEN, Issue 5, April 2018 Test Site: ANSI C63.4:2014 Test Facility: Retlif Testing Laboratories 3131 Detwiler Road Harleysville, PA 19438 FCC Accreditation Designation Number: US2321 ISED Test Site Registration Number: 2047B Report No. R-2991P Page 6 of 33 Re tlif Te sting Laboratories R Tests Performed The test methods performed on the 315 MHz Keyfob Transmitter are shown below: FCC Part 15, Subpart C Industry Canada RSS-210 Industry Canada RSS-GEN Test Method Test Results 15.231(b) A1.1.2(1) N/A Field Strength of Emissions Complied 15.231(b)(2) A1.1.2(2) 4.5 Duty Cycle Determination Complied 15.231(b)(3) A1.1.2(3) N/A Field Strength of Spurious Emissions Complied 15.231(c) A1.1.3 N/A Bandwidth of Emission Complied All test methods listed above are included in Retlif Testing Laboratories ANSI National Accreditation Board (ANAB), ISO/IEC 17025 Scope of Accreditation. Report No. R-2991P Page 7 of 33 Re tlif Te sting Laboratories R General Test Requirements 1. The measurement procedures of ANSI C63.10:2013 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3) and IC RSS-GEN Section 4.1. 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC and IC, in accordance with FCC Section 15.31(d) and IC Section 4.2. 3. The level of the fundamental field strength was recorded with a new battery installed in the EUT, in accordance with FCC Section 15.231(e) and IC Section 4.3(e). 4. All measurements were performed at the specified 3 meter test distance as required by FCC Section 15.31(f) and IC Section 7.25. 5. The EUT was rotated throughout 360 degrees for all radiated emissions measurements as specified in FCC Section 15.31(f)(5) and IC …

Text truncated - open the document above for the full version.

Page 1 of 11 Dorman Products, Inc. Test Setup Photographs FCC ID: PQTDORM44 IC: 10735A-DORM44 Page 2 of 11 Field Strength of Emissions Test Setup Photographs Test Setup, X Axis, Below 1 GHz Test Setup, X Axis, Above 1 GHz Page 3 of 11 Field Strength of Emissions Test Setup Photographs Test Setup, Y Axis, Below 1 GHz Test Setup, Y Axis, Above 1 GHz Page 4 of 11 Field Strength of Emissions Test Setup Photographs Test Setup, Z Axis, Below 1 GHz Test Setup, Z Axis, Above 1 GHz Page 5 of 11 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Below 1 GHz Vertical Antenna Polarization, Below 1 GHz Page 6 of 11 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Above 1 GHz Vertical Antenna Polarization, Above 1 GHz Page 7 of 11 Field Strength of Spurious Emissions Test Setup Photographs EUT Configuration Page 8 of 11 Field Strength of Spurious Emissions Test Setup Photographs Horizontal Antenna Polarization, 30 to 200 MHz Vertical Antenna Polarization, 30 to 200 MHz Page 9 of 11 Field Strength of Spurious Emissions Test Setup Photographs Horizontal Antenna Polarization, 200 MHz to 1 GHz Vertical Antenna Polarization, 200 MHz to 1 GHz Page 10 of 11 Duty Cycle Determination Test Setup Photograph Test Setup Page 11 of 11 Occupied Bandwidth of Emissions Test Setup Photograph Test Setup, 20dB Test Setup, 99%
