PQTDORM48315 MHz Keyfob Transmitter

PROGRAMMING ADDITIONAL REMOTES REQUIRE AT LEAST ALREADY PROGRAMMED REMOTE Programming Instructions: 1) Ensure the vehicle is off and not running. 2) Have both the old and new remote available. 3) Insert the key into the lock found outside on the drivers outer door. 4) Turn the key to the unlock position five times within 5 seconds. 5) The (DIC) Driver Information Center displays Ready to Learn Electronic key #2,#3 or #4. 6) Place the new remote into the transmitter pocket with the buttons facing the front of the vehicle. (The transmitter pocket is inside the center console between the driver and front passenger seats). 7) A beep sounds once the remote is programmed. The DIC displays ready to learn electronic key #3 or 4 or maximum # electronic keys learned. 8) Press the ignition control knob to exit the programming mode. 9) Remove the remote from the transmitter pocket and press unlock to the remote two times. 10) To program any additional remotes, repeat steps 6 through 9. FCC WARNING Statement 15.19(a)(3): This device complies with Part 15 of t he FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Dorman Products Inc. could void the user’s authority to operate the equipment. IC WARNING FVIN 6313743IC This device contains licence-except transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: 1) This device may not cause interference. 2) This device must accept any interference, inclduing interference that may cause undesired operation of the device. Cet appareil contient des émetteurs / récepteurs sans licence qui sont conformes aux RSS exempts de licence d'Innovation, Sciences et Développement économique Canada. Son fonctionnement est soumis aux deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d'interférences. 2) Cet appareil doit accepter toute interférence, y compris les interférences pouvant entraîner un fonctionnement indésirable de l'appareil.

Date: 5/19/2020 To: Federal Communications Commission Authorization and Evaluation Division From: Joseph Braun, Senior Vice President, General Counsel Subject: Agent Authorization for certification of FCC ID: PQTDORM48 Dear Sir or Madam: Dorman Products hereby appoints Richard Reitz of Retlif Testing Laboratories to act as our agent in the matter of FCC filings for the certification of FCC ID: PQTDORM48 Dorman Products further attest that no party to the application is subject to denial of federal benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 USA 853(a). Sincerely, Joseph Braun Senior Vice President, General Counsel Dorman Products, Inc.

NEW PRODUCTS. NEW SOLUTIONS. NEW OPPORTUNITIES. 3400 East Walnut Street • Colmar, PA 18915-1800 • Customer Service: 1-800-523-2492 • Fax: 859-567-7010 Dear Sir or Madam: The application for FCC ID: PQTDORM48 will cover 3 unique part numbers. The only differences are in the plastic case containing the PCB. Each PCB is equipped with multiple solder pads to accommodate the variety of button configurations. MODEL DESCRIPTION Buttons 13743 KEYLESS ENTRY REMOTE 4 13744 KEYLESS ENTRY REMOTE 3 99484 KEYLESS ENTRY REMOTE 4 Sincerely, Joseph Braun Senior Vice President, General Counsel Dorman Products, Inc.

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of IC: PQTDORM48 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Operational Description Schematic Part List Block Diagram File Name PQTDORM48 OpDes.pdf PQTDORM48 Schem.pdf PQTDORM48 PartsLst.pdf PQTDORM48 BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name None None Sincerely, Joseph Braun Senior Vice President, General Counsel Dorman Products, Inc.

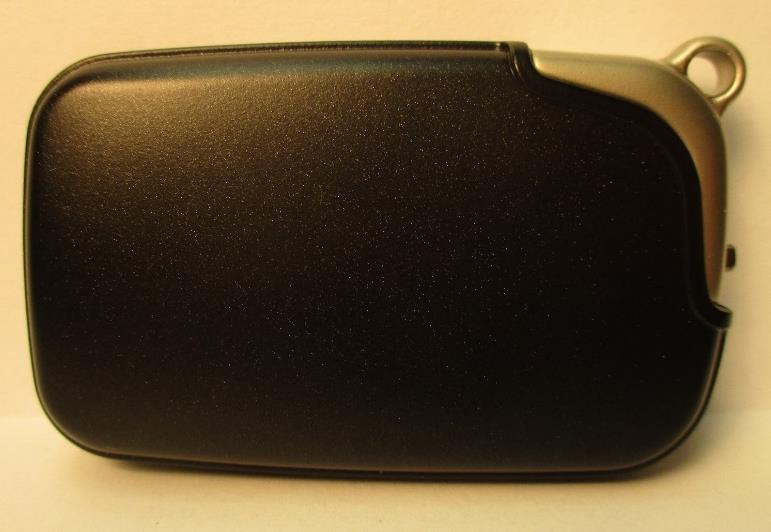

External Photos PQTDORM48 Front Rear Top Bottom External Photos PQTDORM48 Side 1 Side 2

Label Location PQTDORM48 Note: Label Location is identical on all models listed for PQTDORM48. Label text will be laser etched on to key fob.

DORMAN PRODUCTS Model: 13743 12817 YYDDD FCC ID: PQTDORM48 IC: 10735A-DORM48 BATT CR1632 Please note: Label text will be laser etched on to the key fob

Internal Photos PQTDORM48 Antenna

FCC Part 15, Subpart C, Section 15.231 Industry Canada, RSS-210 and RSS-GEN Test Report On 315 MHz Keyfob Transmitter FCC ID: PQTDORM48 IC: 10735A-DORM48 Customer Name: Dorman Products, Inc. Customer P.O: 4200010109 Date of Report: May 22, 2020 Test Report No: R-3086P Test Start Date: May 21, 2019 Test Finish Date: May 20, 2019 Test Technician: M. Nowak Test Engineer: A. Warwick Approved By: D. Rybicki Report Prepared By: P. Harris Our letters, procedures and reports are for the exclusive use of the customer to whom they are addressed and their communication or the use of the name of Retlif Testing Laboratories must receive our prior written approval. Our letters, procedures and reports apply only to the sample tested and are not necessarily indicative of the qualities of apparently identical or similar products. The letters, procedures and reports and the name of Retlif Testing Laboratories or insignia are not to be used under any circumstances in advertising to the general public. This test report shall not be reproduced, except in full, without the written approval of Retlif Testing Laboratories. Report No. R-3086P Page 2 of 35 Re tlif Te sting Laboratories R Table of Contents Certification and Signatures .................................................................................................. 3 Revision History .................................................................................................................... 4 Requirements and Test Results ............................................................................................ 8 General Requirements FCC and IC .................................................................................... 13 Open Area Test Site ........................................................................................................... 14 Equipment Lists .................................................................................................................. 15 Test Data ............................................................................................................................ 17 Report No. R-3086P Page 3 of 35 Re tlif Te sting Laboratories R Certification and Signatures We certify that this report is a true representation of the results obtained from the tests of the equipment stated. We further certify that the measurements shown in this report were made in accordance with the procedures indicated and vouch for the qualifications of all Retlif Testing Laboratories personnel taking them. Arik L. Warwick Test Engineer David M. Rybicki Laboratory Supervisor Non-Warranty Provision The testing services have been performed, findings obtained and reports prepared in accordance with generally accepted laboratory principles and practices. This warranty is in lieu of all others, either expressed or implied. Non-Endorsement This test report contains only findings and results arrived at after employing the specific test procedures and standards listed herein. It is not intended to constitute a recommendation, endorsement or certification of the product or material tested. This report must not be used by the client to claim product endorsement by ANSI National Accreditation Board (ANAB). Report No. R-3086P Page 4 of 35 Re tlif Te sting Laboratories R Revision History Revisions to this document are listed below; the latest revised document supersedes all previous issues of this document. Revision Date Pages Affected - May 22, 2020 Original Release Report No. R-3086P Page 5 of 35 Re tlif Te sting Laboratories R Technical Information Report Number: R-3086P Customer: Dorman Products, Inc. Address: 3400 East Walnut Street Colmar, PA 18915 Manufacturer: Dorman Products, Inc. Manufacturer Address: 3400 East Walnut Street Colmar, PA 18915 Test Sample: 315 MHz Keyfob Transmitter Model Numbers: 13743, 13744, 99484 FCC ID: PQTDORM48 IC: 10735A-DORM48 Type: Security / Remote Control Transmitter Power Requirements: 3 VDC Derived from a CR2032 Battery Frequency of Operation: 315 MHz Equipment Class: DSC Equipment Use: Portable < 2.5 cm Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.231 Radio Standards Specification, RSS-210, Issue 9, August, 2016 Test Procedure: ANSI C63.10:2013 RSS-GEN, Issue 5, April 2018 Test Site: ANSI C63.4:2014 Test Facility: Retlif Testing Laboratories 3131 Detwiler Road Harleysville, PA 19438 FCC Accreditation Designation Number: US2321 ISED Test Site Registration Number: 2047B Report No. R-3086P Page 6 of 35 Re tlif Te sting Laboratories R Tests Performed The test methods performed on the 315 MHz Keyfob Transmitter are shown below: FCC Part 15, Subpart C Industry Canada RSS-210 Industry Canada RSS-GEN Test Method Test Results 15.231(b) A1.1.2(1) N/A Field Strength of Emissions Complied 15.231(b)(2) A1.1.2(2) 4.5 Duty Cycle Determination Complied 15.231(b)(3) A1.1.2(3) N/A Field Strength of Spurious Emissions Complied 15.231(c) A1.1.3 N/A Bandwidth of Emission Complied All test methods listed above are included in Retlif Testing Laboratories ANSI National Accreditation Board (ANAB), ISO/IEC 17025 Scope of Accreditation. Report No. R-3086P Page 7 of 35 Re tlif Te sting Laboratories R General Test Requirements 1. The measurement procedures of ANSI C63.10:2013 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3) and IC RSS-GEN Section 4.1. 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC and IC, in accordance with FCC Section 15.31(d) and IC Section 4.2. 3. The level of the fundamental field strength was recorded with a new battery installed in the EUT, in accordance with FCC Section 15.231(e) and IC Section 4.3(e). 4. All measurements were performed at the specified 3 meter test distance as required by FCC Section 15.31(f) and IC Section 7.25. 5. The EUT was rotated throughout 360 degrees for all radiated emissions measurements as specified in FCC Section 15.31(f)(5) and IC Section 4.3…

Text truncated - open the document above for the full version.

Page 1 of 8 Dorman Products, Inc. Test Setup Photographs FCC ID: PQTDORM48 IC: 10735A-DORM48 Page 2 of 8 Field Strength of Emissions Test Setup Photographs Test Setup, X Axis, Below 1 GHz Test Setup, X Axis, Above 1 GHz Page 3 of 8 Field Strength of Emissions Test Setup Photographs Test Setup, Y Axis, Below 1 GHz Test Setup, Y Axis, Above 1 GHz Page 4 of 8 Field Strength of Emissions Test Setup Photographs Test Setup, Z Axis, Below 1 GHz Test Setup, Z Axis, Above 1 GHz Page 5 of 8 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Below 1 GHz Vertical Antenna Polarization, Below 1 GHz Page 6 of 8 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Above 1 GHz Vertical Antenna Polarization, Above 1 GHz Page 7 of 8 Duty Cycle Determination Test Setup Photograph Test Setup Page 8 of 8 Occupied Bandwidth of Emissions Test Setup Photograph Test Setup, 20dB Test Setup, 99%
