PQTDORM15315 MHz Keyfob Transmitter

ALL KEY FOBS MUST BE PRESENT AND REPROGRAMMED WHEN PROGRAMMING NEW FOBS Programming Instructions: 1) Close driver’s door. 2) Insert a programmed key fob into the key slot to the left of the steering wheel on dash. 3) Insert Programmer into OBD connector DLC port (- located under steering column, near pedals). 4) A Buzzer sounds for 1 second Indicating ready state for learning 5) Without the brake depressed press the push to start button on dash. 6) Programmer will beep twice. 7) Without the brake depressed press the push to start button on dash. 8) Programmer will beep once. 9) Without the brake depressed press the push to start button on dash. 10) Programmer will beep twice. 11) Without the brake depressed press the push to start button on dash. 12) Remove key fob from key slot. 13) Without the brake depressed press the push to start button on dash. 14) Key Icon on dash will flash rapidly, once it stops push the start button without the brake depressed. 15) Insert the second key fob into the key slot 16) Without the brake depressed press the push to start button on dash. 17) Key Icon on dash will flash rapidly, once it stops push the start button without the brake depressed. 18) Repeat steps 15 through 17 for any additional key fobs 19) When last key fob is programmed with the ignition OFF, remove and reinsert the key fob, then open and close the driver’s door. 20) Start the vehicle by depressing the brake and pressing the push to start button. FCC WARNING Statement 15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Dorman Products Inc. could void the user’s authority to operate the equipment. IC WARNING ALL KEY FOBS MUST BE PRESENT AND REPROGRAMMED WHEN PROGRAMMING NEW FOBS The term IC before the Certification/Registration number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

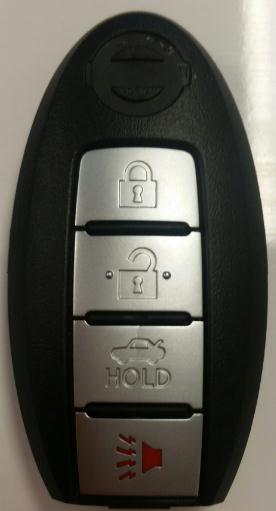

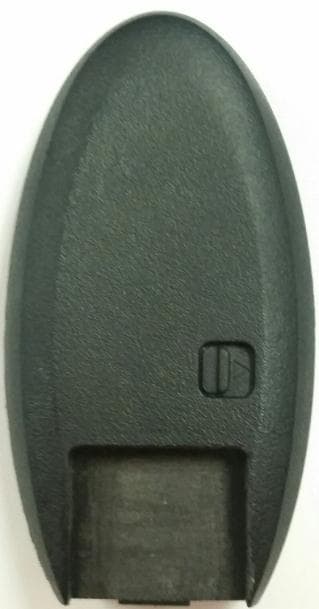

ExternalPhoto 99159 Back External Photo 99159 Front

99159 PCB Front 99159 PCB Back 99159 Inside casing

Operational Description: PQTDORM15 The keyfob assembly consists of a plastic case with 4 button cutouts, a rubber button panel, and a PCB and battery. It generates an FSK encoded signal that is transmitted at 315MHz. The keyfob uses an integrated RF MCU that detects button presses and calculates and transmits an encoded signal to a receiver. This signal is generated by an internal software controlled transmitter inside the MCU. It contains no external resonator. The antenna is integrated into the PCB. MODEL DESCRIPTION Buttons 99159 KEYLESS ENTRY REMOTE 4

ItemDesignatorDescriptionPackage Type Quanti ty Manufacturer Manufacturer P/N S1 buttonbutton S5.2*5.2*1.651TP-11552SA S2 S3 S4 buttonbutton S4.2*3.2*2.43SKPPADE010 batterybutton battery CR20321 SmaerPower CR2032 R18 inductorhigh frequency inductors/39NH/0603/±5% 06031 TDKMLG1608B39NJT L1inductorhigh frequency inductors/82NH/0603/±5%06031TDKMLG1608B82NJT LF1 LF2inductorsingle axis transponder inductors/2.38mhTPL11534222NEWICK0011001 LF3inductorsingle axis transponder inductors/2.38mhL12241NEWICUC1224Z232 BATT-Electrode negativeElectrode negativeHDCP-6*8.81HDCP688 C12 C13 C14capacitor100NF/0603/16V/X7R/±10%06033SAMSUNGCL10B104KO8NNN C16capacitor11PF/0603/50V/COG/±5%06031SAMSUNGCL10C110JB8NNN C15capacitor22NF/0603/25V/X7R/±10%06031SAMSUNGCL10B223KA8NNN C17capacitor22PF/0603/50V/COG/±5%06031SAMSUNGCL10C220JB8NNN C20capacitor220PF/0603/50V/COG/±5%06031SAMSUNGCL10C221JB8NNN C21capacitor22PF/0603/50V/COG/±5%06031SAMSUNGCL10C220JB8NNN C18 C22capacitor33PF/0603/50V/COG/±5%06032SAMSUNGCL10C330JB8NNN C10 C11capacitor470PF/0603/50V/COG/±5%06032SAMSUNGCL10C471JB8NNN C6capacitor3.3PF/0603/50V/COG/±0.25PF06031SAMSUNGCL10C3R3DB8NNN C19capacitor5PF/0603/50V/COG/±0.25PF06031SAMSUNGCL10C050CB8NNN C7 C8 C9capacitor680PF/0603/50V/COG/±5%06031SAMSUNGCL10C681JB8NNN R19resistor0 OHM/0603/±5%06031YAGEORC0603JR-070RL R15 R17resistor100K/0603/±5%06032YAGEORC0603JR-07100KL R5 R6 R7 R14 R16resistor10K/0603/±6%06035YAGEORC0603JR-0710KL R12 R13resistor27K/0603/±7%06032YAGEORC0603JR-0727KL R8 R9resistor39K/0603/±8%06032YAGEORC0603JR-0739KL R10 R11resistor4.7K/0603/±9%06032YAGEORC0603JR-074K7L Y1crystal crystal/9.84375MhzSMD5.0*3.21合迅CH353-9.84375MHz U2ICASK/FSK Transmitter 315 MHzTSSOP-161infineonTDK5101 U1ICmicrocontrollerTSSOP-241NXPPCF7952ATT PCB24.8*57.0*1.2（mm）1QN-RF402X-67-Ver1.0

Report No. R-2348P Page 2 of 23 Retlif Testing Laboratories R Technical Information Report Number: R-2348P Customer: Dorman Products, Inc. Address: 3400 East Walnut Street Colmar, PA 18915 Manufacturer: Dorman Products, Inc. Manufacturer Address: 3400 East Walnut Street Colmar, PA 18915 Test Sample: 315 MHz Keyfob Transmitter Model Numbers: 99159 FCC ID: PQTDORM15 IC: 10735A-DORM15 Type: Security / Remote Control Transmitter Power Requirements: 3 VDC Derived from a CR2032 Battery Frequency of Operation: 315 MHz Equipment Class: DSC Equipment Use: Portable < 2.5 cm Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.231 Radio Standards Specification, RSS-210, Issue 8, June, 2010 Test Procedure: ANSI C63.4:2009 RSS-GEN, Issue 4, November 2014 Test Facility: Retlif Testing Laboratories 3131 Detwiler Road Harleysville, PA 19438 FCC Registered Test Site Number: 98314 Report No. R-2348P Page 3 of 23 Retlif Testing Laboratories R Tests Performed The test methods performed on the 315 MHz Keyfob Transmitter are shown below: FCC Part 15, Subpart C Industry Canada RSS-210 Industry Canada RSS-GEN Test Method 15.231(b) A1.1.2(1) N/A Field Strength of Emissions 15.231(b)(2) A1.1.2(2) 4.5 Duty Cycle Determination 15.231(b)(3) A1.1.2(3) N/A Field Strength of Spurious Emissions 15.231(c) A1.1.3 N/A Bandwidth of Emission General Test Requirements 1. The measurement procedures of ANSI C63.4:2009 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3) and IC RSS-GEN Section 4.1. 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC and IC, in accordance with FCC Section 15.31(d) and IC Section 4.2. 3. The level of the fundamental field strength was recorded with a new battery installed in the EUT, in accordance with FCC Section 15.231(e) and IC Section 4.3(e). 4. All measurements were performed at the specified 3 meter test distance as required by FCC Section 15.31(f) and IC Section 7.25. 5. The EUT was rotated throughout 360 degrees for all radiated emissions measurements as specified in FCC Section 15.31(f)(5) and IC Section 4.3(h). 6. All readily accessible EUT controls were adjusted in such a manner as to maximize the level of emissions in accordance with FCC Section 15.31(g) and IC Section 4.3(h). 7. Appropriate accessories were attached to all EUT ports during the performance of radiated emissions measurements as required by FCC Section 15.31(i) and IC Section 4.3(d). 8. The EUT operated at a discrete frequency of 315 MHz. 9. The frequency spectrum was investigated from the lowest frequency generated in the device up to the 10 th harmonic of the highest fundamental frequency in accordance with FCC Section 15.33(a)(1) and IC Section 4.9. 10. All measurements were taken with a peak detector function as specified in FCC Section 15.35(a) and IC Section 4.4. The duty cycle, calculated in accordance with FCC Section 15.35(c) and IC Section 4.5, was applied to the peak readings in order to obtain the average value of emissions. The peak value of emissions was verified to meet the 20 dB requirement of FCC Section 15.35(b) and IC Section 7.2.1. Report No. R-2348P Page 5 of 23 Retlif Testing Laboratories R Requirements and Test Results Requirement: FCC Section 15.231(a) - Periodic operation in the band 40.66 - 40.7 MHz and above 70 MHz The provisions of this Section are restricted to periodic operation within the band 40.66-40.7 MHz and above 70 MHz. Except as shown in Paragraph (e) of this Section, the intentional radiator is restricted to the transmissions of a control signal such as those used with alarm systems, door openers, remote switches, etc. Continuous transmissions, voice, video and the radio control of toys are not permitted. Data is permitted to be sent with a control signal. IC RSS-210, A1.1 - Momentarily Operated Devices The frequency bands and field strength limits in Tables 4 and 5 are only for the transmission of a control signal such as that used with alarm systems, door openers, remote switches, etc. Radio control of toys or model aircrafts, and continuous transmissions such as voice or video are not permitted except as provided in A1.1.5. Data is permitted to be sent with a control signal.  Results: The device was operated at a frequency of 315 MHz and is for the transmission of a control signal used for remote keyless vehicle entry. Requirement: FCC Sections 15.231(a)(1)-(5) Periodic operation in the band 40.66 - 40.7 MHz and above 70 MHz The following conditions were met in order to comply with the provisions for momentary operation: IC RSS-210, A1.1.1(a)-(d) - Types of Momentary Signals The following conditions were met in order to comply with the provisions for momentary operation: FCC 15.231(a)(1): A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. IC A1.1.1(a): A manually operated transmitter shall employ a push-to-operate switch and be under manual control at all transmission times. When released, the transmitter shall cease transmission (holdover time of up to 5 seconds of operation).  Results: The device is a manually operated, push to operate transmitter under manual control. The device ceased transmission within 5 seconds of deactivation. Report No. R-2348P Page 6 of 23 Retlif Testing Laboratories R Requirements and Test Results (con’t) FCC 15.231(a)(2): A transmitter activated automatically shall cease transmission within 5 seconds after activation. IC A1.1.1(b): A transmitter activated automatically shall cease transmission with 5 seconds after activation, (i.e. maximum 5 seconds of operation).  Results: Transmission is not automatically activated. FCC 15.231(a)(3): Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmissions, including data, to determine system integrity of transmitters used in security or safety ap…

Text truncated - open the document above for the full version.

Page 1 of 8 Dorman Products, Inc. Test Setup Photographs FCC ID: PQTDORM15 IC: 10735A-DORM15 Page 2 of 8 Field Strength of Emissions Test Setup Photographs Test Setup, X Axis Test Setup, Y Axis Page 3 of 8 Field Strength of Emissions Test Setup Photographs Test Setup, Z Axis Page 4 of 8 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Below 1 GHz Vertical Antenna Polarization, Below 1 GHz Page 5 of 8 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Above 1 GHz Vertical Antenna Polarization, Above 1 GHz Page 6 of 8 Field Strength of Spurious Emissions Test Setup Photographs EUT Test Setup Horizontal Antenna Polarization Page 7 of 8 Field Strength of Spurious Emissions Test Setup Photographs Vertical Antenna Polarization Page 8 of 8 Duty Cycle Determination and Bandwidth of Emissions Test Setup Photographs Test Setup
